Microcontrollers
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Package/Case | Series | Packaging | Product Status | Programmable | Core Processor | Core Size | Speed | Connectivity | Peripherals | Number of I/O | Program Memory Size | Program Memory Type | EEPROM Size | RAM Size | Voltage - Supply (Vcc/Vdd) | Data Converters | Oscillator Type | Operating Temperature | Grade | Qualification | Mounting Type | Supplier Device Package | Supplier Device Package |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
MC9S12DP512CPVERIC MCU 16BIT 512KB FLASH 112LQFP |
996 |
|
Datasheet |
112-LQFP | HCS12 | Tape & Reel (TR) | Active | Verified | HCS12 | 16-Bit | 25MHz | CANbus, I2C, SCI, SPI | PWM, WDT | 91 | 512KB (512K x 8) | FLASH | 4K x 8 | 12K x 8 | 2.35V ~ 5.25V | A/D 16x10b | Internal | -40°C ~ 85°C (TA) | - | - | Surface Mount | ||
|

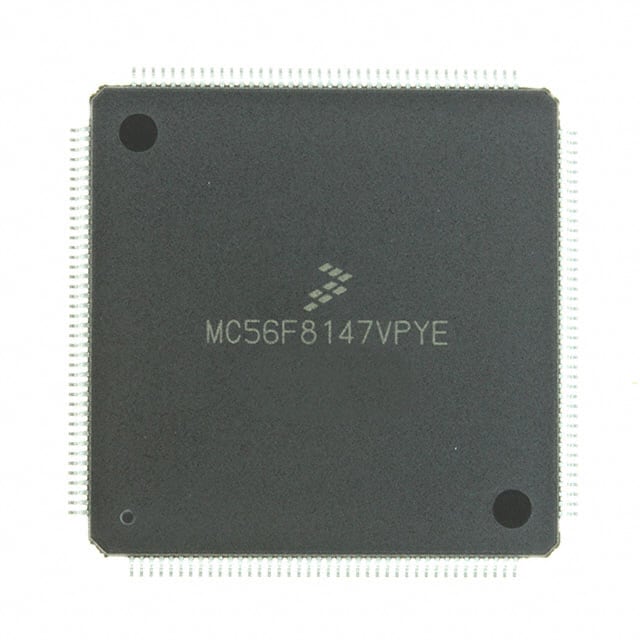

MC56F8357VPYEIC MCU 16BIT 256KB FLASH 160LQFP |
150 |
|
- |
160-LQFP | 56F8xxx | Tray | Active | Not Verified | 56800E | 16-Bit | 60MHz | CANbus, EBI/EMI, SCI, SPI | POR, PWM, Temp Sensor, WDT | 76 | 256KB (128K x 16) | FLASH | - | 10K x 16 | 2.25V ~ 3.6V | A/D 16x12b | External | -40°C ~ 105°C (TA) | - | - | Surface Mount | ||
|
MCF5216CVM66IC MCU 32B 512KB FLASH 256MAPBGA |
357 |
|
Datasheet |
256-LBGA | MCF521x | Tray | Not For New Designs | Not Verified | Coldfire V2 | 32-Bit Single-Core | 66MHz | CANbus, EBI/EMI, I2C, SPI, UART/USART | DMA, LVD, POR, PWM, WDT | 142 | 512KB (512K x 8) | FLASH | - | 64K x 8 | 2.7V ~ 3.6V | A/D 8x12b | Internal | -40°C ~ 85°C (TA) | - | - | Surface Mount | ||
|
M30627FHPGP#U9CIC MCU 16BIT 384KB FLASH 128LQFP |
977 |
|
Datasheet |
128-LQFP | M16C™ M16C/60/62P | Tray | Not For New Designs | Not Verified | M16C/60 | 16-Bit | 24MHz | I2C, IEBus, UART/USART | DMA, WDT | 111 | 384KB (384K x 8) | FLASH | - | 31K x 8 | 2.7V ~ 5.5V | A/D 26x10b; D/A 2x8b | Internal | -20°C ~ 85°C (TA) | - | - | Surface Mount | ||
|
MC68332ACEH16IC MCU 32BIT ROMLESS 132PQFP |
842 |
|
Datasheet |
132-BQFP Bumpered | M683xx | Tray | Not For New Designs | Not Verified | CPU32 | 32-Bit Single-Core | 16MHz | EBI/EMI, SCI, SPI, UART/USART | POR, PWM, WDT | 15 | - | ROMless | - | 2K x 8 | 4.5V ~ 5.5V | - | Internal | -40°C ~ 85°C (TA) | - | - | Surface Mount | ||
|
|
MC68332GCEH16IC MCU 32BIT ROMLESS 132PQFP |
520 |
|
Datasheet |
132-BQFP Bumpered | M683xx | Tray | Not For New Designs | Not Verified | CPU32 | 32-Bit Single-Core | 16MHz | EBI/EMI, SCI, SPI, UART/USART | POR, PWM, WDT | 15 | - | ROMless | - | 2K x 8 | 4.5V ~ 5.5V | - | Internal | -40°C ~ 85°C (TA) | - | - | Surface Mount | ||
|
|
MC9S12DP512MPVEIC MCU 16BIT 512KB FLASH 112LQFP |
559 |
|
Datasheet |
112-LQFP | HCS12 | Tray | Active | Verified | HCS12 | 16-Bit | 25MHz | CANbus, I2C, SCI, SPI | PWM, WDT | 91 | 512KB (512K x 8) | FLASH | 4K x 8 | 12K x 8 | 2.35V ~ 5.25V | A/D 16x10b | Internal | -40°C ~ 125°C (TA) | - | - | Surface Mount | ||
|
|
MC68332GCEH20IC MCU 32BIT ROMLESS 132PQFP |
207 |
|
Datasheet |
132-BQFP Bumpered | M683xx | Tray | Not For New Designs | Not Verified | CPU32 | 32-Bit Single-Core | 20MHz | EBI/EMI, SCI, SPI, UART/USART | POR, PWM, WDT | 15 | - | ROMless | - | 2K x 8 | 4.5V ~ 5.5V | - | Internal | -40°C ~ 85°C (TA) | - | - | Surface Mount | ||
|
DS87C520-MCL+IC MCU 8BIT 16KB OTP 40DIP |
149 |
|
Datasheet |
40-DIP (0.600", 15.24mm) | 87C | Tube | Active | Not Verified | 8051 | 8-Bit | 33MHz | EBI/EMI, SIO, UART/USART | Power-Fail Reset, WDT | 32 | 16KB (16K x 8) | OTP | - | 1K x 8 | 4.5V ~ 5.5V | - | External | 0°C ~ 70°C (TA) | - | - | Through Hole | ||
.jpg)
|
DS87C520-QCL+IC MCU 8BIT 16KB OTP 44PLCC |
30 |
|
Datasheet |
44-LCC (J-Lead) | 87C | Tube | Active | Verified | 8051 | 8-Bit | 33MHz | EBI/EMI, SIO, UART/USART | Power-Fail Reset, WDT | 32 | 16KB (16K x 8) | OTP | - | 1K x 8 | 4.5V ~ 5.5V | - | External | 0°C ~ 70°C (TA) | - | - | Surface Mount | ||
|
|
MC68332ACEH25IC MCU 32BIT ROMLESS 132PQFP |
352 |
|
Datasheet |
132-BQFP Bumpered | M683xx | Tray | Not For New Designs | Not Verified | CPU32 | 32-Bit Single-Core | 25MHz | EBI/EMI, SCI, SPI, UART/USART | POR, PWM, WDT | 15 | - | ROMless | - | 2K x 8 | 4.5V ~ 5.5V | - | Internal | -40°C ~ 85°C (TA) | - | - | Surface Mount | ||
|
|
MC68332GCEH25IC MCU 32BIT ROMLESS 132PQFP |
249 |
|
Datasheet |
132-BQFP Bumpered | M683xx | Tray | Not For New Designs | Not Verified | CPU32 | 32-Bit Single-Core | 25MHz | EBI/EMI, SCI, SPI, UART/USART | POR, PWM, WDT | 15 | - | ROMless | - | 2K x 8 | 4.5V ~ 5.5V | - | Internal | -40°C ~ 85°C (TA) | - | - | Surface Mount | ||
|
|
DS87C520-QNL+IC MCU 8BIT 16KB OTP 44PLCC |
978 |
|
Datasheet |
44-LCC (J-Lead) | 87C | Tube | Active | Verified | 8051 | 8-Bit | 33MHz | EBI/EMI, SIO, UART/USART | Power-Fail Reset, WDT | 32 | 16KB (16K x 8) | OTP | - | 1K x 8 | 4.5V ~ 5.5V | - | External | -40°C ~ 85°C (TA) | - | - | Surface Mount | ||
|
MC56F8366VFVEIC MCU 16BIT 512KB FLASH 144LQFP |
1,120 |
|
Datasheet |
144-LQFP | 56F8xxx | Tray | Active | Not Verified | 56800E | 16-Bit | 60MHz | CANbus, EBI/EMI, SCI, SPI | POR, PWM, Temp Sensor, WDT | 62 | 512KB (256K x 16) | FLASH | - | 18K x 16 | 2.25V ~ 3.6V | A/D 16x12b | External | -40°C ~ 105°C (TA) | - | - | Surface Mount | ||
|
|
MCF5234CVM150IC MCU 32BIT ROMLESS 256MAPBGA |
663 |
|
Datasheet |
256-LBGA | MCF523x | Tray | Not For New Designs | Not Verified | Coldfire V2 | 32-Bit Single-Core | 150MHz | CANbus, EBI/EMI, Ethernet, I2C, SPI, UART/USART | DMA, WDT | 97 | - | ROMless | - | 64K x 8 | 1.4V ~ 1.6V | - | External | -40°C ~ 85°C (TA) | - | - | Surface Mount | ||
|
SM320F2812PGFMEPIC MCU 32BIT 256KB FLASH 176LQFP |
212 |
|
Datasheet |
176-LQFP | C2000™ C28x Fixed-Point | Tray | Active | Not Verified | C28x | 32-Bit Single-Core | 150MHz | CANbus, EBI/EMI, McBSP, SCI, SPI, UART/USART | DMA, POR, PWM, WDT | 56 | 256KB (128K x 16) | FLASH | - | 18K x 16 | 1.81V ~ 2V | A/D 16x12b | Internal | -55°C ~ 125°C (TA) | - | - | Surface Mount | ||
|
DS87C530-QCL+IC MCU 8BIT 16KB OTP 52PLCC |
108 |
|
Datasheet |
52-LCC (J-Lead) | 87C | Tube | Last Time Buy | Not Verified | 8051 | 8-Bit | 33MHz | EBI/EMI, SIO, UART/USART | Power-Fail Reset, WDT | 32 | 16KB (16K x 8) | OTP | - | 1K x 8 | 4.5V ~ 5.5V | - | External | 0°C ~ 70°C (TA) | - | - | Surface Mount | ||
|
|
DS87C520-MNL+IC MCU 8BIT 16KB OTP 40DIP |
21 |
|
Datasheet |
40-DIP (0.600", 15.24mm) | 87C | Tube | Active | Not Verified | 8051 | 8-Bit | 33MHz | EBI/EMI, SIO, UART/USART | Power-Fail Reset, WDT | 32 | 16KB (16K x 8) | OTP | - | 1K x 8 | 4.5V ~ 5.5V | - | External | -40°C ~ 85°C (TA) | - | - | Through Hole | ||
|
TC297TA128F300NBCKXUMA1IC MCU 32BIT 8MB FLASH 292LFBGA |
783 |
|
Datasheet |
292-LFBGA | AURIX™ | Tape & Reel (TR) | Active | Not Verified | TriCore™ | 32-Bit Tri-Core | 300MHz | ASC, CANbus, Ethernet, FlexRay, HSSL, I2C, LINbus, MSC, PSI5, QSPI, SENT | DMA, WDT | 169 | 8MB (8M x 8) | FLASH | 384K x 8 | 2.75M x 8 | 3.3V, 5V | A/D 60x12b, 10 x Sigma-Delta | External | -40°C ~ 125°C (TA) | - | - | Surface Mount | ||
|
M30879FLGP#U3IC MCU 16/32B 1MB FLASH 100LFQFP |
101 |
|
Datasheet |
100-LQFP | M16C™ M32C/80/87 | Tray | Not For New Designs | Not Verified | M32C/80 | 16/32-Bit | 32MHz | CANbus, EBI/EMI, I2C, IEBus, IrDA, SIO, UART/USART | DMA, POR, PWM, WDT | 85 | 1MB (1M x 8) | FLASH | 4K x 8 | 48K x 8 | 3V ~ 5.5V | A/D 26x10b; D/A 2x8b | Internal | -40°C ~ 85°C (TA) | - | - | Surface Mount |
