Microcontrollers
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Package/Case | Series | Packaging | Product Status | Programmable | Core Processor | Core Size | Speed | Connectivity | Peripherals | Number of I/O | Program Memory Size | Program Memory Type | EEPROM Size | RAM Size | Voltage - Supply (Vcc/Vdd) | Data Converters | Oscillator Type | Operating Temperature | Grade | Qualification | Mounting Type | Supplier Device Package | Supplier Device Package |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
AM2432BSDFHIALVRIC MCU 32BIT 256KB TCM 441FCBGA |
378 |
|
Datasheet |
441-BFBGA, FCBGA | Sitara™ | Tape & Reel (TR) | Active | - | ARM® Cortex®-M4F, ARM® Cortex®-R5F | 32-Bit Tri-Core | 400MHz, 800MHz | CANbus, Ethernet, I2C, MMC/SDIO, QSPI, SPI, UART/USART, USB | AES, DMA, POR, PWM, SHA, TRNG, WDT | 198 | 256KB (256K x 8) | Tightly Coupled Memory (TCM) | - | 256K x 8 | 1.71V ~ 1.89V, 3.135V ~ 3.465V | A/D 8x12b | External, Internal | -40°C ~ 125°C (TJ) | - | - | Surface Mount | ||
.jpg)
|
TMS320F28069PZPQIC MCU 32BIT 256KB FLSH 100HTQFP |
1,917 |
|
Datasheet |
100-TQFP Exposed Pad | C2000™ C28x Piccolo™ | Tray | Active | Not Verified | C28x | 32-Bit Single-Core | 90MHz | CANbus, I2C, McBSP, SCI, SPI, UART/USART | Brown-out Detect/Reset, DMA, POR, PWM, WDT | 54 | 256KB (128K x 16) | FLASH | - | 50K x 16 | 1.71V ~ 1.995V | A/D 16x12b | Internal | -40°C ~ 125°C (TA) | Automotive | AEC-Q100 | Surface Mount | ||
|
MK66FX1M0VMD18IC MCU 32BIT 1MB FLASH 144MAPBGA |
770 |
|
Datasheet |
144-LBGA | Kinetis K60 | Tray | Active | Not Verified | ARM® Cortex®-M4 | 32-Bit Single-Core | 180MHz | CANbus, EBI/EMI, Ethernet, I2C, IrDA, SD, SPI, UART/USART, USB, USB OTG | DMA, I2S, LVD, POR, PWM, WDT | 100 | 1MB (1M x 8) | FLASH | 4K x 8 | 256K x 8 | 1.71V ~ 3.6V | A/D 2x16b; D/A 2x12b | Internal | -40°C ~ 105°C (TA) | - | - | Surface Mount | ||
|
MAX78000EXG+IC MCU 32BIT 512KB FLASH 81CTBGA |
365 |
|
Datasheet |
81-LFBGA | - | Tray | Active | Not Verified | ARM® Cortex®-M4 | 32-Bit Dual-Core | 100MHz | 1-Wire, I2C, PCIF, SPI, UART/USART | DMA, I2S, POR, PWM, WDT | 52 | 512KB (512K x 8) | FLASH | - | 128K x 8 | 1.71V ~ 3.6V | A/D 8x10b Sigma-Delta | Internal | -40°C ~ 105°C (TA) | - | - | Surface Mount | ||
|
MC908MR32CFUEIC MCU 8BIT 32KB FLASH 64QFP |
9,360 |
|
Datasheet |
64-QFP | HC08 | Tray | Not For New Designs | Not Verified | HC08 | 8-Bit | 8MHz | SCI, SPI | LVD, POR, PWM | 44 | 32KB (32K x 8) | FLASH | - | 768 x 8 | 4.5V ~ 5.5V | A/D 10x10b | Internal | -40°C ~ 85°C (TA) | - | - | Surface Mount | ||
|
MKV58F1M0VLL24IC MCU 32BIT 1MB FLASH 100LQFP |
1,589 |
|
Datasheet |
100-LQFP | Kinetis KV | Tray | Active | Not Verified | ARM® Cortex®-M7 | 32-Bit Single-Core | 240MHz | CANbus, Ethernet, I2C, SPI, UART/USART | DMA, LVD, POR, PWM, WDT | 74 | 1MB (1M x 8) | FLASH | - | 256K x 8 | 1.71V ~ 3.6V | A/D 4x12b, 1x16b; D/A 1x12b | Internal | -40°C ~ 105°C (TA) | - | - | Surface Mount | ||
|
STM32F767BIT6IC MCU 32BIT 2MB FLASH 208LQFP |
880 |
|
Datasheet |
208-LQFP | STM32F7 | Tray | Active | Not Verified | ARM® Cortex®-M7 | 32-Bit Single-Core | 216MHz | CANbus, EBI/EMI, Ethernet, I2C, IrDA, LINbus, MMC/SD/SDIO, QSPI, SAI, SPDIF, SPI, UART/USART, USB OTG | Brown-out Detect/Reset, DMA, I2S, LCD, POR, PWM, WDT | 159 | 2MB (2M x 8) | FLASH | - | 512K x 8 | 1.7V ~ 3.6V | A/D 24x12b; D/A 2x12b | Internal | -40°C ~ 85°C (TA) | - | - | Surface Mount | ||
|
|
XMC7200D-F176K8384AAIC MCU 32BT 8.188MB FLSH 176QFP |
160 |
|
Datasheet |
176-LQFP Exposed Pad | XMC7000 | Tray | Active | Not Verified | ARM® Cortex®-M0+, ARM® Cortex®-M7 | 32-Bit Dual-Core | 100MHz, 350MHz | CANbus, Ethernet, FIFO, I2C, IrDA, MMC/SD/SDIO, SPI, UART/USART | Brown-out Detect/Reset, Crypto - AES, DMA, LVD, POR, PWM, SHA, Temp Sensor, TRNG, WDT | 148 | 8.188MB (8.188M x 8) | FLASH | 256K x 8 | 1M x 8 | 2.7V ~ 5.5V | A/D 81x12b SAR | External, Internal | -40°C ~ 125°C (TA) | - | - | Surface Mount | ||
|
TMS320F28069FPZTIC MCU 32BIT 256KB FLASH 100LQFP |
351 |
|
Datasheet |
100-LQFP | C2000™ C28x Piccolo™ | Tray | Active | Not Verified | C28x | 32-Bit Single-Core | 90MHz | CANbus, I2C, McBSP, SCI, SPI, UART/USART | Brown-out Detect/Reset, DMA, POR, PWM, WDT | 54 | 256KB (128K x 16) | FLASH | - | 50K x 16 | 1.71V ~ 1.995V | A/D 16x12b | Internal | -40°C ~ 105°C (TA) | - | - | Surface Mount | ||
|
ADUCM362BCPZ128IC MCU 32BIT 128KB FLASH 48LFCSP |
277 |
|
Datasheet |
48-WFQFN Exposed Pad, CSP | ADuCM | Tray | Active | Not Verified | ARM® Cortex®-M3 | 32-Bit Single-Core | 16MHz | I2C, SPI, UART/USART | DMA, POR, PWM, WDT | 19 | 128KB (128K x 8) | FLASH | - | 16K x 8 | 1.8V ~ 3.6V | A/D 12x24b; D/A 1x12b | Internal | -40°C ~ 125°C (TA) | - | - | Surface Mount | ||
|
TMS320LF2407APGESIC MCU 16BIT 64KB FLASH 144LQFP |
238 |
|
Datasheet |
144-LQFP | C2000™ C24x 16-Bit | Tray | Active | Not Verified | C2xx DSP | 16-Bit | 40MHz | CANbus, EBI/EMI, SCI, SPI, UART/USART | POR, PWM, WDT | 41 | 64KB (32K x 16) | FLASH | - | 5K x 8 | 3V ~ 3.6V | A/D 16x10b | Internal | -40°C ~ 125°C (TA) | - | - | Surface Mount | ||
|
ADUC847BSZ62-5IC MCU 8BIT 62KB FLASH 52MQFP |
79 |
|
Datasheet |
52-QFP | MicroConverter® ADuC8xx | Tray | Active | Not Verified | 8052 | 8-Bit | 12.58MHz | I2C, SPI, UART/USART | POR, PSM, PWM, Temp Sensor, WDT | 34 | 62KB (62K x 8) | FLASH | 4K x 8 | 2.25K x 8 | 4.75V ~ 5.25V | A/D 10x24b; D/A 1x12b, 2x16b | Internal | -40°C ~ 125°C (TA) | - | - | Surface Mount | ||
|
R7FS5D97E3A01CFB#AA0IC MCU 32BIT 2MB FLASH 144LQFP |
235 |
|
Datasheet |
144-LQFP | Renesas Synergy™ S5 | Tray | Active | Not Verified | ARM® Cortex®-M4 | 32-Bit Single-Core | 120MHz | CANbus, EBI/EMI, Ethernet, I2C, IrDA, MMC/SD, QSPI, SCI, SPI, SSI, UART/USART, USB | DMA, LVD, POR, PWM, WDT | 110 | 2MB (2M x 8) | FLASH | 64K x 8 | 640K x 8 | 2.7V ~ 3.6V | A/D 22x12b; D/A 2x12b | Internal | -40°C ~ 105°C (TA) | - | - | Surface Mount | ||
|
|
F28388SPTPSRIC MCU 32BIT 512KB FLASH 176LQFP |
372 |
|
Datasheet |
176-LQFP Exposed Pad | C2000™ C28x Fixed-Point | Tape & Reel (TR) | Active | - | C28x | 32-Bit | 200MHz | CANbus, Ethernet, I2C, McBSP, SCI, SPI, UART/USART | Brown-out Detect/Reset, DMA, POR, PWM, WDT | 97 | 512KB (256K x 16) | FLASH | - | 172K x 8 | 1.14V ~ 1.26V | A/D 20x12b, 29x16b SAR; D/A 3x12b | Internal | -40°C ~ 125°C (TJ) | - | - | Surface Mount | ||
|

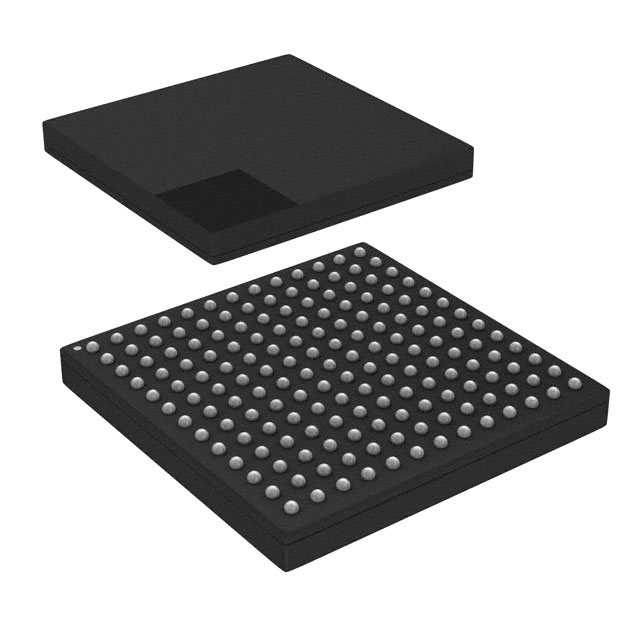

MK26FN2M0VMI18IC MCU 32BIT 2MB FLASH 169MAPBGA |
103 |
|
Datasheet |
169-LFBGA | Kinetis K20 | Tray | Active | Not Verified | ARM® Cortex®-M4 | 32-Bit Single-Core | 180MHz | CANbus, EBI/EMI, I2C, IrDA, SD, SPI, UART/USART, USB, USB OTG | DMA, I2S, LVD, POR, PWM, WDT | 116 | 2MB (2M x 8) | FLASH | - | 256K x 8 | 1.71V ~ 3.6V | A/D 5x12b, 6x16b; D/A 2x12b | Internal | -40°C ~ 105°C (TA) | - | - | Surface Mount | ||
|
MC56F8322MFAEIC MCU 16BIT 32KB FLASH 48LQFP |
1,500 |
|
Datasheet |
48-LQFP | 56F8xxx | Tray | Not For New Designs | Verified | 56800E | 16-Bit | 60MHz | CANbus, SCI, SPI | POR, PWM, Temp Sensor, WDT | 21 | 32KB (16K x 16) | FLASH | - | 6K x 16 | 2.25V ~ 3.6V | A/D 6x12b | Internal | -40°C ~ 125°C (TA) | - | - | Surface Mount | ||
|
M430FR5989SRGCREPIC MCU 16BIT 128KB FRAM 64VQFN |
1,314 |
|
Datasheet |
64-VFQFN Exposed Pad | MSP430™ FRAM | Tape & Reel (TR) | Active | Not Verified | CPUXV2 | 16-Bit | 16MHz | I2C, IrDA, SPI, UART/USART | Brown-out Detect/Reset, DMA, POR, PWM, WDT | 48 | 128KB (128K x 8) | FRAM | - | 2K x 8 | 1.8V ~ 3.6V | A/D 12x12b | Internal | -40°C ~ 105°C (TA) | - | - | Surface Mount | ||
|
|
TMS5701224CPGEQQ1IC MCU 16/32BIT 1.25MB 144LQFP |
132 |
|
Datasheet |
144-LQFP | Hercules™ TMS570 ARM® Cortex®-R | Tray | Active | Not Verified | ARM® Cortex®-R4F | 16/32-Bit | 160MHz | CANbus, EBI/EMI, I2C, LINbus, MibSPI, SCI, SPI, UART/USART | DMA, POR, PWM, WDT | 64 | 1.25MB (1.25M x 8) | FLASH | 64K x 8 | 192K x 8 | 1.14V ~ 3.6V | A/D 24x12b | External | -40°C ~ 125°C (TA) | Automotive | AEC-Q100 | Surface Mount | ||
|

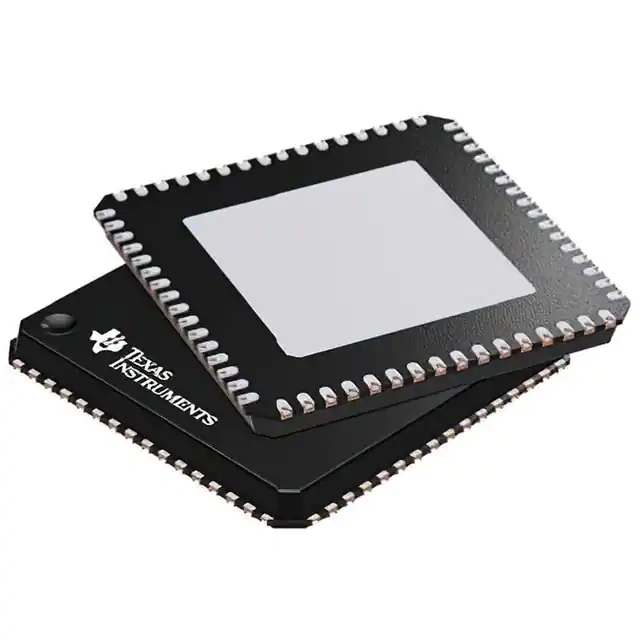

MSP430F1611IRTDTIC MCU 16BIT 48KB FLASH 64VQFN |
319 |
|
Datasheet |
64-VFQFN Exposed Pad | MSP430x1xx | Tape & Reel (TR) | Active | Not Verified | MSP430 CPU16 | 16-Bit | 8MHz | I2C, SPI, UART/USART | Brown-out Detect/Reset, DMA, POR, PWM, WDT | 48 | 48KB (48K x 8 + 256B) | FLASH | - | 10K x 8 | 1.8V ~ 3.6V | A/D 8x12b; D/A 2x12b | Internal | -40°C ~ 85°C (TA) | - | - | Surface Mount | ||
|
MSP430F1612IPMIC MCU 16BIT 55KB FLASH 64LQFP |
229 |
|
Datasheet |
64-LQFP | MSP430x1xx | Tray | Active | Verified | MSP430 CPU16 | 16-Bit | 8MHz | I2C, SPI, UART/USART | Brown-out Detect/Reset, DMA, POR, PWM, WDT | 48 | 55KB (55K x 8 + 256B) | FLASH | - | 5K x 8 | 1.8V ~ 3.6V | A/D 8x12b; D/A 2x12b | Internal | -40°C ~ 85°C (TA) | - | - | Surface Mount |
