Microcontrollers
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Package/Case | Series | Packaging | Product Status | Programmable | Core Processor | Core Size | Speed | Connectivity | Peripherals | Number of I/O | Program Memory Size | Program Memory Type | EEPROM Size | RAM Size | Voltage - Supply (Vcc/Vdd) | Data Converters | Oscillator Type | Operating Temperature | Grade | Qualification | Mounting Type | Supplier Device Package | Supplier Device Package |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
TMS5701227CZWTQQ1IC MCU 32B 1.25MB FLASH 337NFBGA |
472 |
|
Datasheet |
337-LFBGA | Hercules™ TMS570 ARM® Cortex®-R | Tray | Active | Not Verified | ARM® Cortex®-R4F | 32-Bit Dual-Core | 180MHz | CANbus, EBI/EMI, Ethernet, FlexRay, I2C, LINbus, MibSPI, SPI, UCI, UART/USART | DMA, POR, PWM, WDT | 101 | 1.25MB (1.25M x 8) | FLASH | 64K x 8 | 192K x 8 | 1.14V ~ 3.6V | A/D 24x12b | External | -40°C ~ 125°C (TA) | Automotive | AEC-Q100 | Surface Mount | ||
|
C8051F131-GQRIC MCU 8BIT 128KB FLASH 64TQFP |
5,994 |
|
Datasheet |
64-TQFP | C8051F13x | Tape & Reel (TR) | Not For New Designs | Verified | 8051 | 8-Bit | 100MHz | EBI/EMI, SMBus (2-Wire/I2C), SPI, UART/USART | Brown-out Detect/Reset, POR, PWM, Temp Sensor, WDT | 32 | 128KB (128K x 8) | FLASH | - | 8.25K x 8 | 3V ~ 3.6V | A/D 8x10b | Internal | -40°C ~ 85°C (TA) | - | - | Surface Mount | ||
|
SPC58EG80E5QEC0XIC MCU 32BIT 4MB FLASH 144ETQFP |
775 |
|
Datasheet |
144-TQFP Exposed Pad | SPC58 | Tape & Reel (TR) | Active | Not Verified | e200z4 | 32-Bit Dual-Core | 180MHz | CANbus, Ethernet, FlexRay, I2C, LINbus, SPI | DMA, POR, WDT | 120 | 4MB (4M x 8) | FLASH | 256K x 8 | 768K x 8 | 1.14V ~ 1.26V | A/D 10/12b SAR | External, Internal | -40°C ~ 150°C (TJ) | Automotive | AEC-Q100 | Surface Mount | ||
|
TMS320F2811PBKQIC MCU 32BIT 256KB FLASH 128LQFP |
125 |
|
Datasheet |
128-LQFP | C2000™ C28x Fixed-Point | Tray | Active | Not Verified | C28x | 32-Bit Single-Core | 150MHz | CANbus, McBSP, SCI, SPI, UART/USART | DMA, POR, PWM, WDT | 56 | 256KB (128K x 16) | FLASH | - | 18K x 16 | 1.81V ~ 2V | A/D 16x12b | Internal | -40°C ~ 125°C (TA) | Automotive | AEC-Q100 | Surface Mount | ||
|
M3062LFGPFP#U5CIC MCU 16BIT 256KB FLASH 100QFP |
198 |
|
Datasheet |
100-BQFP | M16C™ M16C/60/62P | Tray | Not For New Designs | Not Verified | M16C/60 | 16-Bit | 20MHz | I2C, IEBus, UART/USART | DMA, WDT | 85 | 256KB (256K x 8) | FLASH | 4K x 8 | 20K x 8 | 2.7V ~ 5.5V | A/D 26x10b; D/A 2x8b | Internal | -20°C ~ 85°C (TA) | - | - | Surface Mount | ||
|
|
CYT3DLABHBQ1AESGSIC MCU 32BT 4.063MB FLSH 216TQFP |
340 |
|
Datasheet |
216-LQFP Exposed Pad | Traveo™ T2G | Tray | Active | Not Verified | ARM® Cortex®-M0+, ARM® Cortex®-M7F | 32-Bit Dual-Core | 240MHz | DMA, I2S, LVD, Temp Sensor, WDT | DMA, I2S, LVD, Temp Sensor, WDT | 108 | 4.063MB (4.063M x 8) | FLASH | 128K x 8 | 384K x 8 | 2.7V ~ 5.5V | - | - | -40°C ~ 105°C (TA) | - | - | Surface Mount | ||
|

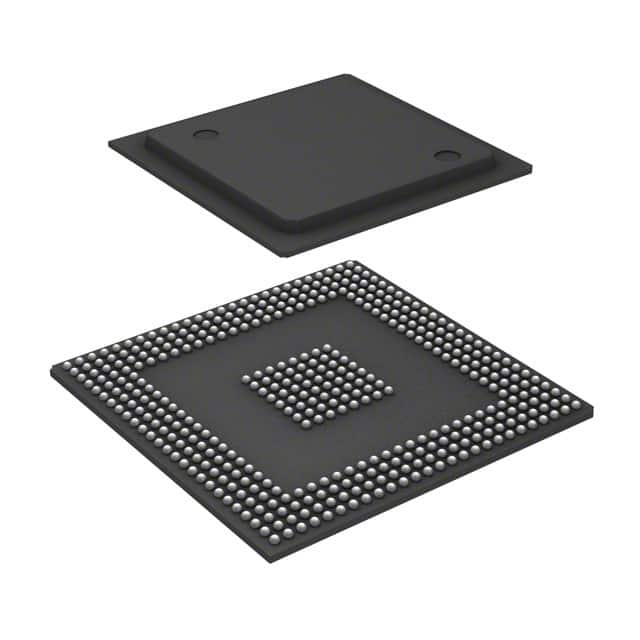

TC1793F512F270EFABKXUMA2IC MCU 32BIT 4MB FLASH 416BGA |
355 |
|
Datasheet |
416-BGA | TC17xx | Tape & Reel (TR) | Active | Not Verified | TriCore™ | 32-Bit Single-Core | 270MHz | ASC, CANbus, EBI/EMI, FlexRay, MLI, MSC, SSC | DMA, POR, WDT | 221 | 4MB (4M x 8) | FLASH | 192K x 8 | 288K x 8 | 1.17V ~ 3.63V | A/D 8x10b, 44x12b | External | -40°C ~ 125°C (TA) | - | - | Surface Mount | ||
|
|
MC56F8345MFGEIC MCU 16BIT 128KB FLASH 128LQFP |
1,088 |
|
Datasheet |
128-LQFP | 56F8xxx | Tray | Active | Not Verified | 56800E | 16-Bit | 60MHz | CANbus, EBI/EMI, SCI, SPI | POR, PWM, Temp Sensor, WDT | 49 | 128KB (64K x 16) | FLASH | - | 6K x 16 | 2.25V ~ 3.6V | A/D 16x12b | External | -40°C ~ 125°C (TA) | - | - | Surface Mount | ||
|
DS89C450-ENL+IC MCU 8BIT 64KB FLASH 44TQFP |
621 |
|
Datasheet |
44-TQFP | 89C | Tray | Active | Not Verified | 8051 | 8-Bit | 33MHz | EBI/EMI, SIO, UART/USART | Power-Fail Reset, WDT | 32 | 64KB (64K x 8) | FLASH | - | 1K x 8 | 4.5V ~ 5.5V | - | External | -40°C ~ 85°C (TA) | - | - | Surface Mount | ||
|
TMS320F28335ZJZQIC MCU 32BIT 512KB FLASH 176BGA |
435 |
|
Datasheet |
176-BGA | C2000™ C28x Delfino™ | Tray | Active | Not Verified | C28x | 32-Bit Single-Core | 150MHz | CANbus, EBI/EMI, I2C, McBSP, SCI, SPI, UART/USART | DMA, POR, PWM, WDT | 88 | 512KB (256K x 16) | FLASH | - | 34K x 16 | 1.805V ~ 1.995V | A/D 16x12b | Internal | -40°C ~ 125°C (TA) | Automotive | AEC-Q100 | Surface Mount | ||
|
MC9S12XDP512MAGIC MCU 16BIT 512KB FLASH 144LQFP |
218 |
|
Datasheet |
144-LQFP | HCS12X | Tray | Active | Not Verified | HCS12X | 16-Bit | 80MHz | CANbus, EBI/EMI, I2C, IrDA, LINbus, SCI, SPI | LVD, POR, PWM, WDT | 119 | 512KB (512K x 8) | FLASH | 4K x 8 | 32K x 8 | 2.35V ~ 5.5V | A/D 24x10b | External | -40°C ~ 125°C (TA) | - | - | Surface Mount | ||
|
|
S5LS20216ASPGEQQ1IC MCU 16/32BIT 2MB FLSH 144LQFP |
220 |
|
Datasheet |
144-LQFP | Hercules™ TMS570 ARM® Cortex®-R | Tray | Not For New Designs | Not Verified | ARM® Cortex®-R4F | 16/32-Bit | 140MHz | CANbus, LINbus, SCI, SPI, UART/USART | DMA, POR | 68 | 2MB (2M x 8) | FLASH | - | 160K x 8 | 1.35V ~ 1.65V | A/D 20x12b | External | -40°C ~ 125°C (TA) | Automotive | AEC-Q100 | Surface Mount | ||
|

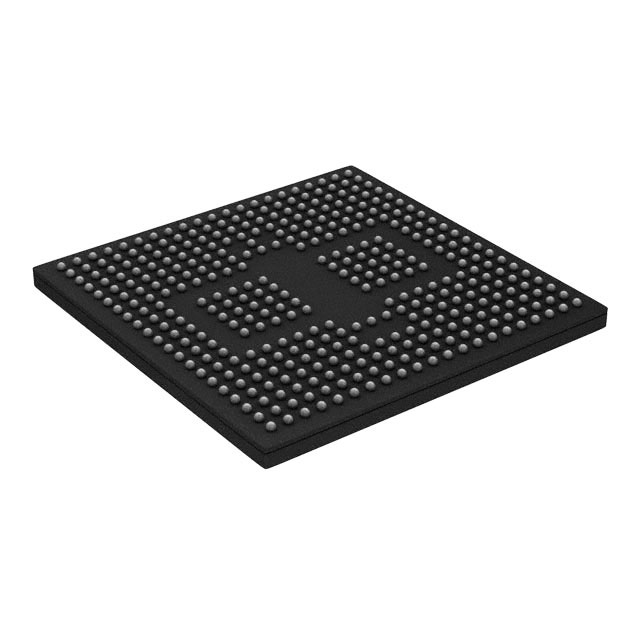

XEF232-1024-FB374-C40AIC MCU 32BIT 2MB FLASH 374FBGA |
121 |
|
- |
374-LFBGA | XEF | Tray | Active | Not Verified | XCore | 32-Bit 32-Core | 2000MIPs | RGMII, USB | - | 176 | 2MB (2M x 8) | FLASH | - | 1M x 8 | 0.95V ~ 3.6V | - | External | 0°C ~ 70°C (TA) | - | - | Surface Mount | ||
|
LM3S6911-IQC50-A2IC MCU 32BIT 256KB FLASH 100LQFP |
360 |
|
Datasheet |
100-LQFP | Stellaris® ARM® Cortex®-M3S 6000 | Tray | Active | Verified | ARM® Cortex®-M3 | 32-Bit Single-Core | 50MHz | Ethernet, I2C, IrDA, Microwire, SPI, SSI, UART/USART | Brown-out Detect/Reset, POR, PWM, WDT | 46 | 256KB (256K x 8) | FLASH | - | 64K x 8 | 2.25V ~ 2.75V | - | Internal | -40°C ~ 85°C (TA) | - | - | Surface Mount | ||
|
|
C8051F123-GQIC MCU 8BIT 128KB FLASH 64TQFP |
918 |
|
Datasheet |
64-TQFP | C8051F12x | Tray | Not For New Designs | Verified | 8051 | 8-Bit | 100MHz | EBI/EMI, SMBus (2-Wire/I2C), SPI, UART/USART | Brown-out Detect/Reset, POR, PWM, Temp Sensor, WDT | 32 | 128KB (128K x 8) | FLASH | - | 8.25K x 8 | 3V ~ 3.6V | A/D 8x8b, 8x10b; D/A 2x12b | Internal | -40°C ~ 85°C (TA) | - | - | Surface Mount | ||
|

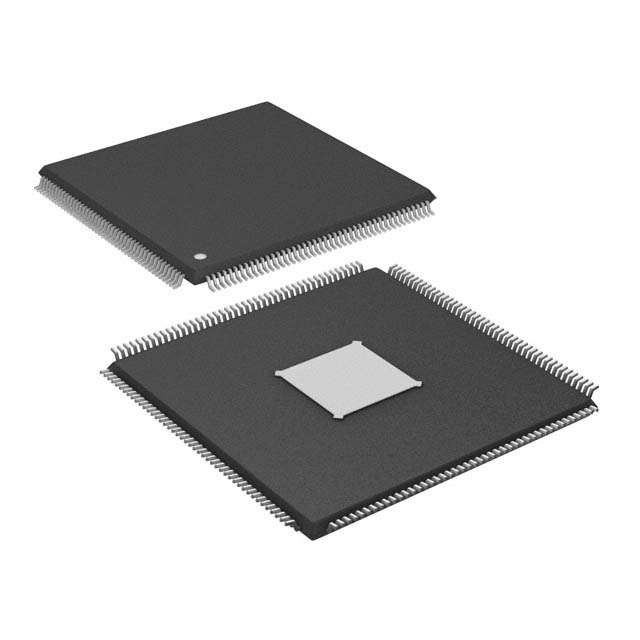

SPC5748GK1MKU6IC MCU 32BIT 6MB FLASH 176LQFP |
190 |
|
Datasheet |
176-LQFP Exposed Pad | MPC57xx | Tray | Active | Not Verified | e200z2, e200z4, e200z4 | 32-Bit Tri-Core | 80MHz/160MHz | CANbus, Ethernet, I2C, LINbus, SAI, SPI, USB, USB OTG | DMA, LVD, POR, WDT | 129 | 6MB (6M x 8) | FLASH | - | 768K x 8 | 3V ~ 5.5V | A/D 80x10b, 64x12b | Internal | -40°C ~ 125°C (TA) | - | - | Surface Mount | ||
|
MC9S12DG256MPVEIC MCU 16BIT 256KB FLASH 112LQFP |
589 |
|
Datasheet |
112-LQFP | HCS12 | Tray | Active | Verified | HCS12 | 16-Bit | 25MHz | CANbus, I2C, SCI, SPI | PWM, WDT | 91 | 256KB (256K x 8) | FLASH | 4K x 8 | 12K x 8 | 2.35V ~ 5.25V | A/D 16x10b | Internal | -40°C ~ 125°C (TA) | - | - | Surface Mount | ||
|
|
LM3S6918-IQC50-A2IC MCU 32BIT 256KB FLASH 100LQFP |
40 |
|
Datasheet |
100-LQFP | Stellaris® ARM® Cortex®-M3S 6000 | Tray | Active | Verified | ARM® Cortex®-M3 | 32-Bit Single-Core | 50MHz | Ethernet, I2C, IrDA, Microwire, SPI, SSI, UART/USART | Brown-out Detect/Reset, POR, PWM, WDT | 38 | 256KB (256K x 8) | FLASH | - | 64K x 8 | 2.25V ~ 2.75V | A/D 8x10b | Internal | -40°C ~ 85°C (TA) | - | - | Surface Mount | ||
|
|
MAX78002GXE+IC MCU 32BIT 2.5MB FLSH 144CSBGA |
247 |
|
Datasheet |
144-LFBGA, CSPBGA | - | Tray | Active | Not Verified | ARM® Cortex®-M4F | 32-Bit | 120MHz | CSI, FIFO, I2C, MMC/SD/SDIO, SPI, UART/USART, USB | Brown-out Detect/Reset, DMA, POR, PWM, Temp Sensor, WDT | 60 | 2.5MB (2.5M x 8) | FLASH | - | 384K x 8 | 2.85V ~ 3.6V | A/D 8x12b SAR | External, Internal | -40°C ~ 105°C | - | - | Surface Mount | ||
|
MCF5233CVM150IC MCU 32BIT ROMLESS 256MAPBGA |
277 |
|
Datasheet |
256-LBGA | MCF523x | Tray | Not For New Designs | Not Verified | Coldfire V2 | 32-Bit Single-Core | 150MHz | CANbus, EBI/EMI, I2C, SPI, UART/USART | DMA, WDT | 97 | - | ROMless | - | 64K x 8 | 1.4V ~ 1.6V | - | External | -40°C ~ 85°C (TA) | - | - | Surface Mount |
