Microcontrollers
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Package/Case | Series | Packaging | Product Status | Programmable | Core Processor | Core Size | Speed | Connectivity | Peripherals | Number of I/O | Program Memory Size | Program Memory Type | EEPROM Size | RAM Size | Voltage - Supply (Vcc/Vdd) | Data Converters | Oscillator Type | Operating Temperature | Grade | Qualification | Mounting Type | Supplier Device Package | Supplier Device Package |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
SPC5643LF2MLQ1IC MCU 32BIT 1MB FLASH 144LQFP |
276 |
|
Datasheet |
144-LQFP | MPC56xx Qorivva | Tray | Active | Not Verified | e200z4 | 32-Bit Dual-Core | 120MHz | CANbus, FlexRay, LINbus, SPI, UART/USART | DMA, POR, PWM, WDT | - | 1MB (1M x 8) | FLASH | - | 128K x 8 | 3V ~ 5.5V | A/D 32x12b | Internal | -40°C ~ 125°C (TA) | - | - | Surface Mount | ||
|
R7FS5D97C3A01CFP#AA0IC MCU 32BIT 1MB FLASH 100LQFP |
130 |
|
Datasheet |
100-LQFP | Renesas Synergy™ S5 | Tray | Active | Not Verified | ARM® Cortex®-M4 | 32-Bit Single-Core | 120MHz | CANbus, EBI/EMI, Ethernet, I2C, IrDA, MMC/SD, QSPI, SCI, SPI, SSI, UART/USART, USB | DMA, LVD, POR, PWM, WDT | 76 | 1MB (1M x 8) | FLASH | 64K x 8 | 640K x 8 | 2.7V ~ 3.6V | A/D 19x12b; D/A 2x12b | Internal | -40°C ~ 105°C (TA) | - | - | Surface Mount | ||
|
|
R7FS7G27G3A01CFP#AA0IC MCU 32BIT 3MB FLASH 100LQFP |
351 |
|
Datasheet |
100-LQFP | Renesas Synergy™ S7 | Tray | Active | Not Verified | ARM® Cortex®-M4 | 32-Bit Single-Core | 240MHz | CANbus, EBI/EMI, Ethernet, I2C, IrDA, MMC/SD, QSPI, SCI, SPI, SSI, UART/USART, USB | DMA, LCD, LVD, POR, PWM, WDT | 70 | 3MB (3M x 8) | FLASH | 64K x 8 | 640K x 8 | 2.7V ~ 3.6V | A/D 16x12b; D/A 2x12b | Internal | -40°C ~ 105°C (TA) | - | - | Surface Mount | ||
.jpg)
|
DS80C320-QCL+IC MCU 8BIT ROMLESS 44PLCC |
132 |
|
Datasheet |
44-LCC (J-Lead) | 80C | Tube | Active | Not Verified | 8051 | 8-Bit | 33MHz | EBI/EMI, SIO, UART/USART | Power-Fail Reset, WDT | 32 | - | ROMless | - | 256 x 8 | 4.5V ~ 5.5V | - | External | 0°C ~ 70°C (TA) | - | - | Surface Mount | ||
|
MCF5274CVM166IC MCU 32BIT ROMLESS 256MAPBGA |
120 |
|
Datasheet |
256-LBGA | MCF527x | Tray | Not For New Designs | Not Verified | Coldfire V2 | 32-Bit Single-Core | 166MHz | EBI/EMI, Ethernet, I2C, SPI, UART/USART, USB | DMA, WDT | 69 | - | ROMless | - | 64K x 8 | 1.4V ~ 1.6V | - | External | -40°C ~ 85°C (TA) | - | - | Surface Mount | ||
|
R7FS7G27H3A01CFB#AA0IC MCU 32BIT 4MB FLASH 144LQFP |
280 |
|
Datasheet |
144-LQFP | Renesas Synergy™ S7 | Tray | Active | Not Verified | ARM® Cortex®-M4 | 32-Bit Single-Core | 240MHz | CANbus, EBI/EMI, Ethernet, I2C, IrDA, MMC/SD, QSPI, SCI, SPI, SSI, UART/USART, USB | DMA, LCD, LVD, POR, PWM, WDT | 104 | 4MB (4M x 8) | FLASH | 64K x 8 | 640K x 8 | 2.7V ~ 3.6V | A/D 19x12b; D/A 2x12b | Internal | -40°C ~ 105°C (TA) | - | - | Surface Mount | ||
|
MC56F8355VFGEIC MCU 16BIT 256KB FLASH 128LQFP |
354 |
|
Datasheet |
128-LQFP | 56F8xxx | Tray | Active | Not Verified | 56800E | 16-Bit | 60MHz | CANbus, EBI/EMI, SCI, SPI | POR, PWM, Temp Sensor, WDT | 49 | 256KB (128K x 16) | FLASH | - | 10K x 16 | 2.25V ~ 3.6V | A/D 16x12b | External | -40°C ~ 105°C (TA) | - | - | Surface Mount | ||
|
TMS320F2811PBKSIC MCU 32BIT 256KB FLASH 128LQFP |
1,683 |
|
Datasheet |
128-LQFP | C2000™ C28x Fixed-Point | Tray | Active | Not Verified | C28x | 32-Bit Single-Core | 150MHz | CANbus, McBSP, SCI, SPI, UART/USART | DMA, POR, PWM, WDT | 56 | 256KB (128K x 16) | FLASH | - | 18K x 16 | 1.81V ~ 2V | A/D 16x12b | Internal | -40°C ~ 125°C (TA) | Automotive | AEC-Q100 | Surface Mount | ||
|
MC9S12DG128CFUERIC MCU 16BIT 128KB FLASH 80QFP |
5,883 |
|
Datasheet |
80-QFP | HCS12 | Tape & Reel (TR) | Active | Not Verified | HCS12 | 16-Bit | 25MHz | CANbus, I2C, SCI, SPI | PWM, WDT | 59 | 128KB (128K x 8) | FLASH | 2K x 8 | 8K x 8 | 2.35V ~ 5.25V | A/D 16x10b | Internal | -40°C ~ 85°C (TA) | - | - | Surface Mount | ||
|
|
MC9S12DG128CFUEIC MCU 16BIT 128KB FLASH 80QFP |
802 |
|
Datasheet |
80-QFP | HCS12 | Tray | Active | Not Verified | HCS12 | 16-Bit | 25MHz | CANbus, I2C, SCI, SPI | PWM, WDT | 59 | 128KB (128K x 8) | FLASH | 2K x 8 | 8K x 8 | 2.35V ~ 5.25V | A/D 16x10b | Internal | -40°C ~ 85°C (TA) | - | - | Surface Mount | ||
|
R7FS7G27G3A01CFC#AA0IC MCU 32BIT 3MB FLASH 176LFQFP |
149 |
|
Datasheet |
176-LQFP | Renesas Synergy™ S7 | Tray | Active | Not Verified | ARM® Cortex®-M4 | 32-Bit Single-Core | 240MHz | CANbus, EBI/EMI, Ethernet, I2C, IrDA, MMC/SD, QSPI, SCI, SPI, SSI, UART/USART, USB | DMA, LCD, LVD, POR, PWM, WDT | 126 | 3MB (3M x 8) | FLASH | 64K x 8 | 640K x 8 | 2.7V ~ 3.6V | A/D 21x12b; D/A 2x12b | Internal | -40°C ~ 105°C (TA) | - | - | Surface Mount | ||
|
|
MC9S12DJ128CFUEIC MCU 16BIT 128KB FLASH 80QFP |
858 |
|
Datasheet |
80-QFP | HCS12 | Tray | Active | Not Verified | HCS12 | 16-Bit | 25MHz | CANbus, I2C, SCI, SPI | PWM, WDT | 59 | 128KB (128K x 8) | FLASH | 2K x 8 | 8K x 8 | 2.35V ~ 5.25V | A/D 16x10b | Internal | -40°C ~ 85°C (TA) | - | - | Surface Mount | ||
|
MC9S12DG128CPVEIC MCU 16BIT 128KB FLASH 112LQFP |
131 |
|
Datasheet |
112-LQFP | HCS12 | Tray | Active | Verified | HCS12 | 16-Bit | 25MHz | CANbus, I2C, SCI, SPI | PWM, WDT | 91 | 128KB (128K x 8) | FLASH | 2K x 8 | 8K x 8 | 2.35V ~ 5.25V | A/D 16x10b | Internal | -40°C ~ 85°C (TA) | - | - | Surface Mount | ||
|

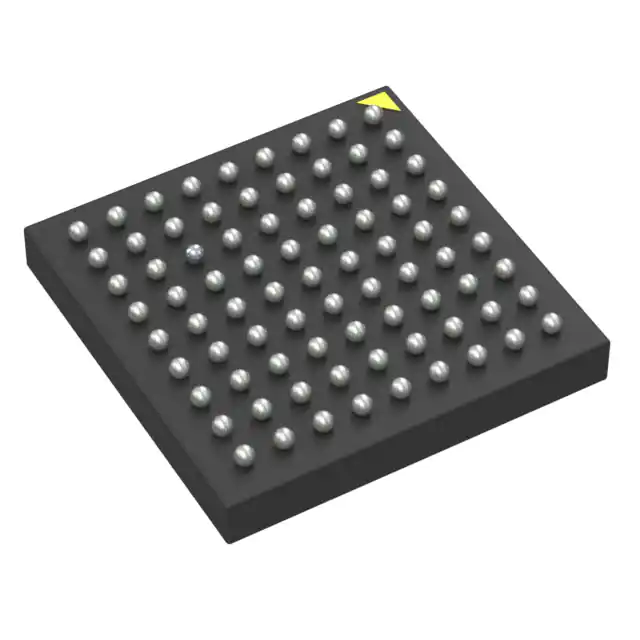

ADUCM410BBCZ-RL7IC MCU 32BIT 1MB FLASH 81CSPBGA |
1,137 |
|
Datasheet |
81-VFBGA, CSPBGA | ADuCM | Tape & Reel (TR) | Active | Not Verified | ARM® Cortex®-M33 | 32-Bit Single-Core | 160MHz | I2C, SPI, UART/USART | DMA, POR, PWM, WDT | - | 1MB (1M x 8) | FLASH | - | 128K x 8 | 2.85V ~ 3.6V | A/D 16x16b SAR; D/A 12x12b | Internal | -40°C ~ 105°C | - | - | Surface Mount | ||
|
|
ADUCM410BBCZIC MCU 32BIT 1MB FLASH 81CSPBGA |
1,069 |
|
Datasheet |
81-VFBGA, CSPBGA | ADuCM | Tray | Active | Not Verified | ARM® Cortex®-M33 | 32-Bit Single-Core | 160MHz | I2C, SPI, UART/USART | DMA, POR, PWM, WDT | - | 1MB (1M x 8) | FLASH | - | 128K x 8 | 2.85V ~ 3.6V | A/D 16x16b SAR; D/A 12x12b | Internal | -40°C ~ 105°C | - | - | Surface Mount | ||
|
DS80C320-ECL+IC MCU 8BIT ROMLESS 44TQFP |
64 |
|
Datasheet |
44-TQFP | 80C | Tray | Active | Not Verified | 8051 | 8-Bit | 33MHz | EBI/EMI, SIO, UART/USART | Power-Fail Reset, WDT | 32 | - | ROMless | - | 256 x 8 | 4.5V ~ 5.5V | - | External | 0°C ~ 70°C (TA) | - | - | Surface Mount | ||
|
|
MC9S12A256MPVEIC MCU 16BIT 256KB FLASH 112LQFP |
300 |
|
Datasheet |
112-LQFP | HCS12 | Tray | Active | Verified | HCS12 | 16-Bit | 25MHz | I2C, SCI, SPI | PWM, WDT | 91 | 256KB (256K x 8) | FLASH | 4K x 8 | 12K x 8 | 2.35V ~ 5.25V | A/D 8x10b | Internal | -40°C ~ 125°C (TA) | - | - | Surface Mount | ||
|
ADUC845BCPZ62-5IC MCU 8BIT 62KB FLASH 56LFCSP |
848 |
|
Datasheet |
56-VFQFN Exposed Pad, CSP | MicroConverter® ADuC8xx | Tray | Active | Not Verified | 8052 | 8-Bit | 12.58MHz | I2C, SPI, UART/USART | POR, PSM, PWM, Temp Sensor, WDT | 34 | 62KB (62K x 8) | FLASH | 4K x 8 | 2.25K x 8 | 4.75V ~ 5.25V | A/D 10x24b; D/A 1x12b, 2x16b | Internal | -40°C ~ 85°C (TA) | - | - | Surface Mount | ||
|
ADUC845BSZ62-5IC MCU 8BIT 62KB FLASH 52MQFP |
98 |
|
Datasheet |
52-QFP | MicroConverter® ADuC8xx | Tray | Active | Not Verified | 8052 | 8-Bit | 12.58MHz | I2C, SPI, UART/USART | POR, PSM, PWM, Temp Sensor, WDT | 34 | 62KB (62K x 8) | FLASH | 4K x 8 | 2.25K x 8 | 4.75V ~ 5.25V | A/D 10x24b; D/A 1x12b, 2x16b | Internal | -40°C ~ 125°C (TA) | - | - | Surface Mount | ||
|
|
MC9S12XEP100MALIC MCU 16BIT 1MB FLASH 112LQFP |
300 |
|
Datasheet |
112-LQFP | HCS12X | Tray | Active | Not Verified | HCS12X | 16-Bit | 50MHz | CANbus, EBI/EMI, I2C, IrDA, SCI, SPI | LVD, POR, PWM, WDT | 91 | 1MB (1M x 8) | FLASH | 4K x 8 | 64K x 8 | 1.72V ~ 5.5V | A/D 16x12b | External | -40°C ~ 125°C (TA) | - | - | Surface Mount |
