Microcontrollers
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Package/Case | Series | Packaging | Product Status | Programmable | Core Processor | Core Size | Speed | Connectivity | Peripherals | Number of I/O | Program Memory Size | Program Memory Type | EEPROM Size | RAM Size | Voltage - Supply (Vcc/Vdd) | Data Converters | Oscillator Type | Operating Temperature | Grade | Qualification | Mounting Type | Supplier Device Package | Supplier Device Package |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

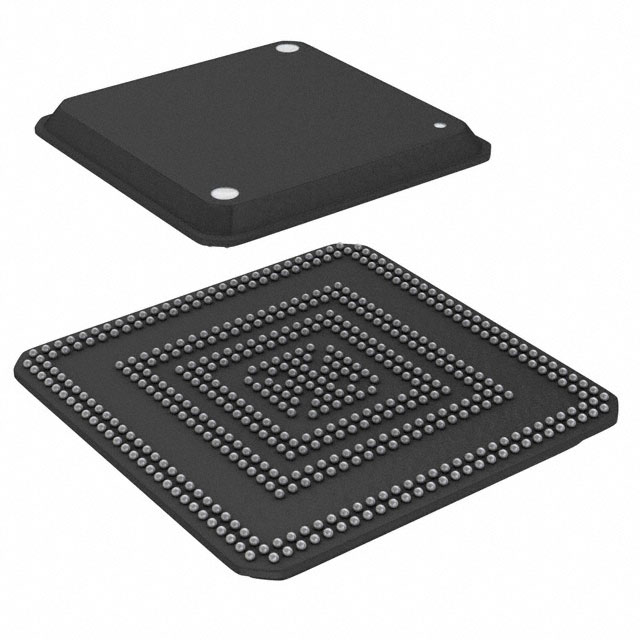

SPC5777MK0MVA8IC MCU 32B 8.64MB FLSH 512TEPBGA |
338 |
|
Datasheet |
512-FBGA | MPC57xx | Tray | Active | Not Verified | e200z7 | 32-Bit Tri-Core | 300MHz | CANbus, EBI/EMI, Ethernet, FlexRAY, I2C, LINbus, SPI, PSI, UART/USART | DMA, LVD, POR, Zipwire | - | 8.64MB (8M x 8) | FLASH | - | 404K x 8 | 3V ~ 5.5V | A/D 12b SAR, 16b Sigma-Delta | Internal | -40°C ~ 125°C (TA) | - | - | Surface Mount | ||
|
MC68LK332ACEH16IC MCU 32BIT ROMLESS 132PQFP |
204 |
|
Datasheet |
132-BQFP Bumpered | M683xx | Tray | Not For New Designs | Not Verified | CPU32 | 32-Bit Single-Core | 16.78MHz | EBI/EMI, SCI, SPI, UART/USART | POR, PWM, WDT | 15 | - | ROMless | - | 2K x 8 | 3V ~ 3.6V | - | Internal | -40°C ~ 85°C (TA) | - | - | Surface Mount | ||
|
TC275T64F200NDCKXUMA1IC MCU 32BIT 4MB FLASH 176LQFP |
987 |
|
Datasheet |
176-LQFP Exposed Pad | AURIX™ | Tape & Reel (TR) | Active | Not Verified | TriCore™ | 32-Bit Tri-Core | 200MHz | ASC, CANbus, Ethernet, FlexRay, HSSL, I2C, LINbus, MSC, PSI5, QSPI, SENT | DMA, WDT | 112 | 4MB (4M x 8) | FLASH | 64K x 8 | 472K x 8 | 3V ~ 5.5V | A/D 40x12b, 6 x Sigma-Delta | External | -40°C ~ 125°C (TA) | - | - | Surface Mount | ||
|
SPC5777CK3MMO3IC MCU 32BIT 8MB FLASH 516MAPBGA |
85 |
|
Datasheet |
516-BGA | MPC57xx | Tray | Active | Not Verified | e200z7 | 32-Bit Tri-Core | 264MHz | CANbus, EBI/EMI, Ethernet, FlexCANbus, LINbus, SCI, SPI | DMA, LVD, POR, Zipwire | - | 8MB (8M x 8) | FLASH | - | 512K x 8 | 3V ~ 5.5V | A/D 16b Sigma-Delta, eQADC | Internal | -40°C ~ 125°C (TA) | - | - | Surface Mount | ||
|
SPC5777CDK3MME4IC MCU 32BIT 8MB FLASH 416MAPBGA |
57 |
|
Datasheet |
416-BGA | MPC57xx | Tray | Active | Not Verified | e200z7 | 32-Bit Tri-Core | 264MHz | CANbus, EBI/EMI, Ethernet, FlexCANbus, LINbus, SCI, SPI | DMA, LVD, POR, Zipwire | - | 8MB (8M x 8) | FLASH | - | 512K x 8 | 3V ~ 5.5V | A/D 16b Sigma-Delta, eQADC | Internal | -40°C ~ 125°C (TA) | - | - | Surface Mount | ||
|

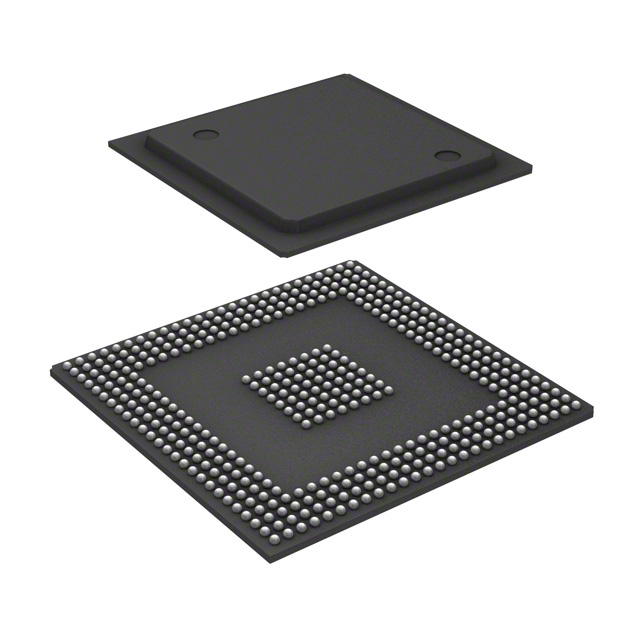

SPC5777MK0MVU8IC MCU 32BIT 8.64MB FLSH 416PBGA |
187 |
|
Datasheet |
416-BBGA | MPC57xx | Tray | Active | Not Verified | e200z7 | 32-Bit Tri-Core | 300MHz | CANbus, EBI/EMI, Ethernet, FlexRAY, I2C, LINbus, SPI, PSI, UART/USART | DMA, LVD, POR, Zipwire | - | 8.64MB (8M x 8) | FLASH | - | 404K x 8 | 3V ~ 5.5V | A/D 12b SAR, 16b Sigma-Delta | Internal | -40°C ~ 125°C (TA) | - | - | Surface Mount | ||
|
MCF5482CVR166IC MCU 32BIT ROMLESS 388PBGA |
190 |
|
Datasheet |
388-BBGA | MCF548x | Tray | Not For New Designs | Not Verified | Coldfire V4E | 32-Bit Single-Core | 166MHz | CANbus, EBI/EMI, Ethernet, I2C, SPI, UART/USART, USB | DMA, PWM, WDT | 99 | - | ROMless | - | 32K x 8 | 1.43V ~ 1.58V | - | External | -40°C ~ 85°C (TA) | - | - | Surface Mount | ||
|
|
MCF5485CZP200IC MCU 32BIT ROMLESS 388PBGA |
242 |
|
Datasheet |
388-BBGA | MCF548x | Tray | Not For New Designs | Not Verified | Coldfire V4E | 32-Bit Single-Core | 200MHz | CANbus, EBI/EMI, Ethernet, I2C, SPI, UART/USART, USB | DMA, PWM, WDT | 99 | - | ROMless | - | 32K x 8 | 1.43V ~ 1.58V | - | External | -40°C ~ 85°C (TA) | - | - | Surface Mount | ||
|
|
SPC5566MZP132IC MCU 32BIT 3MB FLASH 416PBGA |
200 |
|
Datasheet |
416-BBGA | MPC55xx Qorivva | Tray | Active | Not Verified | e200z6 | 32-Bit Single-Core | 132MHz | CANbus, EBI/EMI, Ethernet, SCI, SPI | DMA, POR, PWM, WDT | 256 | 3MB (3M x 8) | FLASH | - | 128K x 8 | 1.35V ~ 1.65V | A/D 40x12b | External | -40°C ~ 125°C (TA) | - | - | Surface Mount | ||
|
ATTINY261A-MFRIC MCU 8BIT 2KB FLASH 32QFN |
6,000 |
|
Datasheet |
32-VFQFN Exposed Pad | AVR® ATtiny | Tape & Reel (TR) | Active | Not Verified | AVR | 8-Bit | 20MHz | USI | Brown-out Detect/Reset, POR, PWM, Temp Sensor, WDT | 16 | 2KB (1K x 16) | FLASH | 128 x 8 | 128 x 8 | 1.8V ~ 5.5V | A/D 11x10b | Internal | -40°C ~ 125°C (TA) | - | - | Surface Mount | ||
|
PIC16F15224T-I/STIC MCU 8BIT 7KB FLASH 14TSSOP |
1,395 |
|
Datasheet |
14-TSSOP (0.173", 4.40mm Width) | PIC® 16F, Functional Safety (FuSa) | Tape & Reel (TR) | Active | Not Verified | PIC | 8-Bit | 32MHz | I2C, LINbus, SPI, UART/USART | Brown-out Detect/Reset, POR, PWM, WDT | 11 | 7KB (7K x 8) | FLASH | - | 512 x 8 | 1.8V ~ 5.5V | A/D 11x10b | Internal | -40°C ~ 85°C (TA) | - | - | Surface Mount | ||
|
PIC16F15244-E/REBIC MCU 8BIT 7KB FLASH 20VQFN |
4,823 |
|
Datasheet |
20-VFQFN Exposed Pad | PIC® 16F, Functional Safety (FuSa) | Tray | Active | Not Verified | PIC | 8-Bit | 32MHz | I2C, LINbus, SPI, UART/USART | Brown-out Detect/Reset, POR, PWM, WDT | 17 | 7KB (4K x 14) | FLASH | - | 512 x 8 | 1.8V ~ 5.5V | A/D 12/2x10b | Internal | -40°C ~ 125°C (TA) | - | - | Surface Mount | ||
|
|
PIC16F15245-E/REBIC MCU 8BIT 14KB FLASH 20VQFN |
2,168 |
|
Datasheet |
20-VFQFN Exposed Pad | PIC® 16F | Tray | Active | Not Verified | PIC | 8-Bit | 32MHz | I2C, LINbus, SPI, UART/USART | Brown-out Detect/Reset, POR, PWM, WDT | 17 | 14KB (8K x 14) | FLASH | - | 1K x 8 | 1.8V ~ 5.5V | A/D 12/2x10b | Internal | -40°C ~ 125°C (TA) | - | - | Surface Mount | ||
|
PIC10F220-I/MCIC MCU 8BIT 384B FLASH 8DFN |
1,191 |
|
Datasheet |
8-VFDFN Exposed Pad | PIC® 10F | Tube | Active | Not Verified | PIC | 8-Bit | 8MHz | - | POR, WDT | 4 | 384B (256 x 12) | FLASH | - | 16 x 8 | 2V ~ 5.5V | A/D 2x8b | Internal | -40°C ~ 85°C (TA) | - | - | Surface Mount | ||
|
ATTINY424-XURIC MCU 8BIT 4KB FLASH 14TSSOP |
2,486 |
|
Datasheet |
14-TSSOP (0.173", 4.40mm Width) | tinyAVR® 2 | Tape & Reel (TR) | Active | Not Verified | AVR | 8-Bit | 20MHz | I2C, SPI, UART/USART | Brown-out Detect/Reset, POR, PWM, WDT | 12 | 4KB (4K x 8) | FLASH | 128 x 8 | 512 x 8 | 1.8V ~ 5.5V | A/D 9x12b | Internal | -40°C ~ 85°C (TA) | - | - | Surface Mount | ||
|
PIC16F54T-I/SSIC MCU 8BIT 768B FLASH 20SSOP |
3,855 |
|
Datasheet |
20-SSOP (0.209", 5.30mm Width) | PIC® 16F | Tape & Reel (TR) | Active | Verified | PIC | 8-Bit | 20MHz | - | POR, WDT | 12 | 768B (512 x 12) | FLASH | - | 25 x 8 | 2V ~ 5.5V | - | External | -40°C ~ 85°C (TA) | - | - | Surface Mount | ||
|
R5F10366ASP#35IC MCU 16BIT 2KB FLASH 20LSSOP |
2,640 |
|
Datasheet |
20-LSSOP (0.173", 4.40mm Width) | RL78/G12 | Tube | Active | Not Verified | RL78 | 16-Bit | 24MHz | CSI, I2C, UART/USART | LVD, POR, PWM, WDT | 14 | 2KB (2K x 8) | FLASH | - | 256 x 8 | 1.8V ~ 5.5V | A/D 11x8/10b | Internal | -40°C ~ 85°C (TA) | - | - | Surface Mount | ||
|
|
ATTINY424-XFRIC MCU 8BIT 4KB FLASH 14TSSOP |
4,800 |
|
Datasheet |
14-TSSOP (0.173", 4.40mm Width) | tinyAVR® 2 | Tape & Reel (TR) | Active | Not Verified | AVR | 8-Bit | 20MHz | I2C, SPI, UART/USART | Brown-out Detect/Reset, POR, PWM, WDT | 12 | 4KB (4K x 8) | FLASH | 128 x 8 | 512 x 8 | 1.8V ~ 5.5V | A/D 9x12b | Internal | -40°C ~ 125°C (TA) | - | - | Surface Mount | ||
|
ATTINY1606-MFIC MCU 8BIT 16KB FLASH 20VQFN |
3,261 |
|
Datasheet |
20-VFQFN Exposed Pad | tinyAVR™ 0, Functional Safety (FuSa) | Tray | Active | Not Verified | AVR | 8-Bit | 16MHz | I2C, SPI, UART/USART | Brown-out Detect/Reset, POR, PWM, WDT | 18 | 16KB (16K x 8) | FLASH | 256 x 8 | 1K x 8 | 2.7V ~ 5.5V | A/D 12x10b | Internal | -40°C ~ 125°C (TA) | - | - | Surface Mount | ||
|
PIC12LF1571-E/RFIC MCU 8BIT 1.75KB FLASH 8UDFN |
1,014 |
|
Datasheet |
8-UDFN Exposed Pad | PIC® 12F | Tube | Active | Not Verified | PIC | 8-Bit | 32MHz | - | Brown-out Detect/Reset, POR, PWM, WDT | 6 | 1.75KB (1K x 14) | FLASH | - | 128 x 8 | 1.8V ~ 3.6V | A/D 4x10b; D/A 1x5b | Internal | -40°C ~ 125°C (TA) | - | - | Surface Mount |
