Film Capacitors
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Package/Case | Capacitance | Tolerance | Voltage Rating - AC | Voltage Rating - DC | Dielectric Material | ESR (Equivalent Series Resistance) | Operating Temperature | Mounting Type | Size / Dimension | Height - Seated (Max) | Termination | Lead Spacing | Applications | Ratings | Features |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
F17102471013CAP FILM 4700PF 20% 300VAC RAD |
8,666 |
|
Datasheet |
Radial | 4700 pF | ±20% | 300V | - | Polypropylene (PP) | - | -55°C ~ 105°C | Through Hole | 0.689" L x 0.197" W (17.50mm x 5.00mm) | 0.433" (11.00mm) | PC Pins | 0.591" (15.00mm) | Automotive; EMI, RFI Suppression | AEC-Q200, Y2 | - |
|
|
F17102471014CAP FILM 4700PF 20% 300VAC RAD |
5,524 |
|
Datasheet |
Radial | 4700 pF | ±20% | 300V | - | Polypropylene (PP) | - | -55°C ~ 105°C | Through Hole | 0.689" L x 0.197" W (17.50mm x 5.00mm) | 0.433" (11.00mm) | PC Pins | 0.591" (15.00mm) | Automotive; EMI, RFI Suppression | AEC-Q200, Y2 | - |
|

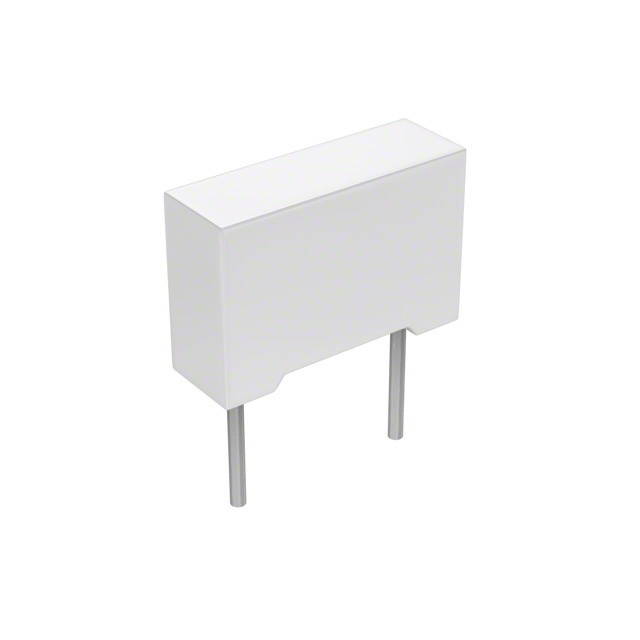

184274J63RAA-FCAP FILM 0.27UF 5% 63VDC RADIAL |
7,623 |
|
Datasheet |
Radial | 0.27 µF | ±5% | 40V | 63V | Polyester, Metallized | - | -55°C ~ 125°C | Through Hole | 0.413" L x 0.138" W (10.50mm x 3.50mm) | 0.276" (7.00mm) | PC Pins | 0.295" (7.50mm) | General Purpose | - | - |
|
|
184274J63RAB-FCAP FILM 0.27UF 5% 63VDC RADIAL |
3,544 |
|
Datasheet |
Radial | 0.27 µF | ±5% | 40V | 63V | Polyester, Metallized | - | -55°C ~ 125°C | Through Hole | 0.413" L x 0.138" W (10.50mm x 3.50mm) | 0.276" (7.00mm) | PC Pins | 0.295" (7.50mm) | General Purpose | - | - |
|
|
184334J63RAA-FCAP FILM 0.33UF 5% 63VDC RADIAL |
8,849 |
|
Datasheet |
Radial | 0.33 µF | ±5% | 40V | 63V | Polyester, Metallized | - | -55°C ~ 125°C | Through Hole | 0.413" L x 0.138" W (10.50mm x 3.50mm) | 0.276" (7.00mm) | PC Pins | 0.295" (7.50mm) | General Purpose | - | - |
|
|
184334J63RAB-FCAP FILM 0.33UF 5% 63VDC RADIAL |
7,617 |
|
Datasheet |
Radial | 0.33 µF | ±5% | 40V | 63V | Polyester, Metallized | - | -55°C ~ 125°C | Through Hole | 0.413" L x 0.138" W (10.50mm x 3.50mm) | 0.276" (7.00mm) | PC Pins | 0.295" (7.50mm) | General Purpose | - | - |
|
|
ECW-F4104JLBCAP FILM 0.1UF 5% 400VDC RADIAL |
9,537 |
|
Datasheet |
Radial | 0.1 µF | ±5% | - | 400V | Polypropylene (PP), Metallized | - | -40°C ~ 105°C | Through Hole | 0.610" L x 0.256" W (15.50mm x 6.50mm) | 0.630" (16.00mm) | PC Pins | 0.295" (7.50mm) | High Frequency, Switching | - | - |
|
|
ECW-F4683JLBCAP FILM 0.068UF 5% 400VDC RAD |
6,833 |
|
Datasheet |
Radial | 0.068 µF | ±5% | - | 400V | Polypropylene (PP), Metallized | - | -40°C ~ 105°C | Through Hole | 0.512" L x 0.276" W (13.00mm x 7.00mm) | 0.587" (14.90mm) | PC Pins | 0.295" (7.50mm) | High Frequency, Switching | - | - |
|
|
ECW-F4913JLBCAP FILM 0.091UF 5% 400VDC RAD |
3,556 |
|
Datasheet |
Radial | 0.091 µF | ±5% | - | 400V | Polypropylene (PP), Metallized | - | -40°C ~ 105°C | Through Hole | 0.512" L x 0.307" W (13.00mm x 7.80mm) | 0.618" (15.70mm) | PC Pins | 0.295" (7.50mm) | High Frequency, Switching | - | - |
|
|
ECW-F4753JLBCAP FILM 0.075UF 5% 400VDC RAD |
3,279 |
|
Datasheet |
Radial | 0.075 µF | ±5% | - | 400V | Polypropylene (PP), Metallized | - | -40°C ~ 105°C | Through Hole | 0.512" L x 0.287" W (13.00mm x 7.30mm) | 0.594" (15.10mm) | PC Pins | 0.295" (7.50mm) | High Frequency, Switching | - | - |
|
|
ECW-F4823JLBCAP FILM 0.082UF 5% 400VDC RAD |
3,731 |
|
Datasheet |
Radial | 0.082 µF | ±5% | - | 400V | Polypropylene (PP), Metallized | - | -40°C ~ 105°C | Through Hole | 0.512" L x 0.295" W (13.00mm x 7.50mm) | 0.606" (15.40mm) | PC Pins | 0.295" (7.50mm) | High Frequency, Switching | - | - |
|
|
ECW-F6223HLBCAP FILM 0.022UF 3% 630VDC RAD |
6,816 |
|
Datasheet |
Radial | 0.022 µF | ±3% | - | 630V | Polypropylene (PP), Metallized | - | -40°C ~ 105°C | Through Hole | 0.492" L x 0.244" W (12.50mm x 6.20mm) | 0.551" (14.00mm) | PC Pins | 0.295" (7.50mm) | High Frequency, Switching | - | - |
|
|
ECW-F6183HLBCAP FILM 0.018UF 3% 630VDC RAD |
4,886 |
|
Datasheet |
Radial | 0.018 µF | ±3% | - | 630V | Polypropylene (PP), Metallized | - | -40°C ~ 105°C | Through Hole | 0.492" L x 0.244" W (12.50mm x 6.20mm) | 0.555" (14.10mm) | PC Pins | 0.295" (7.50mm) | High Frequency, Switching | - | - |
|
|
R76TN2680CK40KCAP FILM AUTO POLYPROP RAD |
9,985 |
|
Datasheet |
Radial | 0.068 µF | ±10% | 650V | 1600V (1.6kV) | Polypropylene (PP), Metallized | 19 mOhms | -55°C ~ 110°C | Through Hole | 1.043" L x 0.394" W (26.50mm x 10.00mm) | 0.732" (18.60mm) | PC Pins | 0.886" (22.50mm) | Automotive; High Frequency, Switching; High Pulse, DV/DT | AEC-Q200 | - |
|
|
BFC237590424CAP FILM 9100PF 5% 1KVDC RADIAL |
9,267 |
|
Datasheet |
Radial | 9100 pF | ±5% | 400V | 1000V (1kV) | Polypropylene (PP), Metallized | - | -55°C ~ 105°C | Through Hole | 0.728" L x 0.276" W (18.50mm x 7.00mm) | 0.748" (19.00mm) | PC Pins | 0.591" (15.00mm) | High Pulse, DV/DT | - | - |
|
|
R75GR4150AA00JCAP FILM AUTO POLYPROP RAD |
6,380 |
|
Datasheet |
Radial | 1.5 µF | ±5% | 90V | 160V | Polypropylene (PP), Metallized | 10.6 mOhms | -55°C ~ 105°C | Through Hole | 1.260" L x 0.354" W (32.00mm x 9.00mm) | 0.673" (17.10mm) | PC Pins | 1.083" (27.50mm) | High Frequency, Switching; High Pulse, DV/DT | - | - |
|
|
MKP1O131806B00MSC9MKP 10 0.18 F 1000 VDC 11X21X31. |
2,101 |
|
Datasheet |
- | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
MKP1O132206B00MSC9MKP 10 0.22 F 1000 VDC 11X21X31. |
5,364 |
|
Datasheet |
- | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
MKP1J032705I00MSSDMKP 10 0.27 F 630 VDC 11X21X26.5 |
2,520 |
|
Datasheet |
- | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
MKP1J033305I00MSSDMKP 10 0.33 F 630 VDC 11X21X26.5 |
2,508 |
|
Datasheet |
- | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
