Film Capacitors
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Package/Case | Capacitance | Tolerance | Voltage Rating - AC | Voltage Rating - DC | Dielectric Material | ESR (Equivalent Series Resistance) | Operating Temperature | Mounting Type | Size / Dimension | Height - Seated (Max) | Termination | Lead Spacing | Applications | Ratings | Features |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
BFC246742273CAP FILM 0.027UF 10% 630VDC RAD |
9,721 |
|
Datasheet |
Radial | 0.027 µF | ±10% | 250V | 630V | Polyester, Metallized | - | -55°C ~ 105°C | Through Hole | 0.492" L x 0.209" W (12.50mm x 5.30mm) | 0.630" (16.00mm) | PC Pins | 0.394" (10.00mm) | General Purpose | - | - |
|
BFC233864332CAP FILM 3300PF 20% 1KVDC RADIAL |
2,450 |
|
Datasheet |
Radial | 3300 pF | ±20% | 300V | 1000V (1kV) | Polypropylene (PP), Metallized | - | -55°C ~ 105°C | Through Hole | 0.394" L x 0.197" W (10.00mm x 5.00mm) | 0.413" (10.50mm) | PC Pins | 0.295" (7.50mm) | Automotive; EMI, RFI Suppression | AEC-Q200, Y2 | - |
|
BFC233914333CAP FILM 0.033UF 10% 630VDC RAD |
5,085 |
|
Datasheet |
Radial | 0.033 µF | ±10% | 310V | 630V | Polypropylene (PP), Metallized | - | -55°C ~ 110°C | Through Hole | 0.394" L x 0.197" W (10.00mm x 5.00mm) | 0.413" (10.50mm) | PC Pins | 0.295" (7.50mm) | Automotive; EMI, RFI Suppression | AEC-Q200, X2 | - |
|
MKP4D041205G00JB00MKP 4 1.2 F 100 VDC 10.5X19X26.5 |
8,076 |
|
Datasheet |
- | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
MKP4D041205G00JD00MKP 4 1.2 F 100 VDC 10.5X19X26.5 |
7,127 |
|
Datasheet |
- | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
MKP4D041205G00JH00MKP 4 1.2 F 100 VDC 10.5X19X26.5 |
9,406 |
|
Datasheet |
- | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
MKP4D041205G00JJ00MKP 4 1.2 F 100 VDC 10.5X19X26.5 |
7,652 |
|
Datasheet |
- | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
BFC233862332CAP FILM 3300PF 20% 1KVDC RADIAL |
8,040 |
|
Datasheet |
Radial | 3300 pF | ±20% | 300V | 1000V (1kV) | Polypropylene (PP), Metallized | - | -55°C ~ 105°C | Through Hole | 0.394" L x 0.197" W (10.00mm x 5.00mm) | 0.413" (10.50mm) | PC Pins | 0.295" (7.50mm) | Automotive; EMI, RFI Suppression | AEC-Q200, Y2 | - |
|
BFC233868142CAP FILM 5600PF 20% 1KVDC RADIAL |
7,245 |
|
Datasheet |
Radial | 5600 pF | ±20% | 300V | 1000V (1kV) | Polypropylene (PP), Metallized | - | -55°C ~ 105°C | Through Hole | 0.394" L x 0.197" W (10.00mm x 5.00mm) | 0.413" (10.50mm) | PC Pins | 0.295" (7.50mm) | Automotive; EMI, RFI Suppression | AEC-Q200, Y2 | - |
|
|
BFC233910333CAP FILM 0.033UF 10% 630VDC RAD |
2,107 |
|
Datasheet |
Radial | 0.033 µF | ±10% | 310V | 630V | Polypropylene (PP), Metallized | - | -55°C ~ 110°C | Through Hole | 0.394" L x 0.197" W (10.00mm x 5.00mm) | 0.413" (10.50mm) | PC Pins | 0.295" (7.50mm) | Automotive; EMI, RFI Suppression | AEC-Q200, X2 | - |
|
|
BFC233912333CAP FILM 0.033UF 10% 630VDC RAD |
2,798 |
|
Datasheet |
Radial | 0.033 µF | ±10% | 310V | 630V | Polypropylene (PP), Metallized | - | -55°C ~ 110°C | Through Hole | 0.394" L x 0.197" W (10.00mm x 5.00mm) | 0.413" (10.50mm) | PC Pins | 0.295" (7.50mm) | Automotive; EMI, RFI Suppression | AEC-Q200, X2 | - |
|

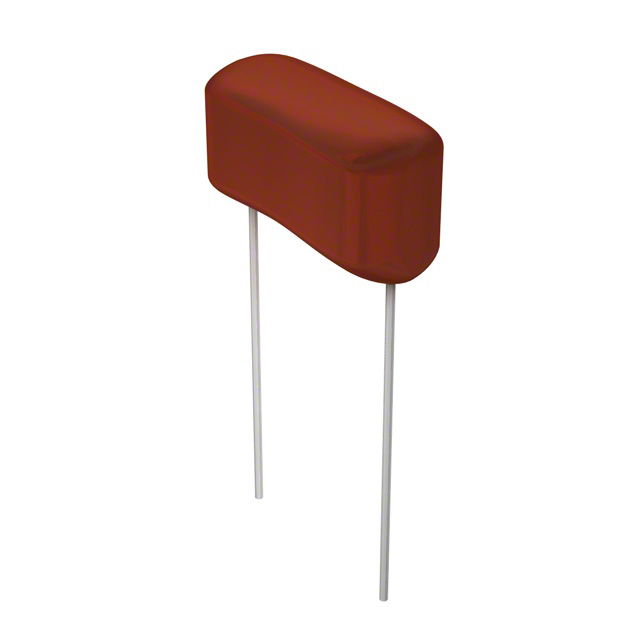

DPM6S47K-FCAP FILM 0.047UF 10% 630VDC RAD |
5,669 |
|
Datasheet |
Radial | 0.047 µF | ±10% | 250V | 630V | Polypropylene (PP), Metallized | - | -55°C ~ 105°C | Through Hole | 0.713" L x 0.354" W (18.10mm x 9.00mm) | 0.709" (18.00mm) | PC Pins | 0.591" (15.00mm) | DC Link, DC Filtering; High Frequency, Switching | - | Low ESR, Low ESL |
|
184224J100RCA-FCAP FILM 0.22UF 5% 100VDC RADIAL |
9,951 |
|
Datasheet |
Radial | 0.22 µF | ±5% | 63V | 100V | Polyester, Metallized | - | -55°C ~ 125°C | Through Hole | 0.413" L x 0.197" W (10.50mm x 5.00mm) | 0.433" (11.00mm) | PC Pins | 0.295" (7.50mm) | General Purpose | - | - |
|
|
184224J100RCB-FCAP FILM 0.22UF 5% 100VDC RADIAL |
6,749 |
|
Datasheet |
Radial | 0.22 µF | ±5% | 63V | 100V | Polyester, Metallized | - | -55°C ~ 125°C | Through Hole | 0.413" L x 0.197" W (10.50mm x 5.00mm) | 0.433" (11.00mm) | PC Pins | 0.295" (7.50mm) | General Purpose | - | - |
|
|
DCP4L041006AD2JSC9DC-LINK MKP 4 1.0 F 800 VDC 9X19 |
9,893 |
|
Datasheet |
- | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
FKP1J026806B00MJ00FKP 1 0.068 F 630 VDC 11X21X31.5 |
3,220 |
|
Datasheet |
- | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
FKP1J026806B00MH00FKP 1 0.068 F 630 VDC 11X21X31.5 |
8,422 |
|
Datasheet |
- | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
418P10396KB2CAP FILM 10000PF 10% 600VDC RAD |
6,450 |
|
Datasheet |
Radial | 10000 pF | ±10% | - | 600V | Polyester | - | -55°C ~ 85°C | Through Hole | 0.402" Dia x 0.902" L (10.20mm x 22.90mm) | 0.638" (16.20mm) | PC Pins | 0.689" (17.50mm) | Audio | - | - |
|
|
418P47394LB2CAP FILM 0.047UF 10% 400VDC RAD |
4,984 |
|
Datasheet |
Radial | 0.047 µF | ±10% | - | 400V | Polyester | - | -55°C ~ 85°C | Through Hole | 0.402" Dia x 1.201" L (10.20mm x 30.50mm) | 0.638" (16.20mm) | PC Pins | 0.969" (24.60mm) | Audio | - | - |
|
|
715P1825800LCCAP FILM 1800PF 5% 1.8KVDC RAD |
3,569 |
|
Datasheet |
Radial | 1800 pF | ±5% | 800V | 1800V (1.8kV) | Polypropylene (PP), Metallized | - | -55°C ~ 85°C | Through Hole | 0.319" Dia x 1.122" L (8.10mm x 28.50mm) | 0.634" (16.10mm) | PC Pins | 0.886" (22.50mm) | Audio; High Frequency, Switching; High Pulse, DV/DT; Snubber | - | - |
