Film Capacitors
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Package/Case | Capacitance | Tolerance | Voltage Rating - AC | Voltage Rating - DC | Dielectric Material | ESR (Equivalent Series Resistance) | Operating Temperature | Mounting Type | Size / Dimension | Height - Seated (Max) | Termination | Lead Spacing | Applications | Ratings | Features |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
BFC238372332CAP FILM 3300PF 5% 2.5KVDC RAD |
2,720 |
|
Datasheet |
Radial | 3300 pF | ±5% | 900V | 2500V (2.5kV) | Polypropylene (PP), Metallized | - | -55°C ~ 105°C | Through Hole | 1.024" L x 0.236" W (26.00mm x 6.00mm) | 0.610" (15.50mm) | PC Pins | 0.886" (22.50mm) | High Pulse, DV/DT | - | - |
|
EFDKS80J126D132LHCAP EFDKS 800VDC 12UF J 2LEADS |
7,573 |
|
Datasheet |
Radial | 12 µF | ±5% | - | 800V | Polypropylene (PP), Metallized | 9.5 mOhms | -40°C ~ 105°C | Through Hole | 1.260" L x 0.866" W (32.00mm x 22.00mm) | 1.488" (37.80mm) | PC Pins | 1.083" (27.50mm) | DC Link, DC Filtering | - | - |
|
|
F872FN564K480ZCAP FILM POLYPROP RAD X1 |
3,706 |
|
Datasheet |
Radial | 0.56 µF | ±10% | 480V | 1000V (1kV) | Polypropylene (PP), Metallized | - | -40°C ~ 110°C | Through Hole | 1.240" L x 0.551" W (31.50mm x 14.00mm) | 1.102" (28.00mm) | PC Pins | 1.083" (27.50mm) | EMI, RFI Suppression | X1 | - |
|
|
BFC238304304CAP FILM 0.3UF 5% 250VDC RADIAL |
9,812 |
|
Datasheet |
Radial | 0.3 µF | ±5% | 125V | 250V | Polypropylene (PP), Metallized | - | -55°C ~ 105°C | Through Hole | 0.689" L x 0.335" W (17.50mm x 8.50mm) | 0.591" (15.00mm) | PC Pins | 0.591" (15.00mm) | High Pulse, DV/DT | - | - |
|
|
MKP18423474000CAP FILM 0.047UF 400VAC AXIAL |
3,945 |
|
Datasheet |
Axial, Can | 0.047 µF | - | 400V | - | Polypropylene (PP), Metallized | - | -40°C ~ 85°C | Through Hole | 0.374" Dia x 1.043" L (9.50mm x 26.50mm) | - | PC Pins | - | General Purpose | - | - |
|
|
MKP1841447405VCAP FILM 0.47UF 10% 400VDC RAD |
4,286 |
|
Datasheet |
Radial | 0.47 µF | ±10% | 220V | 400V | Polypropylene (PP), Metallized | - | -55°C ~ 100°C | Through Hole | 1.220" L x 0.512" W (31.00mm x 13.00mm) | 0.906" (23.00mm) | PC Pins | 1.083" (27.50mm) | DC Link, DC Filtering; High Pulse, DV/DT; Snubber | - | - |
|
|
MKP1841447406VCAP FILM 0.47UF 20% 400VDC RAD |
7,596 |
|
Datasheet |
Radial | 0.47 µF | ±20% | 220V | 400V | Polypropylene (PP), Metallized | - | -55°C ~ 100°C | Through Hole | 1.220" L x 0.512" W (31.00mm x 13.00mm) | 0.906" (23.00mm) | PC Pins | 1.083" (27.50mm) | DC Link, DC Filtering; High Pulse, DV/DT; Snubber | - | - |
|
|
F461DY685M160Z6.80UF 160V |
7,122 |
|
Datasheet |
Radial | 6.8 µF | ±20% | 90V | 160V | Polypropylene (PP), Metallized | - | -55°C ~ 105°C | Through Hole | 1.024" L x 0.610" W (26.00mm x 15.50mm) | 0.965" (24.50mm) | PC Pins | 0.886" (22.50mm) | High Pulse, DV/DT | - | - |
|
|
F462RB184J1K6ZCAP FILM POLYPROP RAD |
2,821 |
|
Datasheet |
Radial | 0.18 µF | ±5% | 500V | 1600V (1.6kV) | Polypropylene (PP), Metallized | - | -55°C ~ 105°C | Through Hole | 1.614" L x 0.433" W (41.00mm x 11.00mm) | 0.866" (22.00mm) | PC Pins | 1.476" (37.50mm) | High Pulse, DV/DT | - | - |
|
|
BFC247932474CAP FILM 0.47UF 5% 160VDC RADIAL |
6,742 |
|
Datasheet |
Radial | 0.47 µF | ±5% | 100V | 160V | Polypropylene (PP), Metallized | - | -55°C ~ 105°C | Through Hole | 0.728" L x 0.295" W (18.50mm x 7.50mm) | 0.650" (16.50mm) | PC Pins | 0.591" (15.00mm) | High Pulse, DV/DT | - | Long Life |
|
|
BFC247934474CAP FILM 0.47UF 5% 160VDC RADIAL |
7,245 |
|
Datasheet |
Radial | 0.47 µF | ±5% | 100V | 160V | Polypropylene (PP), Metallized | - | -55°C ~ 105°C | Through Hole | 0.728" L x 0.295" W (18.50mm x 7.50mm) | 0.650" (16.50mm) | PC Pins | 0.591" (15.00mm) | High Pulse, DV/DT | - | Long Life |
|
|
FKP1U026807F00KSC9FKP 1 0.068 F 2000 VDC 19X32X41. |
6,003 |
|
Datasheet |
- | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
MKP383462040JKM2T0CAP FILM 0.62UF 5% 400VDC RADIAL |
6,279 |
|
Datasheet |
Radial | 0.62 µF | ±5% | 200V | 400V | Polypropylene (PP), Metallized | - | -55°C ~ 105°C | Through Hole | 1.220" L x 0.433" W (31.00mm x 11.00mm) | 0.827" (21.00mm) | PC Pins | 1.083" (27.50mm) | High Pulse, DV/DT | - | - |
|
|
MKP383462040JKP2T0CAP FILM 0.62UF 5% 400VDC RADIAL |
3,384 |
|
Datasheet |
Radial | 0.62 µF | ±5% | 200V | 400V | Polypropylene (PP), Metallized | - | -55°C ~ 105°C | Through Hole | 1.220" L x 0.433" W (31.00mm x 11.00mm) | 0.827" (21.00mm) | PC Pins | 1.083" (27.50mm) | High Pulse, DV/DT | - | - |
|
|
MKP383462040JKI2B0CAP FILM 0.62UF 5% 400VDC RADIAL |
4,087 |
|
Datasheet |
Radial | 0.62 µF | ±5% | 200V | 400V | Polypropylene (PP), Metallized | - | -55°C ~ 105°C | Through Hole | 1.220" L x 0.433" W (31.00mm x 11.00mm) | 0.827" (21.00mm) | PC Pins | 1.083" (27.50mm) | High Pulse, DV/DT | - | - |
|
|
BFC237882562CAP FILM 5600PF 5% 1.6KVDC RAD |
8,282 |
|
Datasheet |
Radial | 5600 pF | ±5% | 500V | 1600V (1.6kV) | Polypropylene (PP), Metallized | - | -55°C ~ 85°C | Through Hole | 1.024" L x 0.236" W (26.00mm x 6.00mm) | 0.610" (15.50mm) | PC Pins | 0.886" (22.50mm) | High Pulse, DV/DT | - | Long Life |
|
|
BFC237884562CAP FILM 5600PF 5% 1.6KVDC RAD |
3,149 |
|
Datasheet |
Radial | 5600 pF | ±5% | 500V | 1600V (1.6kV) | Polypropylene (PP), Metallized | - | -55°C ~ 85°C | Through Hole | 1.024" L x 0.236" W (26.00mm x 6.00mm) | 0.610" (15.50mm) | PC Pins | 0.886" (22.50mm) | High Pulse, DV/DT | - | Long Life |
|

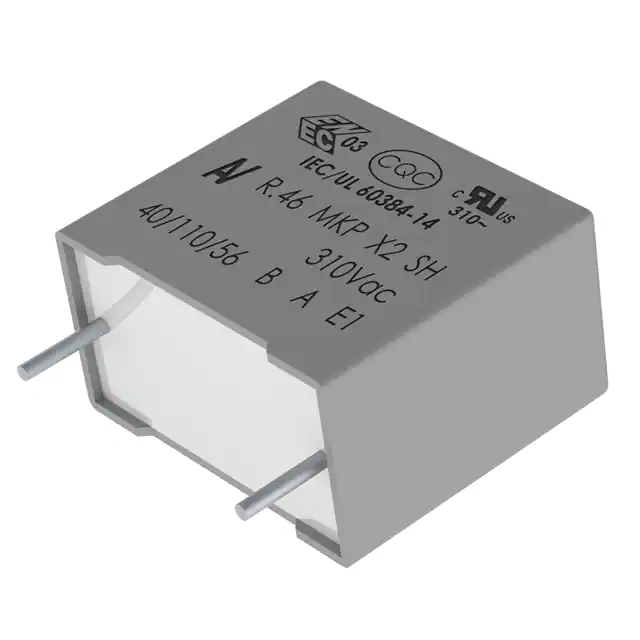

R463I322000H3MCAP FILM 0.22UF 20% 630VDC RAD |
4,902 |
|
Datasheet |
Radial | 0.22 µF | ±20% | 310V | 630V | Polypropylene (PP), Metallized | - | -40°C ~ 110°C | Through Hole | - | - | PC Pins | 0.591" (15.00mm) | EMI, RFI Suppression | X2 | - |
|
|
MKP385330250JKM2T0CAP FILM 0.03UF 5% 2.5KVDC RAD |
5,061 |
|
Datasheet |
Radial | 0.03 µF | ±5% | 900V | 2500V (2.5kV) | Polypropylene (PP), Metallized | - | -55°C ~ 110°C | Through Hole | 1.220" L x 0.512" W (31.00mm x 13.00mm) | 0.906" (23.00mm) | PC Pins | 1.083" (27.50mm) | DC Link, DC Filtering; High Frequency, Switching; High Pulse, DV/DT | - | - |
|
|
MKP385330250JKP2T0CAP FILM 0.03UF 5% 2.5KVDC RAD |
8,602 |
|
Datasheet |
Radial | 0.03 µF | ±5% | 900V | 2500V (2.5kV) | Polypropylene (PP), Metallized | - | -55°C ~ 110°C | Through Hole | 1.220" L x 0.512" W (31.00mm x 13.00mm) | 0.906" (23.00mm) | PC Pins | 1.083" (27.50mm) | DC Link, DC Filtering; High Frequency, Switching; High Pulse, DV/DT | - | - |
