Film Capacitors
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Package/Case | Capacitance | Tolerance | Voltage Rating - AC | Voltage Rating - DC | Dielectric Material | ESR (Equivalent Series Resistance) | Operating Temperature | Mounting Type | Size / Dimension | Height - Seated (Max) | Termination | Lead Spacing | Applications | Ratings | Features |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
EFPLS1GJ184D082LHCAP FILM 0.18UF 5% 1600VDC RAD |
8,557 |
|
Datasheet |
Radial | 0.18 µF | ±5% | - | 1600V (1.6kV) | Polypropylene (PP), Metallized | 12 mOhms | -40°C ~ 105°C | Through Hole | 1.260" L x 0.551" W (32.00mm x 14.00mm) | 1.134" (28.80mm) | PC Pins | 1.083" (27.50mm) | High Frequency, Switching; High Pulse, DV/DT | - | - |
|
|
EFPLS2AJ104D082LHCAP FILM 0.1UF 5% 2000VDC RAD |
7,639 |
|
Datasheet |
Radial | 0.1 µF | ±5% | - | 2000V (2kV) | Polypropylene (PP), Metallized | 18 mOhms | -40°C ~ 105°C | Through Hole | 1.260" L x 0.551" W (32.00mm x 14.00mm) | 1.134" (28.80mm) | PC Pins | 1.083" (27.50mm) | High Frequency, Switching; High Pulse, DV/DT | - | - |
|
|
EFPLS63J824D082LHCAP FILM 0.82UF 5% 630VDC RAD |
2,527 |
|
Datasheet |
Radial | 0.82 µF | ±5% | - | 630V | Polypropylene (PP), Metallized | 9 mOhms | -40°C ~ 105°C | Through Hole | 1.260" L x 0.551" W (32.00mm x 14.00mm) | 1.134" (28.80mm) | PC Pins | 1.083" (27.50mm) | High Frequency, Switching; High Pulse, DV/DT | - | - |
|
|
F462RB334K1L2ZCAP FILM POLYPROP RAD |
3,720 |
|
Datasheet |
Radial | 0.33 µF | ±10% | 400V | 1250V (1.25kV) | Polypropylene (PP), Metallized | - | -55°C ~ 105°C | Through Hole | 1.614" L x 0.433" W (41.00mm x 11.00mm) | 0.866" (22.00mm) | PC Pins | 1.476" (37.50mm) | High Pulse, DV/DT | - | - |
|
BFC238332333CAP FILM 0.033UF 5% 1KVDC RADIAL |
9,017 |
|
Datasheet |
Radial | 0.033 µF | ±5% | 350V | 1000V (1kV) | Polypropylene (PP), Metallized | - | -55°C ~ 105°C | Through Hole | 0.689" L x 0.276" W (17.50mm x 7.00mm) | 0.532" (13.50mm) | PC Pins | 0.591" (15.00mm) | High Pulse, DV/DT | - | - |
|
|
MKP385518025JII2B0CAP FILM 1.8UF 5% 250VDC RADIAL |
7,925 |
|
Datasheet |
Radial | 1.8 µF | ±5% | 160V | 250V | Polypropylene (PP), Metallized | - | -55°C ~ 110°C | Through Hole | 1.024" L x 0.394" W (26.00mm x 10.00mm) | 0.768" (19.50mm) | PC Pins | 0.886" (22.50mm) | DC Link, DC Filtering; High Frequency, Switching; High Pulse, DV/DT | - | - |
|
|
MKP385518025JIM2T0CAP FILM 1.8UF 5% 250VDC RADIAL |
2,576 |
|
Datasheet |
Radial | 1.8 µF | ±5% | 160V | 250V | Polypropylene (PP), Metallized | - | -55°C ~ 110°C | Through Hole | 1.024" L x 0.394" W (26.00mm x 10.00mm) | 0.768" (19.50mm) | PC Pins | 0.886" (22.50mm) | DC Link, DC Filtering; High Frequency, Switching; High Pulse, DV/DT | - | - |
|
|
MKP385518025JIP2T0CAP FILM 1.8UF 5% 250VDC RADIAL |
3,107 |
|
Datasheet |
Radial | 1.8 µF | ±5% | 160V | 250V | Polypropylene (PP), Metallized | - | -55°C ~ 110°C | Through Hole | 1.024" L x 0.394" W (26.00mm x 10.00mm) | 0.768" (19.50mm) | PC Pins | 0.886" (22.50mm) | DC Link, DC Filtering; High Frequency, Switching; High Pulse, DV/DT | - | - |
|
|
MKS4B051004J00KD00CAP FILM 10UF 10% 50VDC RADIAL |
5,805 |
|
Datasheet |
Radial | 10 µF | ±10% | 30V | 50V | Polyester, Polyethylene Terephthalate (PET), Metallized | - | -55°C ~ 105°C | Through Hole | 0.709" L x 0.354" W (18.00mm x 9.00mm) | 0.630" (16.00mm) | PC Pins | 0.591" (15.00mm) | Automotive; DC Link, DC Filtering | AEC-Q200 | - |
|
|
MKS4B051004J00KB00CAP FILM 10UF 10% 50VDC RADIAL |
9,703 |
|
Datasheet |
Radial | 10 µF | ±10% | 30V | 50V | Polyester, Polyethylene Terephthalate (PET), Metallized | - | -55°C ~ 105°C | Through Hole | 0.709" L x 0.354" W (18.00mm x 9.00mm) | 0.630" (16.00mm) | PC Pins | 0.591" (15.00mm) | Automotive; DC Link, DC Filtering | AEC-Q200 | - |
|
|
MKS4B051004J00KH00CAP FILM 10UF 10% 50VDC RADIAL |
5,103 |
|
Datasheet |
Radial | 10 µF | ±10% | 30V | 50V | Polyester, Polyethylene Terephthalate (PET), Metallized | - | -55°C ~ 105°C | Through Hole | 0.709" L x 0.354" W (18.00mm x 9.00mm) | 0.630" (16.00mm) | PC Pins | 0.591" (15.00mm) | Automotive; DC Link, DC Filtering | AEC-Q200 | - |
|
|
MKS4B051004J00KJ00CAP FILM 10UF 10% 50VDC RADIAL |
2,405 |
|
Datasheet |
Radial | 10 µF | ±10% | 30V | 50V | Polyester, Polyethylene Terephthalate (PET), Metallized | - | -55°C ~ 105°C | Through Hole | 0.709" L x 0.354" W (18.00mm x 9.00mm) | 0.630" (16.00mm) | PC Pins | 0.591" (15.00mm) | Automotive; DC Link, DC Filtering | AEC-Q200 | - |
|
|
MKX2AW43907E00MSC9MKP-X2 3.9 F 305 VAC 17X29X41.5 |
2,719 |
|
Datasheet |
- | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
BFC237518273CAP FILM 0.027UF 5% 630VDC RAD |
4,380 |
|
Datasheet |
Radial | 0.027 µF | ±5% | 300V | 630V | Polypropylene (PP), Metallized | - | -55°C ~ 105°C | Through Hole | 0.728" L x 0.315" W (18.50mm x 8.00mm) | 0.630" (16.00mm) | PC Pins | 0.394" (10.00mm) | High Pulse, DV/DT | - | - |
|
|
A50DK4150AA60KCAP FILM AXL |
3,741 |
|
Datasheet |
Axial | 1.5 µF | ±10% | 40V | 63V | Polyester, Polyethylene Terephthalate (PET), Metallized | - | -55°C ~ 105°C | Through Hole | 0.256" Dia x 0.807" L (6.50mm x 20.50mm) | - | PC Pins | - | Automotive | AEC-Q200 | - |
|
|
BFC247945224CAP FILM 0.22UF 5% 250VDC RADIAL |
3,567 |
|
Datasheet |
Radial | 0.22 µF | ±5% | 160V | 250V | Polypropylene (PP), Metallized | - | -55°C ~ 105°C | Through Hole | 0.728" L x 0.256" W (18.50mm x 6.50mm) | 0.630" (16.00mm) | PC Pins | 0.591" (15.00mm) | High Pulse, DV/DT | - | Long Life |
|
|
C4AULBU5100M18KFILM, RADIAL, METALLIZED POLYPRO |
4,610 |
|
Datasheet |
Radial | 10 µF | ±10% | - | 500V | Polypropylene (PP), Metallized | 7.2 mOhms | -55°C ~ 105°C | Through Hole | 1.260" L x 0.630" W (32.00mm x 16.00mm) | 1.209" (30.70mm) | PC Pins | 1.083" (27.50mm) | Automotive; DC Link, DC Filtering | AEC-Q200 | Low ESL |
|
|
F462FC274R1K0ZCAP |
2,353 |
|
- |
- | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
 Series Straight 23x16.jpg)
|

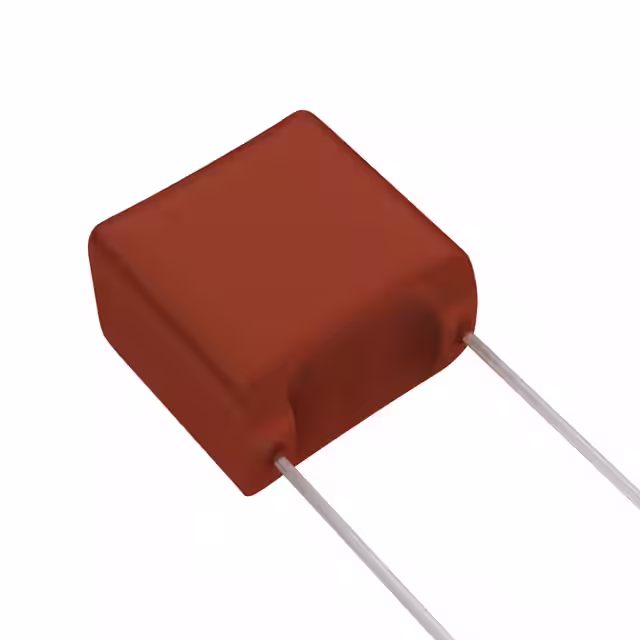

ECW-F2565HACAP FILM 5.6UF 3% 250VDC RADIAL |
3,932 |
|
Datasheet |
Radial | 5.6 µF | ±3% | - | 250V | Polypropylene (PP), Metallized | - | -40°C ~ 105°C | Through Hole | 0.937" L x 0.638" W (23.80mm x 16.20mm) | 0.921" (23.40mm) | PC Pins | 0.787" (20.00mm) | High Frequency, Switching | - | - |
 Series Style B 23x14.jpg)
|

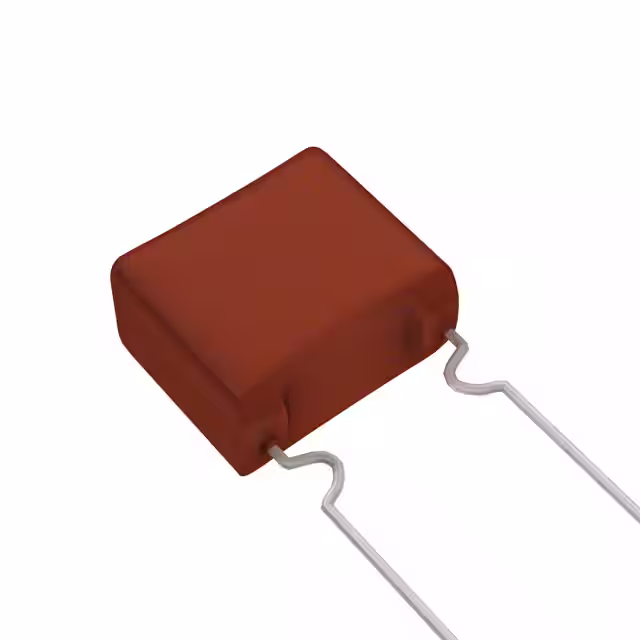

ECW-F2565HABCAP FILM 5.6UF 3% 250VDC RADIAL |
2,605 |
|
Datasheet |
Radial | 5.6 µF | ±3% | - | 250V | Polypropylene (PP), Metallized | - | -40°C ~ 105°C | Through Hole | 0.937" L x 0.638" W (23.80mm x 16.20mm) | 1.118" (28.40mm) | PC Pins | 0.492" (12.50mm) | High Frequency, Switching | - | - |
