Film Capacitors
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Package/Case | Capacitance | Tolerance | Voltage Rating - AC | Voltage Rating - DC | Dielectric Material | ESR (Equivalent Series Resistance) | Operating Temperature | Mounting Type | Size / Dimension | Height - Seated (Max) | Termination | Lead Spacing | Applications | Ratings | Features |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
BFC246857334CAP FILM 0.33UF 10% 630VDC RAD |
9,741 |
|
Datasheet |
Radial | 0.33 µF | ±10% | 250V | 630V | Polyester, Metallized | - | -55°C ~ 105°C | Through Hole | 1.024" L x 0.394" W (26.00mm x 10.00mm) | 0.906" (23.00mm) | PC Pins | 0.886" (22.50mm) | General Purpose | - | - |
|
BFC236852474CAP FILM 0.47UF 5% 400VDC RADIAL |
7,497 |
|
Datasheet |
Radial | 0.47 µF | ±5% | 220V | 400V | Polyester, Metallized | - | -55°C ~ 105°C | Through Hole | 1.024" L x 0.315" W (26.00mm x 8.00mm) | 0.787" (20.00mm) | PC Pins | 0.886" (22.50mm) | General Purpose | - | Long Life |
|
|
BFC236862224CAP FILM 0.22UF 5% 630VDC RADIAL |
6,262 |
|
Datasheet |
Radial | 0.22 µF | ±5% | 250V | 630V | Polyester, Metallized | - | -55°C ~ 105°C | Through Hole | 1.024" L x 0.394" W (26.00mm x 10.00mm) | 0.906" (23.00mm) | PC Pins | 0.886" (22.50mm) | General Purpose | - | Long Life |
|
MKP1841510255MCAP FILM 1UF 10% 250VDC RADIAL |
6,819 |
|
Datasheet |
Radial | 1 µF | ±10% | 160V | 250V | Polypropylene (PP), Metallized | - | -55°C ~ 100°C | Through Hole | 1.043" L x 0.433" W (26.50mm x 11.00mm) | 0.827" (21.00mm) | PC Pins | 0.886" (22.50mm) | DC Link, DC Filtering; High Pulse, DV/DT; Snubber | - | - |
|
|
MKP383410140JKI2B0CAP FILM 0.1UF 5% 1.4KVDC RADIAL |
5,310 |
|
Datasheet |
Radial | 0.1 µF | ±5% | 500V | 1400V (1.4kV) | Polypropylene (PP), Metallized | - | -55°C ~ 105°C | Through Hole | - | - | PC Pins | 1.083" (27.50mm) | High Pulse, DV/DT | - | - |
|
F863FW475K310ALW0LCAP FILM 4.7UF 10% 630VDC RADIAL |
4,095 |
|
Datasheet |
Radial | 4.7 µF | ±10% | 310V | 630V | Polypropylene (PP), Metallized | - | -40°C ~ 110°C | Through Hole | 1.260" L x 0.866" W (32.00mm x 22.00mm) | 1.461" (37.10mm) | PC Pins | 1.083" (27.50mm) | Automotive; EMI, RFI Suppression | AEC-Q200, X2 | - |
|
MKP1839110632GCAP FILM 100PF 2% 630VDC AXIAL |
2,546 |
|
Datasheet |
Axial | 100 pF | ±2% | 250V | 630V | Polypropylene (PP), Metallized | - | -55°C ~ 100°C | Through Hole | 0.236" Dia x 0.433" L (6.00mm x 11.00mm) | - | PC Pins | - | DC Link, DC Filtering; High Pulse, DV/DT | - | - |
|
|
MKP1839110632RCAP FILM 100PF 2% 630VDC AXIAL |
6,443 |
|
Datasheet |
Axial | 100 pF | ±2% | 250V | 630V | Polypropylene (PP), Metallized | - | -55°C ~ 100°C | Through Hole | 0.236" Dia x 0.433" L (6.00mm x 11.00mm) | - | PC Pins | - | DC Link, DC Filtering; High Pulse, DV/DT | - | - |
|
|
MKP1839415161CAP FILM 0.15UF 1% 160VDC AXIAL |
6,580 |
|
Datasheet |
Axial | 0.15 µF | ±1% | 100V | 160V | Polypropylene (PP), Metallized | - | -55°C ~ 100°C | Through Hole | 0.295" Dia x 0.551" L (7.50mm x 14.00mm) | - | PC Pins | - | DC Link, DC Filtering; High Pulse, DV/DT | - | - |
|
|
QAP2G474JRPCAP FILM 0.47UF 5% 400VDC AXIAL |
3,571 |
|
Datasheet |
Axial | 0.47 µF | ±5% | - | 400V | Polypropylene (PP), Metallized | - | -40°C ~ 85°C | Through Hole | 0.618" W, 0.362" T x 1.181" L (15.70mm, 9.20mm x 30.00mm) | - | PC Pins | - | High Frequency, Switching | - | - |
|
|
F873RF334M760ZCAP FILM POLYPROP RAD X1 |
4,114 |
|
Datasheet |
Radial | 0.33 µF | ±20% | 760V | 1500V (1.5kV) | Polypropylene (PP), Metallized | - | -40°C ~ 110°C | Through Hole | 1.614" L x 0.512" W (41.00mm x 13.00mm) | 0.945" (24.00mm) | PC Pins | 1.476" (37.50mm) | EMI, RFI Suppression | X1 | - |
|
|
MKP1841415106CAP FILM 0.15UF 20% 1KVDC RADIAL |
7,857 |
|
Datasheet |
Radial | 0.15 µF | ±20% | 600V | 1000V (1kV) | Polypropylene (PP), Metallized | - | -55°C ~ 100°C | Through Hole | 1.634" L x 0.492" W (41.50mm x 12.50mm) | 0.886" (22.50mm) | PC Pins | 1.476" (37.50mm) | DC Link, DC Filtering; High Pulse, DV/DT; Snubber | - | - |
|

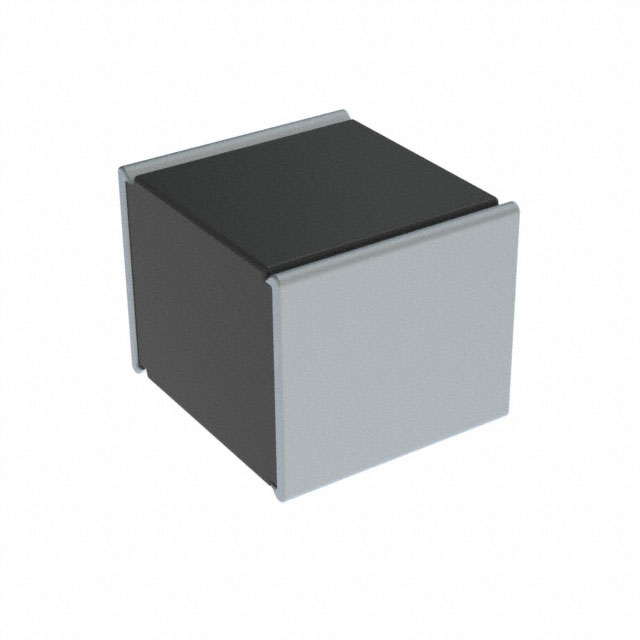

SMDNC03470QB00KP00CAP FILM 0.47UF 10% 63VDC 2220 |
8,946 |
|
Datasheet |
2220 (5750 Metric) | 0.47 µF | ±10% | 40V | 63V | Polyester, Polyethylene Naphthalate (PEN), Metallized | - | -55°C ~ 125°C | Surface Mount | 0.224" L x 0.201" W (5.70mm x 5.10mm) | 0.189" (4.80mm) | Solder Pads | - | General Purpose | - | - |
|
|
BFC238304394CAP FILM 0.39UF 5% 250VDC RADIAL |
3,159 |
|
Datasheet |
Radial | 0.39 µF | ±5% | 125V | 250V | Polypropylene (PP), Metallized | - | -55°C ~ 105°C | Through Hole | 0.689" L x 0.394" W (17.50mm x 10.00mm) | 0.650" (16.50mm) | PC Pins | 0.591" (15.00mm) | High Pulse, DV/DT | - | - |
|
|
QAP2E155JRPCAP FILM 1.5UF 5% 250VDC AXIAL |
2,956 |
|
Datasheet |
Axial | 1.5 µF | ±5% | - | 250V | Polypropylene (PP), Metallized | - | -40°C ~ 85°C | Through Hole | 0.717" W, 0.398" T x 1.181" L (18.20mm, 10.10mm x 30.00mm) | - | PC Pins | - | High Frequency, Switching | - | - |
|
|
MKP1O136806J00KSC9MKP 10 0.68 F 1000 VDC 20X39.5X3 |
3,304 |
|
Datasheet |
- | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
MKP1O135606J00KSC9MKP 10 0.56 F 1000 VDC 20X39.5X3 |
5,653 |
|
Datasheet |
- | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
EFDKA1CJ505D134BHCAP EFDKA 1200VDC 5UF J 4LEADS |
8,353 |
|
Datasheet |
Radial - 4 Leads | 5 µF | ±5% | - | 1200V (1.2kV) | Polypropylene (PP), Metallized | 9.5 mOhms | -55°C ~ 105°C | Through Hole | 1.260" L x 0.866" W (32.00mm x 22.00mm) | 1.488" (37.80mm) | PC Pins | 1.083" (27.50mm) | Automotive; DC Link, DC Filtering | AEC-Q200 | - |
|
|
EFDKA1BJ505D134BHCAP EFDKA 1100VDC 5UF J 4LEADS |
6,808 |
|
Datasheet |
Radial - 4 Leads | 5 µF | ±5% | - | 1100V (1.1kV) | Polypropylene (PP), Metallized | 10.5 mOhms | -55°C ~ 105°C | Through Hole | 1.260" L x 0.866" W (32.00mm x 22.00mm) | 1.488" (37.80mm) | PC Pins | 1.083" (27.50mm) | Automotive; DC Link, DC Filtering | AEC-Q200 | - |
|
|
MKS4C051806A00MSC9CAP FILM 18UF 20% 63VDC RADIAL |
6,982 |
|
Datasheet |
Radial | 18 µF | ±20% | 40V | 63V | Polyester, Polyethylene Terephthalate (PET), Metallized | - | -55°C ~ 125°C | Through Hole | 1.240" L x 0.354" W (31.50mm x 9.00mm) | 0.748" (19.00mm) | PC Pins | 1.083" (27.50mm) | Automotive; DC Link, DC Filtering | AEC-Q200 | - |
