Film Capacitors
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Package/Case | Capacitance | Tolerance | Voltage Rating - AC | Voltage Rating - DC | Dielectric Material | ESR (Equivalent Series Resistance) | Operating Temperature | Mounting Type | Size / Dimension | Height - Seated (Max) | Termination | Lead Spacing | Applications | Ratings | Features |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
BFC238370512CAP FILM 5100PF 5% 2.5KVDC RAD |
4,487 |
|
Datasheet |
Radial | 5100 pF | ±5% | 900V | 2500V (2.5kV) | Polypropylene (PP), Metallized | - | -55°C ~ 105°C | Through Hole | 1.024" L x 0.236" W (26.00mm x 6.00mm) | 0.610" (15.50mm) | PC Pins | 0.886" (22.50mm) | High Pulse, DV/DT | - | - |
|
BFC238371512CAP FILM 5100PF 5% 2.5KVDC RAD |
7,489 |
|
Datasheet |
Radial | 5100 pF | ±5% | 900V | 2500V (2.5kV) | Polypropylene (PP), Metallized | - | -55°C ~ 105°C | Through Hole | 1.024" L x 0.236" W (26.00mm x 6.00mm) | 0.610" (15.50mm) | PC Pins | 0.886" (22.50mm) | High Pulse, DV/DT | - | - |
|
BFC233865104CAP FILM 0.1UF 10% 1KVDC RADIAL |
5,984 |
|
Datasheet |
Radial | 0.1 µF | ±10% | 300V | 1000V (1kV) | Polypropylene (PP), Metallized | - | -55°C ~ 105°C | Through Hole | 1.024" L x 0.394" W (26.00mm x 10.00mm) | 0.768" (19.50mm) | PC Pins | 0.886" (22.50mm) | Automotive; EMI, RFI Suppression | AEC-Q200, Y2 | - |
|
|
F461DU565R160R5.60UF 160V |
5,455 |
|
- |
- | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
BFC241962004CAP FILM 0.2UF 5% 400VDC RADIAL |
7,324 |
|
Datasheet |
Radial | - | - | - | - | Polypropylene (PP), Metallized | - | -55°C ~ 85°C | Through Hole | 0.283" L x 0.177" W (7.20mm x 4.50mm) | 0.354" (9.00mm) | PC Pins | 0.197" (5.00mm) | High Frequency, Switching | - | Long Life |
|
|
BFC238371622CAP FILM 6200PF 5% 2.5KVDC RAD |
2,253 |
|
Datasheet |
Radial | 6200 pF | ±5% | 900V | 2500V (2.5kV) | Polypropylene (PP), Metallized | - | -55°C ~ 105°C | Through Hole | 1.024" L x 0.276" W (26.00mm x 7.00mm) | 0.650" (16.50mm) | PC Pins | 0.886" (22.50mm) | High Pulse, DV/DT | - | - |
|
|
BFC241713904CAP FILM 0.39UF 2% 160VDC RADIAL |
3,295 |
|
Datasheet |
Radial | 0.39 µF | ±2% | 63V | 160V | Polypropylene (PP), Metallized | - | -55°C ~ 85°C | Through Hole | 0.689" L x 0.236" W (17.50mm x 6.00mm) | 0.472" (12.00mm) | PC Pins | 0.591" (15.00mm) | High Frequency, Switching | - | - |
|
|
C274AC24125AA0JCAP FILM 1.25UF 5% 470VAC RADIAL |
7,718 |
|
Datasheet |
Radial, Can | 1.25 µF | ±5% | 470V | - | Polypropylene (PP), Metallized | - | -25°C ~ 85°C | Chassis, Stud Mount | 0.984" Dia (25.00mm) | 2.362" (60.00mm) | Quick Connect - 0.250" (6.3mm) | 0.394" (10.00mm) | Motor Run | - | - |
|

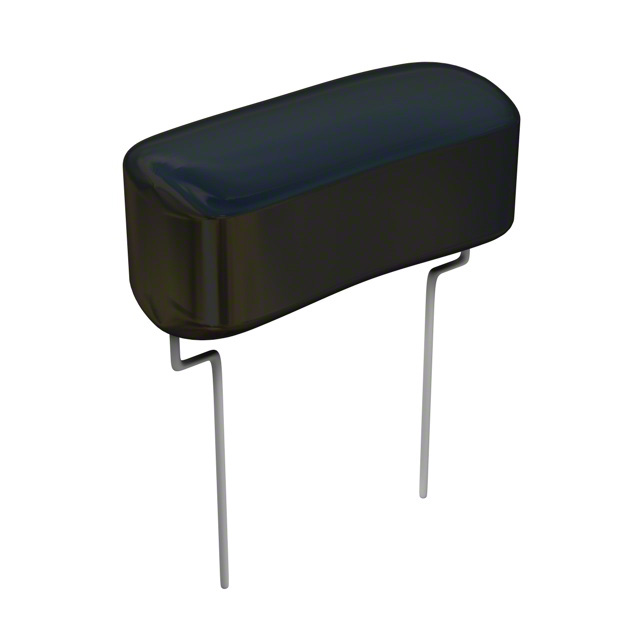

DPFF16S1J-FCAP FILM 10000PF 5% 1.6KVDC RAD |
2,704 |
|
Datasheet |
Radial | 10000 pF | ±5% | 500V | 1600V (1.6kV) | Polypropylene (PP), Metallized | - | -55°C ~ 105°C | Through Hole | 1.299" L x 0.701" W (33.00mm x 17.80mm) | 0.701" (17.80mm) | PC Pins | 0.720" (18.30mm) | High Pulse, DV/DT | - | - |
|
|
A50EK4220AA60KCAP FILM AXL |
4,369 |
|
Datasheet |
Axial | 2.2 µF | ±10% | 63V | 100V | Polyester, Polyethylene Terephthalate (PET), Metallized | - | -55°C ~ 105°C | Through Hole | 0.374" Dia x 0.807" L (9.50mm x 20.50mm) | - | PC Pins | - | Automotive | AEC-Q200 | - |
|
|
F161ZS564K250VCAP FILM SMD PET |
3,731 |
|
Datasheet |
Nonstandard SMD | 0.56 µF | ±10% | 160V | 250V | Polyester, Polyethylene Terephthalate (PET), Metallized - Stacked | - | -55°C ~ 125°C | Surface Mount | 0.650" L x 0.591" W (16.50mm x 15.00mm) | 0.283" (7.20mm) | Solder Pads | - | Automotive | AEC-Q200 | - |
|
|
BFC241704704CAP FILM 0.47UF 5% 160VDC RADIAL |
3,547 |
|
Datasheet |
Radial | - | - | - | - | Polypropylene (PP), Metallized | - | -55°C ~ 85°C | Through Hole | 0.689" L x 0.276" W (17.50mm x 7.00mm) | 0.728" (18.50mm) | PC Pins | 0.591" (15.00mm) | High Frequency, Switching | - | Long Life |
|
|
C4GAHUC4200AA1JCAP FILM METAL AXL POLYPROP |
4,546 |
|
Datasheet |
Axial | 2 µF | ±5% | 330V | 600V | Polypropylene (PP), Metallized | 6.3 mOhms | -40°C ~ 85°C | Through Hole | 0.728" Dia x 1.732" L (18.50mm x 44.00mm) | - | PC Pins | - | High Frequency, Switching | - | - |
|
|
C4CAWUC2680AA0JCAP FILM METAL AXL POLYPROP |
2,086 |
|
Datasheet |
Axial | 0.068 µF | ±5% | 630V | 2000V (2kV) | Polypropylene (PP), Metallized | 16.3 mOhms | -40°C ~ 85°C | Through Hole | 0.689" Dia x 1.299" L (17.50mm x 33.00mm) | - | PC Pins | - | DC Link, DC Filtering; High Frequency, Switching; Snubber | - | - |
|
|
BFC237354105CAP FILM 1UF 5% 400VDC RADIAL |
2,795 |
|
Datasheet |
Radial | 1 µF | ±5% | 220V | 400V | Polyester, Metallized | - | -55°C ~ 105°C | Through Hole | 1.024" L x 0.394" W (26.00mm x 10.00mm) | 0.768" (19.50mm) | PC Pins | 0.886" (22.50mm) | General Purpose | - | Long Life |
|
|
R75IR44705050KCAP FILM AUTO POLYPROP RAD |
5,715 |
|
Datasheet |
Radial | 4.7 µF | ±10% | 160V | 250V | Polypropylene (PP), Metallized | 5.1 mOhms | -55°C ~ 105°C | Through Hole | 1.260" L x 0.512" W (32.00mm x 13.00mm) | 0.988" (25.10mm) | PC Pins | 1.083" (27.50mm) | High Frequency, Switching; High Pulse, DV/DT | - | - |
|
|
MKP385515025JKI2B0CAP FILM 1.5UF 5% 250VDC RADIAL |
2,194 |
|
Datasheet |
Radial | 1.5 µF | ±5% | 160V | 250V | Polypropylene (PP), Metallized | - | -55°C ~ 110°C | Through Hole | 1.240" L x 0.354" W (31.50mm x 9.00mm) | 0.748" (19.00mm) | PC Pins | 1.083" (27.50mm) | DC Link, DC Filtering; High Frequency, Switching; High Pulse, DV/DT | - | - |
|
|
MKP385515025JKM2T0CAP FILM 1.5UF 5% 250VDC RADIAL |
7,822 |
|
Datasheet |
Radial | 1.5 µF | ±5% | 160V | 250V | Polypropylene (PP), Metallized | - | -55°C ~ 110°C | Through Hole | 1.240" L x 0.354" W (31.50mm x 9.00mm) | 0.748" (19.00mm) | PC Pins | 1.083" (27.50mm) | DC Link, DC Filtering; High Frequency, Switching; High Pulse, DV/DT | - | - |
|
|
MKP385515025JKP2T0CAP FILM 1.5UF 5% 250VDC RADIAL |
6,531 |
|
Datasheet |
Radial | 1.5 µF | ±5% | 160V | 250V | Polypropylene (PP), Metallized | - | -55°C ~ 110°C | Through Hole | 1.240" L x 0.354" W (31.50mm x 9.00mm) | 0.748" (19.00mm) | PC Pins | 1.083" (27.50mm) | DC Link, DC Filtering; High Frequency, Switching; High Pulse, DV/DT | - | - |
|
|
R463W468050H7KCAP FILM SAFETY/EMI SUPP RAD |
7,189 |
|
Datasheet |
Radial | 6.8 µF | ±10% | 310V | 630V | Polypropylene (PP), Metallized | - | -40°C ~ 125°C | Through Hole | 0.512" L x 0.157" W (13.00mm x 4.00mm) | 1.575" (40.00mm) | PC Pins | 0.394" (10.00mm) | EMI, RFI Suppression | X2 | - |
