Film Capacitors
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Package/Case | Capacitance | Tolerance | Voltage Rating - AC | Voltage Rating - DC | Dielectric Material | ESR (Equivalent Series Resistance) | Operating Temperature | Mounting Type | Size / Dimension | Height - Seated (Max) | Termination | Lead Spacing | Applications | Ratings | Features |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
MKP385422085JKI2B0CAP FILM 0.22UF 5% 850VDC RADIAL |
5,518 |
|
Datasheet |
Radial | 0.22 µF | ±5% | 300V | 850V | Polypropylene (PP), Metallized | - | -55°C ~ 110°C | Through Hole | 1.240" L x 0.354" W (31.50mm x 9.00mm) | 0.748" (19.00mm) | PC Pins | 1.083" (27.50mm) | DC Link, DC Filtering; High Frequency, Switching; High Pulse, DV/DT | - | - |
|
B32676E1335K000CAP FILM 3.3UF 10% 750VDC RADIAL |
8,226 |
|
Datasheet |
Radial | 3.3 µF | ±10% | - | 750V | Polypropylene (PP), Metallized | - | -40°C ~ 105°C | Through Hole | 1.654" L x 0.709" W (42.00mm x 18.00mm) | 1.280" (32.50mm) | PC Pins | 1.476" (37.50mm) | DC Link, DC Filtering | - | Long Life |
|
|
MKP385E51863KKI2B0CAP FILM 1.8UF 10% 630VDC RAD |
6,576 |
|
Datasheet |
Radial | 1.8 µF | ±10% | 220V | 630V | Polypropylene (PP), Metallized | 7 mOhms | -40°C ~ 105°C | Through Hole | 1.220" L x 0.827" W (31.00mm x 21.00mm) | 1.224" (31.10mm) | PC Pins | 1.083" (27.50mm) | Automotive; High Frequency, Switching; High Pulse, DV/DT; Snubber | AEC-Q200 | High Temperature |
|
|
MKP385E51863KKM2T0CAP FILM 1.8UF 10% 630VDC RAD |
6,205 |
|
Datasheet |
Radial | 1.8 µF | ±10% | 220V | 630V | Polypropylene (PP), Metallized | 7 mOhms | -40°C ~ 105°C | Through Hole | 1.220" L x 0.827" W (31.00mm x 21.00mm) | 1.224" (31.10mm) | PC Pins | 1.083" (27.50mm) | Automotive; High Frequency, Switching; High Pulse, DV/DT; Snubber | AEC-Q200 | High Temperature |
|
|
MKP385E51863KKP2T0CAP FILM 1.8UF 10% 630VDC RAD |
9,295 |
|
Datasheet |
Radial | 1.8 µF | ±10% | 220V | 630V | Polypropylene (PP), Metallized | 7 mOhms | -40°C ~ 105°C | Through Hole | 1.220" L x 0.827" W (31.00mm x 21.00mm) | 1.224" (31.10mm) | PC Pins | 1.083" (27.50mm) | Automotive; High Frequency, Switching; High Pulse, DV/DT; Snubber | AEC-Q200 | High Temperature |
|
MKP1848540704K2CAP FILM 4UF 5% 700VDC RADIAL |
9,861 |
|
Datasheet |
Radial | 4 µF | ±5% | - | 700V | Polypropylene (PP), Metallized | 17 mOhms | -40°C ~ 105°C | Through Hole | 1.260" L x 0.512" W (32.00mm x 13.00mm) | 0.906" (23.00mm) | PC Pins | 1.083" (27.50mm) | Automotive; DC Link, DC Filtering | AEC-Q200 | Low ESR |
|
B32654A0125J000CAP FILM 1.2UF 5% 1KVDC RADIAL |
3,423 |
|
Datasheet |
Radial | 1.2 µF | ±5% | 250V | 1000V (1kV) | Polypropylene (PP), Metallized | - | -55°C ~ 100°C | Through Hole | 1.240" L x 0.866" W (31.50mm x 22.00mm) | 1.437" (36.50mm) | PC Pins | 1.083" (27.50mm) | DC Link, DC Filtering; High Pulse, DV/DT | AEC-Q200 | - |
|
BFC237352564CAP FILM 0.56UF 5% 400VDC RADIAL |
9,530 |
|
Datasheet |
Radial | 0.56 µF | ±5% | 220V | 400V | Polyester, Metallized | - | -55°C ~ 105°C | Through Hole | 1.024" L x 0.394" W (26.00mm x 10.00mm) | 0.768" (19.50mm) | PC Pins | 0.886" (22.50mm) | General Purpose | - | Long Life |
|
|
BFC237865363CAP FILM 0.036UF 5% 630VDC RAD |
3,380 |
|
Datasheet |
Radial | 0.036 µF | ±5% | 300V | 630V | Polypropylene (PP), Metallized | - | -55°C ~ 85°C | Through Hole | 0.689" L x 0.236" W (17.50mm x 6.00mm) | 0.728" (18.50mm) | PC Pins | 0.591" (15.00mm) | High Pulse, DV/DT | - | Long Life |
|
|
BFC238344203CAP FILM 0.02UF 5% 1.4KVDC RAD |
2,313 |
|
Datasheet |
Radial | 0.02 µF | ±5% | 500V | 1400V (1.4kV) | Polypropylene (PP), Metallized | - | -55°C ~ 105°C | Through Hole | 1.024" L x 0.276" W (26.00mm x 7.00mm) | 0.650" (16.50mm) | PC Pins | 0.886" (22.50mm) | High Pulse, DV/DT | - | - |
|
|
BFC238354223CAP FILM 0.022UF 5% 1.6KVDC RAD |
7,424 |
|
Datasheet |
Radial | 0.022 µF | ±5% | 550V | 1600V (1.6kV) | Polypropylene (PP), Metallized | - | -55°C ~ 105°C | Through Hole | 1.024" L x 0.335" W (26.00mm x 8.50mm) | 0.709" (18.00mm) | PC Pins | 0.886" (22.50mm) | High Pulse, DV/DT | - | - |
|
|
BFC238364113CAP FILM 0.011UF 5% 2KVDC RADIAL |
4,183 |
|
Datasheet |
Radial | 0.011 µF | ±5% | 700V | 2000V (2kV) | Polypropylene (PP), Metallized | - | -55°C ~ 105°C | Through Hole | 1.024" L x 0.276" W (26.00mm x 7.00mm) | 0.650" (16.50mm) | PC Pins | 0.886" (22.50mm) | High Pulse, DV/DT | - | - |
|
|
R71VR4470AA30JCAP FILM METAL RAD POLYPROP |
4,643 |
|
Datasheet |
Radial | 4.7 µF | ±5% | 250V | 520V | Polypropylene (PP), Metallized | 25 mOhms | -55°C ~ 105°C | Through Hole | 1.260" L x 0.709" W (32.00mm x 18.00mm) | 1.303" (33.10mm) | PC Pins | 1.083" (27.50mm) | High Frequency, Switching; High Pulse, DV/DT; Power Factor Correction (PFC) | - | - |
|
|
MKP383382140JKM2T0CAP FILM 0.082UF 5% 1.4KVDC RAD |
8,666 |
|
Datasheet |
Radial | 0.082 µF | ±5% | 500V | 1400V (1.4kV) | Polypropylene (PP), Metallized | - | -55°C ~ 105°C | Through Hole | 1.240" L x 0.591" W (31.50mm x 15.00mm) | 0.984" (25.00mm) | PC Pins | 1.083" (27.50mm) | High Pulse, DV/DT | - | - |
|
|
MKP383418100JKM2T0CAP FILM 0.18UF 5% 1KVDC RADIAL |
3,401 |
|
Datasheet |
Radial | 0.18 µF | ±5% | 350V | 1000V (1kV) | Polypropylene (PP), Metallized | - | -55°C ~ 105°C | Through Hole | 1.220" L x 0.433" W (31.00mm x 11.00mm) | 0.827" (21.00mm) | PC Pins | 1.083" (27.50mm) | High Pulse, DV/DT | - | - |
|
|
MKP383418100JKP2T0CAP FILM 0.18UF 5% 1KVDC RADIAL |
5,008 |
|
Datasheet |
Radial | 0.18 µF | ±5% | 350V | 1000V (1kV) | Polypropylene (PP), Metallized | - | -55°C ~ 105°C | Through Hole | 1.220" L x 0.433" W (31.00mm x 11.00mm) | 0.827" (21.00mm) | PC Pins | 1.083" (27.50mm) | High Pulse, DV/DT | - | - |
|
|
MKP383382140JKI2B0CAP FILM 0.082UF 5% 1.4KVDC RAD |
4,836 |
|
Datasheet |
Radial | 0.082 µF | ±5% | 500V | 1400V (1.4kV) | Polypropylene (PP), Metallized | - | -55°C ~ 105°C | Through Hole | - | - | PC Pins | 1.083" (27.50mm) | High Pulse, DV/DT | - | - |
|
|
MKP383418100JKI2B0CAP FILM 0.18UF 5% 1KVDC RADIAL |
7,156 |
|
Datasheet |
Radial | 0.18 µF | ±5% | 350V | 1000V (1kV) | Polypropylene (PP), Metallized | - | -55°C ~ 105°C | Through Hole | 1.220" L x 0.433" W (31.00mm x 11.00mm) | 0.827" (21.00mm) | PC Pins | 1.083" (27.50mm) | High Pulse, DV/DT | - | - |
|
BFC233862124CAP FILM 0.12UF 20% 1KVDC RADIAL |
3,275 |
|
Datasheet |
Radial | 0.12 µF | ±20% | 300V | 1000V (1kV) | Polypropylene (PP), Metallized | - | -55°C ~ 105°C | Through Hole | 1.024" L x 0.472" W (26.00mm x 12.00mm) | 0.866" (22.00mm) | PC Pins | 0.886" (22.50mm) | Automotive; EMI, RFI Suppression | AEC-Q200, Y2 | - |
|

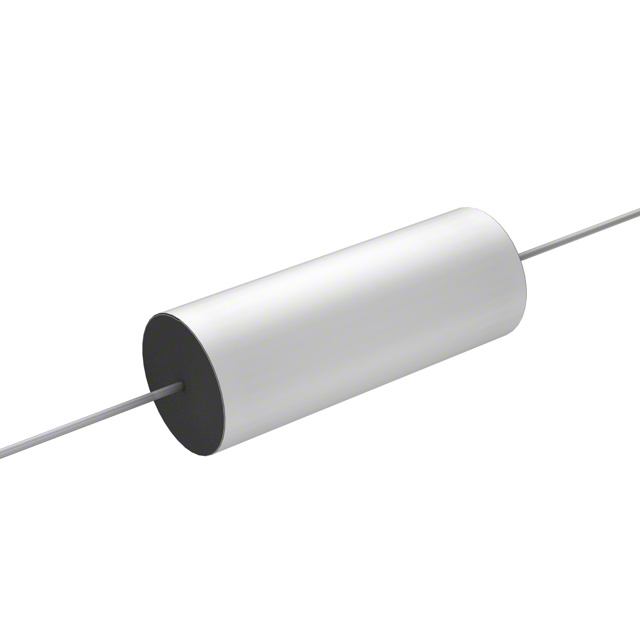

WMF05P47K-FCAP FILM 0.47UF 10% 50VDC AXIAL |
8,907 |
|
Datasheet |
Axial | 0.47 µF | ±10% | - | 50V | Polyester | - | -55°C ~ 125°C | Through Hole | 0.406" Dia x 1.063" L (10.30mm x 27.00mm) | - | PC Pins | - | General Purpose | - | - |
