Film Capacitors
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Package/Case | Capacitance | Tolerance | Voltage Rating - AC | Voltage Rating - DC | Dielectric Material | ESR (Equivalent Series Resistance) | Operating Temperature | Mounting Type | Size / Dimension | Height - Seated (Max) | Termination | Lead Spacing | Applications | Ratings | Features |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
F1778515K3KMT0CAP FILM 1.5UF 10% 630VDC RADIAL |
7,873 |
|
Datasheet |
Radial | 1.5 µF | ±10% | 310V | 630V | Polypropylene (PP), Metallized | - | -55°C ~ 110°C | Through Hole | 1.220" L x 0.512" W (31.00mm x 13.00mm) | 0.906" (23.00mm) | PC Pins | 1.083" (27.50mm) | EMI, RFI Suppression | X2 | - |
|
BFC237368334CAP FILM 0.33UF 5% 630VDC RADIAL |
4,375 |
|
Datasheet |
Radial | 0.33 µF | ±5% | 250V | 630V | Polyester, Metallized | - | -55°C ~ 105°C | Through Hole | 1.024" L x 0.335" W (26.00mm x 8.50mm) | 0.728" (18.50mm) | PC Pins | 0.886" (22.50mm) | General Purpose | - | Long Life |
|
|
MKT1813568065RCAP FILM 6.8UF 10% 63VDC AXIAL |
4,255 |
|
Datasheet |
Axial | 6.8 µF | ±10% | 40V | 63V | Polyester, Metallized | - | -55°C ~ 100°C | Through Hole | 0.472" Dia x 1.240" L (12.00mm x 31.50mm) | - | PC Pins | - | General Purpose | - | - |
|
|
BFC237358564CAP FILM 0.56UF 5% 400VDC RADIAL |
6,150 |
|
Datasheet |
Radial | 0.56 µF | ±5% | 220V | 400V | Polyester, Metallized | - | -55°C ~ 105°C | Through Hole | 0.689" L x 0.394" W (17.50mm x 10.00mm) | 0.728" (18.50mm) | PC Pins | 0.591" (15.00mm) | General Purpose | - | Long Life |
|
|
BFC237390143CAP FILM 0.33UF 5% 400VDC RADIAL |
7,986 |
|
Datasheet |
Radial | - | - | - | - | Polyester, Metallized | - | -55°C ~ 105°C | Through Hole | 1.024" L x 0.276" W (26.00mm x 7.00mm) | 0.650" (16.50mm) | PC Pins | 0.886" (22.50mm) | General Purpose | - | Long Life |
|
|
BFC237872123CAP FILM 0.012UF 5% 1KVDC RADIAL |
3,483 |
|
Datasheet |
Radial | 0.012 µF | ±5% | 300V | 1000V (1kV) | Polypropylene (PP), Metallized | - | -55°C ~ 85°C | Through Hole | 1.024" L x 0.236" W (26.00mm x 6.00mm) | 0.610" (15.50mm) | PC Pins | 0.886" (22.50mm) | High Pulse, DV/DT | - | Long Life |
|
|
BFC237892392CAP FILM 3900PF 5% 2KVDC RADIAL |
7,455 |
|
Datasheet |
Radial | 3900 pF | ±5% | 600V | 2000V (2kV) | Polypropylene (PP), Metallized | - | -55°C ~ 85°C | Through Hole | 1.024" L x 0.236" W (26.00mm x 6.00mm) | 0.610" (15.50mm) | PC Pins | 0.886" (22.50mm) | High Pulse, DV/DT | - | Long Life |
|
|
BFC237894392CAP FILM 3900PF 5% 2KVDC RADIAL |
8,825 |
|
Datasheet |
Radial | 3900 pF | ±5% | 600V | 2000V (2kV) | Polypropylene (PP), Metallized | - | -55°C ~ 85°C | Through Hole | 1.024" L x 0.236" W (26.00mm x 6.00mm) | 0.472" (12.00mm) | PC Pins | 0.886" (22.50mm) | High Pulse, DV/DT | - | Long Life |
|
|
BFC247946274CAP FILM 0.27UF 5% 250VDC RADIAL |
3,762 |
|
Datasheet |
Radial | 0.27 µF | ±5% | 160V | 250V | Polypropylene (PP), Metallized | - | -55°C ~ 105°C | Through Hole | 0.728" L x 0.276" W (18.50mm x 7.00mm) | 0.630" (16.00mm) | PC Pins | 0.591" (15.00mm) | High Pulse, DV/DT | - | Long Life |
|
|
MKP1841415104MCAP FILM 0.15UF 5% 1KVDC RADIAL |
6,336 |
|
Datasheet |
Radial | 0.15 µF | ±5% | 600V | 1000V (1kV) | Polypropylene (PP), Metallized | - | -55°C ~ 100°C | Through Hole | 1.240" L x 0.531" W (31.50mm x 13.50mm) | 0.925" (23.50mm) | PC Pins | 1.083" (27.50mm) | DC Link, DC Filtering; High Pulse, DV/DT; Snubber | - | - |
|
|
MKP1841415105MCAP FILM 0.15UF 10% 1KVDC RADIAL |
2,396 |
|
Datasheet |
Radial | 0.15 µF | ±10% | 600V | 1000V (1kV) | Polypropylene (PP), Metallized | - | -55°C ~ 100°C | Through Hole | 1.240" L x 0.531" W (31.50mm x 13.50mm) | 0.925" (23.50mm) | PC Pins | 1.083" (27.50mm) | DC Link, DC Filtering; High Pulse, DV/DT; Snubber | - | - |
|
|
F863FW475M310ZCAP FILM 4.7UF 20% 630VDC RADIAL |
6,970 |
|
Datasheet |
Radial | 4.7 µF | ±20% | 310V | 630V | Polypropylene (PP), Metallized | - | -40°C ~ 110°C | Through Hole | 1.260" L x 0.866" W (32.00mm x 22.00mm) | 1.461" (37.10mm) | PC Pins | 1.083" (27.50mm) | Automotive; EMI, RFI Suppression | AEC-Q200, X2 | - |
|
F339X144748MKI2B0CAP FILM 0.47UF 20% 1KVDC RADIAL |
9,663 |
|
Datasheet |
Radial | 0.47 µF | ±20% | 480V | 1000V (1kV) | Polypropylene (PP), Metallized | - | -55°C ~ 110°C | Through Hole | 1.220" L x 0.512" W (31.00mm x 13.00mm) | 0.906" (23.00mm) | PC Pins | 1.083" (27.50mm) | EMI, RFI Suppression | X1 | - |
|
|
F339X144748MKM2T0CAP FILM 0.47UF 20% 1KVDC RADIAL |
9,405 |
|
Datasheet |
Radial | 0.47 µF | ±20% | 480V | 1000V (1kV) | Polypropylene (PP), Metallized | - | -55°C ~ 110°C | Through Hole | 1.220" L x 0.512" W (31.00mm x 13.00mm) | 0.906" (23.00mm) | PC Pins | 1.083" (27.50mm) | EMI, RFI Suppression | X1 | - |
|
|
R75RW3470AA40KCAP FILM AUTO POLYPROP RAD |
8,039 |
|
Datasheet |
Radial | 0.47 µF | ±10% | 600V | 1250V (1.25kV) | Polypropylene (PP), Metallized | 6.8 mOhms | -55°C ~ 105°C | Through Hole | 1.634" L x 0.630" W (41.50mm x 16.00mm) | 1.126" (28.60mm) | PC Pins | 1.476" (37.50mm) | High Frequency, Switching; High Pulse, DV/DT | - | - |
.JPG)
|

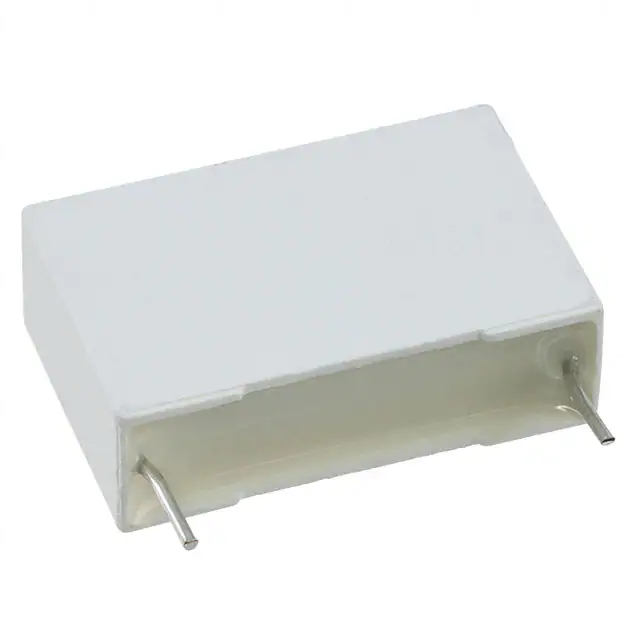

102PPB202KCAP FILM 1000PF 10% 2KVDC RADIAL |
7 |
|
Datasheet |
Radial | 1000 pF | ±10% | 700V | 2000V (2kV) | Polypropylene (PP), Metallized | - | -55°C ~ 105°C | Through Hole | 1.043" L x 0.236" W (26.50mm x 6.00mm) | 0.591" (15.00mm) | PC Pins | 0.886" (22.50mm) | Commutation; High Pulse, DV/DT; Snubber | - | - |
|
|
C878BF34100SA4JCAP FILM MOTOR START RUN |
9,977 |
|
Datasheet |
Radial, Can | 1 µF | ±5% | 470V | - | Polypropylene (PP), Metallized | - | -25°C ~ 85°C | Chassis, Stud Mount | 0.984" Dia (25.00mm) | 2.303" (58.50mm) | Quick Connect - 0.250" (6.3mm) | 0.528" (13.40mm) | Motor Run | - | - |
|
|
F873FR254J760Z.250UF 760V |
7,772 |
|
- |
- | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
MKP383451063JKI2B0CAP FILM 0.51UF 5% 630VDC RADIAL |
6,927 |
|
Datasheet |
Radial | 0.51 µF | ±5% | 220V | 630V | Polypropylene (PP), Metallized | - | -55°C ~ 105°C | Through Hole | 1.220" L x 0.512" W (31.00mm x 13.00mm) | 0.906" (23.00mm) | PC Pins | 1.083" (27.50mm) | High Pulse, DV/DT | - | - |
|
|
MKP383451063JKM2T0CAP FILM 0.51UF 5% 630VDC RADIAL |
9,318 |
|
Datasheet |
Radial | 0.51 µF | ±5% | 220V | 630V | Polypropylene (PP), Metallized | - | -55°C ~ 105°C | Through Hole | 1.220" L x 0.512" W (31.00mm x 13.00mm) | 0.906" (23.00mm) | PC Pins | 1.083" (27.50mm) | High Pulse, DV/DT | - | - |
