Film Capacitors
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Package/Case | Capacitance | Tolerance | Voltage Rating - AC | Voltage Rating - DC | Dielectric Material | ESR (Equivalent Series Resistance) | Operating Temperature | Mounting Type | Size / Dimension | Height - Seated (Max) | Termination | Lead Spacing | Applications | Ratings | Features |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
F871FR155M330ZCAP FILM POLYPROP RAD X1 |
6,485 |
|
Datasheet |
Radial | 1.5 µF | ±20% | 330V | 800V | Polypropylene (PP), Metallized | - | -40°C ~ 110°C | Through Hole | 1.240" L x 0.689" W (31.50mm x 17.50mm) | 1.102" (28.00mm) | PC Pins | 1.083" (27.50mm) | EMI, RFI Suppression | X1 | - |
|
|
F462RB224M1K6ZCAP |
8,243 |
|
- |
Radial | 0.22 µF | ±20% | 500V | 1600V (1.6kV) | Polypropylene (PP), Metallized | - | -55°C ~ 105°C | Through Hole | 1.614" L x 0.433" W (41.00mm x 11.00mm) | 0.866" (22.00mm) | PC Pins | 1.476" (37.50mm) | High Pulse, DV/DT | - | - |
|
|
MKS4D051506D00JSSDCAP FILM 15UF 5% 100VDC RADIAL |
3,758 |
|
Datasheet |
Radial | 15 µF | ±5% | 63V | 100V | Polyester, Polyethylene Terephthalate (PET), Metallized | - | -55°C ~ 125°C | Through Hole | 1.240" L x 0.512" W (31.50mm x 13.00mm) | 0.945" (24.00mm) | PC Pins | 1.083" (27.50mm) | Automotive; DC Link, DC Filtering | AEC-Q200 | - |
|
|
R75MW4470AA30JCAP FILM AUTO POLYPROP RAD |
8,060 |
|
Datasheet |
Radial | 4.7 µF | ±5% | 220V | 400V | Polypropylene (PP), Metallized | 5.1 mOhms | -55°C ~ 105°C | Through Hole | 1.634" L x 0.748" W (41.50mm x 19.00mm) | 1.264" (32.10mm) | PC Pins | 1.476" (37.50mm) | High Frequency, Switching; High Pulse, DV/DT | - | - |
|
B32024C3684M000CAP FILM 0.68UF 20% 1.5KVDC RAD |
3,030 |
|
Datasheet |
Radial | 0.68 µF | ±20% | 300V | 1500V (1.5kV) | Polypropylene (PP), Metallized | - | -40°C ~ 110°C | Through Hole | 1.240" L x 0.827" W (31.50mm x 21.00mm) | 1.220" (31.00mm) | PC Pins | 1.083" (27.50mm) | EMI, RFI Suppression | Y2 | - |
|
|
R75TR3560AA30JCAP FILM AUTO POLYPROP RAD |
4,967 |
|
Datasheet |
Radial | 0.56 µF | ±5% | 650V | 1600V (1.6kV) | Polypropylene (PP), Metallized | 5.7 mOhms | -55°C ~ 105°C | Through Hole | 1.260" L x 0.866" W (32.00mm x 22.00mm) | 1.461" (37.10mm) | PC Pins | 1.083" (27.50mm) | High Frequency, Switching; High Pulse, DV/DT | - | - |
|
BFC237341125CAP FILM 1.2UF 10% 250VDC RADIAL |
5,748 |
|
Datasheet |
Radial | 1.2 µF | ±10% | 160V | 250V | Polyester, Metallized | - | -55°C ~ 105°C | Through Hole | 1.024" L x 0.335" W (26.00mm x 8.50mm) | 0.709" (18.00mm) | PC Pins | 0.886" (22.50mm) | General Purpose | - | Long Life |
|
|
BFC237351564CAP FILM 0.56UF 10% 400VDC RAD |
3,837 |
|
Datasheet |
Radial | 0.56 µF | ±10% | 220V | 400V | Polyester, Metallized | - | -55°C ~ 105°C | Through Hole | 1.024" L x 0.394" W (26.00mm x 10.00mm) | 0.768" (19.50mm) | PC Pins | 0.886" (22.50mm) | General Purpose | - | Long Life |
|
ECW-FG80755JACAP FILM 7.5UF 800VDC RADIAL |
7,943 |
|
Datasheet |
Radial | 7.5 µF | ±5% | - | 800V | Polypropylene (PP), Metallized | - | -40°C ~ 110°C | Through Hole | 1.240" L x 0.689" W (31.50mm x 17.50mm) | 1.299" (33.00mm) | PC Pins | 1.083" (27.50mm) | Automotive; High Frequency, Switching | AEC-Q200 | High Temperature |
|
|
F873RF274M760ZCAP FILM POLYPROP RAD X1 |
2,205 |
|
Datasheet |
Radial | 0.27 µF | ±20% | 760V | 1500V (1.5kV) | Polypropylene (PP), Metallized | - | -40°C ~ 110°C | Through Hole | 1.614" L x 0.512" W (41.00mm x 13.00mm) | 0.945" (24.00mm) | PC Pins | 1.476" (37.50mm) | EMI, RFI Suppression | X1 | - |
|
|
R60DN5150JH30JCAP FILM AUTOMOTIVE |
9,197 |
|
Datasheet |
Radial | 15 µF | ±5% | 40V | 63V | Polyester, Polyethylene Terephthalate (PET), Metallized - Stacked | - | -55°C ~ 105°C | Through Hole | 1.043" L x 0.433" W (26.50mm x 11.00mm) | 0.791" (20.10mm) | PC Pins | 0.886" (22.50mm) | Automotive | AEC-Q200 | - |
|
|
MKX14W41006J00KSSDMKP-X1 R 1.0 F 440 VAC 20X39.5X3 |
5,371 |
|
Datasheet |
- | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
DCP4L047006GD2JSC9DC-LINK MKP 4 7.0 F 800 VDC 17X2 |
5,263 |
|
Datasheet |
- | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
 Series Style B 23x17.jpg)
|

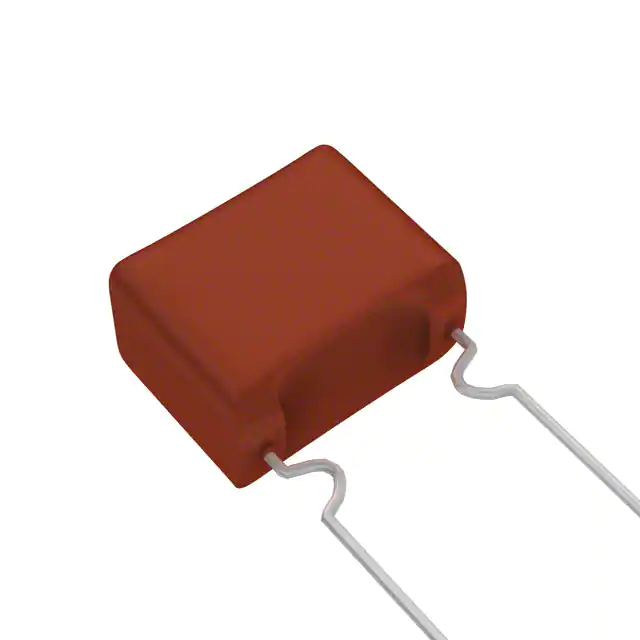

ECW-F2685JABCAP FILM 6.8UF 5% 250VDC RADIAL |
8,205 |
|
Datasheet |
Radial | 6.8 µF | ±5% | - | 250V | Polypropylene (PP), Metallized | - | -40°C ~ 105°C | Through Hole | 0.937" L x 0.701" W (23.80mm x 17.80mm) | 1.181" (30.00mm) | PC Pins | 0.492" (12.50mm) | High Frequency, Switching | - | - |
|
|
C4GAHUC4220AA1JCAP FILM METAL AXL POLYPROP |
7,234 |
|
Datasheet |
Axial | 2.2 µF | ±5% | 330V | 600V | Polypropylene (PP), Metallized | 5.2 mOhms | -40°C ~ 85°C | Through Hole | 0.768" Dia x 1.732" L (19.50mm x 44.00mm) | - | PC Pins | - | High Frequency, Switching | - | - |
|
|
MKX14W41206I00MSC9MKP-X1 R 1.2 F 440 VAC 17X34.5X3 |
9,557 |
|
Datasheet |
- | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
F461FS225J630ZCAP FILM POLYPROP RAD |
8,083 |
|
Datasheet |
Radial | 2.2 µF | ±5% | 250V | 630V | Polypropylene (PP), Metallized | - | -55°C ~ 105°C | Through Hole | 1.240" L x 0.748" W (31.50mm x 19.00mm) | 1.142" (29.00mm) | PC Pins | 1.083" (27.50mm) | High Pulse, DV/DT | - | - |
|
|
BFC237865393CAP FILM 0.039UF 5% 630VDC RAD |
9,745 |
|
Datasheet |
Radial | 0.039 µF | ±5% | 300V | 630V | Polypropylene (PP), Metallized | - | -55°C ~ 85°C | Through Hole | 0.689" L x 0.236" W (17.50mm x 6.00mm) | 0.728" (18.50mm) | PC Pins | 0.591" (15.00mm) | High Pulse, DV/DT | - | Long Life |
|
|
BFC237322225CAP FILM 2.2UF 5% 100VDC RADIAL |
6,475 |
|
Datasheet |
Radial | 2.2 µF | ±5% | 63V | 100V | Polyester, Metallized | - | -55°C ~ 105°C | Through Hole | 0.689" L x 0.335" W (17.50mm x 8.50mm) | 0.591" (15.00mm) | PC Pins | 0.591" (15.00mm) | General Purpose | - | Long Life |
|
|
R46KR447050P0KCAP FILM SAFETY/EMI SUPP RAD |
9,142 |
|
Datasheet |
Radial | 4.7 µF | ±10% | 275V | 560V | Polypropylene (PP), Metallized | - | -40°C ~ 110°C | Through Hole | 1.260" L x 0.709" W (32.00mm x 18.00mm) | 1.303" (33.10mm) | PC Pins | 1.083" (27.50mm) | EMI, RFI Suppression | X2 | - |
