Film Capacitors
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Package/Case | Capacitance | Tolerance | Voltage Rating - AC | Voltage Rating - DC | Dielectric Material | ESR (Equivalent Series Resistance) | Operating Temperature | Mounting Type | Size / Dimension | Height - Seated (Max) | Termination | Lead Spacing | Applications | Ratings | Features |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
F461DY685J160ZCAP FILM POLYPROP RAD |
5,540 |
|
Datasheet |
Radial | 6.8 µF | ±5% | 90V | 160V | Polypropylene (PP), Metallized | - | -55°C ~ 105°C | Through Hole | 1.024" L x 0.610" W (26.00mm x 15.50mm) | 0.965" (24.50mm) | PC Pins | 0.886" (22.50mm) | High Pulse, DV/DT | - | - |
|
|
B32756C2705K000CAP FILM 7UF 10% 500VDC RADIAL |
5,899 |
|
Datasheet |
Radial | 7 µF | ±10% | 250V | 500V | Polypropylene (PP), Metallized | 9.7 mOhms | -40°C ~ 105°C | Through Hole | 1.654" L x 0.709" W (42.00mm x 18.00mm) | 1.280" (32.50mm) | PC Pins | 1.476" (37.50mm) | General Purpose | - | - |
|
|
MKX2AW43907E00JSC9MKP-X2 3.9 F 305 VAC 17X29X41.5 |
2,878 |
|
Datasheet |
- | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
MKP1W031506I00JSSDMKP 10 0.15 F 3000 VDC 17X34.5X3 |
2,693 |
|
Datasheet |
- | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
MKP1W031206I00JSSDMKP 10 0.12 F 3000 VDC 17X34.5X3 |
2,831 |
|
Datasheet |
- | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
F873FR254K760ZCAP FILM POLYPROP RAD X1 |
4,078 |
|
Datasheet |
Radial | 0.25 µF | ±10% | 760V | 1500V (1.5kV) | Polypropylene (PP), Metallized | - | -40°C ~ 110°C | Through Hole | 1.240" L x 0.689" W (31.50mm x 17.50mm) | 1.102" (28.00mm) | PC Pins | 1.083" (27.50mm) | EMI, RFI Suppression | X1 | - |
|
BFC241813004CAP FILM 0.3UF 2% 250VDC RADIAL |
9,897 |
|
Datasheet |
Radial | 0.3 µF | ±2% | 25V | 250V | Polypropylene (PP), Metallized | - | -55°C ~ 85°C | Through Hole | 0.689" L x 0.276" W (17.50mm x 7.00mm) | 0.532" (13.50mm) | PC Pins | 0.591" (15.00mm) | High Frequency, Switching | - | - |
|
|
MKP1840433104MCAP FILM 0.33UF 5% 1KVDC RADIAL |
3,251 |
|
Datasheet |
Radial | 0.33 µF | ±5% | 500V | 1000V (1kV) | Polypropylene (PP), Metallized | - | -55°C ~ 100°C | Through Hole | 1.220" L x 0.512" W (31.00mm x 13.00mm) | 0.906" (23.00mm) | PC Pins | 1.083" (27.50mm) | DC Link, DC Filtering; High Frequency, Switching; High Pulse, DV/DT | - | - |
|
|
MKP1840433105MCAP FILM 0.33UF 10% 1KVDC RADIAL |
8,563 |
|
Datasheet |
Radial | 0.33 µF | ±10% | 500V | 1000V (1kV) | Polypropylene (PP), Metallized | - | -55°C ~ 100°C | Through Hole | 1.220" L x 0.512" W (31.00mm x 13.00mm) | 0.906" (23.00mm) | PC Pins | 1.083" (27.50mm) | DC Link, DC Filtering; High Frequency, Switching; High Pulse, DV/DT | - | - |
|
|
MKP1840522164CAP FILM 2.2UF 5% RADIAL |
7,064 |
|
Datasheet |
Radial | 2.2 µF | ±5% | - | - | Polypropylene (PP), Metallized | - | -55°C ~ 100°C | Through Hole | 1.240" L x 0.354" W (31.50mm x 9.00mm) | 0.748" (19.00mm) | PC Pins | 1.083" (27.50mm) | DC Link, DC Filtering; High Pulse, DV/DT | - | - |
|
|
BFC2373FF395MICAP FILM 3.9UF 5% 400VDC RADIAL |
7,632 |
|
Datasheet |
Radial | 3.9 µF | ±5% | 100V | 400V | Polyester, Metallized | - | -55°C ~ 105°C | Through Hole | 1.024" L x 0.472" W (26.00mm x 12.00mm) | 0.866" (22.00mm) | PC Pins | 0.886" (22.50mm) | General Purpose | - | Long Life |
|
|
BFC238372302CAP FILM 3000PF 5% 2.5KVDC RAD |
6,970 |
|
Datasheet |
Radial | 3000 pF | ±5% | 900V | 2500V (2.5kV) | Polypropylene (PP), Metallized | - | -55°C ~ 105°C | Through Hole | 1.024" L x 0.236" W (26.00mm x 6.00mm) | 0.610" (15.50mm) | PC Pins | 0.886" (22.50mm) | High Pulse, DV/DT | - | - |
|
|
BFC237530183CAP FILM 0.018UF 5% 1.6KVDC RAD |
9,952 |
|
Datasheet |
Radial | 0.018 µF | ±5% | 500V | 1600V (1.6kV) | Polypropylene (PP), Metallized | - | -55°C ~ 105°C | Through Hole | 1.024" L x 0.413" W (26.00mm x 10.50mm) | 0.925" (23.50mm) | PC Pins | 0.394" (10.00mm) | High Pulse, DV/DT | - | - |
|
|
BFC237534183CAP FILM 0.018UF 5% 1.6KVDC RAD |
2,851 |
|
Datasheet |
Radial | 0.018 µF | ±5% | 500V | 1600V (1.6kV) | Polypropylene (PP), Metallized | - | -55°C ~ 105°C | Through Hole | 1.024" L x 0.413" W (26.00mm x 10.50mm) | 0.925" (23.50mm) | PC Pins | 0.394" (10.00mm) | High Pulse, DV/DT | - | - |
|

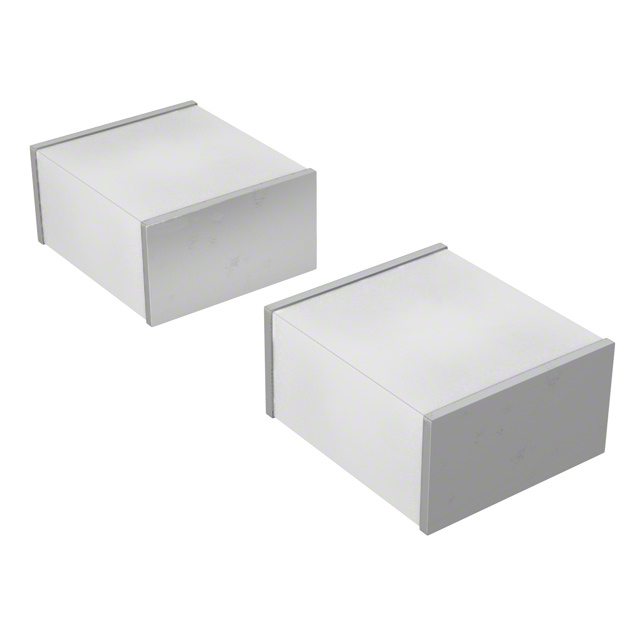

FCN2825E224K-YCAP FILM 0.22UF 10% 250VDC 2825 |
6,402 |
|
Datasheet |
2825 (7163 Metric) | 0.22 µF | ±10% | - | 250V | Polyester, Polyethylene Naphthalate (PEN), Metallized - Stacked | - | -40°C ~ 85°C | Surface Mount | 0.280" L x 0.248" W (7.10mm x 6.30mm) | 0.209" (5.30mm) | Solder Pads | - | General Purpose | - | - |
|
|
MKP385524025JI02W0CAP FILM 2.4UF 5% 250VDC RADIAL |
5,455 |
|
Datasheet |
Radial | 2.4 µF | ±5% | 160V | 250V | Polypropylene (PP), Metallized | - | -55°C ~ 110°C | Through Hole | 1.024" L x 0.472" W (26.00mm x 12.00mm) | 0.866" (22.00mm) | PC Pins | 0.886" (22.50mm) | DC Link, DC Filtering; High Frequency, Switching; High Pulse, DV/DT | - | - |
|
|
MKP383382140JKP2T0CAP FILM 0.082UF 5% 1.4KVDC RAD |
6,070 |
|
Datasheet |
Radial | 0.082 µF | ±5% | 500V | 1400V (1.4kV) | Polypropylene (PP), Metallized | - | -55°C ~ 105°C | Through Hole | 1.240" L x 0.591" W (31.50mm x 15.00mm) | 0.984" (25.00mm) | PC Pins | 1.083" (27.50mm) | High Pulse, DV/DT | - | - |
|
|
MKP1841512255CAP FILM 1.2UF 10% 250VDC RADIAL |
3,987 |
|
Datasheet |
Radial | 1.2 µF | ±10% | 160V | 250V | Polypropylene (PP), Metallized | - | -55°C ~ 100°C | Through Hole | - | - | PC Pins | - | DC Link, DC Filtering; High Pulse, DV/DT; Snubber | - | - |
|
|
MKP1841512256CAP FILM 1.2UF 20% 250VDC RADIAL |
7,723 |
|
Datasheet |
Radial | 1.2 µF | ±20% | 160V | 250V | Polypropylene (PP), Metallized | - | -55°C ~ 100°C | Through Hole | - | - | PC Pins | - | DC Link, DC Filtering; High Pulse, DV/DT; Snubber | - | - |
|
|
FKP4R033307F00JSC9FKP 4 0.33 F 1250 VDC 19X32X41.5 |
8,654 |
|
Datasheet |
- | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
