Film Capacitors
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Package/Case | Capacitance | Tolerance | Voltage Rating - AC | Voltage Rating - DC | Dielectric Material | ESR (Equivalent Series Resistance) | Operating Temperature | Mounting Type | Size / Dimension | Height - Seated (Max) | Termination | Lead Spacing | Applications | Ratings | Features |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
MKP1F043307E00MSC9MKP 10 3.3 F 250 VDC 17X29X41.5 |
3,655 |
|
Datasheet |
- | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
F17724472160CAP FILM 0.47UF 10% 630VDC RAD |
4,317 |
|
Datasheet |
Radial | 0.47 µF | ±10% | 310V | 630V | Polyester, Metallized | - | -40°C ~ 110°C | Through Hole | 1.024" L x 0.472" W (26.00mm x 12.00mm) | 0.866" (22.00mm) | PC Pins | 0.886" (22.50mm) | EMI, RFI Suppression | X2 | - |
|
|
F17724472004CAP FILM 0.47UF 10% 630VDC RAD |
8,618 |
|
Datasheet |
Radial | 0.47 µF | ±10% | 310V | 630V | Polyester, Metallized | - | -40°C ~ 110°C | Through Hole | 1.220" L x 0.433" W (31.00mm x 11.00mm) | 0.827" (21.00mm) | PC Pins | 1.083" (27.50mm) | EMI, RFI Suppression | X2 | - |
|
|
MKP1J041007D00JSC9MKP 10 1.0 F 630 VDC 15X26X41.5 |
4,142 |
|
Datasheet |
- | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
MKP1G041806J00JSSDMKP 10 1.8 F 400 VDC 20X39.5X31. |
8,854 |
|
Datasheet |
- | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
MKP1G042206J00JSSDMKP 10 2.2 F 400 VDC 20X39.5X31. |
5,847 |
|
Datasheet |
- | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
FLCL6I0755K4CNEW |
8,672 |
|
Datasheet |
Radial - 4 Leads | 7.5 µF | ±10% | 350V | - | Polypropylene (PP), Metallized | - | -40°C ~ 85°C | Through Hole | 1.673" L x 0.945" W (42.50mm x 24.00mm) | 1.752" (44.50mm) | PC Pins | 1.476" (37.50mm) | EMI, RFI Suppression | - | - |
|
|
MKS4B051004J00JSC9CAP FILM 10UF 5% 50VDC RADIAL |
7,818 |
|
Datasheet |
Radial | 10 µF | ±5% | 30V | 50V | Polyester, Polyethylene Terephthalate (PET), Metallized | - | -55°C ~ 105°C | Through Hole | 0.709" L x 0.354" W (18.00mm x 9.00mm) | 0.630" (16.00mm) | PC Pins | 0.591" (15.00mm) | Automotive; DC Link, DC Filtering | AEC-Q200 | - |
|
BFC237367394CAP FILM 0.39UF 10% 630VDC RAD |
3,078 |
|
Datasheet |
Radial | 0.39 µF | ±10% | 250V | 630V | Polyester, Metallized | - | -55°C ~ 105°C | Through Hole | 1.024" L x 0.394" W (26.00mm x 10.00mm) | 0.728" (18.50mm) | PC Pins | 0.886" (22.50mm) | General Purpose | - | Long Life |
|
|
F462FC334R1K0ZCAP |
5,935 |
|
- |
- | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
F462FR824K1K0ZCAP FILM POLYPROP RAD |
2,442 |
|
Datasheet |
Radial | 0.82 µF | ±10% | 300V | 1000V (1kV) | Polypropylene (PP), Metallized | - | -55°C ~ 105°C | Through Hole | 1.240" L x 0.689" W (31.50mm x 17.50mm) | 1.102" (28.00mm) | PC Pins | 1.083" (27.50mm) | High Pulse, DV/DT | - | - |
|
|
F462RF274K1K6ZCAP FILM POLYPROP RAD |
8,403 |
|
Datasheet |
Radial | 0.27 µF | ±10% | 650V | 1600V (1.6kV) | Polypropylene (PP), Metallized | - | -55°C ~ 105°C | Through Hole | 1.614" L x 0.512" W (41.00mm x 13.00mm) | 0.945" (24.00mm) | PC Pins | 1.476" (37.50mm) | High Pulse, DV/DT | - | - |
|
160474K630Q-FCAP FILM 0.47UF 10% 630VDC RAD |
8,692 |
|
Datasheet |
Radial | 0.47 µF | ±10% | 220V | 630V | Polyester, Metallized | - | -55°C ~ 105°C | Through Hole | 1.260" L x 0.512" W (32.00mm x 13.00mm) | 0.886" (22.50mm) | PC Pins | 1.083" (27.50mm) | General Purpose | - | - |
|
171224K630P-FCAP FILM 0.22UF 10% 630VDC RAD |
8,250 |
|
Datasheet |
Radial | 0.22 µF | ±10% | 250V | 630V | Polypropylene (PP), Metallized | - | -55°C ~ 105°C | Through Hole | 1.260" L x 0.433" W (32.00mm x 11.00mm) | 0.787" (20.00mm) | PC Pins | 1.083" (27.50mm) | High Pulse, DV/DT | - | - |
|

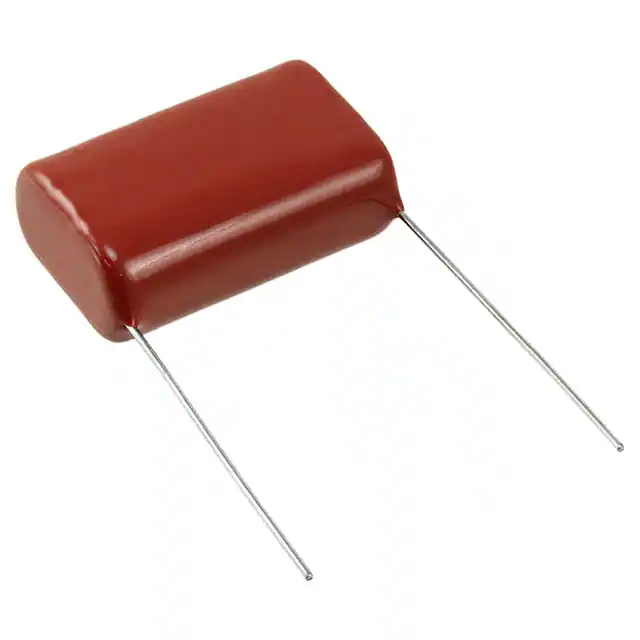

EXH2E605HRPTCAP FILM 6UF -5% +10% 250VAC RAD |
5,175 |
|
Datasheet |
Radial | 6 µF | -5%, +10% | 250V | - | Polypropylene (PP), Metallized | - | -25°C ~ 85°C | Through Hole | 1.417" L x 0.551" W (36.00mm x 14.00mm) | 1.004" (25.50mm) | PC Pins | 1.280" (32.50mm) | Motor Run | - | - |
|
F340X142248KKM2T0MKP F340X1 0,22F 10% 480VAC |
7,125 |
|
Datasheet |
Radial | 0.22 µF | ±10% | 480V, 530V | 800V | Polypropylene (PP), Metallized | - | -40°C ~ 105°C | Through Hole | 1.260" L x 0.827" W (32.00mm x 21.00mm) | 1.248" (31.70mm) | PC Pins | 1.083" (27.50mm) | EMI, RFI Suppression; 3 Phase | X1 | 85C/85% Humidity |
|
|
F340X142248KKP2T0MKP F340X1 0,22F 10% 480VAC |
2,099 |
|
Datasheet |
Radial | 0.22 µF | ±10% | 480V, 530V | 800V | Polypropylene (PP), Metallized | - | -40°C ~ 105°C | Through Hole | 1.260" L x 0.827" W (32.00mm x 21.00mm) | 1.248" (31.70mm) | PC Pins | 1.083" (27.50mm) | EMI, RFI Suppression; 3 Phase | X1 | 85C/85% Humidity |
|
|
F340X142248KKI2B0MKP F340X1 0,22F 10% 480VAC |
3,124 |
|
Datasheet |
Radial | 0.22 µF | ±10% | 480V, 530V | 800V | Polypropylene (PP), Metallized | - | -40°C ~ 105°C | Through Hole | 1.260" L x 0.512" W (32.00mm x 13.00mm) | 0.933" (23.70mm) | PC Pins | 1.083" (27.50mm) | EMI, RFI Suppression; 3 Phase | X1 | 85C/85% Humidity |
|
|
BFC238341203CAP FILM 0.02UF 5% 1.4KVDC RAD |
7,321 |
|
Datasheet |
Radial | 0.02 µF | ±5% | 500V | 1400V (1.4kV) | Polypropylene (PP), Metallized | - | -55°C ~ 105°C | Through Hole | 1.024" L x 0.276" W (26.00mm x 7.00mm) | 0.650" (16.50mm) | PC Pins | 0.886" (22.50mm) | High Pulse, DV/DT | - | - |
|
|
BFC238361113CAP FILM 0.011UF 5% 2KVDC RADIAL |
9,233 |
|
Datasheet |
Radial | 0.011 µF | ±5% | 700V | 2000V (2kV) | Polypropylene (PP), Metallized | - | -55°C ~ 105°C | Through Hole | 1.024" L x 0.276" W (26.00mm x 7.00mm) | 0.650" (16.50mm) | PC Pins | 0.886" (22.50mm) | High Pulse, DV/DT | - | - |
