Film Capacitors
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Package/Case | Capacitance | Tolerance | Voltage Rating - AC | Voltage Rating - DC | Dielectric Material | ESR (Equivalent Series Resistance) | Operating Temperature | Mounting Type | Size / Dimension | Height - Seated (Max) | Termination | Lead Spacing | Applications | Ratings | Features |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
BFC238303304CAP FILM 0.3UF 5% 250VDC RADIAL |
3,516 |
|
Datasheet |
Radial | 0.3 µF | ±5% | 125V | 250V | Polypropylene (PP), Metallized | - | -55°C ~ 105°C | Through Hole | 0.689" L x 0.335" W (17.50mm x 8.50mm) | 0.669" (17.00mm) | PC Pins | 0.295" (7.50mm) | High Pulse, DV/DT | - | - |
|
|
R46KR468040P0MCAP FILM SAFETY/EMI SUPP RAD |
9,354 |
|
Datasheet |
Radial | 6.8 µF | ±20% | 275V | 560V | Polypropylene (PP), Metallized | - | -40°C ~ 110°C | Through Hole | 1.260" L x 0.866" W (32.00mm x 22.00mm) | 1.461" (37.10mm) | PC Pins | 1.083" (27.50mm) | EMI, RFI Suppression | X2 | - |
|
BFC233911684CAP FILM 0.68UF 10% 630VDC RAD |
2,224 |
|
Datasheet |
Radial | 0.68 µF | ±10% | 310V | 630V | Polypropylene (PP), Metallized | - | -55°C ~ 110°C | Through Hole | 1.240" L x 0.354" W (31.50mm x 9.00mm) | 0.748" (19.00mm) | PC Pins | 1.083" (27.50mm) | Automotive; EMI, RFI Suppression | AEC-Q200, X2 | - |
|
|
BFC233913684CAP FILM 0.68UF 10% 630VDC RAD |
5,059 |
|
Datasheet |
Radial | 0.68 µF | ±10% | 310V | 630V | Polypropylene (PP), Metallized | - | -55°C ~ 110°C | Through Hole | 1.240" L x 0.354" W (31.50mm x 9.00mm) | 0.748" (19.00mm) | PC Pins | 1.083" (27.50mm) | Automotive; EMI, RFI Suppression | AEC-Q200, X2 | - |
|
MKP1848H53080KK2CAP FILM 3UF 10% 800VDC RADIAL |
8,625 |
|
Datasheet |
Radial | 3 µF | ±10% | - | 800V | Polypropylene (PP), Metallized | 12.3 mOhms | -40°C ~ 85°C | Through Hole | 1.260" L x 0.591" W (32.00mm x 15.00mm) | 1.012" (25.70mm) | PC Pins | 1.083" (27.50mm) | Automotive; DC Link, DC Filtering | AEC-Q200 | 85C/85% Humidity; Low ESR, Low ESL |
|
|
BFC233915684CAP FILM 0.68UF 10% 630VDC RAD |
9,946 |
|
Datasheet |
Radial | 0.68 µF | ±10% | 310V | 630V | Polypropylene (PP), Metallized | - | -55°C ~ 110°C | Through Hole | 1.240" L x 0.354" W (31.50mm x 9.00mm) | 0.748" (19.00mm) | PC Pins | 1.083" (27.50mm) | Automotive; EMI, RFI Suppression | AEC-Q200, X2 | - |
|
|
F1778433M3FBT0CAP FILM 0.33UF 20% 630VDC RAD |
5,855 |
|
Datasheet |
Radial | 0.33 µF | ±20% | 310V | 630V | Polypropylene (PP), Metallized | - | -55°C ~ 110°C | Through Hole | 0.689" L x 0.335" W (17.50mm x 8.50mm) | 0.591" (15.00mm) | PC Pins | 0.591" (15.00mm) | EMI, RFI Suppression | X2 | - |
|
|
F1778433M3FCT0CAP FILM 0.33UF 20% 630VDC RAD |
5,440 |
|
Datasheet |
Radial | 0.33 µF | ±20% | 310V | 630V | Polypropylene (PP), Metallized | - | -55°C ~ 110°C | Through Hole | 0.689" L x 0.335" W (17.50mm x 8.50mm) | 0.591" (15.00mm) | PC Pins | 0.591" (15.00mm) | EMI, RFI Suppression | X2 | - |
|
|
716P15496MD3CAP FILM 0.15UF 10% 600VDC RAD |
7,633 |
|
Datasheet |
Radial | 0.15 µF | ±10% | 200V | 600V | Polypropylene (PP), Metallized | - | -55°C ~ 85°C | Through Hole | 1.650" L x 0.551" W (41.90mm x 14.00mm) | 0.929" (23.60mm) | PC Pins | 1.094" (27.79mm) | Audio; High Frequency, Switching; High Pulse, DV/DT; Snubber | - | - |
|
|
725M33592LA3CAP FILM 3.3UF 10% 250VDC RADIAL |
3,847 |
|
Datasheet |
Radial | 3.3 µF | ±10% | 160V | 250V | Polypropylene (PP), Metallized | - | -55°C ~ 85°C | Through Hole | 1.228" L x 0.598" W (31.20mm x 15.20mm) | 0.941" (23.90mm) | PC Pins | 1.083" (27.50mm) | Audio; DC Link, DC Filtering | - | Low ESL |
|
B32676E3685K000CAP FILM 6.8UF 10% 300VDC RADIAL |
2,338 |
|
Datasheet |
Radial | 6.8 µF | ±10% | - | 300V | Polypropylene (PP), Metallized | - | -40°C ~ 105°C | Through Hole | 1.654" L x 0.630" W (42.00mm x 16.00mm) | 1.122" (28.50mm) | PC Pins | 1.476" (37.50mm) | DC Link, DC Filtering | - | Long Life |
|
|
MKP1G041806J00JSC9MKP 10 1.8 F 400 VDC 20X39.5X31. |
6,149 |
|
Datasheet |
- | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
MKP1G042206J00JSC9MKP 10 2.2 F 400 VDC 20X39.5X31. |
5,731 |
|
Datasheet |
- | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
R60MR42205040KCAP FILM 2.2UF 10% 400VDC RADIAL |
8,208 |
|
Datasheet |
Radial | 2.2 µF | ±10% | 200V | 400V | Polyester, Polyethylene Terephthalate (PET), Metallized | - | -55°C ~ 105°C | Through Hole | 1.260" L x 0.433" W (32.00mm x 11.00mm) | 0.791" (20.10mm) | PC Pins | 1.083" (27.50mm) | General Purpose | - | - |
|

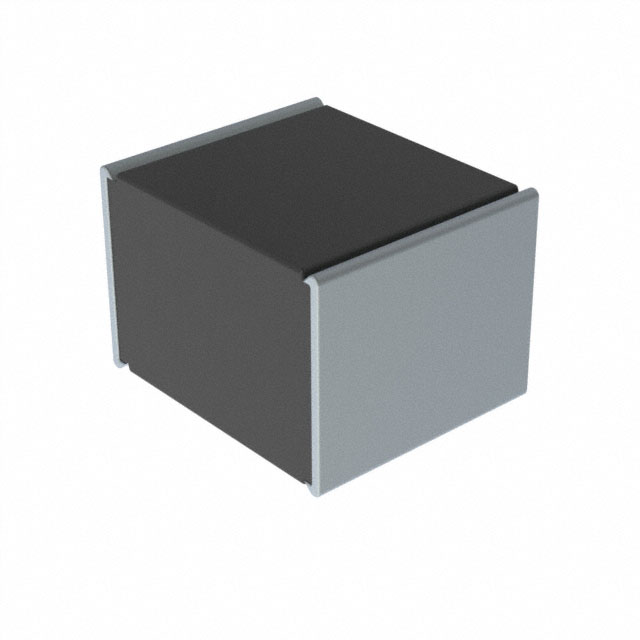

SMDNC03680TB00KQ00CAP FILM 0.68UF 10% 63VDC 2824 |
5,849 |
|
Datasheet |
2824 (7260 Metric) | 0.68 µF | ±10% | 40V | 63V | Polyester, Polyethylene Naphthalate (PEN), Metallized | - | -55°C ~ 125°C | Surface Mount | 0.283" L x 0.240" W (7.20mm x 6.10mm) | 0.209" (5.30mm) | Solder Pads | - | General Purpose | - | - |
|
|
MKS4B051004J00JJ00CAP FILM 10UF 5% 50VDC RADIAL |
2,622 |
|
Datasheet |
Radial | 10 µF | ±5% | 30V | 50V | Polyester, Polyethylene Terephthalate (PET), Metallized | - | -55°C ~ 105°C | Through Hole | 0.709" L x 0.354" W (18.00mm x 9.00mm) | 0.630" (16.00mm) | PC Pins | 0.591" (15.00mm) | Automotive; DC Link, DC Filtering | AEC-Q200 | - |
|
|
MKS4B051004J00JH00CAP FILM 10UF 5% 50VDC RADIAL |
9,561 |
|
Datasheet |
Radial | 10 µF | ±5% | 30V | 50V | Polyester, Polyethylene Terephthalate (PET), Metallized | - | -55°C ~ 105°C | Through Hole | 0.709" L x 0.354" W (18.00mm x 9.00mm) | 0.630" (16.00mm) | PC Pins | 0.591" (15.00mm) | Automotive; DC Link, DC Filtering | AEC-Q200 | - |
|
|
MKS4B051004J00JD00CAP FILM 10UF 5% 50VDC RADIAL |
5,942 |
|
Datasheet |
Radial | 10 µF | ±5% | 30V | 50V | Polyester, Polyethylene Terephthalate (PET), Metallized | - | -55°C ~ 105°C | Through Hole | 0.709" L x 0.354" W (18.00mm x 9.00mm) | 0.630" (16.00mm) | PC Pins | 0.591" (15.00mm) | Automotive; DC Link, DC Filtering | AEC-Q200 | - |
|
|
MKS4B051004J00JB00CAP FILM 10UF 5% 50VDC RADIAL |
7,026 |
|
Datasheet |
Radial | 10 µF | ±5% | 30V | 50V | Polyester, Polyethylene Terephthalate (PET), Metallized | - | -55°C ~ 105°C | Through Hole | 0.709" L x 0.354" W (18.00mm x 9.00mm) | 0.630" (16.00mm) | PC Pins | 0.591" (15.00mm) | Automotive; DC Link, DC Filtering | AEC-Q200 | - |
|
|
MKP1845468254CAP FILM 0.68UF 5% 250VDC AXIAL |
7,307 |
|
Datasheet |
Axial | 0.68 µF | ±5% | 160V | 250V | Polypropylene (PP), Metallized | - | -55°C ~ 100°C | Through Hole | 0.512" Dia x 1.339" L (13.00mm x 34.00mm) | - | PC Pins | - | DC Link, DC Filtering; High Pulse, DV/DT; Snubber | - | - |
