Film Capacitors
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Package/Case | Capacitance | Tolerance | Voltage Rating - AC | Voltage Rating - DC | Dielectric Material | ESR (Equivalent Series Resistance) | Operating Temperature | Mounting Type | Size / Dimension | Height - Seated (Max) | Termination | Lead Spacing | Applications | Ratings | Features |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

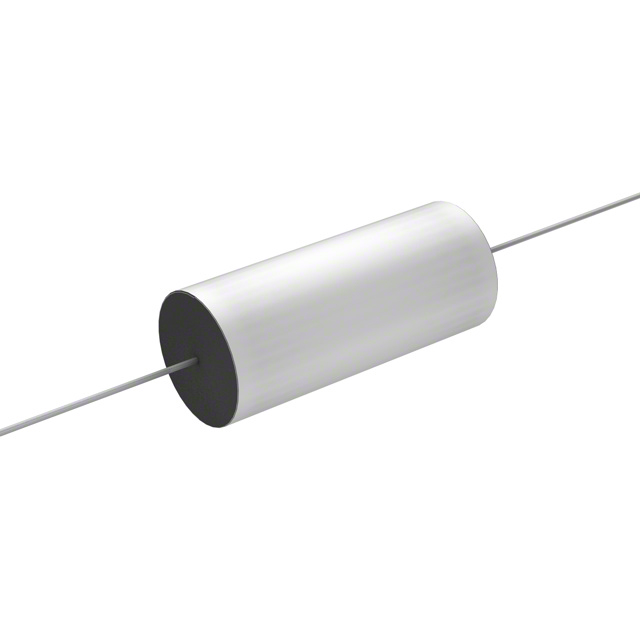

WMF4P15K-FCAP FILM 0.15UF 10% 400VDC AXIAL |
9,677 |
|
Datasheet |
Axial | 0.15 µF | ±10% | - | 400V | Polyester | - | -55°C ~ 125°C | Through Hole | 0.535" Dia x 1.248" L (13.60mm x 31.70mm) | - | PC Pins | - | General Purpose | - | - |
|
MKP383362200JKI2B0CAP FILM 0.062UF 5% 2KVDC RADIAL |
5,114 |
|
Datasheet |
Radial | 0.062 µF | ±5% | 700V | 2000V (2kV) | Polypropylene (PP), Metallized | - | -55°C ~ 105°C | Through Hole | - | - | PC Pins | 1.083" (27.50mm) | High Pulse, DV/DT | - | - |
|
|
MKP383375160JKI2B0CAP FILM 0.075UF 5% 1.6KVDC RAD |
2,540 |
|
Datasheet |
Radial | 0.075 µF | ±5% | 550V | 1600V (1.6kV) | Polypropylene (PP), Metallized | - | -55°C ~ 105°C | Through Hole | - | - | PC Pins | 1.083" (27.50mm) | High Pulse, DV/DT | - | - |
|
|
MKP383362200JKM2T0CAP FILM 0.062UF 5% 2KVDC RADIAL |
3,358 |
|
Datasheet |
Radial | 0.062 µF | ±5% | 700V | 2000V (2kV) | Polypropylene (PP), Metallized | - | -55°C ~ 105°C | Through Hole | 1.240" L x 0.591" W (31.50mm x 15.00mm) | 0.984" (25.00mm) | PC Pins | 1.083" (27.50mm) | High Pulse, DV/DT | - | - |
|
|
MKP383362200JKP2T0CAP FILM 0.062UF 5% 2KVDC RADIAL |
7,170 |
|
Datasheet |
Radial | 0.062 µF | ±5% | 700V | 2000V (2kV) | Polypropylene (PP), Metallized | - | -55°C ~ 105°C | Through Hole | 1.240" L x 0.591" W (31.50mm x 15.00mm) | 0.984" (25.00mm) | PC Pins | 1.083" (27.50mm) | High Pulse, DV/DT | - | - |
|
|
MKP383375160JKM2T0CAP FILM 0.075UF 5% 1.6KVDC RAD |
7,775 |
|
Datasheet |
Radial | 0.075 µF | ±5% | 550V | 1600V (1.6kV) | Polypropylene (PP), Metallized | - | -55°C ~ 105°C | Through Hole | 1.220" L x 0.512" W (31.00mm x 13.00mm) | 0.906" (23.00mm) | PC Pins | 1.083" (27.50mm) | High Pulse, DV/DT | - | - |
|
|
MKP383375160JKP2T0CAP FILM 0.075UF 5% 1.6KVDC RAD |
7,369 |
|
Datasheet |
Radial | 0.075 µF | ±5% | 550V | 1600V (1.6kV) | Polypropylene (PP), Metallized | - | -55°C ~ 105°C | Through Hole | 1.220" L x 0.512" W (31.00mm x 13.00mm) | 0.906" (23.00mm) | PC Pins | 1.083" (27.50mm) | High Pulse, DV/DT | - | - |
|
|
BFC247945244CAP FILM 0.24UF 5% 250VDC RADIAL |
3,519 |
|
Datasheet |
Radial | 0.24 µF | ±5% | 160V | 250V | Polypropylene (PP), Metallized | - | -55°C ~ 105°C | Through Hole | 0.728" L x 0.276" W (18.50mm x 7.00mm) | 0.630" (16.00mm) | PC Pins | 0.591" (15.00mm) | High Pulse, DV/DT | - | Long Life |
|
|
F871RC225J330Z2.20UF 330V |
9,491 |
|
- |
Radial | 2.2 µF | ±5% | 330V | 1000V (1kV) | Polypropylene (PP), Metallized | - | -40°C ~ 110°C | Through Hole | 1.614" L x 0.630" W (41.00mm x 16.00mm) | 1.122" (28.50mm) | PC Pins | 1.476" (37.50mm) | EMI, RFI Suppression | X1 | - |
|
|
R75TR3470AA30JCAP FILM AUTO POLYPROP RAD |
2,895 |
|
Datasheet |
Radial | 0.47 µF | ±5% | 650V | 1600V (1.6kV) | Polypropylene (PP), Metallized | 6.8 mOhms | -55°C ~ 105°C | Through Hole | 1.260" L x 0.866" W (32.00mm x 22.00mm) | 1.461" (37.10mm) | PC Pins | 1.083" (27.50mm) | High Frequency, Switching; High Pulse, DV/DT | - | - |
|
|
MKP1O135606J00JSSDMKP 10 0.56 F 1000 VDC 20X39.5X3 |
8,003 |
|
Datasheet |
- | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
FKP4O133307F00MSC9FKP 4 0.33 F 1000 VDC 19X32X41.5 |
5,330 |
|
Datasheet |
- | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
FKP4O134707F00MSC9FKP 4 0.47 F 1000 VDC 19X32X41.5 |
8,642 |
|
Datasheet |
- | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
F871RB684K330ZCAP FILM POLYPROP RAD X1 |
9,221 |
|
Datasheet |
Radial | 0.68 µF | ±10% | 330V | 800V | Polypropylene (PP), Metallized | - | -40°C ~ 110°C | Through Hole | 1.614" L x 0.433" W (41.00mm x 11.00mm) | 0.866" (22.00mm) | PC Pins | 1.476" (37.50mm) | EMI, RFI Suppression | X1 | - |
|
|
BFC237890062CAP FILM 0.015UF 5% 1000VDC RAD |
2,181 |
|
Datasheet |
Radial | - | - | - | - | Polypropylene (PP), Metallized | - | -55°C ~ 85°C | Through Hole | 0.689" L x 0.335" W (17.50mm x 8.50mm) | 0.728" (18.50mm) | PC Pins | 0.591" (15.00mm) | High Pulse, DV/DT | - | Long Life |
|
|
BFC237885822CAP FILM 8200PF 5% 1.6KVDC RAD |
5,243 |
|
Datasheet |
Radial | 8200 pF | ±5% | 500V | 1600V (1.6kV) | Polypropylene (PP), Metallized | - | -55°C ~ 85°C | Through Hole | 1.024" L x 0.236" W (26.00mm x 6.00mm) | 0.728" (18.50mm) | PC Pins | 0.886" (22.50mm) | High Pulse, DV/DT | - | Long Life |
|
|
BFC237875153CAP FILM 0.015UF 5% 1KVDC RADIAL |
9,669 |
|
Datasheet |
Radial | 0.015 µF | ±5% | 300V | 1000V (1kV) | Polypropylene (PP), Metallized | - | -55°C ~ 85°C | Through Hole | 1.024" L x 0.236" W (26.00mm x 6.00mm) | 0.728" (18.50mm) | PC Pins | 0.886" (22.50mm) | High Pulse, DV/DT | - | Long Life |
|
|
MKP385339250JKM2T0CAP FILM 0.039UF 5% 2.5KVDC RAD |
6,620 |
|
Datasheet |
Radial | 0.039 µF | ±5% | 900V | 2500V (2.5kV) | Polypropylene (PP), Metallized | - | -55°C ~ 110°C | Through Hole | 1.240" L x 0.591" W (31.50mm x 15.00mm) | 0.984" (25.00mm) | PC Pins | 1.083" (27.50mm) | DC Link, DC Filtering; High Frequency, Switching; High Pulse, DV/DT | - | - |
|
|
MKP385339250JKP2T0CAP FILM 0.039UF 5% 2.5KVDC RAD |
2,091 |
|
Datasheet |
Radial | 0.039 µF | ±5% | 900V | 2500V (2.5kV) | Polypropylene (PP), Metallized | - | -55°C ~ 110°C | Through Hole | 1.240" L x 0.591" W (31.50mm x 15.00mm) | 0.984" (25.00mm) | PC Pins | 1.083" (27.50mm) | DC Link, DC Filtering; High Frequency, Switching; High Pulse, DV/DT | - | - |
|
MKT1822533255GCAP FILM 3.3UF 10% 250VDC RADIAL |
4,595 |
|
Datasheet |
Radial | 3.3 µF | ±10% | 160V | 250V | Polyester, Metallized | - | -55°C ~ 100°C | Through Hole | 1.240" L x 0.531" W (31.50mm x 13.50mm) | 0.925" (23.50mm) | PC Pins | 1.083" (27.50mm) | General Purpose | - | - |
