Film Capacitors
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Package/Case | Capacitance | Tolerance | Voltage Rating - AC | Voltage Rating - DC | Dielectric Material | ESR (Equivalent Series Resistance) | Operating Temperature | Mounting Type | Size / Dimension | Height - Seated (Max) | Termination | Lead Spacing | Applications | Ratings | Features |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
BFC237885912CAP FILM 9100PF 5% 1.6KVDC RAD |
7,747 |
|
Datasheet |
Radial | 9100 pF | ±5% | 500V | 1600V (1.6kV) | Polypropylene (PP), Metallized | - | -55°C ~ 85°C | Through Hole | 1.024" L x 0.236" W (26.00mm x 6.00mm) | 0.728" (18.50mm) | PC Pins | 0.886" (22.50mm) | High Pulse, DV/DT | - | Long Life |
|
BFC237346125CAP FILM 1.2UF 5% 250VDC RADIAL |
7,532 |
|
Datasheet |
Radial | 1.2 µF | ±5% | 160V | 250V | Polyester, Metallized | - | -55°C ~ 105°C | Through Hole | 1.024" L x 0.335" W (26.00mm x 8.50mm) | 0.728" (18.50mm) | PC Pins | 0.886" (22.50mm) | General Purpose | - | Long Life |
|
|
F461RH395K400ZCAP FILM POLYPROP RAD |
4,418 |
|
Datasheet |
Radial | 3.9 µF | ±10% | 220V | 400V | Polypropylene (PP), Metallized | - | -55°C ~ 105°C | Through Hole | 1.614" L x 0.591" W (41.00mm x 15.00mm) | 1.024" (26.00mm) | PC Pins | 1.476" (37.50mm) | High Pulse, DV/DT | - | - |
|
|
F461RH225K630ZCAP FILM POLYPROP RAD |
5,495 |
|
Datasheet |
Radial | 2.2 µF | ±10% | 250V | 630V | Polypropylene (PP), Metallized | - | -55°C ~ 105°C | Through Hole | 1.614" L x 0.591" W (41.00mm x 15.00mm) | 1.024" (26.00mm) | PC Pins | 1.476" (37.50mm) | High Pulse, DV/DT | - | - |
|
|
BFC238312204CAP FILM 0.2UF 5% 400VDC RADIAL |
4,223 |
|
Datasheet |
Radial | 0.2 µF | ±5% | 200V | 400V | Polypropylene (PP), Metallized | - | -55°C ~ 105°C | Through Hole | 0.689" L x 0.394" W (17.50mm x 10.00mm) | 0.650" (16.50mm) | PC Pins | 0.591" (15.00mm) | High Pulse, DV/DT | - | - |
|

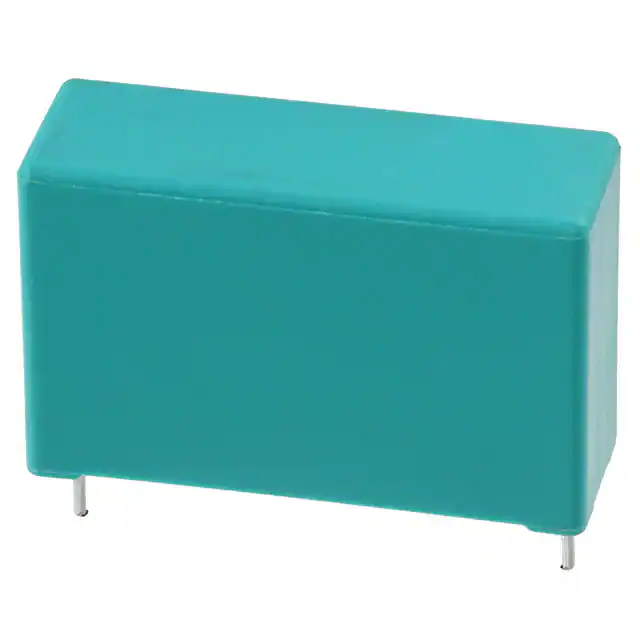

C4AEJBU4270A1WJCAP FILM 2.7UF 5% 700VDC RADIAL |
2,630 |
|
Datasheet |
Radial | 2.7 µF | ±5% | - | 700V | Polypropylene (PP), Metallized | 18.3 mOhms | -40°C ~ 85°C | Through Hole | 1.240" L x 0.433" W (31.50mm x 11.00mm) | 0.795" (20.20mm) | PC Pins | 1.083" (27.50mm) | DC Link, DC Filtering; High Frequency, Switching | - | - |
|
|
MKP385527025JII2B0CAP FILM 2.7UF 5% 250VDC RADIAL |
6,482 |
|
Datasheet |
Radial | 2.7 µF | ±5% | 160V | 250V | Polypropylene (PP), Metallized | - | -55°C ~ 110°C | Through Hole | 1.024" L x 0.472" W (26.00mm x 12.00mm) | 0.866" (22.00mm) | PC Pins | 0.886" (22.50mm) | DC Link, DC Filtering; High Frequency, Switching; High Pulse, DV/DT | - | - |
|
|
MKP385527025JIM2T0CAP FILM 2.7UF 5% 250VDC RADIAL |
6,519 |
|
Datasheet |
Radial | 2.7 µF | ±5% | 160V | 250V | Polypropylene (PP), Metallized | - | -55°C ~ 110°C | Through Hole | 1.024" L x 0.472" W (26.00mm x 12.00mm) | 0.866" (22.00mm) | PC Pins | 0.886" (22.50mm) | DC Link, DC Filtering; High Frequency, Switching; High Pulse, DV/DT | - | - |
|
|
MKP385527025JIP2T0CAP FILM 2.7UF 5% 250VDC RADIAL |
3,148 |
|
Datasheet |
Radial | 2.7 µF | ±5% | 160V | 250V | Polypropylene (PP), Metallized | - | -55°C ~ 110°C | Through Hole | 1.024" L x 0.472" W (26.00mm x 12.00mm) | 0.866" (22.00mm) | PC Pins | 0.886" (22.50mm) | DC Link, DC Filtering; High Frequency, Switching; High Pulse, DV/DT | - | - |
|
|
MKP4F044707C00KSC9MKP 4 4.7 F 250 VDC 13X24X41.5 P |
2,186 |
|
Datasheet |
- | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
F340X251230KKM2T0MKP F340X2 1,2F 10% 305VAC |
7,486 |
|
Datasheet |
Radial | 1.2 µF | ±10% | 305V | 630V | Polypropylene (PP), Metallized | - | -40°C ~ 105°C | Through Hole | 1.260" L x 0.591" W (32.00mm x 15.00mm) | 1.012" (25.70mm) | PC Pins | 1.083" (27.50mm) | EMI, RFI Suppression | X2 | 85C/85% Humidity |
|
|
F340X251230KKI2T0MKP F340X2 1,2F 10% 305VAC |
4,872 |
|
Datasheet |
Radial | 1.2 µF | ±10% | 305V | 630V | Polypropylene (PP), Metallized | - | -40°C ~ 105°C | Through Hole | 1.260" L x 0.591" W (32.00mm x 15.00mm) | 1.012" (25.70mm) | PC Pins | 1.083" (27.50mm) | EMI, RFI Suppression | X2 | 85C/85% Humidity |
|
|
F340X251230KKP2T0MKP F340X2 1,2F 10% 305VAC |
7,903 |
|
Datasheet |
Radial | 1.2 µF | ±10% | 305V | 630V | Polypropylene (PP), Metallized | - | -40°C ~ 105°C | Through Hole | 1.260" L x 0.591" W (32.00mm x 15.00mm) | 1.012" (25.70mm) | PC Pins | 1.083" (27.50mm) | EMI, RFI Suppression | X2 | 85C/85% Humidity |
|
|
F461DY685K160RCAP FILM POLYPROP RAD |
6,899 |
|
Datasheet |
Radial | 6.8 µF | ±10% | 90V | 160V | Polypropylene (PP), Metallized | - | -55°C ~ 105°C | Through Hole | 1.024" L x 0.610" W (26.00mm x 15.50mm) | 0.965" (24.50mm) | PC Pins | 0.886" (22.50mm) | High Pulse, DV/DT | - | - |
|
|
MKP1845447405CAP FILM 0.47UF 10% 400VDC AXIAL |
8,786 |
|
Datasheet |
Axial | 0.47 µF | ±10% | 220V | 400V | Polypropylene (PP), Metallized | - | -55°C ~ 100°C | Through Hole | 0.591" Dia x 1.339" L (15.00mm x 34.00mm) | - | PC Pins | - | DC Link, DC Filtering; High Pulse, DV/DT; Snubber | - | - |
|
|
MKT1813568064GCAP FILM 6.8UF 5% 63VDC AXIAL |
5,235 |
|
Datasheet |
Axial | 6.8 µF | ±5% | 40V | 63V | Polyester, Metallized | - | -55°C ~ 100°C | Through Hole | 0.472" Dia x 1.240" L (12.00mm x 31.50mm) | - | PC Pins | - | General Purpose | - | - |
|
|
MKP4J042207E00KSC9MKP 4 2.2 F 630 VDC 17X29X41.5 P |
5,816 |
|
Datasheet |
- | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
MKS4J042207D00KSC9CAP FILM 2.2UF 10% 630VDC RADIAL |
3,375 |
|
Datasheet |
Radial | 2.2 µF | ±10% | 400V | 630V | Polyester, Polyethylene Terephthalate (PET), Metallized | - | -55°C ~ 125°C | Through Hole | 1.634" L x 0.591" W (41.50mm x 15.00mm) | 1.024" (26.00mm) | PC Pins | 1.476" (37.50mm) | Automotive; DC Link, DC Filtering | AEC-Q200 | - |
|
|
MKP1840522404MCAP FILM 2.2UF 5% 400VDC RADIAL |
5,430 |
|
Datasheet |
Radial | 2.2 µF | ±5% | 220V | 400V | Polypropylene (PP), Metallized | - | -55°C ~ 100°C | Through Hole | 1.240" L x 0.591" W (31.50mm x 15.00mm) | 0.984" (25.00mm) | PC Pins | 1.083" (27.50mm) | DC Link, DC Filtering; High Frequency, Switching; High Pulse, DV/DT | - | - |
|
|
MKP1840522405MCAP FILM 2.2UF 10% 400VDC RADIAL |
7,022 |
|
Datasheet |
Radial | 2.2 µF | ±10% | 220V | 400V | Polypropylene (PP), Metallized | - | -55°C ~ 100°C | Through Hole | 1.240" L x 0.591" W (31.50mm x 15.00mm) | 0.984" (25.00mm) | PC Pins | 1.083" (27.50mm) | DC Link, DC Filtering; High Frequency, Switching; High Pulse, DV/DT | - | - |
