Film Capacitors
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Package/Case | Capacitance | Tolerance | Voltage Rating - AC | Voltage Rating - DC | Dielectric Material | ESR (Equivalent Series Resistance) | Operating Temperature | Mounting Type | Size / Dimension | Height - Seated (Max) | Termination | Lead Spacing | Applications | Ratings | Features |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
BFC238331683CAP FILM 0.068UF 5% 1KVDC RADIAL |
4,905 |
|
Datasheet |
Radial | 0.068 µF | ±5% | 350V | 1000V (1kV) | Polypropylene (PP), Metallized | - | -55°C ~ 105°C | Through Hole | 1.043" L x 0.276" W (26.50mm x 7.00mm) | 0.650" (16.50mm) | PC Pins | 0.886" (22.50mm) | High Pulse, DV/DT | - | - |
|
|
BFC238351243CAP FILM 0.024UF 5% 1.6KVDC RAD |
3,097 |
|
Datasheet |
Radial | 0.024 µF | ±5% | 550V | 1600V (1.6kV) | Polypropylene (PP), Metallized | - | -55°C ~ 105°C | Through Hole | 1.024" L x 0.335" W (26.00mm x 8.50mm) | 0.709" (18.00mm) | PC Pins | 0.886" (22.50mm) | High Pulse, DV/DT | - | - |
|
BFC238352223CAP FILM 0.022UF 5% 1.6KVDC RAD |
6,770 |
|
Datasheet |
Radial | 0.022 µF | ±5% | 550V | 1600V (1.6kV) | Polypropylene (PP), Metallized | - | -55°C ~ 105°C | Through Hole | 1.024" L x 0.335" W (26.00mm x 8.50mm) | 0.709" (18.00mm) | PC Pins | 0.886" (22.50mm) | High Pulse, DV/DT | - | - |
|

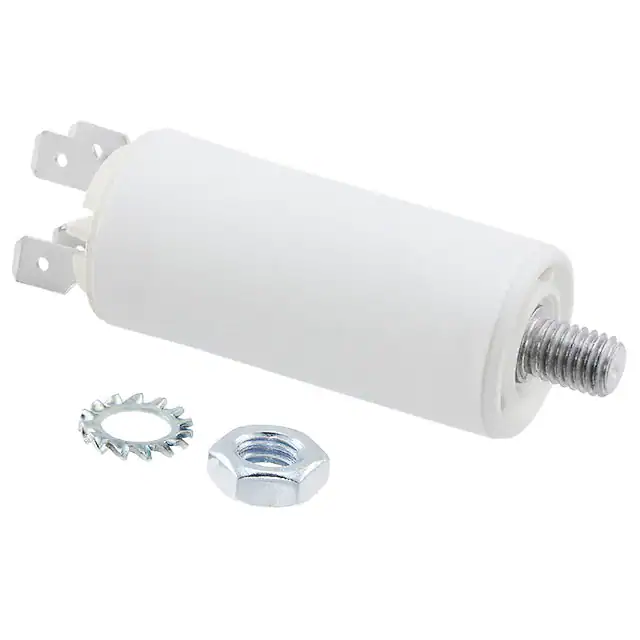

C276CC24300AA0JCAP FILM 3UF 5% 470VAC RADIAL |
6,559 |
|
Datasheet |
Radial, Can | 3 µF | ±5% | 470V | - | Polypropylene (PP), Metallized | - | -25°C ~ 85°C | Chassis, Stud Mount | 0.984" Dia (25.00mm) | 2.362" (60.00mm) | Quick Connect - 0.250" (6.3mm) | 0.394" (10.00mm) | Motor Run | - | - |
|
|
MKP1845410635CAP FILM 0.1UF 10% 630VDC AXIAL |
2,484 |
|
Datasheet |
Axial | 0.1 µF | ±10% | 250V | 630V | Polypropylene (PP), Metallized | - | -55°C ~ 100°C | Through Hole | 0.492" Dia x 1.339" L (12.50mm x 34.00mm) | - | PC Pins | - | DC Link, DC Filtering; High Pulse, DV/DT; Snubber | - | - |
|
|
MKS4F051007D00MSSDCAP FILM 10UF 20% 250VDC RADIAL |
6,746 |
|
Datasheet |
Radial | 10 µF | ±20% | 160V | 250V | Polyester, Polyethylene Terephthalate (PET), Metallized | - | -55°C ~ 125°C | Through Hole | 1.634" L x 0.591" W (41.50mm x 15.00mm) | 1.024" (26.00mm) | PC Pins | 1.476" (37.50mm) | Automotive; DC Link, DC Filtering | AEC-Q200 | - |
|
BFC233925105CAP FILM 1UF 20% 630VDC RADIAL |
8,276 |
|
Datasheet |
Radial | 1 µF | ±20% | 310V | 630V | Polypropylene (PP), Metallized | - | -55°C ~ 110°C | Through Hole | 1.220" L x 0.433" W (31.00mm x 11.00mm) | 0.827" (21.00mm) | PC Pins | 1.083" (27.50mm) | Automotive; EMI, RFI Suppression | AEC-Q200, X2 | - |
|
|
BFC233923105CAP FILM 1UF 20% 630VDC RADIAL |
3,145 |
|
Datasheet |
Radial | 1 µF | ±20% | 310V | 630V | Polypropylene (PP), Metallized | - | -55°C ~ 110°C | Through Hole | 1.220" L x 0.433" W (31.00mm x 11.00mm) | 0.827" (21.00mm) | PC Pins | 1.083" (27.50mm) | Automotive; EMI, RFI Suppression | AEC-Q200, X2 | - |
|
160394J630P-FCAP FILM 0.39UF 5% 630VDC RADIAL |
4,898 |
|
Datasheet |
Radial | 0.39 µF | ±5% | 220V | 630V | Polyester, Metallized | - | -55°C ~ 105°C | Through Hole | 1.260" L x 0.433" W (32.00mm x 11.00mm) | 0.787" (20.00mm) | PC Pins | 1.083" (27.50mm) | General Purpose | - | - |
|
BFC246841474CAP FILM 0.47UF 5% 630VDC RADIAL |
5,053 |
|
Datasheet |
Radial | 0.47 µF | ±5% | 250V | 630V | Polyester, Metallized | - | -55°C ~ 105°C | Through Hole | 1.024" L x 0.492" W (26.00mm x 12.50mm) | 1.004" (25.50mm) | PC Pins | 0.886" (22.50mm) | General Purpose | - | - |
|
|
R523W510000P0KCAP FILM SAFETY/EMI SUPP |
8,571 |
|
Datasheet |
Radial | 10 µF | ±10% | 310V | 630V | Polypropylene (PP), Metallized | - | -40°C ~ 110°C | Through Hole | 1.634" L x 0.787" W (41.50mm x 20.00mm) | 1.579" (40.10mm) | PC Pins | 1.476" (37.50mm) | Automotive; EMI, RFI Suppression | AEC-Q200, X2 | - |
|
|
B32756C2805J000CAP FILM 8UF 5% 500VDC RADIAL |
9,698 |
|
Datasheet |
Radial | 8 µF | ±5% | 250V | 500V | Polypropylene (PP), Metallized | 9.4 mOhms | -40°C ~ 105°C | Through Hole | 1.654" L x 0.709" W (42.00mm x 18.00mm) | 1.280" (32.50mm) | PC Pins | 1.476" (37.50mm) | General Purpose | - | - |
|
|
MKP4F046807D00KSC9MKP 4 6.8 F 250 VDC 15X26X41.5 P |
4,778 |
|
Datasheet |
- | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
MKP1847520354K2CAP FILM 2UF 5% 350VAC RADIAL |
8,795 |
|
Datasheet |
Radial | 2 µF | ±5% | 350V | - | Polypropylene (PP), Metallized | - | -40°C ~ 85°C | Through Hole | - | - | PC Pins | - | DC Link, DC Filtering; EMI, RFI Suppression; High Pulse, DV/DT | - | Long Life |
|
|
MKP385E53940KKP2T0CAP FILM 3.9UF 10% 400VDC RAD |
3,641 |
|
Datasheet |
Radial | 3.9 µF | ±10% | 200V | 400V | Polypropylene (PP), Metallized | 4 mOhms | -40°C ~ 105°C | Through Hole | 1.220" L x 0.827" W (31.00mm x 21.00mm) | 1.224" (31.10mm) | PC Pins | 1.083" (27.50mm) | Automotive; High Frequency, Switching; High Pulse, DV/DT; Snubber | AEC-Q200 | High Temperature |
|
|
MKP385E53940KKI2B0CAP FILM 3.9UF 10% 400VDC RAD |
5,819 |
|
Datasheet |
Radial | 3.9 µF | ±10% | 200V | 400V | Polypropylene (PP), Metallized | 4 mOhms | -40°C ~ 105°C | Through Hole | 1.220" L x 0.827" W (31.00mm x 21.00mm) | 1.224" (31.10mm) | PC Pins | 1.083" (27.50mm) | Automotive; High Frequency, Switching; High Pulse, DV/DT; Snubber | AEC-Q200 | High Temperature |
|
|
MKP385E53940KKM2T0CAP FILM 3.9UF 10% 400VDC RAD |
8,175 |
|
Datasheet |
Radial | 3.9 µF | ±10% | 200V | 400V | Polypropylene (PP), Metallized | 4 mOhms | -40°C ~ 105°C | Through Hole | 1.220" L x 0.827" W (31.00mm x 21.00mm) | 1.224" (31.10mm) | PC Pins | 1.083" (27.50mm) | Automotive; High Frequency, Switching; High Pulse, DV/DT; Snubber | AEC-Q200 | High Temperature |
|
|
EFDKA80J146E102LHCAP EFDKA 800VDC 14UF J 2LEADS |
5,420 |
|
Datasheet |
Radial | 14 µF | ±5% | - | 800V | Polypropylene (PP), Metallized | 11 mOhms | -55°C ~ 105°C | Through Hole | 1.654" L x 0.748" W (42.00mm x 19.00mm) | 1.299" (33.00mm) | PC Pins | 1.476" (37.50mm) | Automotive; DC Link, DC Filtering | AEC-Q200 | - |
|
|
B32776P6505K000CAP FILM 5UF 10% 630VDC RADIAL |
8,572 |
|
Datasheet |
Radial | 5 µF | ±10% | - | 630V | Polypropylene (PP), Metallized | 13.4 mOhms | -40°C ~ 125°C | Through Hole | 1.654" L x 0.945" W (42.00mm x 24.00mm) | 0.591" (15.00mm) | PC Pins | 1.476" (37.50mm) | Automotive; DC Link, DC Filtering | AEC-Q200 | - |
|
MKP1839468634HQGCAP FILM 0.68UF 5% 630VDC AXIAL |
8,602 |
|
Datasheet |
Axial | 0.68 µF | ±5% | 300V | 630V | Polypropylene (PP), Metallized | - | -55°C ~ 110°C | Through Hole | 0.512" Dia x 1.240" L (13.00mm x 31.50mm) | - | PC Pins | - | High Pulse, DV/DT | - | - |
