Film Capacitors
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Package/Case | Capacitance | Tolerance | Voltage Rating - AC | Voltage Rating - DC | Dielectric Material | ESR (Equivalent Series Resistance) | Operating Temperature | Mounting Type | Size / Dimension | Height - Seated (Max) | Termination | Lead Spacing | Applications | Ratings | Features |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
EFPLS1AJ274E022LHCAP FILM 0.27UF 5% 1000VDC RAD |
7,625 |
|
Datasheet |
Radial | 0.27 µF | ±5% | - | 1000V (1kV) | Polypropylene (PP), Metallized | 13 mOhms | -40°C ~ 105°C | Through Hole | 1.654" L x 0.512" W (42.00mm x 13.00mm) | 0.984" (25.00mm) | PC Pins | 1.476" (37.50mm) | High Frequency, Switching; High Pulse, DV/DT | - | - |
|
B32676E4685K000CAP FILM 6.8UF 10% 450VDC RADIAL |
2,864 |
|
Datasheet |
Radial | 6.8 µF | ±10% | - | 450V | Polypropylene (PP), Metallized | - | -40°C ~ 105°C | Through Hole | 1.654" L x 0.709" W (42.00mm x 18.00mm) | 1.280" (32.50mm) | PC Pins | 1.476" (37.50mm) | DC Link, DC Filtering | - | Long Life |
|
MKP1848S61070JP4CCAP FILM 10UF 5% 700VDC RADIAL |
5,445 |
|
Datasheet |
Radial | 10 µF | ±5% | - | 700V | Polypropylene (PP), Metallized | 8 mOhms | -40°C ~ 105°C | Through Hole | 1.654" L x 1.063" W (42.00mm x 27.00mm) | 0.709" (18.00mm) | PC Pins | 1.476" (37.50mm) | DC Link, DC Filtering | - | Low ESR; Low ESL; Long Life |
|
|
MKX2AW43907F00KSSDMKP-X2 3.9 F 305 VAC 19X32X41.5 |
8,634 |
|
Datasheet |
- | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
MKX2AW44707F00KSSDMKP-X2 4.7 F 305 VAC 19X32X41.5 |
8,838 |
|
Datasheet |
- | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
MKP4F045607D00JSSDMKP 4 5.6 F 250 VDC 15X26X41.5 P |
8,286 |
|
Datasheet |
- | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
F873FO274M760ZCAP FILM POLYPROP RAD X1 |
4,915 |
|
Datasheet |
Radial | 0.27 µF | ±20% | 760V | 1500V (1.5kV) | Polypropylene (PP), Metallized | - | -40°C ~ 110°C | Through Hole | 1.240" L x 0.669" W (31.50mm x 17.00mm) | 1.575" (40.00mm) | PC Pins | 1.083" (27.50mm) | EMI, RFI Suppression | X1 | - |
|
|
DCP4H151206FD2KSC9DC-LINK MKP 4 12.0 F 500 VDC 15X |
5,719 |
|
Datasheet |
- | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
BFC237364564CAP FILM 0.56UF 5% 630VDC RADIAL |
3,852 |
|
Datasheet |
Radial | 0.56 µF | ±5% | 250V | 630V | Polyester, Metallized | - | -55°C ~ 105°C | Through Hole | 1.220" L x 0.433" W (31.00mm x 11.00mm) | 0.827" (21.00mm) | PC Pins | 1.083" (27.50mm) | General Purpose | - | Long Life |
|
|
R49AW447000B1MCAP FILM SAFETY/EMI SUPP RAD |
8,103 |
|
Datasheet |
Radial | 4.7 µF | ±20% | 330V | 800V | Polypropylene (PP), Metallized | - | -40°C ~ 110°C | Through Hole | 1.634" L x 0.748" W (41.50mm x 19.00mm) | 1.264" (32.10mm) | PC Pins | 1.476" (37.50mm) | EMI, RFI Suppression | X1 | - |
|
|
C4AEQBU4180A1XJCAP FILM METAL RAD POLYPROP |
2,957 |
|
Datasheet |
Radial | 1.8 µF | ±5% | - | 1100V (1.1kV) | Polypropylene (PP), Metallized | 19.1 mOhms | -40°C ~ 105°C | Through Hole | 1.240" L x 0.512" W (31.50mm x 13.00mm) | 0.992" (25.20mm) | PC Pins | 1.083" (27.50mm) | DC Link, DC Filtering; High Frequency, Switching | - | - |
|

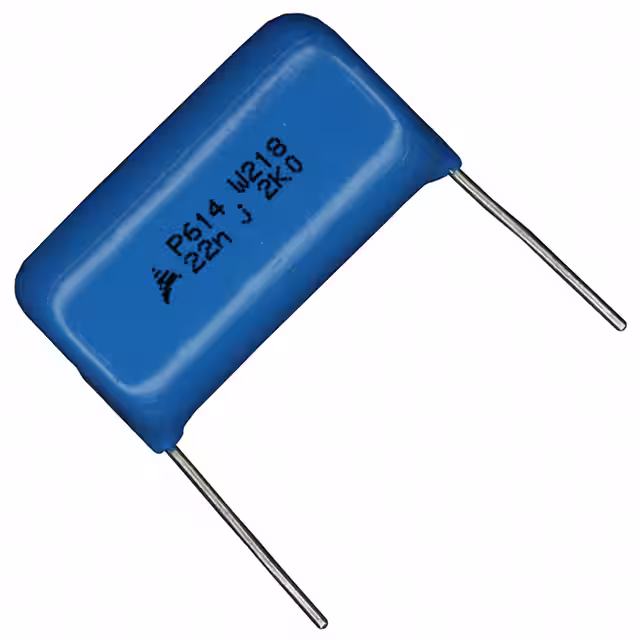

B32614A2223J008CAP FILM 0.022UF 2KVDC RADIAL |
4,479 |
|
Datasheet |
Radial | 0.022 µF | ±5% | 700V | 2000V (2kV) | Polypropylene (PP), Metallized | - | - | Through Hole | 1.240" L x 0.512" W (31.50mm x 13.00mm) | - | PC Pins - Long Leads | 1.083" (27.50mm) | - | - | AC and Pulse |
|
|
MKS4F051007D00KSC9CAP FILM 10UF 10% 250VDC RADIAL |
3,522 |
|
Datasheet |
Radial | 10 µF | ±10% | 160V | 250V | Polyester, Polyethylene Terephthalate (PET), Metallized | - | -55°C ~ 125°C | Through Hole | 1.634" L x 0.591" W (41.50mm x 15.00mm) | 1.024" (26.00mm) | PC Pins | 1.476" (37.50mm) | Automotive; DC Link, DC Filtering | AEC-Q200 | - |
|
|
PHE426MF7150JR06L2CAP FILM RAD |
2,174 |
|
- |
Radial | 1.5 µF | ±5% | 250V | 630V | Polypropylene (PP), Metallized | - | -55°C ~ 105°C | Through Hole | 1.240" L x 0.748" W (31.50mm x 19.00mm) | 1.142" (29.00mm) | PC Pins | 1.083" (27.50mm) | DC Link, DC Filtering; High Frequency, Switching; High Pulse, DV/DT | - | - |
|
|
942C12P22KCAP FILM 0.22UF 1.2KVDC AXIAL |
6,305 |
|
Datasheet |
Axial | 0.22 µF | ±10% | 430V | 1200V (1.2kV) | Polypropylene (PP), Metallized | 6 mOhms | -55°C ~ 105°C | Through Hole | 1.043" Dia x 1.339" L (26.50mm x 34.00mm) | - | PC Pins | - | High Pulse, DV/DT | - | - |
|
|
F461DY825M160L8.20UF 160V |
7,003 |
|
Datasheet |
Radial | 8.2 µF | ±20% | 90V | 160V | Polypropylene (PP), Metallized | - | -55°C ~ 105°C | Through Hole | 1.024" L x 0.610" W (26.00mm x 15.50mm) | 0.965" (24.50mm) | PC Pins | 0.886" (22.50mm) | High Pulse, DV/DT | - | - |
|
|
F462RB394J1L2ZCAP FILM POLYPROP RAD |
6,099 |
|
Datasheet |
Radial | 0.39 µF | ±5% | 400V | 1250V (1.25kV) | Polypropylene (PP), Metallized | - | -55°C ~ 105°C | Through Hole | 1.614" L x 0.433" W (41.00mm x 11.00mm) | 0.866" (22.00mm) | PC Pins | 1.476" (37.50mm) | High Pulse, DV/DT | - | - |
|
BFC246804565CAP FILM 5.6UF 10% 100VDC RADIAL |
7,488 |
|
Datasheet |
Radial | 5.6 µF | ±10% | 63V | 100V | Polyester, Metallized | - | -55°C ~ 105°C | Through Hole | 1.024" L x 0.295" W (26.00mm x 7.50mm) | 0.787" (20.00mm) | PC Pins | 0.886" (22.50mm) | General Purpose | - | - |
|
|
MKP383343250JKI2B0CAP FILM 0.43UF 5% 2.5KVDC RAD |
9,144 |
|
Datasheet |
Radial | 0.043 µF | ±5% | 900V | 2500V (2.5kV) | Polypropylene (PP), Metallized | - | -55°C ~ 105°C | Through Hole | - | - | PC Pins | 1.083" (27.50mm) | High Pulse, DV/DT | - | - |
|
|
MKP383475063JKI2B0CAP FILM 0.75UF 5% 630VDC RADIAL |
5,258 |
|
Datasheet |
Radial | 0.75 µF | ±5% | 220V | 630V | Polypropylene (PP), Metallized | - | -55°C ~ 105°C | Through Hole | 1.240" L x 0.591" W (31.50mm x 15.00mm) | 0.984" (25.00mm) | PC Pins | 1.083" (27.50mm) | High Pulse, DV/DT | - | - |
