Film Capacitors
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Package/Case | Capacitance | Tolerance | Voltage Rating - AC | Voltage Rating - DC | Dielectric Material | ESR (Equivalent Series Resistance) | Operating Temperature | Mounting Type | Size / Dimension | Height - Seated (Max) | Termination | Lead Spacing | Applications | Ratings | Features |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
BFC237531273CAP FILM 0.027UF 1.6KVDC RADIAL |
9,976 |
|
Datasheet |
Radial | 0.027 µF | ±3.5% | 500V | 1600V (1.6kV) | Polypropylene (PP), Metallized | - | -55°C ~ 105°C | Through Hole | 1.181" L x 0.413" W (30.00mm x 10.50mm) | 0.925" (23.50mm) | PC Pins | 0.394" (10.00mm) | High Pulse, DV/DT | - | - |
|
|
BFC237535273CAP FILM 0.027UF 1.6KVDC RADIAL |
6,801 |
|
Datasheet |
Radial | 0.027 µF | ±3.5% | 500V | 1600V (1.6kV) | Polypropylene (PP), Metallized | - | -55°C ~ 105°C | Through Hole | 1.181" L x 0.413" W (30.00mm x 10.50mm) | 0.925" (23.50mm) | PC Pins | 0.394" (10.00mm) | High Pulse, DV/DT | - | - |
|
|
BFC237541133CAP FILM 0.013UF 3.5% 2KVDC RAD |
2,077 |
|
Datasheet |
Radial | 0.013 µF | ±3.5% | 600V | 2000V (2kV) | Polypropylene (PP), Metallized | - | -55°C ~ 105°C | Through Hole | 1.181" L x 0.394" W (30.00mm x 10.00mm) | 0.906" (23.00mm) | PC Pins | 0.394" (10.00mm) | High Pulse, DV/DT | - | - |
|
|
BFC237545133CAP FILM 0.013UF 3.5% 2KVDC RAD |
3,981 |
|
Datasheet |
Radial | 0.013 µF | ±3.5% | 600V | 2000V (2kV) | Polypropylene (PP), Metallized | - | -55°C ~ 105°C | Through Hole | 1.181" L x 0.394" W (30.00mm x 10.00mm) | 0.906" (23.00mm) | PC Pins | 0.394" (10.00mm) | High Pulse, DV/DT | - | - |
|
|
BFC237590361CAP FILM 0.1UF 5% 630VDC RADIAL |
3,675 |
|
Datasheet |
Radial | 0.1 µF | ±5% | 300V | 630V | Polypropylene (PP), Metallized | - | -55°C ~ 105°C | Through Hole | 1.024" L x 0.354" W (26.00mm x 9.00mm) | 0.984" (25.00mm) | PC Pins | 0.886" (22.50mm) | High Pulse, DV/DT | - | - |
|
MKP1839447084HQGCAP FILM 0.47UF 5% 850VDC AXIAL |
4,434 |
|
Datasheet |
Axial | 0.47 µF | ±5% | 400V | 850V | Polypropylene (PP), Metallized | - | -55°C ~ 110°C | Through Hole | 0.650" Dia x 1.240" L (16.50mm x 31.50mm) | - | PC Pins | - | High Pulse, DV/DT | - | - |
|
|
MKP1839447124HQGCAP FILM 0.47UF 5% 1.25KVDC AXL |
9,147 |
|
Datasheet |
Axial | 0.47 µF | ±5% | 425V | 1250V (1.25kV) | Polypropylene (PP), Metallized | - | -55°C ~ 110°C | Through Hole | 0.650" Dia x 1.240" L (16.50mm x 31.50mm) | - | PC Pins | - | High Pulse, DV/DT | - | - |
|
|
BFC247935434CAP FILM 0.43UF 5% 160VDC RADIAL |
6,430 |
|
Datasheet |
Radial | 0.43 µF | ±5% | 100V | 160V | Polypropylene (PP), Metallized | - | -55°C ~ 105°C | Through Hole | 0.728" L x 0.295" W (18.50mm x 7.50mm) | 0.630" (16.00mm) | PC Pins | 0.591" (15.00mm) | High Pulse, DV/DT | - | Long Life |
|
|
MKP1D044707E00JSSDMKP 10 4.7 F 100 VDC 17X29X41.5 |
2,711 |
|
Datasheet |
- | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
F462RF564J1L2ZCAP FILM POLYPROP RAD |
8,265 |
|
Datasheet |
Radial | 0.56 µF | ±5% | 400V | 1250V (1.25kV) | Polypropylene (PP), Metallized | - | -55°C ~ 105°C | Through Hole | 1.614" L x 0.512" W (41.00mm x 13.00mm) | 0.945" (24.00mm) | PC Pins | 1.476" (37.50mm) | High Pulse, DV/DT | - | - |
|

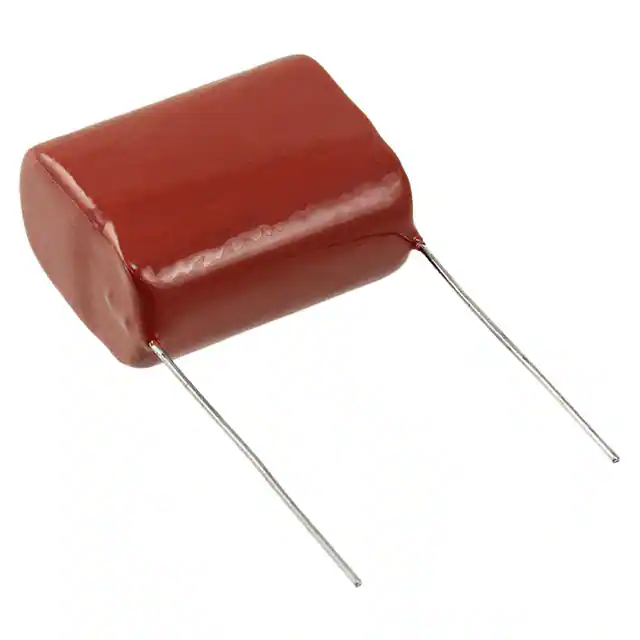

EXH2E126HRPTCAP FILM 12UF 250VAC RADIAL |
7,191 |
|
Datasheet |
Radial | 12 µF | -5%, +10% | 250V | - | Polypropylene (PP), Metallized | - | -25°C ~ 85°C | Through Hole | 1.417" L x 0.728" W (36.00mm x 18.50mm) | 1.240" (31.50mm) | PC Pins | 1.280" (32.50mm) | Motor Run | - | - |
|
|
F161YR185J063VCAP FILM SMD PET |
9,161 |
|
Datasheet |
Nonstandard SMD | 1.8 µF | ±5% | 40V | 63V | Polyester, Polyethylene Terephthalate (PET), Metallized - Stacked | - | -55°C ~ 125°C | Surface Mount | 0.500" L x 0.453" W (12.70mm x 11.50mm) | 0.264" (6.70mm) | Solder Pads | - | Automotive | AEC-Q200 | - |
|
|
EFPLS1DJ274E022LHCAP FILM 0.27UF 5% 1300VDC RAD |
6,232 |
|
Datasheet |
Radial | 0.27 µF | ±5% | - | 1300V (1.3kV) | Polypropylene (PP), Metallized | 16.5 mOhms | -40°C ~ 105°C | Through Hole | 1.654" L x 0.512" W (42.00mm x 13.00mm) | 0.984" (25.00mm) | PC Pins | 1.476" (37.50mm) | High Frequency, Switching; High Pulse, DV/DT | - | - |
|
|
EFPLS1GJ184E022LHCAP FILM 0.18UF 5% 1600VDC RAD |
9,679 |
|
Datasheet |
Radial | 0.18 µF | ±5% | - | 1600V (1.6kV) | Polypropylene (PP), Metallized | 18 mOhms | -40°C ~ 105°C | Through Hole | 1.654" L x 0.512" W (42.00mm x 13.00mm) | 0.984" (25.00mm) | PC Pins | 1.476" (37.50mm) | High Frequency, Switching; High Pulse, DV/DT | - | - |
|
|
EFPLS1AJ334E022LHCAP FILM 0.33UF 5% 1000VDC RAD |
3,699 |
|
Datasheet |
Radial | 0.33 µF | ±5% | - | 1000V (1kV) | Polypropylene (PP), Metallized | 12 mOhms | -40°C ~ 105°C | Through Hole | 1.654" L x 0.512" W (42.00mm x 13.00mm) | 0.984" (25.00mm) | PC Pins | 1.476" (37.50mm) | High Frequency, Switching; High Pulse, DV/DT | - | - |
|
|
EFPLS1GJ274E022LHCAP FILM 0.27UF 5% 1600VDC RAD |
3,461 |
|
Datasheet |
Radial | 0.27 µF | ±5% | - | 1600V (1.6kV) | Polypropylene (PP), Metallized | 15 mOhms | -40°C ~ 105°C | Through Hole | 1.654" L x 0.512" W (42.00mm x 13.00mm) | 0.984" (25.00mm) | PC Pins | 1.476" (37.50mm) | High Frequency, Switching; High Pulse, DV/DT | - | - |
|
|
EFPLS2AJ124E022LHCAP FILM 0.12UF 5% 2000VDC RAD |
4,205 |
|
Datasheet |
Radial | 0.12 µF | ±5% | - | 2000V (2kV) | Polypropylene (PP), Metallized | 16 mOhms | -40°C ~ 105°C | Through Hole | 1.654" L x 0.512" W (42.00mm x 13.00mm) | 0.984" (25.00mm) | PC Pins | 1.476" (37.50mm) | High Frequency, Switching; High Pulse, DV/DT | - | - |
|
|
EFPLS1GJ224E022LHCAP FILM 0.22UF 5% 1600VDC RAD |
8,644 |
|
Datasheet |
Radial | 0.22 µF | ±5% | - | 1600V (1.6kV) | Polypropylene (PP), Metallized | 17 mOhms | -40°C ~ 105°C | Through Hole | 1.654" L x 0.512" W (42.00mm x 13.00mm) | 0.984" (25.00mm) | PC Pins | 1.476" (37.50mm) | High Frequency, Switching; High Pulse, DV/DT | - | - |
|
|
EFPLS2AJ104E022LHCAP FILM 0.1UF 5% 2000VDC RAD |
4,603 |
|
Datasheet |
Radial | 0.1 µF | ±5% | - | 2000V (2kV) | Polypropylene (PP), Metallized | 18 mOhms | -40°C ~ 105°C | Through Hole | 1.654" L x 0.512" W (42.00mm x 13.00mm) | 0.984" (25.00mm) | PC Pins | 1.476" (37.50mm) | High Frequency, Switching; High Pulse, DV/DT | - | - |
|
|
EFPLS1DJ334E022LHCAP FILM 0.33UF 5% 1300VDC RAD |
3,087 |
|
Datasheet |
Radial | 0.33 µF | ±5% | - | 1300V (1.3kV) | Polypropylene (PP), Metallized | 15 mOhms | -40°C ~ 105°C | Through Hole | 1.654" L x 0.512" W (42.00mm x 13.00mm) | 0.984" (25.00mm) | PC Pins | 1.476" (37.50mm) | High Frequency, Switching; High Pulse, DV/DT | - | - |
