Film Capacitors
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Package/Case | Capacitance | Tolerance | Voltage Rating - AC | Voltage Rating - DC | Dielectric Material | ESR (Equivalent Series Resistance) | Operating Temperature | Mounting Type | Size / Dimension | Height - Seated (Max) | Termination | Lead Spacing | Applications | Ratings | Features |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
F17725102291CAP FILM 1UF 20% 630VDC RADIAL |
6,768 |
|
Datasheet |
Radial | 1 µF | ±20% | 310V | 630V | Polyester, Metallized | - | -40°C ~ 110°C | Through Hole | 1.220" L x 0.591" W (31.00mm x 15.00mm) | 0.984" (25.00mm) | PC Pins | 1.083" (27.50mm) | EMI, RFI Suppression | X2 | - |
|
MKP383356250JKP2T0CAP FILM 0.56UF 5% 2.5KVDC RAD |
4,323 |
|
Datasheet |
Radial | 0.056 µF | ±5% | 900V | 2500V (2.5kV) | Polypropylene (PP), Metallized | - | -55°C ~ 105°C | Through Hole | 1.240" L x 0.709" W (31.50mm x 18.00mm) | 1.102" (28.00mm) | PC Pins | 1.083" (27.50mm) | High Pulse, DV/DT | - | - |
|
|
R75QW42205000JCAP FILM AUTO POLYPROP RAD |
7,311 |
|
Datasheet |
Radial | 2.2 µF | ±5% | 300V | 1000V (1kV) | Polypropylene (PP), Metallized | 7.2 mOhms | -55°C ~ 105°C | Through Hole | 1.634" L x 0.787" W (41.50mm x 20.00mm) | 1.579" (40.10mm) | PC Pins | 1.476" (37.50mm) | High Frequency, Switching; High Pulse, DV/DT | - | - |
|
|
BFC238341303CAP FILM 0.03UF 5% 1.4KVDC RAD |
5,587 |
|
Datasheet |
Radial | 0.03 µF | ±5% | 500V | 1400V (1.4kV) | Polypropylene (PP), Metallized | - | -55°C ~ 105°C | Through Hole | 1.024" L x 0.394" W (26.00mm x 10.00mm) | 0.768" (19.50mm) | PC Pins | 0.886" (22.50mm) | High Pulse, DV/DT | - | - |
|
|
BFC238344303CAP FILM 0.03UF 5% 1.4KVDC RAD |
4,003 |
|
Datasheet |
Radial | 0.03 µF | ±5% | 500V | 1400V (1.4kV) | Polypropylene (PP), Metallized | - | -55°C ~ 105°C | Through Hole | 1.024" L x 0.394" W (26.00mm x 10.00mm) | 0.768" (19.50mm) | PC Pins | 0.886" (22.50mm) | High Pulse, DV/DT | - | - |
|
|
430P684X9400CAP FILM AXIAL |
9,252 |
|
- |
- | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
MKS4D051806B00JJ00CAP FILM 18UF 5% 100VDC RADIAL |
8,254 |
|
Datasheet |
Radial | 18 µF | ±5% | 63V | 100V | Polyester, Polyethylene Terephthalate (PET), Metallized | - | -55°C ~ 125°C | Through Hole | 1.240" L x 0.433" W (31.50mm x 11.00mm) | 0.827" (21.00mm) | PC Pins | 1.083" (27.50mm) | Automotive; DC Link, DC Filtering | AEC-Q200 | - |
|
|
MKS4D051806B00JH00CAP FILM 18UF 5% 100VDC RADIAL |
3,514 |
|
Datasheet |
Radial | 18 µF | ±5% | 63V | 100V | Polyester, Polyethylene Terephthalate (PET), Metallized | - | -55°C ~ 125°C | Through Hole | 1.240" L x 0.433" W (31.50mm x 11.00mm) | 0.827" (21.00mm) | PC Pins | 1.083" (27.50mm) | Automotive; DC Link, DC Filtering | AEC-Q200 | - |
|
|
MKP385E4182AJKM2T0CAP FILM 0.18UF 5% 2KVDC RAD |
6,808 |
|
Datasheet |
Radial | 0.18 µF | ±5% | 700V | 2000V (2kV) | Polypropylene (PP), Metallized | 26 mOhms | -40°C ~ 105°C | Through Hole | - | - | PC Pins | 1.083" (27.50mm) | Automotive; High Frequency, Switching; High Pulse, DV/DT; Snubber | AEC-Q200 | High Temperature |
|
|
MKP385E4182AJKP2T0CAP FILM 0.18UF 5% 2KVDC RAD |
5,498 |
|
Datasheet |
Radial | 0.18 µF | ±5% | 700V | 2000V (2kV) | Polypropylene (PP), Metallized | 26 mOhms | -40°C ~ 105°C | Through Hole | - | - | PC Pins | 1.083" (27.50mm) | Automotive; High Frequency, Switching; High Pulse, DV/DT; Snubber | AEC-Q200 | High Temperature |
|
|
MKP385E4182AJKI2B0CAP FILM 0.18UF 5% 2KVDC RAD |
5,066 |
|
Datasheet |
Radial | 0.18 µF | ±5% | 700V | 2000V (2kV) | Polypropylene (PP), Metallized | 26 mOhms | -40°C ~ 105°C | Through Hole | - | - | PC Pins | 1.083" (27.50mm) | Automotive; High Frequency, Switching; High Pulse, DV/DT; Snubber | AEC-Q200 | High Temperature |
|
|
F872RC105M480ZCAP FILM POLYPROP RAD X1 |
6,837 |
|
Datasheet |
Radial | 1 µF | ±20% | 480V | 1000V (1kV) | Polypropylene (PP), Metallized | - | -40°C ~ 110°C | Through Hole | 1.614" L x 0.630" W (41.00mm x 16.00mm) | 1.122" (28.50mm) | PC Pins | 1.476" (37.50mm) | EMI, RFI Suppression | X1 | - |
|
B32676E1475K000CAP FILM 4.7UF 10% 750VDC RADIAL |
8,989 |
|
Datasheet |
Radial | 4.7 µF | ±10% | - | 750V | Polypropylene (PP), Metallized | - | -40°C ~ 105°C | Through Hole | 1.654" L x 0.787" W (42.00mm x 20.00mm) | 1.555" (39.50mm) | PC Pins | 1.476" (37.50mm) | DC Link, DC Filtering | - | Long Life |
|

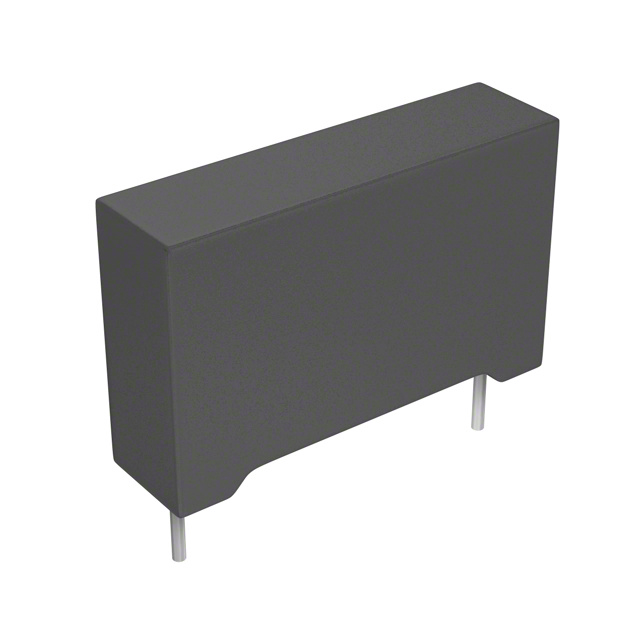

160335J63M-FCAP FILM 3.3UF 5% 63VDC RADIAL |
6,435 |
|
Datasheet |
Radial | 3.3 µF | ±5% | 40V | 63V | Polyester, Metallized | - | -55°C ~ 105°C | Through Hole | 1.043" L x 0.276" W (26.50mm x 7.00mm) | 0.650" (16.50mm) | PC Pins | 0.886" (22.50mm) | General Purpose | - | - |
|
|
F871RD255J330Z2.50UF 330V |
3,207 |
|
- |
Radial | 2.5 µF | ±5% | 330V | 1000V (1kV) | Polypropylene (PP), Metallized | - | -40°C ~ 110°C | Through Hole | 1.614" L x 0.748" W (41.00mm x 19.00mm) | 1.260" (32.00mm) | PC Pins | 1.476" (37.50mm) | EMI, RFI Suppression | X1 | - |
|
|
MKS4F051007D00JSSDCAP FILM 10UF 5% 250VDC RADIAL |
2,733 |
|
Datasheet |
Radial | 10 µF | ±5% | 160V | 250V | Polyester, Polyethylene Terephthalate (PET), Metallized | - | -55°C ~ 125°C | Through Hole | 1.634" L x 0.591" W (41.50mm x 15.00mm) | 1.024" (26.00mm) | PC Pins | 1.476" (37.50mm) | Automotive; DC Link, DC Filtering | AEC-Q200 | - |
|
|
CB182I0474JBCCAP FILM |
2,041 |
|
- |
- | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
F873FO254K760ZCAP FILM POLYPROP RAD X1 |
8,008 |
|
Datasheet |
Radial | 0.25 µF | ±10% | 760V | 1500V (1.5kV) | Polypropylene (PP), Metallized | - | -40°C ~ 110°C | Through Hole | 1.240" L x 0.669" W (31.50mm x 17.00mm) | 1.575" (40.00mm) | PC Pins | 1.083" (27.50mm) | EMI, RFI Suppression | X1 | - |
|
|
BFC233619005CAP FILM 0.22UF 20% 630VDC RAD |
7,919 |
|
Datasheet |
Radial | 0.22 µF | ±20% | 275V | 630V | Polypropylene (PP), Metallized | - | -55°C ~ 105°C | Through Hole | 1.220" L x 0.433" W (31.00mm x 11.00mm) | 0.827" (21.00mm) | PC Pins | 1.083" (27.50mm) | EMI, RFI Suppression | X1 | - |
|
|
R76TW3470SE30HCAP FILM AUTO POLYPROP RAD |
5,572 |
|
Datasheet |
Radial | 0.47 µF | ±2.5% | 650V | 1600V (1.6kV) | Polypropylene (PP), Metallized | 14 mOhms | -55°C ~ 110°C | Through Hole | 1.634" L x 0.748" W (41.50mm x 19.00mm) | 1.264" (32.10mm) | PC Pins | 1.476" (37.50mm) | High Frequency, Switching; High Pulse, DV/DT | - | - |
