Film Capacitors
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Package/Case | Capacitance | Tolerance | Voltage Rating - AC | Voltage Rating - DC | Dielectric Material | ESR (Equivalent Series Resistance) | Operating Temperature | Mounting Type | Size / Dimension | Height - Seated (Max) | Termination | Lead Spacing | Applications | Ratings | Features |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
BFC238362153CAP FILM 0.015UF 5% 2KVDC RADIAL |
2,101 |
|
Datasheet |
Radial | 0.015 µF | ±5% | 700V | 2000V (2kV) | Polypropylene (PP), Metallized | - | -55°C ~ 105°C | Through Hole | 1.024" L x 0.335" W (26.00mm x 8.50mm) | 0.709" (18.00mm) | PC Pins | 0.886" (22.50mm) | High Pulse, DV/DT | - | - |
|
FKP4J036807F00MSC9FKP 4 0.68 F 630 VDC 19X32X41.5 |
7,791 |
|
Datasheet |
- | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
BFC237885133CAP FILM 0.013UF 5% 1.6KVDC RAD |
6,652 |
|
Datasheet |
Radial | 0.013 µF | ±5% | 500V | 1600V (1.6kV) | Polypropylene (PP), Metallized | - | -55°C ~ 85°C | Through Hole | 1.024" L x 0.236" W (26.00mm x 6.00mm) | 0.728" (18.50mm) | PC Pins | 0.886" (22.50mm) | High Pulse, DV/DT | - | Long Life |
|
|
F871FS185K330ZCAP FILM POLYPROP RAD X1 |
7,890 |
|
Datasheet |
Radial | 1.8 µF | ±10% | 330V | 800V | Polypropylene (PP), Metallized | - | -40°C ~ 110°C | Through Hole | 1.240" L x 0.748" W (31.50mm x 19.00mm) | 1.142" (29.00mm) | PC Pins | 1.083" (27.50mm) | EMI, RFI Suppression | X1 | - |
|

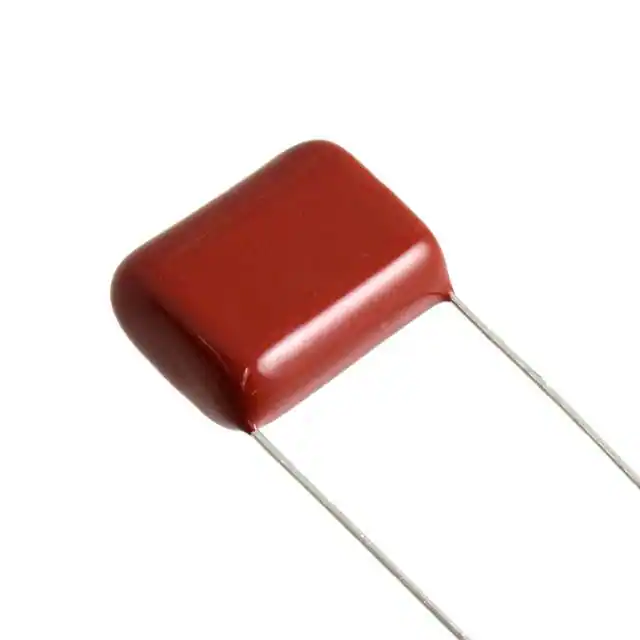

QXK2E106JTPCAP FILM 10UF 5% 250VDC RADIAL |
9,491 |
|
Datasheet |
Radial | 10 µF | ±5% | 125V | 250V | Polyester, Metallized | - | -40°C ~ 105°C | Through Hole | 1.201" L x 0.614" W (30.50mm x 15.60mm) | 1.012" (25.70mm) | PC Pins | 1.083" (27.50mm) | General Purpose | - | - |
|
|
QXK2E106JTP7FXCAP FILM 10UF 5% 250VDC RADIAL |
5,786 |
|
Datasheet |
Radial | 10 µF | ±5% | 125V | 250V | Polyester, Metallized | - | -40°C ~ 105°C | Through Hole | 1.201" L x 0.614" W (30.50mm x 15.60mm) | 1.169" (29.70mm) | PC Pins | 1.083" (27.50mm) | General Purpose | - | - |
|
BFC246804475CAP FILM 4.7UF 10% 100VDC RADIAL |
6,458 |
|
Datasheet |
Radial | 4.7 µF | ±10% | 63V | 100V | Polyester, Metallized | - | -55°C ~ 105°C | Through Hole | 1.024" L x 0.276" W (26.00mm x 7.00mm) | 0.768" (19.50mm) | PC Pins | 0.886" (22.50mm) | General Purpose | - | - |
|
BLH905K801A072DC LINK, THB, 85/85, AEC-Q200 |
4,934 |
|
Datasheet |
Radial | 9 µF | ±10% | - | 800V | Polypropylene (PP), Metallized | 8.5 mOhms | -40°C ~ 105°C | Through Hole | 1.260" L x 0.709" W (32.00mm x 18.00mm) | 1.331" (33.80mm) | PC Pins | 1.083" (27.50mm) | Automotive; DC Link, DC Filtering | AEC-Q200 | 85C/85% Humidity, THB, Low ESR, Low ESL, Long Life |
|
|
MKT1813568014RCAP FILM 6.8UF 5% 100VDC AXIAL |
3,297 |
|
Datasheet |
Axial | 6.8 µF | ±5% | 63V | 100V | Polyester, Metallized | - | -55°C ~ 100°C | Through Hole | 0.571" Dia x 1.240" L (14.50mm x 31.50mm) | - | PC Pins | - | General Purpose | - | - |
|
|
F461DY825K160RCAP FILM POLYPROP RAD |
7,682 |
|
Datasheet |
Radial | 8.2 µF | ±10% | 90V | 160V | Polypropylene (PP), Metallized | - | -55°C ~ 105°C | Through Hole | 1.024" L x 0.610" W (26.00mm x 15.50mm) | 0.965" (24.50mm) | PC Pins | 0.886" (22.50mm) | High Pulse, DV/DT | - | - |
|
|
BFC237882133CAP FILM 0.013UF 5% 1.6KVDC RAD |
2,519 |
|
Datasheet |
Radial | 0.013 µF | ±5% | 500V | 1600V (1.6kV) | Polypropylene (PP), Metallized | - | -55°C ~ 85°C | Through Hole | 1.024" L x 0.236" W (26.00mm x 6.00mm) | 0.610" (15.50mm) | PC Pins | 0.886" (22.50mm) | High Pulse, DV/DT | - | Long Life |
|
|
BFC237884133CAP FILM 0.013UF 5% 1.6KVDC RAD |
3,551 |
|
Datasheet |
Radial | 0.013 µF | ±5% | 500V | 1600V (1.6kV) | Polypropylene (PP), Metallized | - | -55°C ~ 85°C | Through Hole | 1.024" L x 0.236" W (26.00mm x 6.00mm) | 0.610" (15.50mm) | PC Pins | 0.886" (22.50mm) | High Pulse, DV/DT | - | Long Life |
|
|
MKP383433100JKM2T0CAP FILM 0.33UF 5% 1KVDC RADIAL |
8,198 |
|
Datasheet |
Radial | 0.33 µF | ±5% | 350V | 1000V (1kV) | Polypropylene (PP), Metallized | - | -55°C ~ 105°C | Through Hole | 1.240" L x 0.591" W (31.50mm x 15.00mm) | 0.984" (25.00mm) | PC Pins | 1.083" (27.50mm) | High Pulse, DV/DT | - | - |
|
|
MKP383433100JKP2T0CAP FILM 0.33UF 5% 1KVDC RADIAL |
4,339 |
|
Datasheet |
Radial | 0.33 µF | ±5% | 350V | 1000V (1kV) | Polypropylene (PP), Metallized | - | -55°C ~ 105°C | Through Hole | 1.240" L x 0.591" W (31.50mm x 15.00mm) | 0.984" (25.00mm) | PC Pins | 1.083" (27.50mm) | High Pulse, DV/DT | - | - |
|
|
MKP383433100JKI2B0CAP FILM 0.33UF 5% 1KVDC RADIAL |
3,100 |
|
Datasheet |
Radial | 0.33 µF | ±5% | 350V | 1000V (1kV) | Polypropylene (PP), Metallized | - | -55°C ~ 105°C | Through Hole | 1.240" L x 0.591" W (31.50mm x 15.00mm) | 0.984" (25.00mm) | PC Pins | 1.083" (27.50mm) | High Pulse, DV/DT | - | - |
|
ECQ-UAAF335QDCAP FILM 3.3UF 10% 275VAC RADIAL |
8,484 |
|
Datasheet |
Radial | 3.3 µF | ±10% | 275V | - | Polypropylene (PP), Metallized | - | -40°C ~ 110°C | Through Hole | 1.614" L x 0.591" W (41.00mm x 15.00mm) | 1.201" (30.50mm) | PC Pins | 1.476" (37.50mm) | Automotive; EMI, RFI Suppression | AEC-Q200, X2 | - |
|
|
R76TW3560SE30HCAP FILM AUTO POLYPROP RAD |
7,120 |
|
Datasheet |
Radial | 0.56 µF | ±2.5% | 650V | 1600V (1.6kV) | Polypropylene (PP), Metallized | 11 mOhms | -55°C ~ 110°C | Through Hole | 1.634" L x 0.787" W (41.50mm x 20.00mm) | 1.579" (40.10mm) | PC Pins | 1.476" (37.50mm) | High Frequency, Switching; High Pulse, DV/DT | - | - |
|
|
BFC241776204CAP FILM 0.62UF 2% 160VDC RADIAL |
8,149 |
|
Datasheet |
Radial | 0.62 µF | ±2% | 63V | 160V | Polypropylene (PP), Metallized | - | -55°C ~ 85°C | Through Hole | 0.689" L x 0.335" W (17.50mm x 8.50mm) | 0.591" (15.00mm) | PC Pins | 0.591" (15.00mm) | High Frequency, Switching | - | - |
|
|
5221CAPS. FOIL MKP 15 UF/250V |
9,384 |
|
- |
Radial | 1.5 µF | ±5% | - | 250V | Polypropylene (PP) | - | - | Through Hole | 1.260" L x 0.433" W (32.00mm x 11.00mm) | 0.787" (20.00mm) | PC Pins | 1.083" (27.50mm) | General Purpose | - | - |
|
|
RA6474K400-FACAP FILM 0.47UF 10% 400VDC RAD |
4,475 |
|
Datasheet |
Radial | 0.47 µF | ±10% | 250V | 400V | Polyester, Metallized | - | -55°C ~ 125°C | Through Hole | 0.650" L x 0.291" W (16.50mm x 7.40mm) | 0.437" (11.10mm) | PC Pins | 0.591" (15.00mm) | High Frequency, Switching; High Pulse, DV/DT; EMI, RFI Suppression | - | Low ESR; Low ESL; Long Life |
