Film Capacitors
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Package/Case | Capacitance | Tolerance | Voltage Rating - AC | Voltage Rating - DC | Dielectric Material | ESR (Equivalent Series Resistance) | Operating Temperature | Mounting Type | Size / Dimension | Height - Seated (Max) | Termination | Lead Spacing | Applications | Ratings | Features |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
225P68491YD3CAP FILM 0.68UF 10% 100VDC RAD |
4,451 |
|
Datasheet |
Radial | 0.68 µF | ±10% | - | 100V | Polyester | - | -55°C ~ 85°C | Through Hole | 1.252" L x 0.579" W (31.80mm x 14.70mm) | 0.902" (22.90mm) | PC Pins | 0.720" (18.30mm) | Audio; DC Link, DC Filtering | - | - |
|
|
PHE840MF7330MF16R06L2CAP FILM 3.3UF 20% 760VDC RADIAL |
7,429 |
|
Datasheet |
Radial | 3.3 µF | ±20% | 275V | 760V | Polypropylene (PP), Metallized | - | -55°C ~ 105°C | Through Hole | 1.240" L x 1.181" W (31.50mm x 30.00mm) | 0.827" (21.00mm) | PC Pins | 1.083" (27.50mm) | EMI, RFI Suppression | X2 | - |
|
|
BFC238321224CAP FILM 0.22UF 5% 630VDC RADIAL |
5,795 |
|
Datasheet |
Radial | 0.22 µF | ±5% | 220V | 630V | Polypropylene (PP), Metallized | - | -55°C ~ 105°C | Through Hole | 1.024" L x 0.335" W (26.00mm x 8.50mm) | 0.709" (18.00mm) | PC Pins | 0.886" (22.50mm) | High Pulse, DV/DT | - | - |
|
|
F339MX251031MII2B0CAP FILM 1UF 20% 630VDC RADIAL |
4,686 |
|
Datasheet |
Radial | 1 µF | ±20% | 310V | 630V | Polypropylene (PP), Metallized | - | -55°C ~ 110°C | Through Hole | 1.240" L x 0.394" W (31.50mm x 10.00mm) | 0.768" (19.50mm) | PC Pins | 0.886" (22.50mm) | EMI, RFI Suppression | X2 | - |
|
|
F339MX251031MIM2T0CAP FILM 1UF 20% 630VDC RADIAL |
4,045 |
|
Datasheet |
Radial | 1 µF | ±20% | 310V | 630V | Polypropylene (PP), Metallized | - | -55°C ~ 110°C | Through Hole | 1.240" L x 0.394" W (31.50mm x 10.00mm) | 0.768" (19.50mm) | PC Pins | 0.886" (22.50mm) | EMI, RFI Suppression | X2 | - |
|
|
F873FY394J760Z.390UF 760V |
4,169 |
|
- |
- | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
F873FS334M760ZCAP FILM POLYPROP RAD X1 |
6,712 |
|
Datasheet |
Radial | 0.33 µF | ±20% | 760V | 1500V (1.5kV) | Polypropylene (PP), Metallized | - | -40°C ~ 110°C | Through Hole | 1.240" L x 0.748" W (31.50mm x 19.00mm) | 1.142" (29.00mm) | PC Pins | 1.083" (27.50mm) | EMI, RFI Suppression | X1 | - |
|
|
MKP385E52263JKP2T0CAP FILM 2.2UF 5% 630VDC RAD |
3,051 |
|
Datasheet |
Radial | 2.2 µF | ±5% | 220V | 630V | Polypropylene (PP), Metallized | 6 mOhms | -40°C ~ 105°C | Through Hole | - | - | PC Pins | 1.083" (27.50mm) | Automotive; High Frequency, Switching; High Pulse, DV/DT; Snubber | AEC-Q200 | High Temperature |
|
|
MKP385E52263JKI2B0CAP FILM 2.2UF 5% 630VDC RAD |
9,121 |
|
Datasheet |
Radial | 2.2 µF | ±5% | 220V | 630V | Polypropylene (PP), Metallized | 6 mOhms | -40°C ~ 105°C | Through Hole | - | - | PC Pins | 1.083" (27.50mm) | Automotive; High Frequency, Switching; High Pulse, DV/DT; Snubber | AEC-Q200 | High Temperature |
|
|
MKP385E52263JKM2T0CAP FILM 2.2UF 5% 630VDC RAD |
2,452 |
|
Datasheet |
Radial | 2.2 µF | ±5% | 220V | 630V | Polypropylene (PP), Metallized | 6 mOhms | -40°C ~ 105°C | Through Hole | - | - | PC Pins | 1.083" (27.50mm) | Automotive; High Frequency, Switching; High Pulse, DV/DT; Snubber | AEC-Q200 | High Temperature |
|
|
DCP4I051007CD2JSSDDC-LINK MKP 4 10.0 F 600 VDC 13X |
6,899 |
|
Datasheet |
- | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
DCP4I051007CD2KSC9DC-LINK MKP 4 10.0 F 600 VDC 13X |
9,138 |
|
Datasheet |
- | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
DCP4I051007CD2MSC9DC-LINK MKP 4 10.0 F 600 VDC 13X |
6,995 |
|
Datasheet |
- | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
F872FS824K480ZCAP FILM POLYPROP RAD X1 |
5,561 |
|
Datasheet |
Radial | 0.82 µF | ±10% | 480V | 1000V (1kV) | Polypropylene (PP), Metallized | - | -40°C ~ 110°C | Through Hole | 1.240" L x 0.748" W (31.50mm x 19.00mm) | 1.142" (29.00mm) | PC Pins | 1.083" (27.50mm) | EMI, RFI Suppression | X1 | - |
|
|
MKX14W41506J00JSC9MKP-X1 R 1.5 F 440 VAC 20X39.5X3 |
4,818 |
|
Datasheet |
- | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
BFC238362133CAP FILM 0.013UF 5% 2KVDC RADIAL |
5,410 |
|
Datasheet |
Radial | 0.013 µF | ±5% | 700V | 2000V (2kV) | Polypropylene (PP), Metallized | - | -55°C ~ 105°C | Through Hole | 1.024" L x 0.276" W (26.00mm x 7.00mm) | 0.650" (16.50mm) | PC Pins | 0.886" (22.50mm) | High Pulse, DV/DT | - | - |
|
MKP1839051631GCAP FILM 51PF 1% 630VDC AXIAL |
2,596 |
|
Datasheet |
Axial | 51 pF | ±1% | 250V | 630V | Polypropylene (PP), Metallized | - | -55°C ~ 100°C | Through Hole | 0.197" Dia x 0.433" L (5.00mm x 11.00mm) | - | PC Pins | - | DC Link, DC Filtering; High Pulse, DV/DT | - | - |
|
|
MKP1839062631GCAP FILM 62PF 1% 630VDC AXIAL |
2,750 |
|
Datasheet |
Axial | 62 pF | ±1% | 250V | 630V | Polypropylene (PP), Metallized | - | -55°C ~ 100°C | Through Hole | 0.197" Dia x 0.433" L (5.00mm x 11.00mm) | - | PC Pins | - | DC Link, DC Filtering; High Pulse, DV/DT | - | - |
|

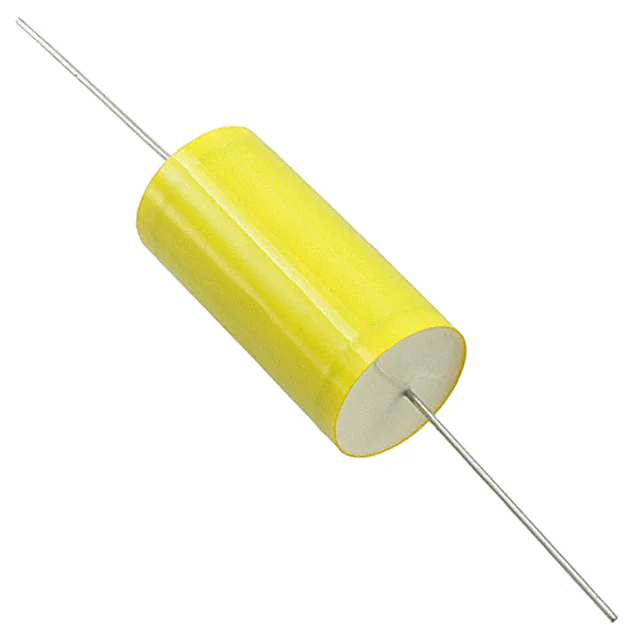

A50QK2100AA00MCAP FILM 10000PF 20% 1KVDC AXIAL |
3,964 |
|
Datasheet |
Axial | 10000 pF | ±20% | 250V | 1000V (1kV) | Polyester, Polyethylene Terephthalate (PET), Metallized | - | -55°C ~ 105°C | Through Hole | 0.276" Dia x 0.807" L (7.00mm x 20.50mm) | - | PC Pins | - | Automotive | AEC-Q200 | - |
|
930C4S82K-FCAP FILM 0.082UF 400VDC AXIAL |
9,570 |
|
Datasheet |
Axial | 0.082 µF | ±10% | 250V | 400V | Polypropylene (PP), Metallized | - | -55°C ~ 105°C | Through Hole | 0.319" Dia x 0.748" L (8.10mm x 19.00mm) | - | PC Pins | - | General Purpose | - | - |
