Film Capacitors
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Package/Case | Capacitance | Tolerance | Voltage Rating - AC | Voltage Rating - DC | Dielectric Material | ESR (Equivalent Series Resistance) | Operating Temperature | Mounting Type | Size / Dimension | Height - Seated (Max) | Termination | Lead Spacing | Applications | Ratings | Features |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
F339X146848KKP2T0CAP FILM 0.68UF 10% 1KVDC RADIAL |
5,454 |
|
Datasheet |
Radial | 0.68 µF | ±10% | 480V | 1000V (1kV) | Polypropylene (PP), Metallized | - | -55°C ~ 110°C | Through Hole | 1.240" L x 0.728" W (31.50mm x 18.50mm) | 1.102" (28.00mm) | PC Pins | 1.083" (27.50mm) | EMI, RFI Suppression | X1 | - |
|
KP1836410634CAP FILM 0.1UF 5% 630VDC RADIAL |
7,674 |
|
Datasheet |
Radial | 0.1 µF | ±5% | 300V | 630V | Polypropylene (PP) | - | -55°C ~ 100°C | Through Hole | 1.240" L x 0.531" W (31.50mm x 13.50mm) | 0.925" (23.50mm) | PC Pins | 1.083" (27.50mm) | DC Link, DC Filtering; High Pulse, DV/DT; Snubber | - | - |
|
|
C4CAPUC3330AA1JCAP FILM METAL AXL POLYPROP |
4,006 |
|
Datasheet |
Axial | 0.33 µF | ±5% | 500V | 1200V (1.2kV) | Polypropylene (PP), Metallized | 7.2 mOhms | -40°C ~ 85°C | Through Hole | 0.787" Dia x 1.732" L (20.00mm x 44.00mm) | - | PC Pins | - | DC Link, DC Filtering; High Frequency, Switching; Snubber | - | - |
|
|
MKP4G044707F00JSSDMKP 4 4.7 F 400 VDC 19X32X41.5 P |
3,010 |
|
Datasheet |
- | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
MKP4G044706J00JSSDMKP 4 4.7 F 400 VDC 20X39.5X31.5 |
9,033 |
|
Datasheet |
- | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
LDEDF4390JA0N00CAP FILM SMD PEN |
2,134 |
|
Datasheet |
4030 (10276 Metric) | 3.9 µF | ±5% | 40V | 63V | Polyester, Polyethylene Naphthalate (PEN), Metallized - Stacked | - | -55°C ~ 125°C | Surface Mount | 0.413" L x 0.311" W (10.50mm x 7.90mm) | 0.217" (5.50mm) | Solder Pads | - | Automotive | AEC-Q200 | High Temperature |
|
|
MKT1813468635CAP FILM 0.68UF 10% 630VDC AXIAL |
5,572 |
|
Datasheet |
Axial | 0.68 µF | ±10% | 220V | 630V | Polyester, Metallized | - | -55°C ~ 100°C | Through Hole | 0.571" Dia x 1.634" L (14.50mm x 41.50mm) | - | PC Pins | - | General Purpose | - | - |
|
MKT1820433105CAP FILM 0.33UF 10% 1KVDC RADIAL |
3,456 |
|
Datasheet |
Radial | 0.33 µF | ±10% | 220V | 1000V (1kV) | Polyester, Metallized | - | -55°C ~ 125°C | Through Hole | 1.240" L x 0.650" W (31.50mm x 16.50mm) | 1.161" (29.50mm) | PC Pins | 1.083" (27.50mm) | DC Link, DC Filtering | - | - |
|
|
MKT1820433106CAP FILM 0.33UF 20% 1KVDC RADIAL |
6,568 |
|
Datasheet |
Radial | 0.33 µF | ±20% | 220V | 1000V (1kV) | Polyester, Metallized | - | -55°C ~ 125°C | Through Hole | 1.240" L x 0.650" W (31.50mm x 16.50mm) | 1.161" (29.50mm) | PC Pins | 1.083" (27.50mm) | DC Link, DC Filtering | - | - |
|
|
MKP385527016JKI2B0CAP FILM 2.7UF 5% 160VDC RADIAL |
4,473 |
|
Datasheet |
Radial | 2.7 µF | ±5% | 110V | 160V | Polypropylene (PP), Metallized | - | -55°C ~ 110°C | Through Hole | 1.220" L x 0.433" W (31.00mm x 11.00mm) | 0.827" (21.00mm) | PC Pins | 1.083" (27.50mm) | DC Link, DC Filtering; High Frequency, Switching; High Pulse, DV/DT | - | - |
|
|
MKP385527016JKM2T0CAP FILM 2.7UF 5% 160VDC RADIAL |
8,660 |
|
Datasheet |
Radial | 2.7 µF | ±5% | 110V | 160V | Polypropylene (PP), Metallized | - | -55°C ~ 110°C | Through Hole | 1.220" L x 0.433" W (31.00mm x 11.00mm) | 0.827" (21.00mm) | PC Pins | 1.083" (27.50mm) | DC Link, DC Filtering; High Frequency, Switching; High Pulse, DV/DT | - | - |
|
|
MKP385527016JKP2T0CAP FILM 2.7UF 5% 160VDC RADIAL |
3,883 |
|
Datasheet |
Radial | 2.7 µF | ±5% | 110V | 160V | Polypropylene (PP), Metallized | - | -55°C ~ 110°C | Through Hole | 1.220" L x 0.433" W (31.00mm x 11.00mm) | 0.827" (21.00mm) | PC Pins | 1.083" (27.50mm) | DC Link, DC Filtering; High Frequency, Switching; High Pulse, DV/DT | - | - |
|
BFC238370113CAP FILM 0.011UF 5% 2.5KVDC RAD |
7,434 |
|
Datasheet |
Radial | 0.011 µF | ±5% | 900V | 2500V (2.5kV) | Polypropylene (PP), Metallized | - | -55°C ~ 105°C | Through Hole | 1.024" L x 0.335" W (26.00mm x 8.50mm) | 0.709" (18.00mm) | PC Pins | 0.886" (22.50mm) | High Pulse, DV/DT | - | - |
|
|
BFC237892752CAP FILM 7500PF 5% 2KVDC RADIAL |
7,523 |
|
Datasheet |
Radial | 7500 pF | ±5% | 600V | 2000V (2kV) | Polypropylene (PP), Metallized | - | -55°C ~ 85°C | Through Hole | 1.024" L x 0.276" W (26.00mm x 7.00mm) | 0.728" (18.50mm) | PC Pins | 0.886" (22.50mm) | High Pulse, DV/DT | - | Long Life |
|

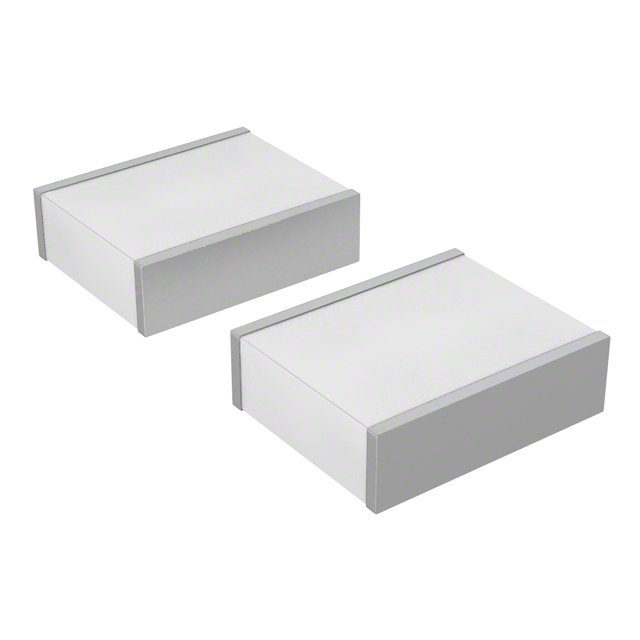

FCN2416G223J-D5CAP FILM 0.022UF 5% 400VDC 2416 |
5,313 |
|
Datasheet |
2416 (6041 Metric) | 0.022 µF | ±5% | - | 400V | Polyester, Polyethylene Naphthalate (PEN), Metallized - Stacked | - | -40°C ~ 85°C | Surface Mount | 0.236" L x 0.161" W (6.00mm x 4.10mm) | 0.138" (3.50mm) | Solder Pads | - | General Purpose | - | - |
|
|
BFC237534333CAP FILM 0.033UF 5% 1.6KVDC RAD |
9,997 |
|
Datasheet |
Radial | 0.033 µF | ±5% | 500V | 1600V (1.6kV) | Polypropylene (PP), Metallized | - | -55°C ~ 105°C | Through Hole | 1.181" L x 0.453" W (30.00mm x 11.50mm) | 0.965" (24.50mm) | PC Pins | 0.394" (10.00mm) | High Pulse, DV/DT | - | - |
|
|
MKP4F045606G00JSC9MKP 4 5.6 F 250 VDC 17X29X31.5 P |
8,045 |
|
Datasheet |
- | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
BFC241617504CAP FILM 0.75UF 2% 63VDC RADIAL |
8,234 |
|
Datasheet |
Radial | 0.75 µF | ±2% | 25V | 63V | Polypropylene (PP), Metallized | - | -55°C ~ 85°C | Through Hole | 0.689" L x 0.335" W (17.50mm x 8.50mm) | 0.591" (15.00mm) | PC Pins | 0.591" (15.00mm) | High Frequency, Switching | - | - |
|

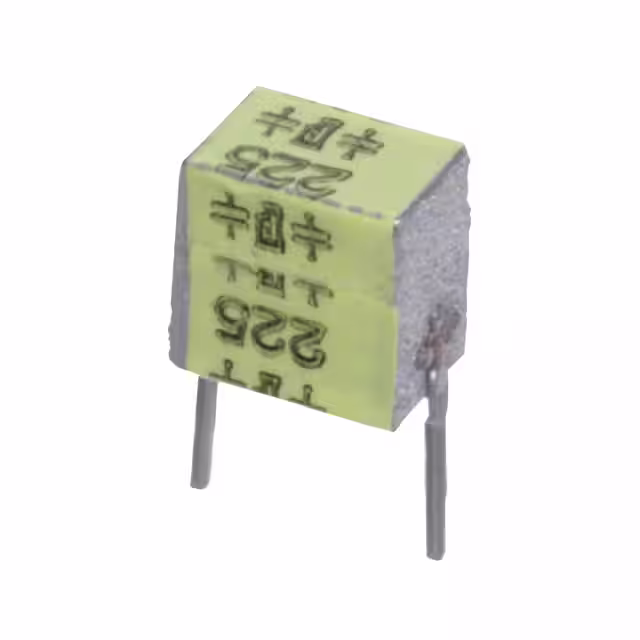

RA3225K100CAP FILM 2.2UF 10% 100VDC RADIAL |
7,036 |
|
Datasheet |
Radial | 2.2 µF | ±10% | 80V | 100V | Polyester, Polyethylene Terephthalate (PET), Metallized | - | -55°C ~ 125°C | Through Hole | 0.350" L x 0.248" W (8.90mm x 6.30mm) | 0.350" (8.90mm) | PC Pins | 0.295" (7.50mm) | High Frequency, Switching; High Pulse, DV/DT; EMI, RFI Suppression | - | Low ESR; Low ESL; Long Life |
|
|
RA3225K100-FAFILM/M |
8,480 |
|
Datasheet |
Radial | 2.2 µF | ±10% | 80V | 100V | Polyester, Polyethylene Terephthalate (PET), Metallized | - | -55°C ~ 125°C | Through Hole | 0.350" L x 0.248" W (8.90mm x 6.30mm) | 0.350" (8.90mm) | PC Pins | 0.295" (7.50mm) | High Frequency, Switching; High Pulse, DV/DT; EMI, RFI Suppression | - | Low ESR; Low ESL; Long Life |
