Film Capacitors
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Package/Case | Capacitance | Tolerance | Voltage Rating - AC | Voltage Rating - DC | Dielectric Material | ESR (Equivalent Series Resistance) | Operating Temperature | Mounting Type | Size / Dimension | Height - Seated (Max) | Termination | Lead Spacing | Applications | Ratings | Features |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
B32756G2106K000CAP FILM 10UF 10% 500VDC RADIAL |
3,872 |
|
Datasheet |
Radial - 4 Leads | 10 µF | ±10% | 250V | 500V | Polypropylene (PP), Metallized | 6.6 mOhms | -40°C ~ 105°C | Through Hole | 1.654" L x 0.787" W (42.00mm x 20.00mm) | 1.555" (39.50mm) | PC Pins | 1.476" (37.50mm) | General Purpose | - | - |
|
|
MKP4G044707F00JSC9MKP 4 4.7 F 400 VDC 19X32X41.5 P |
7,524 |
|
Datasheet |
- | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
MKP4G044706J00JSC9MKP 4 4.7 F 400 VDC 20X39.5X31.5 |
8,007 |
|
Datasheet |
- | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
MKT1822547065CAP FILM 4.7UF 10% 63VDC RADIAL |
7,461 |
|
Datasheet |
Radial | 4.7 µF | ±10% | 40V | 63V | Polyester, Metallized | - | -55°C ~ 100°C | Through Hole | 1.043" L x 0.335" W (26.50mm x 8.50mm) | 0.650" (16.50mm) | PC Pins | 0.886" (22.50mm) | General Purpose | - | - |
|
|
MKP1845415635CAP FILM 0.15UF 10% 630VDC AXIAL |
3,286 |
|
Datasheet |
Axial | 0.15 µF | ±10% | 250V | 630V | Polypropylene (PP), Metallized | - | -55°C ~ 100°C | Through Hole | 0.591" Dia x 1.339" L (15.00mm x 34.00mm) | - | PC Pins | - | DC Link, DC Filtering; High Pulse, DV/DT; Snubber | - | - |
|
|
150155K400WFCAP FILM 1.5UF 10% 400VDC AXIAL |
8,045 |
|
Datasheet |
Axial | 1.5 µF | ±10% | 200V | 400V | Polyester, Metallized | - | -55°C ~ 125°C | Through Hole | 0.689" Dia x 1.299" L (17.50mm x 33.00mm) | - | PC Pins | - | General Purpose | - | - |
|
|
430P205X9200CAP FILM AXIAL |
4,370 |
|
- |
- | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
EFDKA60J186D134BHCAP EFDKA 600VDC 18UF J 4LEADS |
3,717 |
|
Datasheet |
Radial - 4 Leads | 18 µF | ±5% | - | 600V | Polypropylene (PP), Metallized | 6 mOhms | -55°C ~ 105°C | Through Hole | 1.260" L x 0.866" W (32.00mm x 22.00mm) | 1.488" (37.80mm) | PC Pins | 1.083" (27.50mm) | Automotive; DC Link, DC Filtering | AEC-Q200 | - |
|
|
EFDKA70J186D134BHCAP EFDKA 700VDC 18UF J 4LEADS |
3,473 |
|
Datasheet |
Radial - 4 Leads | 18 µF | ±5% | - | 700V | Polypropylene (PP), Metallized | 6 mOhms | -55°C ~ 105°C | Through Hole | 1.260" L x 0.866" W (32.00mm x 22.00mm) | 1.488" (37.80mm) | PC Pins | 1.083" (27.50mm) | Automotive; DC Link, DC Filtering | AEC-Q200 | - |
|
|
BFC237541103CAP FILM 10000PF 3.5% 2KVDC RAD |
4,214 |
|
Datasheet |
Radial | 10000 pF | ±3.5% | 600V | 2000V (2kV) | Polypropylene (PP), Metallized | - | -55°C ~ 105°C | Through Hole | 1.024" L x 0.374" W (26.00mm x 9.50mm) | 0.886" (22.50mm) | PC Pins | 0.394" (10.00mm) | High Pulse, DV/DT | - | - |
|
|
BFC237882153CAP FILM 0.015UF 5% 1.6KVDC RAD |
8,652 |
|
Datasheet |
Radial | 0.015 µF | ±5% | 500V | 1600V (1.6kV) | Polypropylene (PP), Metallized | - | -55°C ~ 85°C | Through Hole | 1.024" L x 0.236" W (26.00mm x 6.00mm) | 0.610" (15.50mm) | PC Pins | 0.886" (22.50mm) | High Pulse, DV/DT | - | Long Life |
|
|
R75IR4680AA40KCAP FILM AUTO POLYPROP RAD |
4,619 |
|
Datasheet |
Radial | 6.8 µF | ±10% | 160V | 250V | Polypropylene (PP), Metallized | 7 mOhms | -55°C ~ 105°C | Through Hole | 1.260" L x 0.709" W (32.00mm x 18.00mm) | 1.303" (33.10mm) | PC Pins | 1.083" (27.50mm) | High Frequency, Switching; High Pulse, DV/DT | - | - |
|
|
BFC2373EF685MKCAP FILM 6.8UF 5% 250VDC RADIAL |
3,139 |
|
Datasheet |
Radial | 6.8 µF | ±5% | 63V | 250V | Polyester, Metallized | - | -55°C ~ 105°C | Through Hole | 1.220" L x 0.512" W (31.00mm x 13.00mm) | 0.906" (23.00mm) | PC Pins | 1.083" (27.50mm) | General Purpose | - | Long Life |
|
MKP1848H54090KK2CAP FILM 4UF 10% 920VDC RADIAL |
7,837 |
|
Datasheet |
Radial | 4 µF | ±10% | - | 920V | Polypropylene (PP), Metallized | 8.5 mOhms | -40°C ~ 85°C | Through Hole | 1.260" L x 0.709" W (32.00mm x 18.00mm) | 1.130" (28.70mm) | PC Pins | 1.083" (27.50mm) | Automotive; DC Link, DC Filtering | AEC-Q200 | 85C/85% Humidity; Low ESR, Low ESL |
|
|
MKP1848H55070KK2CAP FILM 5UF 10% 700VDC RADIAL |
3,770 |
|
Datasheet |
Radial | 5 µF | ±10% | - | 700V | Polypropylene (PP), Metallized | 8.2 mOhms | -40°C ~ 85°C | Through Hole | 1.260" L x 0.709" W (32.00mm x 18.00mm) | 1.130" (28.70mm) | PC Pins | 1.083" (27.50mm) | Automotive; DC Link, DC Filtering | AEC-Q200 | 85C/85% Humidity; Low ESR, Low ESL |
|
|
MKP1840422134MCAP FILM 0.22UF 5% 1.6KVDC RAD |
9,339 |
|
Datasheet |
Radial | 0.22 µF | ±5% | 600V | 1600V (1.6kV) | Polypropylene (PP), Metallized | - | -55°C ~ 100°C | Through Hole | 1.240" L x 0.709" W (31.50mm x 18.00mm) | 1.102" (28.00mm) | PC Pins | 1.083" (27.50mm) | DC Link, DC Filtering; High Frequency, Switching; High Pulse, DV/DT | - | - |
|
|
MKP1840422135MCAP FILM 0.22UF 10% 1.6KVDC RAD |
9,384 |
|
Datasheet |
Radial | 0.22 µF | ±10% | 600V | 1600V (1.6kV) | Polypropylene (PP), Metallized | - | -55°C ~ 100°C | Through Hole | 1.240" L x 0.709" W (31.50mm x 18.00mm) | 1.102" (28.00mm) | PC Pins | 1.083" (27.50mm) | DC Link, DC Filtering; High Frequency, Switching; High Pulse, DV/DT | - | - |
|
|
MKS4O141507F00MSSDCAP FILM 1.5UF 20% 1KVDC RADIAL |
8,905 |
|
Datasheet |
Radial | 1.5 µF | ±20% | 400V | 1000V (1kV) | Polyester, Polyethylene Terephthalate (PET), Metallized | - | -55°C ~ 125°C | Through Hole | 1.634" L x 0.748" W (41.50mm x 19.00mm) | 1.260" (32.00mm) | PC Pins | 1.476" (37.50mm) | Automotive; DC Link, DC Filtering | AEC-Q200 | - |
|

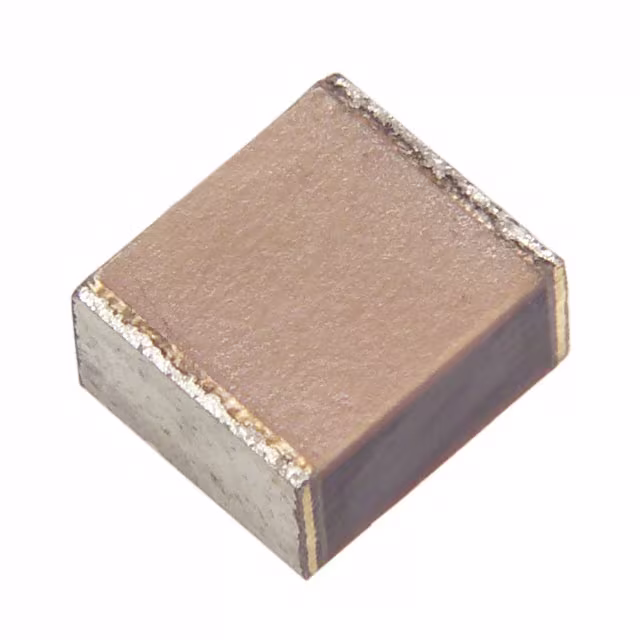

ECH-U1184JCVCAP FILM 0.18UF 5% 100VDC 2825 |
6,373 |
|
Datasheet |
2825 (7163 Metric) | 0.18 µF | ±5% | - | 100V | Polyphenylene Sulfide (PPS), Metallized - Stacked | - | -55°C ~ 105°C | Surface Mount | 0.280" L x 0.248" W (7.10mm x 6.30mm) | 0.169" (4.30mm) | Solder Pads | - | General Purpose | - | - |
|
|
63ST224MA23216CAP FILM 0.22UF 20% 63VDC 1206 |
3,151 |
|
- |
1206 (3216 Metric) | 0.22 µF | ±20% | - | 63V | Acrylic, Metallized | - | -55°C ~ 125°C | Surface Mount | 0.126" L x 0.063" W (3.20mm x 1.60mm) | 0.055" (1.40mm) | Solder Pads | - | DC Link, DC Filtering | - | - |
