Film Capacitors
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Package/Case | Capacitance | Tolerance | Voltage Rating - AC | Voltage Rating - DC | Dielectric Material | ESR (Equivalent Series Resistance) | Operating Temperature | Mounting Type | Size / Dimension | Height - Seated (Max) | Termination | Lead Spacing | Applications | Ratings | Features |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
F873FO394M760ZCAP FILM POLYPROP RAD X1 |
4,481 |
|
Datasheet |
Radial | 0.39 µF | ±20% | 760V | 1500V (1.5kV) | Polypropylene (PP), Metallized | - | -40°C ~ 110°C | Through Hole | 1.240" L x 0.669" W (31.50mm x 17.00mm) | 1.575" (40.00mm) | PC Pins | 1.083" (27.50mm) | EMI, RFI Suppression | X1 | - |
|
|
MKP4J042707E00KSSDMKP 4 2.7 F 630 VDC 17X29X41.5 P |
5,816 |
|
Datasheet |
- | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
F871FH334M330ZCAP FILM POLYPROP RAD X1 |
5,639 |
|
Datasheet |
Radial | 0.33 µF | ±20% | 330V | 800V | Polypropylene (PP), Metallized | - | -40°C ~ 110°C | Through Hole | 1.240" L x 0.827" W (31.50mm x 21.00mm) | 0.492" (12.50mm) | PC Pins | 1.083" (27.50mm) | EMI, RFI Suppression | X1 | - |
|
|
MKPF4W42206J00JSSDMKP 4F 2.2 F 440 VAC 20X39.5X31. |
8,749 |
|
Datasheet |
- | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
MKP1845510254CAP FILM 1UF 5% 250VDC AXIAL |
8,825 |
|
Datasheet |
Axial | 1 µF | ±5% | 160V | 250V | Polypropylene (PP), Metallized | - | -55°C ~ 100°C | Through Hole | 0.610" Dia x 1.339" L (15.50mm x 34.00mm) | - | PC Pins | - | DC Link, DC Filtering; High Pulse, DV/DT; Snubber | - | - |
|
|
R75GW5100AA00JCAP FILM AUTO POLYPROP RAD |
7,881 |
|
Datasheet |
Radial | 10 µF | ±5% | 90V | 160V | Polypropylene (PP), Metallized | 4.8 mOhms | -55°C ~ 105°C | Through Hole | 1.634" L x 0.748" W (41.50mm x 19.00mm) | 1.264" (32.10mm) | PC Pins | 1.476" (37.50mm) | High Frequency, Switching; High Pulse, DV/DT | - | - |
|
|
F161ZS224J400VCAP FILM SMD PET |
2,932 |
|
Datasheet |
Nonstandard SMD | 0.22 µF | ±5% | 200V | 400V | Polyester, Polyethylene Terephthalate (PET), Metallized - Stacked | - | -55°C ~ 125°C | Surface Mount | 0.650" L x 0.591" W (16.50mm x 15.00mm) | 0.283" (7.20mm) | Solder Pads | - | Automotive | AEC-Q200 | - |
|

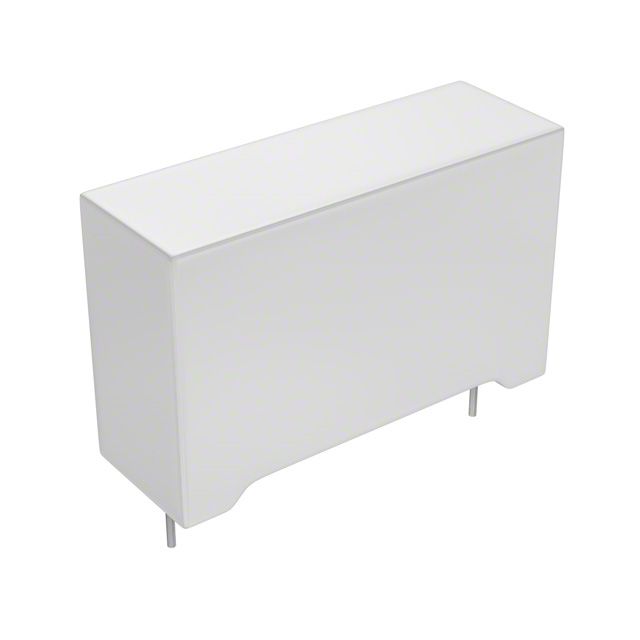

171225J160P-FCAP FILM 2.2UF 5% 160VDC RADIAL |
5,015 |
|
Datasheet |
Radial | 2.2 µF | ±5% | 90V | 160V | Polypropylene (PP), Metallized | 18 mOhms | -55°C ~ 105°C | Through Hole | 1.260" L x 0.433" W (32.00mm x 11.00mm) | 0.787" (20.00mm) | PC Pins | 1.083" (27.50mm) | High Pulse, DV/DT | - | - |
|
|
A50DQ4470AA60MCAP FILM AXL |
6,279 |
|
Datasheet |
Axial | 4.7 µF | ±20% | 40V | 63V | Polyester, Polyethylene Terephthalate (PET), Metallized | - | -55°C ~ 105°C | Through Hole | 0.374" Dia x 1.102" L (9.50mm x 28.00mm) | - | PC Pins | - | Automotive | AEC-Q200 | - |
|
|
A50DQ4470AA60JCAP FILM AXL |
6,353 |
|
Datasheet |
Axial | 4.7 µF | ±5% | 40V | 63V | Polyester, Polyethylene Terephthalate (PET), Metallized | - | -55°C ~ 105°C | Through Hole | 0.374" Dia x 1.102" L (9.50mm x 28.00mm) | - | PC Pins | - | Automotive | AEC-Q200 | - |
|
|
F871FH564M330ZCAP FILM POLYPROP RAD X1 |
2,928 |
|
Datasheet |
Radial | 0.56 µF | ±20% | 330V | 800V | Polypropylene (PP), Metallized | - | -40°C ~ 110°C | Through Hole | 1.240" L x 0.827" W (31.50mm x 21.00mm) | 0.492" (12.50mm) | PC Pins | 1.083" (27.50mm) | EMI, RFI Suppression | X1 | - |
|
|
F872FH254K480ZCAP FILM POLYPROP RAD X1 |
9,583 |
|
Datasheet |
Radial | 0.25 µF | ±10% | 480V | 1000V (1kV) | Polypropylene (PP), Metallized | - | -40°C ~ 110°C | Through Hole | 1.240" L x 0.827" W (31.50mm x 21.00mm) | 0.492" (12.50mm) | PC Pins | 1.083" (27.50mm) | EMI, RFI Suppression | X1 | - |
|
|
F461FS825J250ZCAP FILM POLYPROP RAD |
5,129 |
|
Datasheet |
Radial | 8.2 µF | ±5% | 160V | 250V | Polypropylene (PP), Metallized | - | -55°C ~ 105°C | Through Hole | 1.240" L x 0.748" W (31.50mm x 19.00mm) | 1.142" (29.00mm) | PC Pins | 1.083" (27.50mm) | High Pulse, DV/DT | - | - |
|
|
MKP385420160JKM2T0CAP FILM 0.2UF 5% 1.6KVDC RADIAL |
2,899 |
|
Datasheet |
Radial | 0.2 µF | ±5% | 550V | 1600V (1.6kV) | Polypropylene (PP), Metallized | - | -55°C ~ 110°C | Through Hole | 1.240" L x 0.591" W (31.50mm x 15.00mm) | 0.984" (25.00mm) | PC Pins | 1.083" (27.50mm) | DC Link, DC Filtering; High Frequency, Switching; High Pulse, DV/DT | - | - |
|
|
MKP385420160JKP2T0CAP FILM 0.2UF 5% 1.6KVDC RADIAL |
5,106 |
|
Datasheet |
Radial | 0.2 µF | ±5% | 550V | 1600V (1.6kV) | Polypropylene (PP), Metallized | - | -55°C ~ 110°C | Through Hole | 1.240" L x 0.591" W (31.50mm x 15.00mm) | 0.984" (25.00mm) | PC Pins | 1.083" (27.50mm) | DC Link, DC Filtering; High Frequency, Switching; High Pulse, DV/DT | - | - |
|
|
A50EK4100AA60JCAP FILM AXL |
6,833 |
|
Datasheet |
Axial | 1 µF | ±5% | 63V | 100V | Polyester, Polyethylene Terephthalate (PET), Metallized | - | -55°C ~ 105°C | Through Hole | 0.276" Dia x 0.807" L (7.00mm x 20.50mm) | - | PC Pins | - | Automotive | AEC-Q200 | - |
|
|
A50EK4100AA60MCAP FILM AXL |
8,849 |
|
Datasheet |
Axial | 1 µF | ±20% | 63V | 100V | Polyester, Polyethylene Terephthalate (PET), Metallized | - | -55°C ~ 105°C | Through Hole | 0.276" Dia x 0.807" L (7.00mm x 20.50mm) | - | PC Pins | - | Automotive | AEC-Q200 | - |
|
|
R463W468040M2MCAP FILM SAFETY/EMI SUPP RAD |
5,744 |
|
Datasheet |
Radial | 6.8 µF | ±20% | 310V | 630V | Polypropylene (PP), Metallized | - | -40°C ~ 110°C | Through Hole | 1.634" L x 0.787" W (41.50mm x 20.00mm) | 1.579" (40.10mm) | PC Pins | 1.476" (37.50mm) | EMI, RFI Suppression | X2 | - |
|
|
F873FY474J760Z.470UF 760V |
8,177 |
|
- |
- | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
MMK27.5106J100F12L4TRAYCAP FILM RAD |
5,652 |
|
- |
Radial | 10 µF | ±5% | 63V | 100V | Polyester, Metallized | - | -55°C ~ 100°C | Through Hole | 1.240" L x 0.453" W (31.50mm x 11.50mm) | 0.886" (22.50mm) | PC Pins | 1.083" (27.50mm) | General Purpose | - | - |
