Film Capacitors
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Package/Case | Capacitance | Tolerance | Voltage Rating - AC | Voltage Rating - DC | Dielectric Material | ESR (Equivalent Series Resistance) | Operating Temperature | Mounting Type | Size / Dimension | Height - Seated (Max) | Termination | Lead Spacing | Applications | Ratings | Features |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
MMK22.5156K63D16L4TRAYCAP FILM RAD |
6,259 |
|
- |
Radial | 15 µF | ±10% | 40V | 63V | Polyester, Metallized | - | -55°C ~ 100°C | Through Hole | 1.024" L x 0.433" W (26.00mm x 11.00mm) | 0.846" (21.50mm) | PC Pins | 0.886" (22.50mm) | General Purpose | - | - |
|
|
R73QR3470SE30KCAP FILM METAL RAD POLYPROP |
7,858 |
|
Datasheet |
Radial | 0.47 µF | ±10% | 400V | 1000V (1kV) | Polypropylene (PP), Metallized | - | -55°C ~ 105°C | Through Hole | 1.260" L x 0.866" W (32.00mm x 22.00mm) | 1.461" (37.10mm) | PC Pins | 1.083" (27.50mm) | DC Link, DC Filtering; High Frequency, Switching; High Pulse, DV/DT | - | - |
|
|
MKP383415160JKI2B0CAP FILM 0.15UF 5% 1.6KVDC RAD |
2,513 |
|
Datasheet |
Radial | 0.15 µF | ±5% | 550V | 1600V (1.6kV) | Polypropylene (PP), Metallized | - | -55°C ~ 105°C | Through Hole | - | - | PC Pins | 1.083" (27.50mm) | High Pulse, DV/DT | - | - |
|
|
EFDKS90J126E114BHCAP EFDKS 900VDC 12UF J 4LEADS |
2,991 |
|
Datasheet |
Radial - 4 Leads | 12 µF | ±5% | - | 900V | Polypropylene (PP), Metallized | 11.5 mOhms | -40°C ~ 105°C | Through Hole | 1.654" L x 0.866" W (42.00mm x 22.00mm) | 1.496" (38.00mm) | PC Pins | 1.476" (37.50mm) | DC Link, DC Filtering | - | - |
|
|
BFC241669104CAP FILM 0.91UF 5% 63VDC RADIAL |
5,416 |
|
Datasheet |
Radial | - | - | - | - | Polypropylene (PP), Metallized | - | -55°C ~ 85°C | Through Hole | 0.689" L x 0.394" W (17.50mm x 10.00mm) | 0.650" (16.50mm) | PC Pins | 0.591" (15.00mm) | High Frequency, Switching | - | Long Life |
|
|
A50DQ44702660MCAP FILM AXL |
8,107 |
|
Datasheet |
Axial | 4.7 µF | ±20% | 40V | 63V | Polyester, Polyethylene Terephthalate (PET), Metallized | - | -55°C ~ 105°C | Through Hole | 0.374" Dia x 1.102" L (9.50mm x 28.00mm) | - | PC Pins | - | Automotive | AEC-Q200 | - |
|
|
MKS4D052206F00MH00CAP FILM 22UF 20% 100VDC RADIAL |
6,290 |
|
Datasheet |
Radial | 22 µF | ±20% | 63V | 100V | Polyester, Polyethylene Terephthalate (PET), Metallized | - | -55°C ~ 125°C | Through Hole | 1.240" L x 0.591" W (31.50mm x 15.00mm) | 1.024" (26.00mm) | PC Pins | 1.083" (27.50mm) | Automotive; DC Link, DC Filtering | AEC-Q200 | - |
|
|
MKS4D052206F00MJ00CAP FILM 22UF 20% 100VDC RADIAL |
5,127 |
|
Datasheet |
Radial | 22 µF | ±20% | 63V | 100V | Polyester, Polyethylene Terephthalate (PET), Metallized | - | -55°C ~ 125°C | Through Hole | 1.240" L x 0.591" W (31.50mm x 15.00mm) | 1.024" (26.00mm) | PC Pins | 1.083" (27.50mm) | Automotive; DC Link, DC Filtering | AEC-Q200 | - |
|

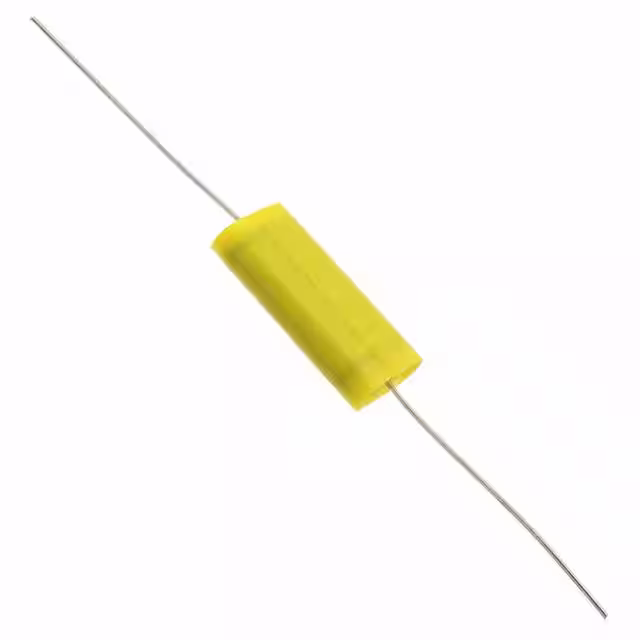

QAP2J224KRPCAP FILM 0.22UF 10% 630VDC AXIAL |
17 |
|
Datasheet |
Axial | 0.22 µF | ±10% | - | 630V | Polypropylene (PP), Metallized | - | -40°C ~ 85°C | Through Hole | 0.602" W, 0.280" T x 1.181" L (15.30mm, 7.10mm x 30.00mm) | - | PC Pins | - | High Frequency, Switching | - | - |
|
225PHC600KCAP FILM 2.2UF 10% 600VDC AXIAL |
4,767 |
|
Datasheet |
Axial | 2.2 µF | ±10% | 330V | 600V | Polypropylene (PP), Metallized | 4.8 mOhms | -40°C ~ 85°C | Through Hole | 0.827" Dia x 1.811" L (21.00mm x 46.00mm) | - | PC Pins | - | DC Link, DC Filtering; High Frequency, Switching | - | Low ESR, Low ESL |
|
|
B32524R3226M000CAP FILM 22UF 20% 250VDC RADIAL |
6,456 |
|
Datasheet |
Radial | 22 µF | ±20% | 160V | 250V | Polyester, Polyethylene Terephthalate (PET), Metallized - Stacked | - | -55°C ~ 125°C | Through Hole | 1.240" L x 0.748" W (31.50mm x 19.00mm) | 1.181" (30.00mm) | PC Pins | 1.083" (27.50mm) | Automotive; EMI, RFI Suppression | AEC-Q200 | - |
|
|
F861FH105K310ZCAP FILM POLYPROP RAD X2 |
7,978 |
|
Datasheet |
Radial | 1 µF | ±10% | 310V | 630V | Polypropylene (PP), Metallized | - | -40°C ~ 110°C | Through Hole | 1.240" L x 0.827" W (31.50mm x 21.00mm) | 0.492" (12.50mm) | PC Pins | 1.083" (27.50mm) | EMI, RFI Suppression | X2 | - |
|
|
MKP383391200JKI2B0CAP FILM 0.091UF 5% 2KVDC RADIAL |
2,524 |
|
Datasheet |
Radial | 0.091 µF | ±5% | 700V | 2000V (2kV) | Polypropylene (PP), Metallized | - | -55°C ~ 105°C | Through Hole | - | - | PC Pins | 1.083" (27.50mm) | High Pulse, DV/DT | - | - |
|
|
MKP383391200JKM2T0CAP FILM 0.091UF 5% 2KVDC RADIAL |
2,685 |
|
Datasheet |
Radial | 0.091 µF | ±5% | 700V | 2000V (2kV) | Polypropylene (PP), Metallized | - | -55°C ~ 105°C | Through Hole | 1.240" L x 0.709" W (31.50mm x 18.00mm) | 1.102" (28.00mm) | PC Pins | 1.083" (27.50mm) | High Pulse, DV/DT | - | - |
|
|
MKP383391200JKP2T0CAP FILM 0.091UF 5% 2KVDC RADIAL |
3,853 |
|
Datasheet |
Radial | 0.091 µF | ±5% | 700V | 2000V (2kV) | Polypropylene (PP), Metallized | - | -55°C ~ 105°C | Through Hole | 1.240" L x 0.709" W (31.50mm x 18.00mm) | 1.102" (28.00mm) | PC Pins | 1.083" (27.50mm) | High Pulse, DV/DT | - | - |
|
|
MKP383415160JKP2T0CAP FILM 0.15UF 5% 1.6KVDC RAD |
9,211 |
|
Datasheet |
Radial | 0.15 µF | ±5% | 550V | 1600V (1.6kV) | Polypropylene (PP), Metallized | - | -55°C ~ 105°C | Through Hole | 1.240" L x 0.709" W (31.50mm x 18.00mm) | 1.102" (28.00mm) | PC Pins | 1.083" (27.50mm) | High Pulse, DV/DT | - | - |
|
|
R76UW33305030KCAP FILM AUTO POLYPROP RAD |
8,496 |
|
Datasheet |
Radial | 0.33 µF | ±10% | 700V | 2000V (2kV) | Polypropylene (PP), Metallized | 12 mOhms | -55°C ~ 110°C | Through Hole | 1.634" L x 0.787" W (41.50mm x 20.00mm) | 1.579" (40.10mm) | PC Pins | 1.476" (37.50mm) | High Frequency, Switching; High Pulse, DV/DT | - | - |
|
|
DCP4I051007CD4JSC9DC-LINK MKP 4 10.0 F 600 VDC 13X |
4,848 |
|
Datasheet |
- | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
DCP4I051007CD4JSSDDC-LINK MKP 4 10.0 F 600 VDC 13X |
4,752 |
|
Datasheet |
- | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
BFC238330823CAP FILM 0.082UF 5% 1KVDC RADIAL |
7,215 |
|
Datasheet |
Radial | 0.082 µF | ±5% | 350V | 1000V (1kV) | Polypropylene (PP), Metallized | - | -55°C ~ 105°C | Through Hole | 1.024" L x 0.335" W (26.00mm x 8.50mm) | 0.709" (18.00mm) | PC Pins | 0.886" (22.50mm) | High Pulse, DV/DT | - | - |
