Film Capacitors
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Package/Case | Capacitance | Tolerance | Voltage Rating - AC | Voltage Rating - DC | Dielectric Material | ESR (Equivalent Series Resistance) | Operating Temperature | Mounting Type | Size / Dimension | Height - Seated (Max) | Termination | Lead Spacing | Applications | Ratings | Features |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

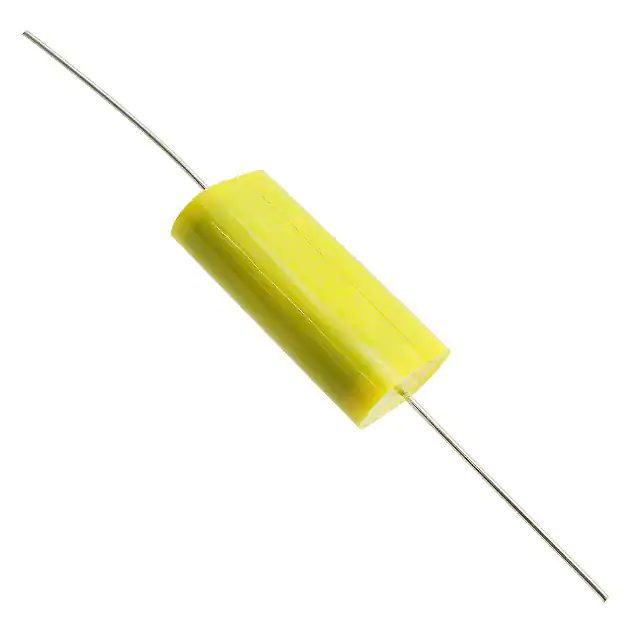

QAK2E685KTPCAP FILM 6.8UF 10% 250VDC AXIAL |
3,699 |
|
Datasheet |
Axial | 6.8 µF | ±10% | - | 250V | Polyester, Metallized | - | -40°C ~ 85°C | Through Hole | 0.886" W, 0.472" T x 1.496" L (22.50mm, 12.00mm x 38.00mm) | - | PC Pins | - | General Purpose | - | - |
|
F881RH564K300ZCAP FILM POLYPROP RAD Y2 |
3,090 |
|
Datasheet |
Radial | 0.56 µF | ±10% | 300V | 1000V (1kV) | Polypropylene (PP), Metallized | - | -40°C ~ 110°C | Through Hole | 1.614" L x 0.591" W (41.00mm x 15.00mm) | 1.024" (26.00mm) | PC Pins | 1.476" (37.50mm) | EMI, RFI Suppression | Y2 | - |
|
|
MKP1841433635CAP FILM 0.33UF 10% 630VDC RAD |
2,354 |
|
Datasheet |
Radial | 0.33 µF | ±10% | 250V | 630V | Polypropylene (PP), Metallized | - | -55°C ~ 100°C | Through Hole | 1.634" L x 0.571" W (41.50mm x 14.50mm) | 0.965" (24.50mm) | PC Pins | 1.476" (37.50mm) | DC Link, DC Filtering; High Pulse, DV/DT; Snubber | - | - |
|
MKP1848H53012JK2CAP FILM 3UF 5% 1.2KVDC RADIAL |
8,501 |
|
Datasheet |
Radial | 3 µF | ±5% | - | 1200V (1.2kV) | Polypropylene (PP), Metallized | 10 mOhms | -40°C ~ 85°C | Through Hole | 1.260" L x 0.827" W (32.00mm x 21.00mm) | 1.248" (31.70mm) | PC Pins | 1.083" (27.50mm) | Automotive; DC Link, DC Filtering | AEC-Q200 | 85C/85% Humidity; Low ESR, Low ESL |
|
|
MKP385515063JKI2B0CAP FILM 1.5UF 5% 630VDC RADIAL |
9,444 |
|
Datasheet |
Radial | 1.5 µF | ±5% | 220V | 630V | Polypropylene (PP), Metallized | - | -55°C ~ 110°C | Through Hole | 1.240" L x 0.709" W (31.50mm x 18.00mm) | 1.102" (28.00mm) | PC Pins | 1.083" (27.50mm) | DC Link, DC Filtering; High Frequency, Switching; High Pulse, DV/DT | - | - |
|
|
MKP385515063JKM2T0CAP FILM 1.5UF 5% 630VDC RADIAL |
3,719 |
|
Datasheet |
Radial | 1.5 µF | ±5% | 220V | 630V | Polypropylene (PP), Metallized | - | -55°C ~ 110°C | Through Hole | 1.240" L x 0.709" W (31.50mm x 18.00mm) | 1.102" (28.00mm) | PC Pins | 1.083" (27.50mm) | DC Link, DC Filtering; High Frequency, Switching; High Pulse, DV/DT | - | - |
|
|
MKP385515063JKP2T0CAP FILM 1.5UF 5% 630VDC RADIAL |
4,261 |
|
Datasheet |
Radial | 1.5 µF | ±5% | 220V | 630V | Polypropylene (PP), Metallized | - | -55°C ~ 110°C | Through Hole | 1.240" L x 0.709" W (31.50mm x 18.00mm) | 1.102" (28.00mm) | PC Pins | 1.083" (27.50mm) | DC Link, DC Filtering; High Frequency, Switching; High Pulse, DV/DT | - | - |
|
|
EFDKA1AJ126E114BHCAP EFDKA 1000VDC 12UF J 4LEADS |
8,147 |
|
Datasheet |
Radial - 4 Leads | 12 µF | ±5% | - | 1000V (1kV) | Polypropylene (PP), Metallized | 11.5 mOhms | -55°C ~ 105°C | Through Hole | 1.654" L x 0.866" W (42.00mm x 22.00mm) | 1.496" (38.00mm) | PC Pins | 1.476" (37.50mm) | Automotive; DC Link, DC Filtering | AEC-Q200 | - |
|
|
F873FQ224M760ZCAP FILM POLYPROP RAD X1 |
9,955 |
|
Datasheet |
Radial | 0.22 µF | ±20% | 760V | 1500V (1.5kV) | Polypropylene (PP), Metallized | - | -40°C ~ 110°C | Through Hole | 1.240" L x 1.083" W (31.50mm x 27.50mm) | 0.630" (16.00mm) | PC Pins | 1.083" (27.50mm) | EMI, RFI Suppression | X1 | - |
|
|
MKS4U033307G00KSC9CAP FILM 0.33UF 10% 2KVDC RADIAL |
7,336 |
|
Datasheet |
Radial | 0.33 µF | ±10% | 400V | 2000V (2kV) | Polyester, Polyethylene Terephthalate (PET), Metallized | - | -55°C ~ 125°C | Through Hole | 1.634" L x 0.787" W (41.50mm x 20.00mm) | 1.555" (39.50mm) | PC Pins | 1.476" (37.50mm) | Automotive; DC Link, DC Filtering | AEC-Q200 | - |
|
QAK2J155KTPCAP FILM 1.5UF 10% 630VDC AXIAL |
4,813 |
|
Datasheet |
Axial | 1.5 µF | ±10% | - | 630V | Polyester, Metallized | - | -40°C ~ 85°C | Through Hole | 0.984" W, 0.571" T x 1.732" L (25.00mm, 14.50mm x 44.00mm) | - | PC Pins | - | General Purpose | - | - |
|
|
DCP4S044007GD2KSSDDC-LINK MKP 4 4.0 F 1500 VDC 20X |
8,056 |
|
Datasheet |
- | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
DCP4S044007GD2MSSDDC-LINK MKP 4 4.0 F 1500 VDC 20X |
7,844 |
|
Datasheet |
- | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|

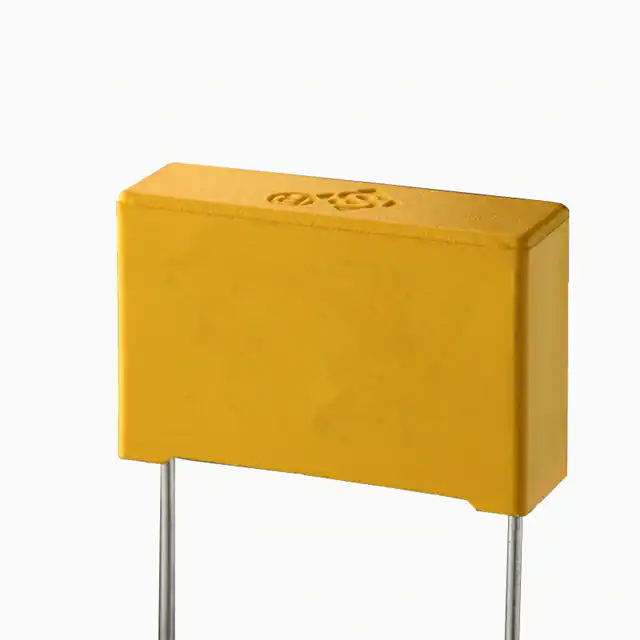

X2P2105KT1B0265170085ES0X2 275VAC 1UF 10% P=22.5MM W26.5 |
5,053 |
|
Datasheet |
Radial | 1 µF | ±10% | 275V | - | Polypropylene (PP), Metallized | - | -40°C ~ 110°C | Through Hole | 1.043" L x 0.335" W (26.50mm x 8.50mm) | 0.689" (17.50mm) | PC Pins | 0.886" (22.50mm) | EMI, RFI Suppression | X2 | - |
|
|
MKPF3Y51007F00KSSDMKP 4F 10.0 F 230 VAC 19X32X41.5 |
7,732 |
|
Datasheet |
- | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
F881RH564M300ZCAP FILM POLYPROP RAD Y2 |
5,500 |
|
Datasheet |
Radial | 0.56 µF | ±20% | 300V | 1000V (1kV) | Polypropylene (PP), Metallized | - | -40°C ~ 110°C | Through Hole | 1.614" L x 0.591" W (41.00mm x 15.00mm) | 1.024" (26.00mm) | PC Pins | 1.476" (37.50mm) | EMI, RFI Suppression | Y2 | - |
|
|
F861FH125J310Z1.20UF 310V |
2,305 |
|
- |
Radial | 1.2 µF | ±5% | 310V | 630V | Polypropylene (PP), Metallized | - | -40°C ~ 110°C | Through Hole | 1.240" L x 0.827" W (31.50mm x 21.00mm) | 0.492" (12.50mm) | PC Pins | 1.083" (27.50mm) | EMI, RFI Suppression | X2 | - |
|
|
MKS4C052206B00JSSDCAP FILM 22UF 5% 63VDC RADIAL |
9,028 |
|
Datasheet |
Radial | 22 µF | ±5% | 40V | 63V | Polyester, Polyethylene Terephthalate (PET), Metallized | - | -55°C ~ 125°C | Through Hole | 1.240" L x 0.433" W (31.50mm x 11.00mm) | 0.827" (21.00mm) | PC Pins | 1.083" (27.50mm) | Automotive; DC Link, DC Filtering | AEC-Q200 | - |
|
BFC233924155CAP FILM 1.5UF 20% 630VDC RADIAL |
4,224 |
|
Datasheet |
Radial | 1.5 µF | ±20% | 310V | 630V | Polypropylene (PP), Metallized | - | -55°C ~ 110°C | Through Hole | 1.220" L x 0.512" W (31.00mm x 13.00mm) | 0.906" (23.00mm) | PC Pins | 1.083" (27.50mm) | Automotive; EMI, RFI Suppression | AEC-Q200, X2 | - |
|
|
BFC233922155CAP FILM 1.5UF 20% 630VDC RADIAL |
8,036 |
|
Datasheet |
Radial | 1.5 µF | ±20% | 310V | 630V | Polypropylene (PP), Metallized | - | -55°C ~ 110°C | Through Hole | 1.220" L x 0.512" W (31.00mm x 13.00mm) | 0.906" (23.00mm) | PC Pins | 1.083" (27.50mm) | Automotive; EMI, RFI Suppression | AEC-Q200, X2 | - |
