Film Capacitors
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Package/Case | Capacitance | Tolerance | Voltage Rating - AC | Voltage Rating - DC | Dielectric Material | ESR (Equivalent Series Resistance) | Operating Temperature | Mounting Type | Size / Dimension | Height - Seated (Max) | Termination | Lead Spacing | Applications | Ratings | Features |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
930C4W3P3KCAP FILM 3.3UF 10% 400VDC AXIAL |
9,508 |
|
Datasheet |
Axial | 3.3 µF | ±10% | 250V | 400V | Polypropylene (PP), Metallized | 16 mOhms | -55°C ~ 105°C | Through Hole | 0.949" Dia x 1.748" L (24.10mm x 44.40mm) | - | PC Pins | - | General Purpose | - | - |
|
|
F861FQ255M310ZCAP FILM POLYPROP RAD X2 |
5,433 |
|
Datasheet |
Radial | 2.5 µF | ±20% | 310V | 630V | Polypropylene (PP), Metallized | - | -40°C ~ 110°C | Through Hole | 1.240" L x 1.083" W (31.50mm x 27.50mm) | 0.630" (16.00mm) | PC Pins | 1.083" (27.50mm) | EMI, RFI Suppression | X2 | - |
|
MKP1848H55080KK2CAP FILM 5UF 10% 800VDC RADIAL |
4,643 |
|
Datasheet |
Radial | 5 µF | ±10% | - | 800V | Polypropylene (PP), Metallized | 8.4 mOhms | -40°C ~ 85°C | Through Hole | 1.260" L x 0.827" W (32.00mm x 21.00mm) | 1.248" (31.70mm) | PC Pins | 1.083" (27.50mm) | Automotive; DC Link, DC Filtering | AEC-Q200 | 85C/85% Humidity; Low ESR, Low ESL |
|
BFC238340363CAP FILM 0.036UF 5% 1.4KVDC RAD |
4,916 |
|
Datasheet |
Radial | 0.036 µF | ±5% | 500V | 1400V (1.4kV) | Polypropylene (PP), Metallized | - | -55°C ~ 105°C | Through Hole | 1.024" L x 0.394" W (26.00mm x 10.00mm) | 0.768" (19.50mm) | PC Pins | 0.886" (22.50mm) | High Pulse, DV/DT | - | - |
|

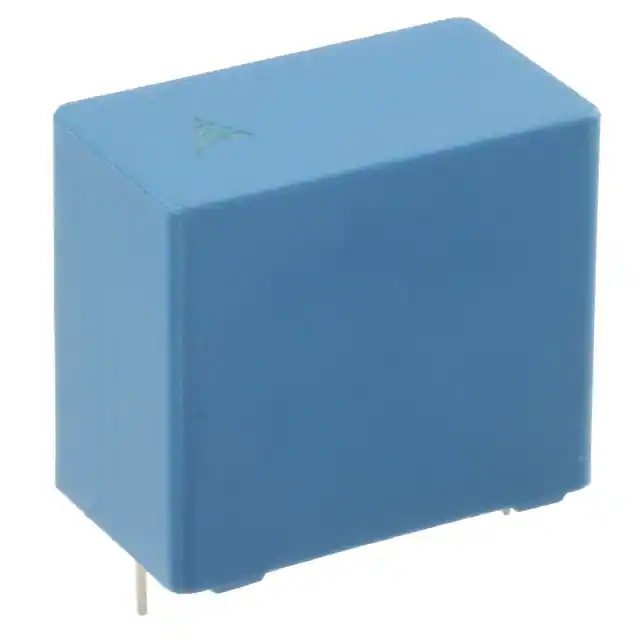

B32654A3825J000CAP FILM 8.2UF 5% 250VDC RADIAL |
8,653 |
|
Datasheet |
Radial | 8.2 µF | ±5% | 160V | 250V | Polypropylene (PP), Metallized | - | -55°C ~ 100°C | Through Hole | 1.240" L x 0.866" W (31.50mm x 22.00mm) | 1.437" (36.50mm) | PC Pins | 1.083" (27.50mm) | DC Link, DC Filtering; High Pulse, DV/DT | - | - |
|
|
F462RD125J1K0ZCAP FILM POLYPROP RAD |
2,516 |
|
Datasheet |
Radial | 1.2 µF | ±5% | 300V | 1000V (1kV) | Polypropylene (PP), Metallized | - | -55°C ~ 105°C | Through Hole | 1.614" L x 0.748" W (41.00mm x 19.00mm) | 1.260" (32.00mm) | PC Pins | 1.476" (37.50mm) | High Pulse, DV/DT | - | - |
|
|
F873RD474K760ZCAP FILM POLYPROP RAD X1 |
8,622 |
|
Datasheet |
Radial | 0.47 µF | ±10% | 760V | 1500V (1.5kV) | Polypropylene (PP), Metallized | - | -40°C ~ 110°C | Through Hole | 1.614" L x 0.748" W (41.00mm x 19.00mm) | 1.260" (32.00mm) | PC Pins | 1.476" (37.50mm) | EMI, RFI Suppression | X1 | - |
|
F339X253930KKI2B0CAP FILM 3.9UF 10% 630VDC RADIAL |
9,562 |
|
Datasheet |
Radial | 3.9 µF | ±10% | 305V | 630V | Polypropylene (PP), Metallized | - | -40°C ~ 105°C | Through Hole | 1.260" L x 0.866" W (32.00mm x 22.00mm) | 1.496" (38.00mm) | PC Pins | 1.083" (27.50mm) | Automotive; EMI, RFI Suppression | AEC-Q200, X2 | 85C/85% Humidity |
|
|
F339X253930KKM2T0CAP FILM 3.9UF 10% 630VDC RADIAL |
3,943 |
|
Datasheet |
Radial | 3.9 µF | ±10% | 305V | 630V | Polypropylene (PP), Metallized | - | -40°C ~ 105°C | Through Hole | 1.260" L x 0.866" W (32.00mm x 22.00mm) | 1.496" (38.00mm) | PC Pins | 1.083" (27.50mm) | Automotive; EMI, RFI Suppression | AEC-Q200, X2 | 85C/85% Humidity |
|
|
F339X253930KKP2T0CAP FILM 3.9UF 10% 630VDC RADIAL |
5,029 |
|
Datasheet |
Radial | 3.9 µF | ±10% | 305V | 630V | Polypropylene (PP), Metallized | - | -40°C ~ 105°C | Through Hole | 1.260" L x 0.866" W (32.00mm x 22.00mm) | 1.496" (38.00mm) | PC Pins | 1.083" (27.50mm) | Automotive; EMI, RFI Suppression | AEC-Q200, X2 | 85C/85% Humidity |
|
|
EFDKA45J226D132LHCAP EFDKA 450VDC 22UF J 2LEADS |
3,319 |
|
Datasheet |
Radial | 22 µF | ±5% | - | 450V | Polypropylene (PP), Metallized | 5 mOhms | -55°C ~ 105°C | Through Hole | 1.260" L x 0.866" W (32.00mm x 22.00mm) | 1.488" (37.80mm) | PC Pins | 1.083" (27.50mm) | Automotive; DC Link, DC Filtering | AEC-Q200 | - |
|
MKP1847530314K2CAP FILM 3UF 5% 310VAC RADIAL |
7,505 |
|
Datasheet |
Radial | 3 µF | ±5% | 310V | - | Polypropylene (PP), Metallized | - | -40°C ~ 85°C | Through Hole | - | - | PC Pins | - | DC Link, DC Filtering; EMI, RFI Suppression; High Pulse, DV/DT | - | Long Life |
|
|
MKP1847540274K2CAP FILM 4UF 5% 275VAC RADIAL |
9,572 |
|
Datasheet |
Radial | 4 µF | ±5% | 275V | - | Polypropylene (PP), Metallized | - | -40°C ~ 85°C | Through Hole | - | - | PC Pins | - | DC Link, DC Filtering; EMI, RFI Suppression; High Pulse, DV/DT | - | Long Life |
|
|
R76QR3680JE30JCAP FILM AUTO POLYPROP RAD |
7,345 |
|
Datasheet |
Radial | 0.68 µF | ±5% | 600V | 1000V (1kV) | Polypropylene (PP), Metallized | 11 mOhms | -55°C ~ 110°C | Through Hole | 1.260" L x 0.866" W (32.00mm x 22.00mm) | 1.461" (37.10mm) | PC Pins | 1.083" (27.50mm) | High Frequency, Switching; High Pulse, DV/DT | - | - |
|
|
F861FQ395M310ZCAP FILM POLYPROP RAD X2 |
6,010 |
|
Datasheet |
Radial | 3.9 µF | ±20% | 310V | 630V | Polypropylene (PP), Metallized | - | -40°C ~ 110°C | Through Hole | 1.240" L x 1.083" W (31.50mm x 27.50mm) | 0.630" (16.00mm) | PC Pins | 1.083" (27.50mm) | EMI, RFI Suppression | X2 | - |
|
|
F871FY225K330ZCAP FILM POLYPROP RAD X1 |
6,016 |
|
Datasheet |
Radial | 2.2 µF | ±10% | 330V | 800V | Polypropylene (PP), Metallized | - | -40°C ~ 110°C | Through Hole | 1.240" L x 0.866" W (31.50mm x 22.00mm) | 1.457" (37.00mm) | PC Pins | 1.083" (27.50mm) | EMI, RFI Suppression | X1 | - |
|
|
BFC241709104CAP FILM 0.91UF 5% 160VDC RADIAL |
2,049 |
|
Datasheet |
Radial | - | - | - | - | Polypropylene (PP), Metallized | - | -55°C ~ 85°C | Through Hole | 0.689" L x 0.394" W (17.50mm x 10.00mm) | 0.728" (18.50mm) | PC Pins | 0.591" (15.00mm) | High Frequency, Switching | - | Long Life |
|
|
FKP4R034707G00KSSDFKP 4 0.47 F 1250 VDC 20X39.5X41 |
6,196 |
|
Datasheet |
- | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
BFC238302514CAP FILM 0.51UF 5% 250VDC RADIAL |
6,834 |
|
Datasheet |
Radial | 0.51 µF | ±5% | 125V | 250V | Polypropylene (PP), Metallized | - | -55°C ~ 105°C | Through Hole | 1.024" L x 0.335" W (26.00mm x 8.50mm) | 0.709" (18.00mm) | PC Pins | 0.886" (22.50mm) | High Pulse, DV/DT | - | - |
|
|
BFC238350393CAP FILM 0.039UF 5% 1.6KVDC RAD |
5,585 |
|
Datasheet |
Radial | 0.039 µF | ±5% | 550V | 1600V (1.6kV) | Polypropylene (PP), Metallized | - | -55°C ~ 105°C | Through Hole | 1.024" L x 0.394" W (26.00mm x 10.00mm) | 0.768" (19.50mm) | PC Pins | 0.886" (22.50mm) | High Pulse, DV/DT | - | - |
