Film Capacitors
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Package/Case | Capacitance | Tolerance | Voltage Rating - AC | Voltage Rating - DC | Dielectric Material | ESR (Equivalent Series Resistance) | Operating Temperature | Mounting Type | Size / Dimension | Height - Seated (Max) | Termination | Lead Spacing | Applications | Ratings | Features |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
MKP1848S61010JP2CCAP FILM 10UF 5% 1KVDC RADIAL |
8,988 |
|
Datasheet |
Radial | 10 µF | ±5% | - | 1000V (1kV) | Polypropylene (PP), Metallized | 8 mOhms | -40°C ~ 105°C | Through Hole | 1.654" L x 1.535" W (42.00mm x 39.00mm) | 0.709" (18.00mm) | PC Pins | 1.476" (37.50mm) | DC Link, DC Filtering | - | Low ESR; Low ESL; Long Life |
|

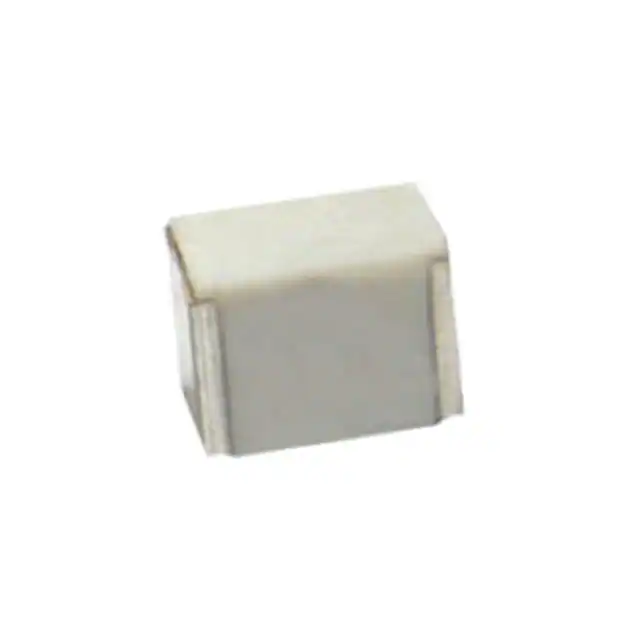

F161PU224K050VCAP FILM 0.22UF 10% 50VDC 2220 |
2,829 |
|
Datasheet |
2220 (5750 Metric) | 0.22 µF | ±10% | 30V | 50V | Polyester, Polyethylene Terephthalate (PET), Metallized - Stacked | - | -55°C ~ 125°C | Surface Mount | 0.224" L x 0.197" W (5.70mm x 5.00mm) | 0.165" (4.20mm) | Solder Pads | - | Automotive | AEC-Q200 | - |
|
BFC238372133CAP FILM 0.13UF 5% 2.5KVDC RAD |
9,183 |
|
Datasheet |
Radial | 0.13 µF | ±5% | 900V | 2500V (2.5kV) | Polypropylene (PP), Metallized | - | -55°C ~ 105°C | Through Hole | 1.024" L x 0.394" W (26.00mm x 10.00mm) | 0.768" (19.50mm) | PC Pins | 0.886" (22.50mm) | High Pulse, DV/DT | - | - |
|
F871RV684J330Z.680UF 330V |
3,430 |
|
- |
Radial | 0.68 µF | ±5% | 330V | 1000V (1kV) | Polypropylene (PP), Metallized | - | -40°C ~ 110°C | Through Hole | 1.614" L x 0.945" W (41.00mm x 24.00mm) | 0.591" (15.00mm) | PC Pins | 1.476" (37.50mm) | EMI, RFI Suppression | X1 | - |
|
|
DCP4G052006FD2JSSDDC-LINK MKP 4 20.0 F 400 VDC 15X |
3,598 |
|
Datasheet |
- | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
MKP1D046807F00KSC9MKP 10 6.8 F 100 VDC 19X32X41.5 |
5,703 |
|
Datasheet |
- | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
MKP1D045607F00KSC9MKP 10 5.6 F 100 VDC 19X32X41.5 |
7,721 |
|
Datasheet |
- | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
F872RD155M480ZCAP FILM POLYPROP RAD X1 |
3,498 |
|
Datasheet |
Radial | 1.5 µF | ±20% | 480V | 1000V (1kV) | Polypropylene (PP), Metallized | - | -40°C ~ 110°C | Through Hole | 1.614" L x 0.748" W (41.00mm x 19.00mm) | 1.260" (32.00mm) | PC Pins | 1.476" (37.50mm) | EMI, RFI Suppression | X1 | - |
|
|
MKT1813547255RCAP FILM 4.7UF 10% 250VDC AXIAL |
8,325 |
|
Datasheet |
Axial | 4.7 µF | ±10% | 160V | 250V | Polyester, Metallized | - | -55°C ~ 100°C | Through Hole | 0.610" Dia x 1.634" L (15.50mm x 41.50mm) | - | PC Pins | - | General Purpose | - | - |
|
|
942C6P68KCAP FILM 0.68UF 10% 600VDC AXIAL |
5,131 |
|
Datasheet |
Axial | 0.68 µF | ±10% | 300V | 600V | Polypropylene (PP), Metallized | 4 mOhms | -55°C ~ 105°C | Through Hole | 1.008" Dia x 1.339" L (25.60mm x 34.00mm) | - | PC Pins | - | High Pulse, DV/DT | - | - |
|
|
MKP1845422635CAP FILM 0.22UF 10% 630VDC AXIAL |
6,680 |
|
Datasheet |
Axial | 0.22 µF | ±10% | 250V | 630V | Polypropylene (PP), Metallized | - | -55°C ~ 100°C | Through Hole | 0.571" Dia x 1.732" L (14.50mm x 44.00mm) | - | PC Pins | - | DC Link, DC Filtering; High Pulse, DV/DT; Snubber | - | - |
|
MKP1839468124HQCAP FILM 0.68UF 5% 1.25KVDC AXL |
8,010 |
|
Datasheet |
Axial | 0.68 µF | ±5% | 425V | 1250V (1.25kV) | Polypropylene (PP), Metallized | - | -55°C ~ 110°C | Through Hole | 0.787" Dia x 1.240" L (20.00mm x 31.50mm) | - | PC Pins | - | High Pulse, DV/DT | - | - |
|
|
MKP1U034707G00MSSDMKP 10 0.47 F 2000 VDC 20X39.5X4 |
2,011 |
|
Datasheet |
- | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
MKP1U033907G00MSSDMKP 10 0.39 F 2000 VDC 20X39.5X4 |
8,024 |
|
Datasheet |
- | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
BFC241806804CAP FILM 0.68UF 5% 250VDC RADIAL |
8,086 |
|
Datasheet |
Radial | - | - | - | - | Polypropylene (PP), Metallized | - | -55°C ~ 85°C | Through Hole | 0.689" L x 0.394" W (17.50mm x 10.00mm) | 0.728" (18.50mm) | PC Pins | 0.591" (15.00mm) | High Frequency, Switching | - | Long Life |
|
|
MKP385516063JKI2B0CAP FILM 1.6UF 5% 630VDC RADIAL |
6,360 |
|
Datasheet |
Radial | 1.6 µF | ±5% | 220V | 630V | Polypropylene (PP), Metallized | - | -55°C ~ 110°C | Through Hole | 1.240" L x 0.709" W (31.50mm x 18.00mm) | 1.102" (28.00mm) | PC Pins | 1.083" (27.50mm) | DC Link, DC Filtering; High Frequency, Switching; High Pulse, DV/DT | - | - |
|
|
MKP385516063JKM2T0CAP FILM 1.6UF 5% 630VDC RADIAL |
5,542 |
|
Datasheet |
Radial | 1.6 µF | ±5% | 220V | 630V | Polypropylene (PP), Metallized | - | -55°C ~ 110°C | Through Hole | 1.240" L x 0.709" W (31.50mm x 18.00mm) | 1.102" (28.00mm) | PC Pins | 1.083" (27.50mm) | DC Link, DC Filtering; High Frequency, Switching; High Pulse, DV/DT | - | - |
|
|
MKP385516063JKP2T0CAP FILM 1.6UF 5% 630VDC RADIAL |
6,631 |
|
Datasheet |
Radial | 1.6 µF | ±5% | 220V | 630V | Polypropylene (PP), Metallized | - | -55°C ~ 110°C | Through Hole | 1.240" L x 0.709" W (31.50mm x 18.00mm) | 1.102" (28.00mm) | PC Pins | 1.083" (27.50mm) | DC Link, DC Filtering; High Frequency, Switching; High Pulse, DV/DT | - | - |
|
|
DCP4R247007GD2MSC9DC-LINK MKP 4 7.0 F 1300 VDC 20X |
6,530 |
|
Datasheet |
- | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
DCP4R247007GD2KSC9DC-LINK MKP 4 7.0 F 1300 VDC 20X |
2,759 |
|
Datasheet |
- | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
