Film Capacitors
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Package/Case | Capacitance | Tolerance | Voltage Rating - AC | Voltage Rating - DC | Dielectric Material | ESR (Equivalent Series Resistance) | Operating Temperature | Mounting Type | Size / Dimension | Height - Seated (Max) | Termination | Lead Spacing | Applications | Ratings | Features |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
FLCN6I0126K4CNEW |
5,085 |
|
Datasheet |
Radial - 4 Leads | 12 µF | ±10% | 350V | - | Polypropylene (PP), Metallized | - | -40°C ~ 85°C | Through Hole | 2.264" L x 1.181" W (57.50mm x 30.00mm) | 1.791" (45.50mm) | PC Pins | 2.067" (52.50mm) | EMI, RFI Suppression | - | - |
|
|
WMF05W1KCAP FILM 1UF 10% 50VDC AXIAL |
5,016 |
|
Datasheet |
Axial | 1 µF | ±10% | - | 50V | Polyester | - | -55°C ~ 125°C | Through Hole | 0.563" Dia x 1.374" L (14.30mm x 34.90mm) | - | PC Pins | - | General Purpose | - | - |
|
F339X151533KKI2B0CAP FILM 1.5UF 10% 800VDC RADIAL |
7,823 |
|
Datasheet |
Radial | 1.5 µF | ±10% | 330V | 800V | Polypropylene (PP), Metallized | - | -55°C ~ 110°C | Through Hole | 1.240" L x 0.709" W (31.50mm x 18.00mm) | 1.102" (28.00mm) | PC Pins | 1.083" (27.50mm) | EMI, RFI Suppression | X1 | - |
|
|
F339X151533KKM2T0CAP FILM 1.5UF 10% 800VDC RADIAL |
6,070 |
|
Datasheet |
Radial | 1.5 µF | ±10% | 330V | 800V | Polypropylene (PP), Metallized | - | -55°C ~ 110°C | Through Hole | 1.240" L x 0.709" W (31.50mm x 18.00mm) | 1.102" (28.00mm) | PC Pins | 1.083" (27.50mm) | EMI, RFI Suppression | X1 | - |
|
|
F339X151533KKP2T0CAP FILM 1.5UF 10% 800VDC RADIAL |
4,880 |
|
Datasheet |
Radial | 1.5 µF | ±10% | 330V | 800V | Polypropylene (PP), Metallized | - | -55°C ~ 110°C | Through Hole | 1.240" L x 0.709" W (31.50mm x 18.00mm) | 1.102" (28.00mm) | PC Pins | 1.083" (27.50mm) | EMI, RFI Suppression | X1 | - |
|
|
MKP1841433634CAP FILM 0.33UF 5% 630VDC RADIAL |
4,191 |
|
Datasheet |
Radial | 0.33 µF | ±5% | 250V | 630V | Polypropylene (PP), Metallized | - | -55°C ~ 100°C | Through Hole | 1.634" L x 0.571" W (41.50mm x 14.50mm) | 0.965" (24.50mm) | PC Pins | 1.476" (37.50mm) | DC Link, DC Filtering; High Pulse, DV/DT; Snubber | - | - |
|
|
MKX2AW46807G00KSSDMKP-X2 6.8 F 305 VAC 20X39.5X41. |
4,314 |
|
Datasheet |
- | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
MKX2AW45607G00KSSDMKP-X2 5.6 F 305 VAC 20X39.5X41. |
6,997 |
|
Datasheet |
- | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
BFC237514114CAP FILM 0.11UF 5% 630VDC RADIAL |
4,045 |
|
Datasheet |
Radial | 0.11 µF | ±5% | 300V | 630V | Polypropylene (PP), Metallized | - | -55°C ~ 105°C | Through Hole | 1.024" L x 0.374" W (26.00mm x 9.50mm) | 0.886" (22.50mm) | PC Pins | 0.394" (10.00mm) | High Pulse, DV/DT | - | - |
|
|
EFDKS1CJ106E154BHCAP EFDKS 1200VDC 10UF J 4LEADS |
5,234 |
|
Datasheet |
Radial - 4 Leads | 10 µF | ±5% | - | 1200V (1.2kV) | Polypropylene (PP), Metallized | 10 mOhms | -40°C ~ 105°C | Through Hole | 1.654" L x 0.945" W (42.00mm x 24.00mm) | 1.772" (45.00mm) | PC Pins | 1.476" (37.50mm) | DC Link, DC Filtering | - | - |
|
|
EFDKS1BJ106E154BHCAP EFDKS 1100VDC 10UF J 4LEADS |
4,034 |
|
Datasheet |
Radial - 4 Leads | 10 µF | ±5% | - | 1100V (1.1kV) | Polypropylene (PP), Metallized | 12 mOhms | -40°C ~ 105°C | Through Hole | 1.654" L x 0.945" W (42.00mm x 24.00mm) | 1.772" (45.00mm) | PC Pins | 1.476" (37.50mm) | DC Link, DC Filtering | - | - |
|

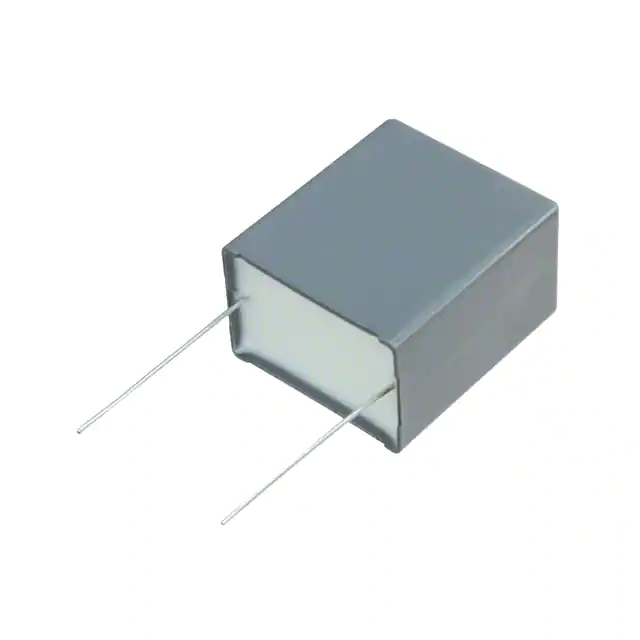

F863RR685K310ALW0LCAP FILM 6.8UF 10% 630VDC RADIAL |
2,472 |
|
Datasheet |
Radial | 6.8 µF | ±10% | 310V | 630V | Polypropylene (PP), Metallized | - | -40°C ~ 110°C | Through Hole | 1.634" L x 0.945" W (41.50mm x 24.00mm) | 1.736" (44.10mm) | PC Pins | 1.476" (37.50mm) | Automotive; EMI, RFI Suppression | AEC-Q200, X2 | - |
|
|
R73RW3330SE00KCAP FILM METAL RAD POLYPROP |
6,256 |
|
Datasheet |
Radial | 0.33 µF | ±10% | 450V | 1250V (1.25kV) | Polypropylene (PP), Metallized | - | -55°C ~ 105°C | Through Hole | 1.634" L x 0.748" W (41.50mm x 19.00mm) | 1.264" (32.10mm) | PC Pins | 1.476" (37.50mm) | DC Link, DC Filtering; High Frequency, Switching; High Pulse, DV/DT | - | - |
|
|
DCP4H151506GD2MSC9DC-LINK MKP 4 15.0 F 500 VDC 17X |
5,864 |
|
Datasheet |
- | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
F881RH684M300ZCAP FILM POLYPROP RAD Y2 |
8,553 |
|
Datasheet |
Radial | 0.68 µF | ±20% | 300V | 1000V (1kV) | Polypropylene (PP), Metallized | - | -40°C ~ 110°C | Through Hole | 1.614" L x 0.591" W (41.00mm x 15.00mm) | 1.024" (26.00mm) | PC Pins | 1.476" (37.50mm) | EMI, RFI Suppression | Y2 | - |
|
|
C878AF34900AA0JCAP FILM MOTOR START RUN |
7,172 |
|
Datasheet |
Radial, Can | 9 µF | ±5% | 470V | - | Polypropylene (PP), Metallized | - | -25°C ~ 85°C | Chassis, Stud Mount | 1.378" Dia (35.00mm) | 3.150" (80.00mm) | Quick Connect - 0.250" (6.3mm) | 0.528" (13.40mm) | Motor Run | - | - |
|
|
F462RC474J1K6ZCAP FILM POLYPROP RAD |
8,202 |
|
Datasheet |
Radial | 0.47 µF | ±5% | 500V | 1600V (1.6kV) | Polypropylene (PP), Metallized | - | -55°C ~ 105°C | Through Hole | 1.614" L x 0.630" W (41.00mm x 16.00mm) | 1.122" (28.50mm) | PC Pins | 1.476" (37.50mm) | High Pulse, DV/DT | - | - |
|
MKP1848S61010JY5BCAP FILM 10UF 5% 1KVDC RADIAL |
9,494 |
|
Datasheet |
Radial - 4 Leads | 10 µF | ±5% | - | 1000V (1kV) | Polypropylene (PP), Metallized | 10 mOhms | -40°C ~ 105°C | Through Hole | 2.264" L x 1.299" W (57.50mm x 33.00mm) | 0.591" (15.00mm) | PC Pins | 2.067" (52.50mm) | DC Link, DC Filtering | - | Low ESR; Low ESL; Long Life |
|
|
BFC237885183CAP FILM 0.018UF 5% 1.6KVDC RAD |
4,866 |
|
Datasheet |
Radial | 0.018 µF | ±5% | 500V | 1600V (1.6kV) | Polypropylene (PP), Metallized | - | -55°C ~ 85°C | Through Hole | 1.024" L x 0.236" W (26.00mm x 6.00mm) | 0.728" (18.50mm) | PC Pins | 0.886" (22.50mm) | High Pulse, DV/DT | - | Long Life |
|
|
C277LCB4800AF0JCAP FILM 8UF 5% 425VAC RADIAL |
9,847 |
|
Datasheet |
Radial, Can | 8 µF | ±5% | 425V | - | Polypropylene (PP), Metallized | - | -25°C ~ 85°C | Chassis, Stud Mount | 1.181" Dia (30.00mm) | 2.244" (57.00mm) | Wire Leads | - | Motor Run | - | - |
