Film Capacitors
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Package/Case | Capacitance | Tolerance | Voltage Rating - AC | Voltage Rating - DC | Dielectric Material | ESR (Equivalent Series Resistance) | Operating Temperature | Mounting Type | Size / Dimension | Height - Seated (Max) | Termination | Lead Spacing | Applications | Ratings | Features |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
BFC238342363CAP FILM 0.036UF 5% 1.4KVDC RAD |
6,998 |
|
Datasheet |
Radial | 0.036 µF | ±5% | 500V | 1400V (1.4kV) | Polypropylene (PP), Metallized | - | -55°C ~ 105°C | Through Hole | 1.024" L x 0.394" W (26.00mm x 10.00mm) | 0.768" (19.50mm) | PC Pins | 0.886" (22.50mm) | High Pulse, DV/DT | - | - |
|
F461FI825K160ZCAP FILM POLYPROP RAD |
3,821 |
|
Datasheet |
Radial | 8.2 µF | ±10% | 90V | 160V | Polypropylene (PP), Metallized | - | -55°C ~ 105°C | Through Hole | 1.240" L x 0.512" W (31.50mm x 13.00mm) | 0.984" (25.00mm) | PC Pins | 1.083" (27.50mm) | High Pulse, DV/DT | - | - |
|
|
FLCG6H0156K2CNEW |
4,112 |
|
Datasheet |
Radial | 15 µF | ±10% | 300V | - | Polypropylene (PP), Metallized | 4.2 mOhms | -40°C ~ 85°C | Through Hole | 1.673" L x 1.181" W (42.50mm x 30.00mm) | 1.791" (45.50mm) | PC Pins | 1.476" (37.50mm) | EMI, RFI Suppression | - | - |
|

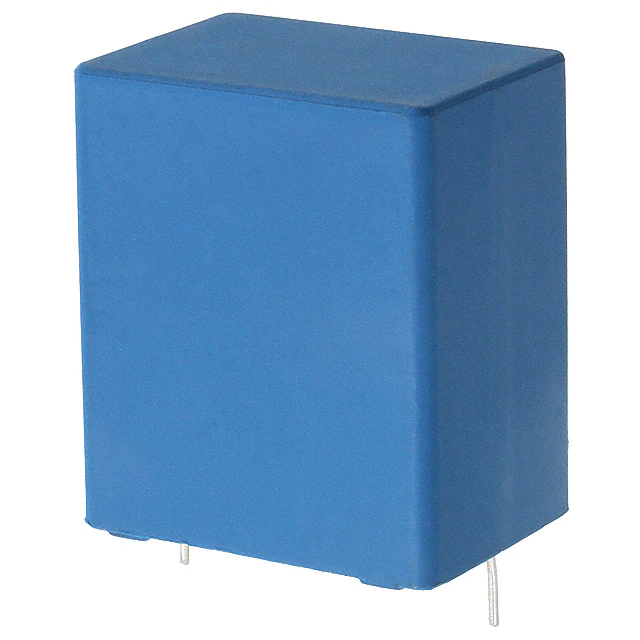

B32774D8126J000CAP FILM 12UF 5% 800VDC RADIAL |
7,096 |
|
Datasheet |
Radial | 12 µF | ±5% | - | 800V | Polypropylene (PP), Metallized | 6.8 mOhms | -40°C ~ 105°C | Through Hole | 1.240" L x 0.866" W (31.50mm x 22.00mm) | 1.437" (36.50mm) | PC Pins | 1.083" (27.50mm) | DC Link, DC Filtering | - | Long Life |
|
|
715P47434MD3CAP FILM 0.47UF 3% 400VDC RADIAL |
5,145 |
|
Datasheet |
Radial | 0.47 µF | ±3% | 200V | 400V | Polypropylene (PP), Metallized | - | -55°C ~ 85°C | Through Hole | 0.819" Dia x 1.650" L (20.80mm x 41.90mm) | 1.134" (28.80mm) | PC Pins | 1.094" (28.80mm) | Audio; High Frequency, Switching; High Pulse, DV/DT; Snubber | - | - |
|
|
BFC247990033CAP FILM 1.1UF 5% 250VDC RADIAL |
2,436 |
|
Datasheet |
Radial | 1.1 µF | ±5% | 160V | 250V | Polypropylene (PP), Metallized | - | -55°C ~ 105°C | Through Hole | 1.024" L x 0.394" W (26.00mm x 10.00mm) | 1.024" (26.00mm) | PC Pins | 0.886" (22.50mm) | High Pulse, DV/DT | - | Long Life |
|
|
FKP1G036807F00MSSDFKP 1 0.68 F 400 VDC 19X32X41.5 |
2,744 |
|
Datasheet |
- | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
BFC2373EE106MKCAP FILM 10UF 10% 250VDC RADIAL |
4,416 |
|
Datasheet |
Radial | 10 µF | ±10% | 63V | 250V | Polyester, Metallized | - | -55°C ~ 105°C | Through Hole | 1.240" L x 0.591" W (31.50mm x 15.00mm) | 0.984" (25.00mm) | PC Pins | 1.083" (27.50mm) | General Purpose | - | Long Life |
|
|
MKT1813568256CAP FILM 6.8UF 20% 250VDC AXIAL |
3,847 |
|
Datasheet |
Axial | 6.8 µF | ±20% | 160V | 250V | Polyester, Metallized | - | -55°C ~ 100°C | Through Hole | 0.689" Dia x 1.634" L (17.50mm x 41.50mm) | - | PC Pins | - | General Purpose | - | - |
|
|
C277LCB4900AF0JCAP FILM 9UF 5% 425VAC RADIAL |
3,988 |
|
Datasheet |
Radial, Can | 9 µF | ±5% | 425V | - | Polypropylene (PP), Metallized | - | -25°C ~ 85°C | Chassis, Stud Mount | 1.181" Dia (30.00mm) | 2.244" (57.00mm) | Wire Leads | - | Motor Run | - | - |
|
|
MKP1840468104MCAP FILM 0.68UF 5% 1KVDC RADIAL |
6,400 |
|
Datasheet |
Radial | 0.68 µF | ±5% | 500V | 1000V (1kV) | Polypropylene (PP), Metallized | - | -55°C ~ 100°C | Through Hole | 1.240" L x 0.709" W (31.50mm x 18.00mm) | 1.102" (28.00mm) | PC Pins | 1.083" (27.50mm) | DC Link, DC Filtering; High Frequency, Switching; High Pulse, DV/DT | - | - |
|
|
MKP1840468105MCAP FILM 0.68UF 10% 1KVDC RADIAL |
2,036 |
|
Datasheet |
Radial | 0.68 µF | ±10% | 500V | 1000V (1kV) | Polypropylene (PP), Metallized | - | -55°C ~ 100°C | Through Hole | 1.240" L x 0.709" W (31.50mm x 18.00mm) | 1.102" (28.00mm) | PC Pins | 1.083" (27.50mm) | DC Link, DC Filtering; High Frequency, Switching; High Pulse, DV/DT | - | - |
|
|
MKP1840510635VCAP FILM 1UF 10% RADIAL |
4,981 |
|
Datasheet |
Radial | 1 µF | ±10% | - | - | Polypropylene (PP), Metallized | - | -55°C ~ 100°C | Through Hole | 1.220" L x 0.512" W (31.00mm x 13.00mm) | 0.906" (23.00mm) | PC Pins | 1.083" (27.50mm) | DC Link, DC Filtering; High Pulse, DV/DT | - | - |
|
|
FKP4U031507G00MSC9FKP 4 0.15 F 2000 VDC 20X39.5X41 |
8,799 |
|
Datasheet |
- | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
MKP383418140JKI2B0CAP FILM 0.18UF 5% 1.4KVDC RAD |
3,051 |
|
Datasheet |
Radial | 0.18 µF | ±5% | 500V | 1400V (1.4kV) | Polypropylene (PP), Metallized | - | -55°C ~ 105°C | Through Hole | - | - | PC Pins | 1.083" (27.50mm) | High Pulse, DV/DT | - | - |
|
|
MKP383418140JKM2T0CAP FILM 0.18UF 5% 1.4KVDC RAD |
2,859 |
|
Datasheet |
Radial | 0.18 µF | ±5% | 500V | 1400V (1.4kV) | Polypropylene (PP), Metallized | - | -55°C ~ 105°C | Through Hole | 1.220" L x 0.827" W (31.00mm x 21.00mm) | 1.220" (31.00mm) | PC Pins | 1.083" (27.50mm) | High Pulse, DV/DT | - | - |
|
|
MKP383418140JKP2T0CAP FILM 0.18UF 5% 1.4KVDC RAD |
3,141 |
|
Datasheet |
Radial | 0.18 µF | ±5% | 500V | 1400V (1.4kV) | Polypropylene (PP), Metallized | - | -55°C ~ 105°C | Through Hole | 1.220" L x 0.827" W (31.00mm x 21.00mm) | 1.220" (31.00mm) | PC Pins | 1.083" (27.50mm) | High Pulse, DV/DT | - | - |
|
|
FKP4R034707G00JSC9FKP 4 0.47 F 1250 VDC 20X39.5X41 |
5,130 |
|
Datasheet |
- | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
MKP1839439134HQCAP FILM 0.39UF 5% 1.6KVDC AXIAL |
6,228 |
|
Datasheet |
Axial | 0.39 µF | ±5% | 450V | 1600V (1.6kV) | Polypropylene (PP), Metallized | - | -55°C ~ 110°C | Through Hole | 0.768" Dia x 1.240" L (19.50mm x 31.50mm) | - | PC Pins | - | High Pulse, DV/DT | - | - |
|
|
MKP18454111051CAP FILM 0.11UF 10% 1KVDC AXIAL |
5,749 |
|
Datasheet |
Axial | 0.11 µF | ±10% | 600V | 1000V (1kV) | Polypropylene (PP), Metallized | - | -55°C ~ 100°C | Through Hole | 0.610" Dia x 1.339" L (15.50mm x 34.00mm) | - | PC Pins | - | DC Link, DC Filtering; High Pulse, DV/DT; Snubber | - | - |
