Film Capacitors
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Package/Case | Capacitance | Tolerance | Voltage Rating - AC | Voltage Rating - DC | Dielectric Material | ESR (Equivalent Series Resistance) | Operating Temperature | Mounting Type | Size / Dimension | Height - Seated (Max) | Termination | Lead Spacing | Applications | Ratings | Features |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
MKP18454111061CAP FILM 0.11UF 20% 1KVDC AXIAL |
8,061 |
|
Datasheet |
Axial | 0.11 µF | ±20% | 600V | 1000V (1kV) | Polypropylene (PP), Metallized | - | -55°C ~ 100°C | Through Hole | 0.610" Dia x 1.339" L (15.50mm x 34.00mm) | - | PC Pins | - | DC Link, DC Filtering; High Pulse, DV/DT; Snubber | - | - |
|
|
MKP1D046807F00JSSDMKP 10 6.8 F 100 VDC 19X32X41.5 |
5,059 |
|
Datasheet |
- | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
MKP1D045607F00JSSDMKP 10 5.6 F 100 VDC 19X32X41.5 |
7,111 |
|
Datasheet |
- | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
F873FY474K760ZCAP FILM POLYPROP RAD X1 |
2,380 |
|
Datasheet |
Radial | 0.47 µF | ±10% | 760V | 1500V (1.5kV) | Polypropylene (PP), Metallized | - | -40°C ~ 110°C | Through Hole | 1.240" L x 0.866" W (31.50mm x 22.00mm) | 1.457" (37.00mm) | PC Pins | 1.083" (27.50mm) | EMI, RFI Suppression | X1 | - |
|
|
MKP4D051007C00MSSDMKP 4 10.0 F 100 VDC 13X24X41.5 |
4,566 |
|
Datasheet |
- | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
MKS4F051506I00JSC9CAP FILM 15UF 5% 250VDC RADIAL |
5,692 |
|
Datasheet |
Radial | 15 µF | ±5% | 160V | 250V | Polyester, Polyethylene Terephthalate (PET), Metallized | - | -55°C ~ 125°C | Through Hole | 1.240" L x 0.669" W (31.50mm x 17.00mm) | 1.358" (34.50mm) | PC Pins | 1.083" (27.50mm) | Automotive; DC Link, DC Filtering | AEC-Q200 | - |
|
|
R75GR5120AA00KCAP FILM AUTO POLYPROP RAD |
4,761 |
|
Datasheet |
Radial | 12 µF | ±10% | 90V | 160V | Polypropylene (PP), Metallized | 4 mOhms | -55°C ~ 105°C | Through Hole | 1.260" L x 0.866" W (32.00mm x 22.00mm) | 1.461" (37.10mm) | PC Pins | 1.083" (27.50mm) | High Frequency, Switching; High Pulse, DV/DT | - | - |
|
|
MKS4F051507E00MSC9CAP FILM 15UF 20% 250VDC RADIAL |
4,728 |
|
Datasheet |
Radial | 15 µF | ±20% | 160V | 250V | Polyester, Polyethylene Terephthalate (PET), Metallized | - | -55°C ~ 125°C | Through Hole | 1.634" L x 0.669" W (41.50mm x 17.00mm) | 1.142" (29.00mm) | PC Pins | 1.476" (37.50mm) | Automotive; DC Link, DC Filtering | AEC-Q200 | - |
|
|
C4AF9BW5100F3JKCAP FILM METAL RAD POLYPROP |
7,361 |
|
Datasheet |
Radial - 4 Leads | 10 µF | ±10% | 310V | 630V | Polypropylene (PP), Metallized | 8.1 mOhms | -55°C ~ 105°C | Through Hole | 1.654" L x 1.102" W (42.00mm x 28.00mm) | 1.465" (37.20mm) | PC Pins | 1.476" (37.50mm) | Automotive | AEC-Q200 | - |
|
|
B32676G1475K000CAP FILM 4.7UF 10% 750VDC RADIAL |
4,619 |
|
Datasheet |
Radial | 4.7 µF | ±10% | - | 750V | Polypropylene (PP), Metallized | - | -40°C ~ 105°C | Through Hole | 1.654" L x 0.787" W (42.00mm x 20.00mm) | 1.555" (39.50mm) | PC Pins | 1.476" (37.50mm) | DC Link, DC Filtering | AEC-Q200 | Long Life |
|
|
F461RD685J400ZCAP FILM POLYPROP RAD |
7,013 |
|
Datasheet |
Radial | 6.8 µF | ±5% | 220V | 400V | Polypropylene (PP), Metallized | - | -55°C ~ 105°C | Through Hole | 1.614" L x 0.748" W (41.00mm x 19.00mm) | 1.260" (32.00mm) | PC Pins | 1.476" (37.50mm) | High Pulse, DV/DT | - | - |
|
BFC238352393CAP FILM 0.039UF 5% 1.6KVDC RAD |
3,207 |
|
Datasheet |
Radial | 0.039 µF | ±5% | 550V | 1600V (1.6kV) | Polypropylene (PP), Metallized | - | -55°C ~ 105°C | Through Hole | 1.024" L x 0.394" W (26.00mm x 10.00mm) | 0.768" (19.50mm) | PC Pins | 0.886" (22.50mm) | High Pulse, DV/DT | - | - |
|
|
MKS4F051507E00KSSDCAP FILM 15UF 10% 250VDC RADIAL |
8,996 |
|
Datasheet |
Radial | 15 µF | ±10% | 160V | 250V | Polyester, Polyethylene Terephthalate (PET), Metallized | - | -55°C ~ 125°C | Through Hole | 1.634" L x 0.669" W (41.50mm x 17.00mm) | 1.142" (29.00mm) | PC Pins | 1.476" (37.50mm) | Automotive; DC Link, DC Filtering | AEC-Q200 | - |
|
|
805MABA03KJLCAP FILM 8UF 10% 500VDC RADIAL |
9,362 |
|
Datasheet |
Radial | 8 µF | ±10% | 250V | 500V | Polypropylene (PP), Metallized | - | -40°C ~ 100°C | Through Hole | 1.673" L x 0.866" W (42.50mm x 22.00mm) | 1.181" (30.00mm) | PC Pins | 1.476" (37.50mm) | Motor Run | - | - |
|

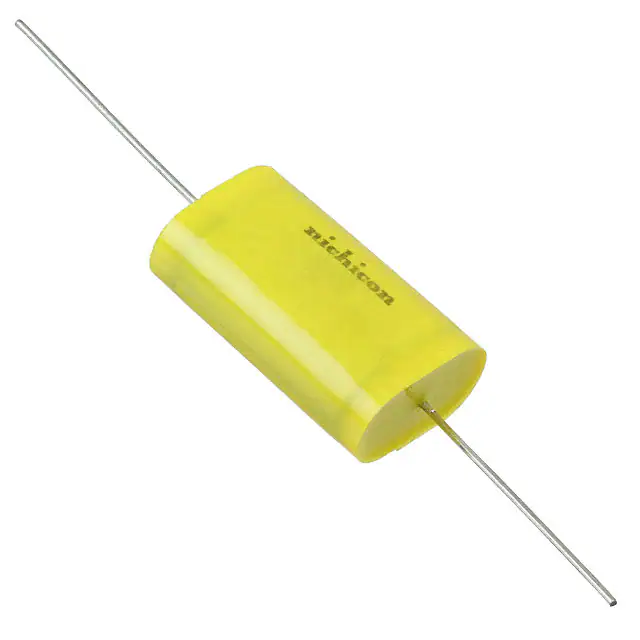

QAP2E475KRPCAP FILM 4.7UF 10% 250VDC AXIAL |
9,822 |
|
Datasheet |
Axial | 4.7 µF | ±10% | - | 250V | Polypropylene (PP), Metallized | - | -40°C ~ 85°C | Through Hole | 0.937" W, 0.555" T x 1.575" L (23.80mm, 14.10mm x 40.00mm) | - | PC Pins | - | High Frequency, Switching | - | - |
|
|
F462FR334R1K6ZCAP |
3,023 |
|
- |
- | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
F861FT395M310ZCAP FILM POLYPROP RAD X2 |
7,649 |
|
Datasheet |
Radial | 3.9 µF | ±20% | 310V | 630V | Polypropylene (PP), Metallized | - | -40°C ~ 110°C | Through Hole | 1.240" L x 1.220" W (31.50mm x 31.00mm) | 0.748" (19.00mm) | PC Pins | 1.083" (27.50mm) | EMI, RFI Suppression | X2 | - |
|
|
F872FT684M480ZCAP FILM POLYPROP RAD X1 |
3,176 |
|
Datasheet |
Radial | 0.68 µF | ±20% | 480V | 1000V (1kV) | Polypropylene (PP), Metallized | - | -40°C ~ 110°C | Through Hole | 1.240" L x 1.220" W (31.50mm x 31.00mm) | 0.748" (19.00mm) | PC Pins | 1.083" (27.50mm) | EMI, RFI Suppression | X1 | - |
|
|
C4GAFUD4680AA1JCAP FILM METAL AXL POLYPROP |
6,936 |
|
Datasheet |
Axial | 6.8 µF | ±5% | 250V | 400V | Polypropylene (PP), Metallized | 3.2 mOhms | -40°C ~ 85°C | Through Hole | 0.984" Dia x 1.732" L (25.00mm x 44.00mm) | - | PC Pins | - | High Frequency, Switching | - | - |
|
C878AF25100AA0JCAP FILM 10UF 5% 470VAC RADIAL |
7,152 |
|
Datasheet |
Radial, Can | 10 µF | ±5% | 470V | - | Polypropylene (PP), Metallized | - | -25°C ~ 85°C | Chassis, Stud Mount | 1.378" Dia (35.00mm) | 3.150" (80.00mm) | Quick Connect - 0.250" (6.3mm) | 0.394" (10.00mm) | Motor Run | - | - |
