Film Capacitors
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Package/Case | Capacitance | Tolerance | Voltage Rating - AC | Voltage Rating - DC | Dielectric Material | ESR (Equivalent Series Resistance) | Operating Temperature | Mounting Type | Size / Dimension | Height - Seated (Max) | Termination | Lead Spacing | Applications | Ratings | Features |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
MKP4G045607G00MSC9MKP 4 5.6 F 400 VDC 20X39.5X41.5 |
8,345 |
|
Datasheet |
- | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
MKS4C052706B00MSC9CAP FILM 27UF 20% 63VDC RADIAL |
8,657 |
|
Datasheet |
Radial | 27 µF | ±20% | 40V | 63V | Polyester, Polyethylene Terephthalate (PET), Metallized | - | -55°C ~ 125°C | Through Hole | 1.240" L x 0.433" W (31.50mm x 11.00mm) | 0.827" (21.00mm) | PC Pins | 1.083" (27.50mm) | Automotive; DC Link, DC Filtering | AEC-Q200 | - |
|
|
BFC238331913CAP FILM 0.091UF 5% 1KVDC RADIAL |
8,247 |
|
Datasheet |
Radial | 0.091 µF | ±5% | 350V | 1000V (1kV) | Polypropylene (PP), Metallized | - | -55°C ~ 105°C | Through Hole | 1.024" L x 0.335" W (26.00mm x 8.50mm) | 0.709" (18.00mm) | PC Pins | 0.886" (22.50mm) | High Pulse, DV/DT | - | - |
|
|
B32776H4156K00015UF 10% 450V MKP WOUND BOXE |
5,267 |
|
Datasheet |
Radial | 15 µF | ±10% | - | 450V | Polypropylene (PP), Metallized | 11.1 mOhms | -40°C ~ 105°C | Through Hole | 1.654" L x 0.630" W (42.00mm x 16.00mm) | 1.122" (28.50mm) | PC Pins | 1.476" (37.50mm) | Automotive; DC Link, DC Filtering | AEC-Q200 | Long Life |
|
RA4335K100-FACAP FILM 3.3UF 10% 100VDC RADIAL |
7,594 |
|
Datasheet |
Radial | 3.3 µF | ±10% | 80V | 100V | Polyester, Polyethylene Terephthalate (PET), Metallized | - | -55°C ~ 125°C | Through Hole | 0.449" L x 0.248" W (11.40mm x 6.30mm) | 0.350" (8.90mm) | PC Pins | 0.394" (10.00mm) | High Frequency, Switching; High Pulse, DV/DT; EMI, RFI Suppression | - | Low ESR; Low ESL; Long Life |
|
|
MKT-A 5,6 UF/250V.CAP FILM 5.6UF 5% 250VDC AXIAL |
4,171 |
|
- |
Axial | 5.6 µF | ±5% | - | 250V | Polypropylene (PP) | - | - | Through Hole | 0.669" Dia x 1.260" L (17.00mm x 32.00mm) | - | PC Pins | - | General Purpose | - | - |
|
|
C878AF24400AA0JCAP FILM MOTOR START RUN |
4,072 |
|
Datasheet |
Radial, Can | 4 µF | ±5% | 470V | - | Polypropylene (PP), Metallized | - | -25°C ~ 85°C | Chassis, Stud Mount | 0.984" Dia (25.00mm) | 3.150" (80.00mm) | Quick Connect, Disconnect | 0.394" (10.00mm) | Motor Run | - | - |
|
BFC236851105CAP FILM 1UF 10% 400VDC RADIAL |
5,847 |
|
Datasheet |
Radial | 1 µF | ±10% | 220V | 400V | Polyester, Metallized | - | -55°C ~ 105°C | Through Hole | 1.181" L x 0.413" W (30.00mm x 10.50mm) | 0.925" (23.50mm) | PC Pins | 1.083" (27.50mm) | General Purpose | - | Long Life |
|
|
MKP4G045607G00KSSDMKP 4 5.6 F 400 VDC 20X39.5X41.5 |
7,020 |
|
Datasheet |
- | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
C4GAHUD4400AA1JCAP FILM METAL AXL POLYPROP |
7,558 |
|
Datasheet |
Axial | 4 µF | ±5% | 330V | 600V | Polypropylene (PP), Metallized | 3.8 mOhms | -40°C ~ 85°C | Through Hole | 1.004" Dia x 1.732" L (25.50mm x 44.00mm) | - | PC Pins | - | High Frequency, Switching | - | - |
|
|
C878BF35110SA0JCAP FILM MOTOR START RUN |
6,732 |
|
Datasheet |
Radial, Can | 11 µF | ±5% | 470V | - | Polypropylene (PP), Metallized | - | -25°C ~ 85°C | Chassis, Stud Mount | 1.378" Dia (35.00mm) | 3.150" (80.00mm) | Quick Connect - 0.250" (6.3mm) | 0.528" (13.40mm) | Motor Run | - | - |
|

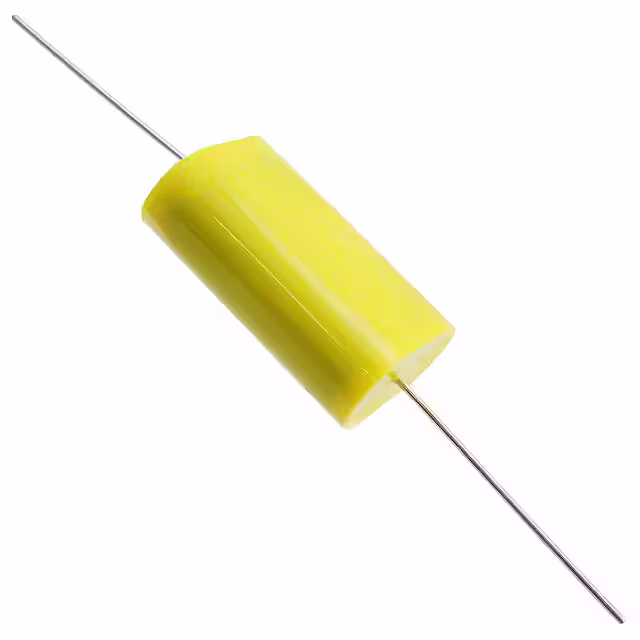

QAK2E106KTPCAP FILM 10UF 10% 250VDC AXIAL |
8,986 |
|
Datasheet |
Axial | 10 µF | ±10% | - | 250V | Polyester, Metallized | - | -40°C ~ 85°C | Through Hole | 0.886" W, 0.591" T x 1.496" L (22.50mm, 15.00mm x 38.00mm) | - | PC Pins | - | General Purpose | - | - |
|
|
F161ZS275J100VCAP FILM SMD PET |
6,736 |
|
Datasheet |
Nonstandard SMD | 2.7 µF | ±5% | 63V | 100V | Polyester, Polyethylene Terephthalate (PET), Metallized - Stacked | - | -55°C ~ 125°C | Surface Mount | 0.650" L x 0.591" W (16.50mm x 15.00mm) | 0.283" (7.20mm) | Solder Pads | - | Automotive | AEC-Q200 | - |
|
160475K63N-FCAP FILM 4.7UF 10% 63VDC RADIAL |
4,720 |
|
Datasheet |
Radial | 4.7 µF | ±10% | 40V | 63V | Polyester, Metallized | - | -55°C ~ 105°C | Through Hole | 1.043" L x 0.335" W (26.50mm x 8.50mm) | 0.669" (17.00mm) | PC Pins | 0.886" (22.50mm) | General Purpose | - | - |
|
BFC238302824CAP FILM 0.82UF 5% 250VDC RADIAL |
9,394 |
|
Datasheet |
Radial | 0.82 µF | ±5% | 125V | 250V | Polypropylene (PP), Metallized | - | -55°C ~ 105°C | Through Hole | 1.024" L x 0.394" W (26.00mm x 10.00mm) | 0.768" (19.50mm) | PC Pins | 0.886" (22.50mm) | High Pulse, DV/DT | - | - |
|
|
MKP385424160JKM2T0CAP FILM 0.24UF 5% 1.6KVDC RAD |
6,810 |
|
Datasheet |
Radial | 0.24 µF | ±5% | 550V | 1600V (1.6kV) | Polypropylene (PP), Metallized | - | -55°C ~ 110°C | Through Hole | 1.240" L x 0.709" W (31.50mm x 18.00mm) | 1.102" (28.00mm) | PC Pins | 1.083" (27.50mm) | DC Link, DC Filtering; High Frequency, Switching; High Pulse, DV/DT | - | - |
|
|
MKP385424160JKP2T0CAP FILM 0.24UF 5% 1.6KVDC RAD |
3,869 |
|
Datasheet |
Radial | 0.24 µF | ±5% | 550V | 1600V (1.6kV) | Polypropylene (PP), Metallized | - | -55°C ~ 110°C | Through Hole | 1.240" L x 0.709" W (31.50mm x 18.00mm) | 1.102" (28.00mm) | PC Pins | 1.083" (27.50mm) | DC Link, DC Filtering; High Frequency, Switching; High Pulse, DV/DT | - | - |
|
|
F461FY106J250ZCAP FILM POLYPROP RAD |
4,914 |
|
Datasheet |
Radial | 10 µF | ±5% | 160V | 250V | Polypropylene (PP), Metallized | - | -55°C ~ 105°C | Through Hole | 1.240" L x 0.866" W (31.50mm x 22.00mm) | 1.457" (37.00mm) | PC Pins | 1.083" (27.50mm) | High Pulse, DV/DT | - | - |
|
|
F881FT564K300ZCAP FILM POLYPROP RAD Y2 |
2,964 |
|
Datasheet |
Radial | 0.56 µF | ±10% | 300V | 1000V (1kV) | Polypropylene (PP), Metallized | - | -40°C ~ 110°C | Through Hole | 1.240" L x 1.220" W (31.50mm x 31.00mm) | 0.748" (19.00mm) | PC Pins | 1.083" (27.50mm) | EMI, RFI Suppression | Y2 | - |
|
|
FKP1G036807F00KSSDFKP 1 0.68 F 400 VDC 19X32X41.5 |
6,080 |
|
Datasheet |
- | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
