Film Capacitors
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Package/Case | Capacitance | Tolerance | Voltage Rating - AC | Voltage Rating - DC | Dielectric Material | ESR (Equivalent Series Resistance) | Operating Temperature | Mounting Type | Size / Dimension | Height - Seated (Max) | Termination | Lead Spacing | Applications | Ratings | Features |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
DCP4I051506ID2JSC9DC-LINK MKP 4 15.0 F 600 VDC 17X |
4,262 |
|
Datasheet |
- | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
F881FY105J300Z1.00UF 300V |
9,447 |
|
Datasheet |
Radial | 1 µF | ±5% | 300V | 1000V (1kV) | Polypropylene (PP), Metallized | - | -40°C ~ 110°C | Through Hole | 1.240" L x 0.866" W (31.50mm x 22.00mm) | 1.457" (37.00mm) | PC Pins | 1.083" (27.50mm) | EMI, RFI Suppression | Y2 | - |
|
|
FKP4J041007G00JSC9FKP 4 1.0 F 630 VDC 20X39.5X41.5 |
8,450 |
|
Datasheet |
- | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
BFC237874623CAP FILM 0.062UF 5% 1KVDC RADIAL |
3,909 |
|
Datasheet |
Radial | 0.062 µF | ±5% | 300V | 1000V (1kV) | Polypropylene (PP), Metallized | - | -55°C ~ 85°C | Through Hole | 1.240" L x 0.354" W (31.50mm x 9.00mm) | 0.748" (19.00mm) | PC Pins | 1.083" (27.50mm) | High Pulse, DV/DT | - | Long Life |
|
|
BFC237862164CAP FILM 0.16UF 5% 630VDC RADIAL |
8,196 |
|
Datasheet |
Radial | 0.16 µF | ±5% | 300V | 630V | Polypropylene (PP), Metallized | - | -55°C ~ 85°C | Through Hole | 1.024" L x 0.335" W (26.00mm x 8.50mm) | 0.709" (18.00mm) | PC Pins | 0.886" (22.50mm) | High Pulse, DV/DT | - | Long Life |
|
|
BFC237864164CAP FILM 0.16UF 5% 630VDC RADIAL |
3,254 |
|
Datasheet |
Radial | 0.16 µF | ±5% | 300V | 630V | Polypropylene (PP), Metallized | - | -55°C ~ 85°C | Through Hole | 1.024" L x 0.335" W (26.00mm x 8.50mm) | 0.709" (18.00mm) | PC Pins | 0.886" (22.50mm) | High Pulse, DV/DT | - | Long Life |
|
930C6P22K-FCAP FILM 0.22UF 10% 630VDC AXIAL |
5,682 |
|
Datasheet |
Axial | 0.22 µF | ±10% | 250V | 630V | Polypropylene (PP), Metallized | - | -55°C ~ 105°C | Through Hole | 0.496" Dia x 1.260" L (12.60mm x 32.00mm) | - | PC Pins | - | General Purpose | - | - |
|
|
DCP4N051507GD2JSSDDC-LINK MKP 4 15.0 F 900 VDC 20X |
8,649 |
|
Datasheet |
- | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
DCP4N051507GD4JSSDDC-LINK MKP 4 15.0 F 900 VDC 20X |
8,199 |
|
Datasheet |
- | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
F873RW394J760Z.390UF 760V |
5,049 |
|
- |
- | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
FKP1X024707H00MSSDFKP 1 0.047 F 4000 VDC 24X45.5X4 |
6,647 |
|
Datasheet |
- | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
MKP4F051006J00JSSDMKP 4 10.0 F 250 VDC 20X39.5X31. |
8,089 |
|
Datasheet |
- | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
DCP4I051507ED2KSSDDC-LINK MKP 4 15.0 F 600 VDC 17X |
2,505 |
|
Datasheet |
- | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
DCP4I051507ED2MSSDDC-LINK MKP 4 15.0 F 600 VDC 17X |
2,257 |
|
Datasheet |
- | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
R71VR515050H6KCAP FILM METAL RAD POLYPROP |
9,769 |
|
Datasheet |
Radial | 15 µF | ±10% | 200V | 520V | Polypropylene (PP), Metallized | 7 mOhms | -55°C ~ 125°C | Through Hole | 1.260" L x 0.709" W (32.00mm x 18.00mm) | 1.303" (33.10mm) | PC Pins | 1.083" (27.50mm) | Automotive; High Frequency, Switching; High Pulse, DV/DT; Power Factor Correction (PFC) | AEC-Q200 | - |
|

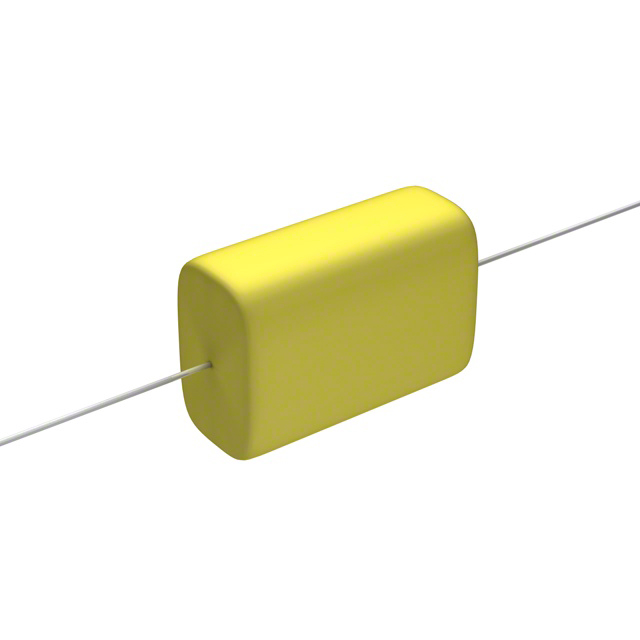

MMP6W1P5K-FCAP FILM 1.5UF 10% 630VDC AXIAL |
8,078 |
|
Datasheet |
Axial | 1.5 µF | ±10% | 250V | 630V | Polyester, Metallized | - | -55°C ~ 125°C | Through Hole | 1.063" W, 0.669" T x 1.535" L (27.00mm, 17.00mm x 39.00mm) | - | PC Pins | - | General Purpose | - | Long Life |
|
|
BFC238360273CAP FILM 0.027UF 5% 2KVDC RADIAL |
9,081 |
|
Datasheet |
Radial | 0.027 µF | ±5% | 700V | 2000V (2kV) | Polypropylene (PP), Metallized | - | -55°C ~ 105°C | Through Hole | 1.220" L x 0.433" W (31.00mm x 11.00mm) | 0.827" (21.00mm) | PC Pins | 1.083" (27.50mm) | High Pulse, DV/DT | - | - |
|
BFC237326335CAP FILM 3.3UF 5% 100VDC RADIAL |
3,173 |
|
Datasheet |
Radial | 3.3 µF | ±5% | 63V | 100V | Polyester, Metallized | - | -55°C ~ 105°C | Through Hole | 1.024" L x 0.335" W (26.00mm x 8.50mm) | 0.728" (18.50mm) | PC Pins | 0.886" (22.50mm) | General Purpose | - | Long Life |
|
|
EFDKA1AJ156E154BHCAP EFDKA 1000VDC 15UF J 4LEADS |
2,620 |
|
Datasheet |
Radial - 4 Leads | 15 µF | ±5% | - | 1000V (1kV) | Polypropylene (PP), Metallized | 10 mOhms | -55°C ~ 105°C | Through Hole | 1.654" L x 0.945" W (42.00mm x 24.00mm) | 1.772" (45.00mm) | PC Pins | 1.476" (37.50mm) | Automotive; DC Link, DC Filtering | AEC-Q200 | - |
|
|
MKPFAW46807G00JSC9MKP 4F 6.8 F 305 VAC 20X39.5X41. |
9,583 |
|
Datasheet |
- | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
