Film Capacitors
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Package/Case | Capacitance | Tolerance | Voltage Rating - AC | Voltage Rating - DC | Dielectric Material | ESR (Equivalent Series Resistance) | Operating Temperature | Mounting Type | Size / Dimension | Height - Seated (Max) | Termination | Lead Spacing | Applications | Ratings | Features |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
FKP4O136807G00KSC9FKP 4 0.68 F 1000 VDC 20X39.5X41 |
9,593 |
|
Datasheet |
- | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
FKP4O134707G00KSC9FKP 4 0.47 F 1000 VDC 20X39.5X41 |
2,420 |
|
Datasheet |
- | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
F863RT106M310ZCAP FILM 10UF 20% 630VDC RADIAL |
5,324 |
|
Datasheet |
Radial | 10 µF | ±20% | 310V | 630V | Polypropylene (PP), Metallized | - | -40°C ~ 110°C | Through Hole | 1.634" L x 1.181" W (41.50mm x 30.00mm) | 1.776" (45.10mm) | PC Pins | 1.476" (37.50mm) | Automotive; EMI, RFI Suppression | AEC-Q200, X2 | - |
|
|
MMWA05W2MCAP FILM 2UF 20% 50VDC AXIAL |
9,360 |
|
Datasheet |
Axial | 2 µF | ±20% | 35V | 50V | Polyester, Metallized | - | -55°C ~ 125°C | Through Hole | 0.402" Dia x 1.248" L (10.20mm x 31.70mm) | - | PC Pins | - | General Purpose | - | - |
|
MKP1847H53031JK2CAP FILM 3UF 5% 630VDC RADIAL |
4,828 |
|
Datasheet |
Radial | 3 µF | ±5% | 310V | 630V | Polypropylene (PP), Metallized | 6.5 mOhms | -40°C ~ 105°C | Through Hole | 1.260" L x 0.827" W (32.00mm x 21.00mm) | 1.248" (31.70mm) | PC Pins | 1.083" (27.50mm) | EMI, RFI Suppression | - | 85C/85% Humidity |
|
MKP1839456124HQGCAP FILM 0.56UF 5% 1.25KVDC AXL |
2,059 |
|
Datasheet |
Axial | 0.56 µF | ±5% | 425V | 1250V (1.25kV) | Polypropylene (PP), Metallized | - | -55°C ~ 110°C | Through Hole | 0.709" Dia x 1.240" L (18.00mm x 31.50mm) | - | PC Pins | - | High Pulse, DV/DT | - | - |
|
|
MKT1813568256RCAP FILM 6.8UF 20% 250VDC AXIAL |
9,811 |
|
Datasheet |
Axial | 6.8 µF | ±20% | 160V | 250V | Polyester, Metallized | - | -55°C ~ 100°C | Through Hole | 0.689" Dia x 1.634" L (17.50mm x 41.50mm) | - | PC Pins | - | General Purpose | - | - |
|
MKP1848H58090KK2CAP FILM 8UF 10% 920VDC RADIAL |
8,878 |
|
Datasheet |
Radial | 8 µF | ±10% | - | 920V | Polypropylene (PP), Metallized | 5.2 mOhms | -40°C ~ 85°C | Through Hole | 1.260" L x 0.866" W (32.00mm x 22.00mm) | 1.524" (38.70mm) | PC Pins | 1.083" (27.50mm) | Automotive; DC Link, DC Filtering | AEC-Q200 | 85C/85% Humidity; Low ESR, Low ESL |
|
|
MKXR3W43307G00KSSDMKP-X2 R 3.3 F 400 VAC 20X39.5X4 |
4,957 |
|
Datasheet |
- | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
F161YR395J050VCAP FILM SMD PET |
4,151 |
|
Datasheet |
Nonstandard SMD | 3.9 µF | ±5% | 30V | 50V | Polyester, Polyethylene Terephthalate (PET), Metallized - Stacked | - | -55°C ~ 125°C | Surface Mount | 0.500" L x 0.453" W (12.70mm x 11.50mm) | 0.264" (6.70mm) | Solder Pads | - | Automotive | AEC-Q200 | - |
|
|
DCP4I051507ED4KSC9DC-LINK MKP 4 15.0 F 600 VDC 17X |
3,884 |
|
Datasheet |
- | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
DCP4I051507ED4KSSDDC-LINK MKP 4 15.0 F 600 VDC 17X |
4,971 |
|
Datasheet |
- | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
FKP1J034707G00MSC9FKP 1 0.47 F 630 VDC 20X39.5X41. |
3,201 |
|
Datasheet |
- | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
MKPF3Y51507G00MSC9MKP 4F 15.0 F 230 VAC 20X39.5X41 |
7,092 |
|
Datasheet |
- | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
BFC237875513CAP FILM 0.051UF 5% 1KVDC RADIAL |
7,857 |
|
Datasheet |
Radial | 0.051 µF | ±5% | 300V | 1000V (1kV) | Polypropylene (PP), Metallized | - | -55°C ~ 85°C | Through Hole | 1.024" L x 0.335" W (26.00mm x 8.50mm) | 0.728" (18.50mm) | PC Pins | 0.886" (22.50mm) | High Pulse, DV/DT | - | Long Life |
|

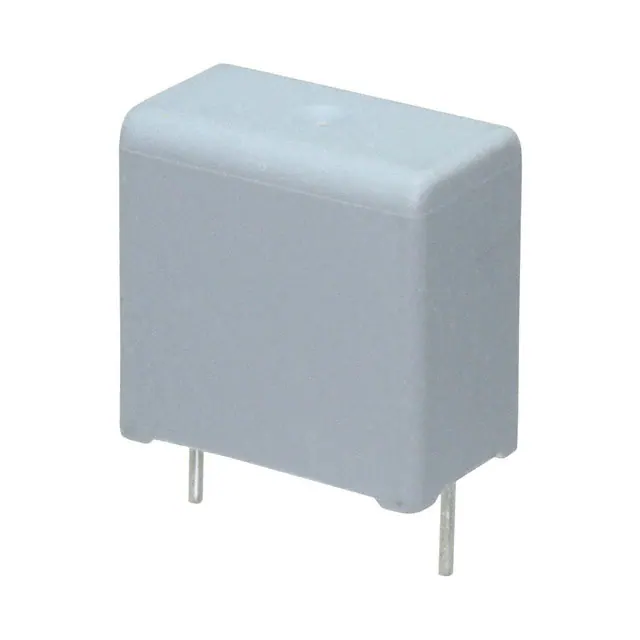

F339X254730KKI2B0CAP FILM 4.7UF 10% 630VDC RADIAL |
8,012 |
|
Datasheet |
Radial | 4.7 µF | ±10% | 305V | 630V | Polypropylene (PP), Metallized | - | -40°C ~ 105°C | Through Hole | 1.260" L x 0.866" W (32.00mm x 22.00mm) | 1.496" (38.00mm) | PC Pins | 1.083" (27.50mm) | Automotive; EMI, RFI Suppression | AEC-Q200, X2 | 85C/85% Humidity |
|
|
F339X254730KKM2T0CAP FILM 4.7UF 10% 630VDC RADIAL |
6,489 |
|
Datasheet |
Radial | 4.7 µF | ±10% | 305V | 630V | Polypropylene (PP), Metallized | - | -40°C ~ 105°C | Through Hole | 1.260" L x 0.866" W (32.00mm x 22.00mm) | 1.496" (38.00mm) | PC Pins | 1.083" (27.50mm) | Automotive; EMI, RFI Suppression | AEC-Q200, X2 | 85C/85% Humidity |
|
|
F339X254730KKP2T0CAP FILM 4.7UF 10% 630VDC RADIAL |
6,411 |
|
Datasheet |
Radial | 4.7 µF | ±10% | 305V | 630V | Polypropylene (PP), Metallized | - | -40°C ~ 105°C | Through Hole | 1.260" L x 0.866" W (32.00mm x 22.00mm) | 1.496" (38.00mm) | PC Pins | 1.083" (27.50mm) | Automotive; EMI, RFI Suppression | AEC-Q200, X2 | 85C/85% Humidity |
|
MKP1848540914K2CAP FILM 4UF 5% 1.1KVDC RADIAL |
2,585 |
|
Datasheet |
Radial | 4 µF | ±5% | - | 1100V (1.1kV) | Polypropylene (PP), Metallized | 11.5 mOhms | -40°C ~ 105°C | Through Hole | 1.260" L x 0.827" W (32.00mm x 21.00mm) | 1.220" (31.00mm) | PC Pins | 1.083" (27.50mm) | Automotive; DC Link, DC Filtering | AEC-Q200 | Low ESR |
|
|
DCP4L051507FD2JSC9DC-LINK MKP 4 15.0 F 800 VDC 19X |
7,694 |
|
Datasheet |
- | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
