Film Capacitors
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Package/Case | Capacitance | Tolerance | Voltage Rating - AC | Voltage Rating - DC | Dielectric Material | ESR (Equivalent Series Resistance) | Operating Temperature | Mounting Type | Size / Dimension | Height - Seated (Max) | Termination | Lead Spacing | Applications | Ratings | Features |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
942C8P33K-FCAP FILM 0.33UF 10% 850VDC AXIAL |
4,930 |
|
Datasheet |
Axial | 0.33 µF | ±10% | 360V | 850V | Polypropylene (PP), Metallized | 6 mOhms | -55°C ~ 105°C | Through Hole | 0.846" Dia x 1.339" L (21.50mm x 34.00mm) | - | PC Pins | - | High Pulse, DV/DT | - | - |
|
FKP4O136807G00KSSDFKP 4 0.68 F 1000 VDC 20X39.5X41 |
3,540 |
|
Datasheet |
- | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
FKP4O134707G00KSSDFKP 4 0.47 F 1000 VDC 20X39.5X41 |
8,911 |
|
Datasheet |
- | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
MKPF4W43307G00MSSDMKP 4F 3.3 F 440 VAC 20X39.5X41. |
7,936 |
|
Datasheet |
- | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
F872RP185J480Z1.80UF 480V |
2,948 |
|
Datasheet |
Radial | 1.8 µF | ±5% | 480V | 1000V (1kV) | Polypropylene (PP), Metallized | - | -40°C ~ 110°C | Through Hole | 1.614" L x 0.827" W (41.00mm x 21.00mm) | 1.496" (38.00mm) | PC Pins | 1.476" (37.50mm) | EMI, RFI Suppression | X1 | - |
|
|
MKS4F051807F00MSC9CAP FILM 18UF 20% 250VDC RADIAL |
4,933 |
|
Datasheet |
Radial | 18 µF | ±20% | 160V | 250V | Polyester, Polyethylene Terephthalate (PET), Metallized | - | -55°C ~ 125°C | Through Hole | 1.634" L x 0.748" W (41.50mm x 19.00mm) | 1.260" (32.00mm) | PC Pins | 1.476" (37.50mm) | Automotive; DC Link, DC Filtering | AEC-Q200 | - |
|
|
MKS4F051806J00MSC9CAP FILM 18UF 20% 250VDC RADIAL |
5,821 |
|
Datasheet |
Radial | 18 µF | ±20% | 160V | 250V | Polyester, Polyethylene Terephthalate (PET), Metallized | - | -55°C ~ 125°C | Through Hole | 1.240" L x 0.787" W (31.50mm x 20.00mm) | 1.555" (39.50mm) | PC Pins | 1.083" (27.50mm) | Automotive; DC Link, DC Filtering | AEC-Q200 | - |
|
|
SFA37S3K156B-FCAP FILM 3UF 10% 370VAC RADIAL |
4,305 |
|
Datasheet |
Radial, Can | 3 µF | ±10% | 370V | - | Polypropylene (PP), Metallized | - | -40°C ~ 70°C | Chassis Mount, Requires Holder/Bracket | 2.160" L x 1.310" W (54.86mm x 33.27mm), Lip | 1.680" (42.67mm) | Quick Connect, Disconnect | 0.810" (20.57mm) | Motor Run | - | - |
|
|
SFA37S5K156B-FCAP FILM 5UF 10% 370VAC RADIAL |
2,064 |
|
Datasheet |
Radial, Can | 5 µF | ±10% | 370V | - | Polypropylene (PP), Metallized | - | -40°C ~ 70°C | Chassis Mount, Requires Holder/Bracket | 2.160" L x 1.310" W (54.86mm x 33.27mm), Lip | 1.680" (42.67mm) | Quick Connect, Disconnect | 0.810" (20.57mm) | Motor Run | - | - |
|
|
SFA44S3K156B-FCAP FILM 3UF 10% 440VAC RADIAL |
3,404 |
|
Datasheet |
Radial, Can | 3 µF | ±10% | 440V | - | Polypropylene (PP), Metallized | - | -40°C ~ 70°C | Chassis Mount, Requires Holder/Bracket | 2.160" L x 1.310" W (54.86mm x 33.27mm), Lip | 1.680" (42.67mm) | Quick Connect, Disconnect | 0.810" (20.57mm) | Motor Run | - | - |
|
|
DCP4L051507GD2KSC9DC-LINK MKP 4 15.0 F 800 VDC 20X |
8,829 |
|
Datasheet |
- | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
DCP4L051507GD4MSC9DC-LINK MKP 4 15.0 F 800 VDC 20X |
7,932 |
|
Datasheet |
- | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
DCP4L051507GD2MSC9DC-LINK MKP 4 15.0 F 800 VDC 20X |
3,175 |
|
Datasheet |
- | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
DCP4L051507GD4KSC9DC-LINK MKP 4 15.0 F 800 VDC 20X |
6,081 |
|
Datasheet |
- | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
F461RH825R250Z8.20UF 250V |
2,880 |
|
- |
- | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|

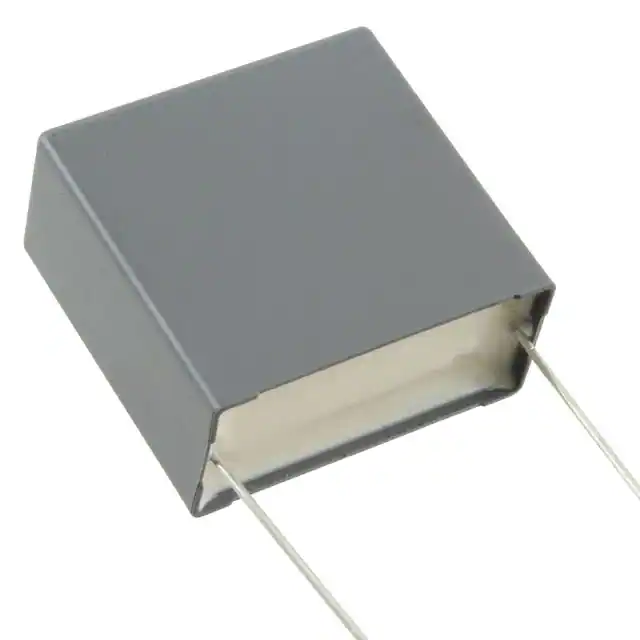

R475W42204001KCAP FILM 2.2UF 10% 1KVDC RADIAL |
2,155 |
|
Datasheet |
Radial | 2.2 µF | ±10% | 520V | 1000V (1kV) | Polypropylene (PP), Metallized | - | -40°C ~ 85°C | Through Hole | 1.634" L x 0.787" W (41.50mm x 20.00mm) | 1.579" (40.10mm) | PC Pins | 1.476" (37.50mm) | Automotive; EMI, RFI Suppression | AEC-Q200, X2 | - |
|
BFC233861224CAP FILM 0.22UF 10% 1KVDC RADIAL |
8,139 |
|
Datasheet |
Radial | 0.22 µF | ±10% | 300V | 1000V (1kV) | Polypropylene (PP), Metallized | - | -55°C ~ 105°C | Through Hole | 1.220" L x 0.591" W (31.00mm x 15.00mm) | 0.984" (25.00mm) | PC Pins | 1.083" (27.50mm) | Automotive; EMI, RFI Suppression | AEC-Q200, Y2 | - |
|
|
FKP1J034707G00MSSDFKP 1 0.47 F 630 VDC 20X39.5X41. |
8,229 |
|
Datasheet |
- | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
F462FY105J1L2ZCAP FILM POLYPROP RAD |
6,728 |
|
Datasheet |
Radial | 1 µF | ±5% | 400V | 1250V (1.25kV) | Polypropylene (PP), Metallized | - | -55°C ~ 105°C | Through Hole | 1.240" L x 0.866" W (31.50mm x 22.00mm) | 1.457" (37.00mm) | PC Pins | 1.083" (27.50mm) | High Pulse, DV/DT | - | - |
|
|
F462RC394R1K6ZCAP |
6,953 |
|
- |
- | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
