Film Capacitors
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Package/Case | Capacitance | Tolerance | Voltage Rating - AC | Voltage Rating - DC | Dielectric Material | ESR (Equivalent Series Resistance) | Operating Temperature | Mounting Type | Size / Dimension | Height - Seated (Max) | Termination | Lead Spacing | Applications | Ratings | Features |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
MKT1820447105CAP FILM 0.47UF 10% 1KVDC RADIAL |
3,594 |
|
Datasheet |
Radial | 0.47 µF | ±10% | 220V | 1000V (1kV) | Polyester, Metallized | - | -55°C ~ 125°C | Through Hole | 1.240" L x 0.787" W (31.50mm x 20.00mm) | 1.378" (35.00mm) | PC Pins | 1.083" (27.50mm) | DC Link, DC Filtering | - | - |
|
|
MKT1820447106CAP FILM 0.47UF 20% 1KVDC RADIAL |
7,226 |
|
Datasheet |
Radial | 0.47 µF | ±20% | 220V | 1000V (1kV) | Polyester, Metallized | - | -55°C ~ 125°C | Through Hole | 1.240" L x 0.787" W (31.50mm x 20.00mm) | 1.378" (35.00mm) | PC Pins | 1.083" (27.50mm) | DC Link, DC Filtering | - | - |
|
FKP1T032207H00MSSDFKP 1 0.22 F 1600 VDC 24X45.5X41 |
7,346 |
|
Datasheet |
- | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
R76QW41205030JCAP FILM AUTO POLYPROP RAD |
5,055 |
|
Datasheet |
Radial | 1.2 µF | ±5% | 600V | 1000V (1kV) | Polypropylene (PP), Metallized | 15.9 mOhms | -55°C ~ 110°C | Through Hole | 1.634" L x 0.945" W (41.50mm x 24.00mm) | 1.736" (44.10mm) | PC Pins | 1.476" (37.50mm) | High Frequency, Switching; High Pulse, DV/DT | - | - |
|

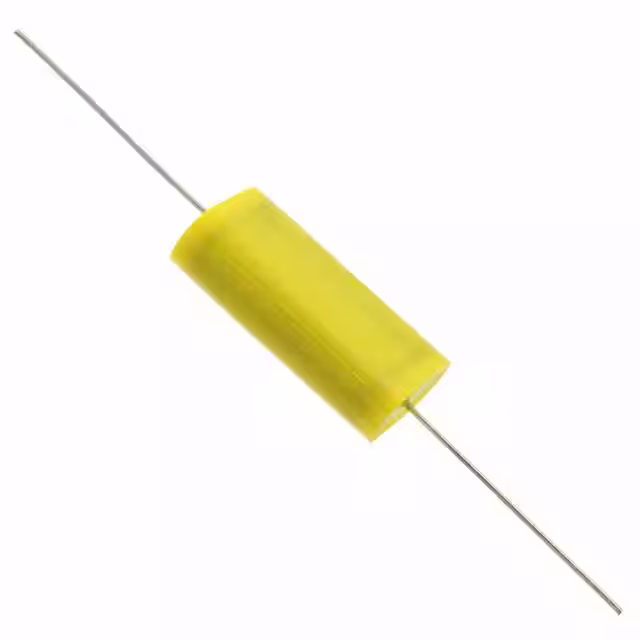

QAP2J105KRPCAP FILM 1UF 10% 630VDC AXIAL |
9,238 |
|
Datasheet |
Axial | 1 µF | ±10% | - | 630V | Polypropylene (PP), Metallized | - | -40°C ~ 85°C | Through Hole | 0.850" W, 0.469" T x 1.575" L (21.60mm, 11.90mm x 40.00mm) | - | PC Pins | - | High Frequency, Switching | - | - |
|
|
MKX2AW46807H00KSSDMKP-X2 6.8 F 305 VAC 24X45.5X41. |
5,025 |
|
Datasheet |
- | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
DCP4G052507DD2MSC9DC-LINK MKP 4 25.0 F 400 VDC 15X |
3,412 |
|
Datasheet |
- | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
R76MW4330SE30JCAP FILM AUTO POLYPROP RAD |
7,985 |
|
Datasheet |
Radial | 3.3 µF | ±5% | 250V | 400V | Polypropylene (PP), Metallized | 5.8 mOhms | -55°C ~ 110°C | Through Hole | 1.634" L x 0.748" W (41.50mm x 19.00mm) | 1.264" (32.10mm) | PC Pins | 1.476" (37.50mm) | High Frequency, Switching; High Pulse, DV/DT | - | - |
|
|
MXH126K305N40FILM/IC |
3,690 |
|
Datasheet |
Radial | 12 µF | ±10% | 305V | 630V | Polypropylene (PP), Metallized | - | -40°C ~ 110°C | Through Hole | 1.654" L x 1.181" W (42.00mm x 30.00mm) | 1.811" (46.00mm) | PC Pins | 1.476" (37.50mm) | Automotive; EMI, RFI Suppression | AEC-Q200, X2 | - |
|
|
C276CC35250AA5JCAP FILM 25UF 5% 470VAC RADIAL |
8,493 |
|
Datasheet |
Radial, Can | 25 µF | ±5% | 470V | - | Polypropylene (PP), Metallized | - | -25°C ~ 85°C | Chassis, Stud Mount | 1.772" Dia (45.00mm) | 2.992" (76.00mm) | Quick Connect - 0.250" (6.3mm) | 0.528" (13.40mm) | Motor Run | - | - |
|
|
SFA37S7.5K156BCAP FILM 7.5UF 10% 370VAC RADIAL |
5,397 |
|
Datasheet |
Radial, Can | 7.5 µF | ±10% | 370V | - | Polypropylene (PP), Metallized | - | -40°C ~ 70°C | Chassis Mount, Requires Holder/Bracket | 2.160" L x 1.310" W (54.86mm x 33.27mm), Lip | 1.680" (42.67mm) | Quick Connect, Disconnect | 0.810" (20.57mm) | Motor Run | - | - |
|
MKP1848H61250KK2CAP FILM 12UF 10% 500VDC RADIAL |
7,508 |
|
Datasheet |
Radial | 12 µF | ±10% | - | 500V | Polypropylene (PP), Metallized | 5 mOhms | -40°C ~ 85°C | Through Hole | 1.260" L x 0.827" W (32.00mm x 21.00mm) | 1.248" (31.70mm) | PC Pins | 1.083" (27.50mm) | Automotive; DC Link, DC Filtering | AEC-Q200 | 85C/85% Humidity; Low ESR, Low ESL |
|
MKP1848560094K2CAP FILM 6UF 5% 900VDC RADIAL |
3,350 |
|
Datasheet |
Radial | 6 µF | ±5% | - | 900V | Polypropylene (PP), Metallized | 10 mOhms | -40°C ~ 105°C | Through Hole | 1.260" L x 0.827" W (32.00mm x 21.00mm) | 1.220" (31.00mm) | PC Pins | 1.083" (27.50mm) | Automotive; DC Link, DC Filtering | AEC-Q200 | Low ESR |
|
|
MKP1848590704K2CAP FILM 9UF 5% 700VDC RADIAL |
8,225 |
|
Datasheet |
Radial | 9 µF | ±5% | - | 700V | Polypropylene (PP), Metallized | 7.5 mOhms | -40°C ~ 105°C | Through Hole | 1.260" L x 0.827" W (32.00mm x 21.00mm) | 1.220" (31.00mm) | PC Pins | 1.083" (27.50mm) | Automotive; DC Link, DC Filtering | AEC-Q200 | Low ESR |
|
|
BFC238351473CAP FILM 0.047UF 5% 1.6KVDC RAD |
5,078 |
|
Datasheet |
Radial | 0.047 µF | ±5% | 550V | 1600V (1.6kV) | Polypropylene (PP), Metallized | - | -55°C ~ 105°C | Through Hole | 1.220" L x 0.433" W (31.00mm x 11.00mm) | 0.827" (21.00mm) | PC Pins | 1.083" (27.50mm) | High Pulse, DV/DT | - | - |
|

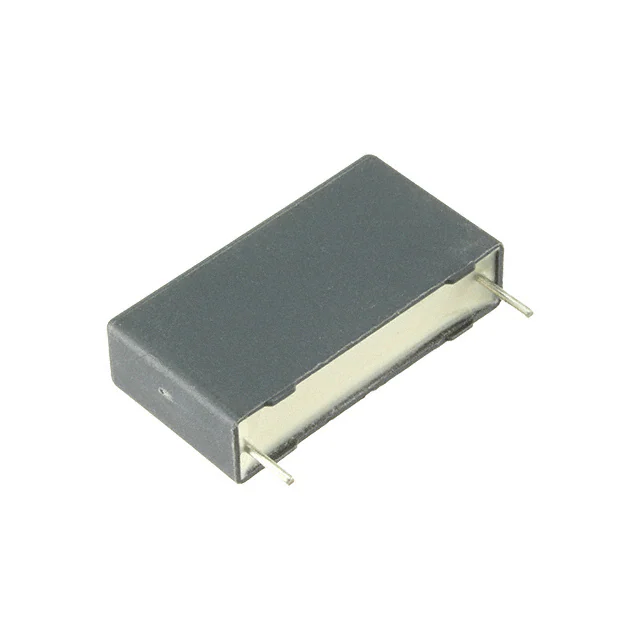

825MKP275KJCAP FILM 8.2UF 10% 310VAC RADIAL |
6,713 |
|
Datasheet |
Radial | 8.2 µF | ±10% | 310V | - | Polypropylene (PP), Metallized | - | -40°C ~ 110°C | Through Hole | 1.634" L x 0.996" W (41.50mm x 25.30mm) | 1.508" (38.30mm) | PC Pins | 1.476" (37.50mm) | EMI, RFI Suppression | X2 | - |
|
|
MKPF1W51207G00KSC9MKP 4F 12.0 F 275 VAC 20X39.5X41 |
8,333 |
|
Datasheet |
- | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
BLH126K701B012DC LINK, THB, 85/85, AEC-Q200 |
3,525 |
|
Datasheet |
Radial | 12 µF | ±10% | - | 700V | Polypropylene (PP), Metallized | 7 mOhms | -40°C ~ 105°C | Through Hole | 1.673" L x 0.945" W (42.50mm x 24.00mm) | 0.740" (18.80mm) | PC Pins | 1.476" (37.50mm) | Automotive; DC Link, DC Filtering | AEC-Q200 | 85C/85% Humidity, THB, Low ESR, Low ESL, Long Life |
|
BFC236821335CAP FILM 3.3UF 10% 100VDC RADIAL |
6,625 |
|
Datasheet |
Radial | 3.3 µF | ±10% | 63V | 100V | Polyester, Metallized | - | -55°C ~ 105°C | Through Hole | 1.024" L x 0.354" W (26.00mm x 9.00mm) | 0.866" (22.00mm) | PC Pins | 0.886" (22.50mm) | General Purpose | - | Long Life |
|
|
EFDKS1BJ146E164DHCAP EFDKS 1100VDC 14UF J 4LEADS |
4,553 |
|
Datasheet |
Radial - 4 Leads | 14 µF | ±5% | - | 1100V (1.1kV) | Polypropylene (PP), Metallized | 9.5 mOhms | -40°C ~ 105°C | Through Hole | 1.654" L x 1.181" W (42.00mm x 30.00mm) | 1.811" (46.00mm) | PC Pins | 1.476" (37.50mm) | DC Link, DC Filtering | - | - |
