Film Capacitors
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Package/Case | Capacitance | Tolerance | Voltage Rating - AC | Voltage Rating - DC | Dielectric Material | ESR (Equivalent Series Resistance) | Operating Temperature | Mounting Type | Size / Dimension | Height - Seated (Max) | Termination | Lead Spacing | Applications | Ratings | Features |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
MKP1T041007H00MSSDMKP 10 1.0 F 1600 VDC 24X45.5X41 |
3,700 |
|
Datasheet |
- | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
A50CK4680AA00JCAP FILM AXL |
8,999 |
|
Datasheet |
Axial | 6.8 µF | ±5% | 30V | 50V | Polyester, Polyethylene Terephthalate (PET), Metallized | - | -55°C ~ 105°C | Through Hole | 0.394" Dia x 0.807" L (10.00mm x 20.50mm) | - | PC Pins | - | Automotive | AEC-Q200 | - |
|
|
MKP1840547404MCAP FILM 4.7UF 5% 400VDC RADIAL |
7,895 |
|
Datasheet |
Radial | 4.7 µF | ±5% | 220V | 400V | Polypropylene (PP), Metallized | - | -55°C ~ 100°C | Through Hole | 1.614" L x 0.709" W (41.00mm x 18.00mm) | 1.280" (32.50mm) | PC Pins | 1.476" (37.50mm) | DC Link, DC Filtering; High Frequency, Switching; High Pulse, DV/DT | - | - |
|
|
MKP1840547405MCAP FILM 4.7UF 10% 400VDC RADIAL |
2,479 |
|
Datasheet |
Radial | 4.7 µF | ±10% | 220V | 400V | Polypropylene (PP), Metallized | - | -55°C ~ 100°C | Through Hole | 1.614" L x 0.709" W (41.00mm x 18.00mm) | 1.280" (32.50mm) | PC Pins | 1.476" (37.50mm) | DC Link, DC Filtering; High Frequency, Switching; High Pulse, DV/DT | - | - |
|
BFC238332124CAP FILM 0.12UF 5% 1KVDC RADIAL |
2,712 |
|
Datasheet |
Radial | 0.12 µF | ±5% | 350V | 1000V (1kV) | Polypropylene (PP), Metallized | - | -55°C ~ 105°C | Through Hole | 1.024" L x 0.394" W (26.00mm x 10.00mm) | 0.768" (19.50mm) | PC Pins | 0.886" (22.50mm) | High Pulse, DV/DT | - | - |
|
|
BFC247964304CAP FILM 0.3UF 5% 630VDC RADIAL |
4,123 |
|
Datasheet |
Radial | 0.3 µF | ±5% | 200V | 630V | Polypropylene (PP), Metallized | - | -55°C ~ 105°C | Through Hole | 1.024" L x 0.394" W (26.00mm x 10.00mm) | 0.906" (23.00mm) | PC Pins | 0.886" (22.50mm) | High Pulse, DV/DT | - | Long Life |
|
|
BFC233842684CAP FILM 0.68UF 10% 800VDC RAD |
2,479 |
|
Datasheet |
Radial | 0.68 µF | ±10% | 300V | 800V | Polypropylene (PP), Metallized | - | -55°C ~ 105°C | Through Hole | 1.024" L x 0.472" W (26.00mm x 12.00mm) | 0.866" (22.00mm) | PC Pins | 0.886" (22.50mm) | EMI, RFI Suppression | X2 | - |
|
|
BFC233843684CAP FILM 0.68UF 10% 800VDC RAD |
6,026 |
|
Datasheet |
Radial | 0.68 µF | ±10% | 300V | 800V | Polypropylene (PP), Metallized | - | -55°C ~ 105°C | Through Hole | 1.024" L x 0.472" W (26.00mm x 12.00mm) | 0.866" (22.00mm) | PC Pins | 0.886" (22.50mm) | EMI, RFI Suppression | X2 | - |
|
|
MKP4J044707G00KSSDMKP 4 4.7 F 630 VDC 20X39.5X41.5 |
4,693 |
|
Datasheet |
Radial | 4.7 µF | ±10% | 280V | 630V | Polypropylene (PP), Metallized | - | -55°C ~ 105°C | Through Hole | 1.634" L x 0.787" W (41.50mm x 20.00mm) | 1.555" (39.50mm) | PC Pins | 1.476" (37.50mm) | High Frequency, Switching | - | - |
|
|
DCP4H152006ID2MSSDDC-LINK MKP 4 20.0 F 500 VDC 17X |
3,389 |
|
Datasheet |
- | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
DCP4H151806GD2JSC9DC-LINK MKP 4 18.0 F 500 VDC 17X |
8,865 |
|
Datasheet |
- | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|

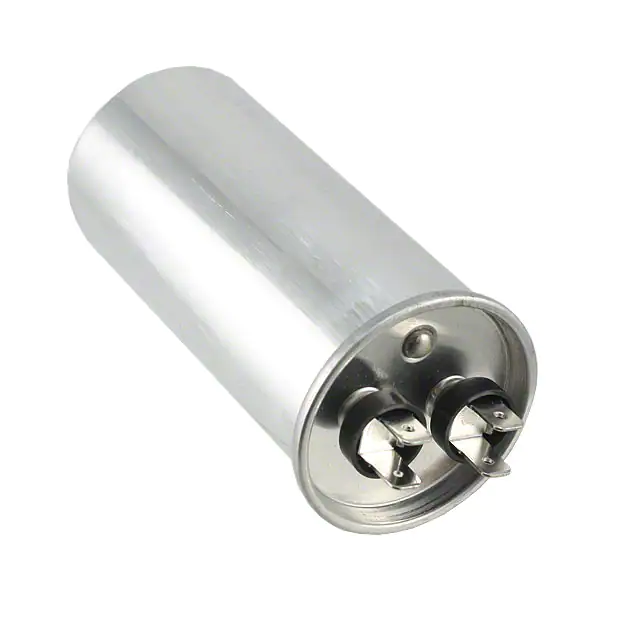

DS371356-CACAP FILM 35UF 10% 370VAC RADIAL |
8,159 |
|
Datasheet |
Radial, Can | 35 µF | ±10% | 370V | - | Polypropylene (PP), Metallized | - | -25°C ~ 70°C | Chassis Mount, Requires Holder/Bracket | 1.772" Dia (45.00mm) | 4.016" (102.00mm) | Quick Connect, Disconnect | 0.709" (18.00mm) | Motor Run | - | - |
|
|
MKS4G051507G00JSSDCAP FILM 15UF 5% 400VDC RADIAL |
4,199 |
|
Datasheet |
Radial | 15 µF | ±5% | 200V | 400V | Polyester, Polyethylene Terephthalate (PET), Metallized | - | -55°C ~ 125°C | Through Hole | 1.634" L x 0.787" W (41.50mm x 20.00mm) | 1.555" (39.50mm) | PC Pins | 1.476" (37.50mm) | Automotive; DC Link, DC Filtering | AEC-Q200 | - |
|
|
MKP1O141507L00KSC9MKP 10 1.5 F 1000 VDC 28X38X41.5 |
2,519 |
|
Datasheet |
- | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
FKP1U031507H00JSC9FKP 1 0.15 F 2000 VDC 24X45.5X41 |
6,001 |
|
Datasheet |
- | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
SMC7.3104J50K33TR12CAP FILM 0.1UF 5% 50VDC 2824 |
4,447 |
|
Datasheet |
2824 (7260 Metric) | 0.1 µF | ±5% | 30V | 50V | Polyphenylene Sulfide (PPS), Metallized | - | -55°C ~ 125°C | Surface Mount | 0.287" L x 0.236" W (7.30mm x 6.00mm) | 0.118" (3.00mm) | Solder Pads | - | General Purpose | - | High Temperature |
|
|
MKP385E51585KPP2T0CAP FILM 1.5UF 10% 850VDC RAD |
2,231 |
|
Datasheet |
Radial | 1.5 µF | ±10% | 300V | 850V | Polypropylene (PP), Metallized | 6 mOhms | -40°C ~ 105°C | Through Hole | 1.634" L x 0.618" W (41.50mm x 15.70mm) | 1.142" (29.00mm) | PC Pins | 1.476" (37.50mm) | Automotive; High Frequency, Switching; High Pulse, DV/DT; Snubber | AEC-Q200 | High Temperature |
|
|
MKP385E51585KPM2T0CAP FILM 1.5UF 10% 850VDC RAD |
3,814 |
|
Datasheet |
Radial | 1.5 µF | ±10% | 300V | 850V | Polypropylene (PP), Metallized | 6 mOhms | -40°C ~ 105°C | Through Hole | 1.634" L x 0.618" W (41.50mm x 15.70mm) | 1.142" (29.00mm) | PC Pins | 1.476" (37.50mm) | Automotive; High Frequency, Switching; High Pulse, DV/DT; Snubber | AEC-Q200 | High Temperature |
|
|
MKP1T041007L00JSSDMKP 10 1.0 F 1600 VDC 28X38X41.5 |
2,377 |
|
Datasheet |
- | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
MKP385368250JKM2T0CAP FILM 0.068UF 5% 2.5KVDC RAD |
6,444 |
|
Datasheet |
Radial | 0.068 µF | ±5% | 900V | 2500V (2.5kV) | Polypropylene (PP), Metallized | - | -55°C ~ 110°C | Through Hole | 1.220" L x 0.827" W (31.00mm x 21.00mm) | 1.220" (31.00mm) | PC Pins | 1.083" (27.50mm) | DC Link, DC Filtering; High Frequency, Switching; High Pulse, DV/DT | - | - |
