Film Capacitors
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Package/Case | Capacitance | Tolerance | Voltage Rating - AC | Voltage Rating - DC | Dielectric Material | ESR (Equivalent Series Resistance) | Operating Temperature | Mounting Type | Size / Dimension | Height - Seated (Max) | Termination | Lead Spacing | Applications | Ratings | Features |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
BFC238332114CAP FILM 0.11UF 5% 1KVDC RADIAL |
7,900 |
|
Datasheet |
Radial | 0.11 µF | ±5% | 350V | 1000V (1kV) | Polypropylene (PP), Metallized | - | -55°C ~ 105°C | Through Hole | 1.024" L x 0.394" W (26.00mm x 10.00mm) | 0.768" (19.50mm) | PC Pins | 0.886" (22.50mm) | High Pulse, DV/DT | - | - |
|
MKP4D051206G00KSC9MKP 4 12.0 F 100 VDC 17X29X31.5 |
2,178 |
|
Datasheet |
- | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
DCP4G052506GD2MSSDDC-LINK MKP 4 25.0 F 400 VDC 17X |
9,192 |
|
Datasheet |
- | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
DCP4R251007HD4JSSDDC-LINK MKP 4 10.0 F 1300 VDC 24 |
5,428 |
|
Datasheet |
- | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
MKS4C053306F00MSSDCAP FILM 33UF 20% 63VDC RADIAL |
5,564 |
|
Datasheet |
Radial | 33 µF | ±20% | 40V | 63V | Polyester, Polyethylene Terephthalate (PET), Metallized | - | -55°C ~ 125°C | Through Hole | 1.240" L x 0.591" W (31.50mm x 15.00mm) | 1.024" (26.00mm) | PC Pins | 1.083" (27.50mm) | Automotive; DC Link, DC Filtering | AEC-Q200 | - |
|
|
MKP4J044707G00JSSDMKP 4 4.7 F 630 VDC 20X39.5X41.5 |
9,534 |
|
Datasheet |
- | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|

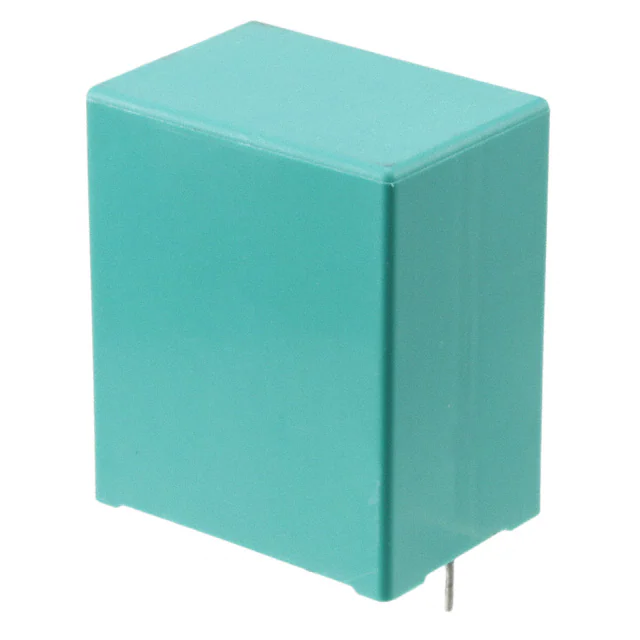

C4AEJBU5125A12JCAP FILM 12.5UF 5% 700VDC RADIAL |
4,981 |
|
Datasheet |
Radial | 12.5 µF | ±5% | - | 700V | Polypropylene (PP), Metallized | 5.5 mOhms | -40°C ~ 85°C | Through Hole | 1.240" L x 0.866" W (31.50mm x 22.00mm) | 1.465" (37.20mm) | PC Pins | 1.083" (27.50mm) | DC Link, DC Filtering; High Frequency, Switching | - | - |
|
|
MKP1O141507L00JSC9MKP 10 1.5 F 1000 VDC 28X38X41.5 |
2,301 |
|
Datasheet |
- | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
FKP1T032207H00JSC9FKP 1 0.22 F 1600 VDC 24X45.5X41 |
2,564 |
|
Datasheet |
- | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
C870CF25100AA0JCAP FILM MOTOR START RUN |
3,916 |
|
Datasheet |
Radial, Can | 10 µF | ±5% | 470V | - | Polypropylene (PP), Metallized | - | -25°C ~ 85°C | Chassis, Stud Mount | 1.181" Dia (30.00mm) | 3.150" (80.00mm) | Quick Connect, Disconnect | 0.394" (10.00mm) | Motor Run | - | - |
|
|
MKS4D053306G00KSC9CAP FILM 33UF 10% 100VDC RADIAL |
9,888 |
|
Datasheet |
Radial | 33 µF | ±10% | 63V | 100V | Polyester, Polyethylene Terephthalate (PET), Metallized | - | -55°C ~ 125°C | Through Hole | 1.240" L x 0.669" W (31.50mm x 17.00mm) | 1.142" (29.00mm) | PC Pins | 1.083" (27.50mm) | Automotive; DC Link, DC Filtering | AEC-Q200 | - |
|
BFC233864274CAP FILM 0.27UF 20% 1KVDC RADIAL |
3,692 |
|
Datasheet |
Radial | 0.27 µF | ±20% | 300V | 1000V (1kV) | Polypropylene (PP), Metallized | - | -55°C ~ 105°C | Through Hole | 1.220" L x 0.591" W (31.00mm x 15.00mm) | 0.984" (25.00mm) | PC Pins | 1.083" (27.50mm) | Automotive; EMI, RFI Suppression | AEC-Q200, Y2 | - |
|
|
MKP385E48212KPM2T0CAP FILM 0.82UF 10% 1.25KVDC RAD |
2,797 |
|
Datasheet |
Radial | 0.82 µF | ±10% | 450V | 1250V (1.25kV) | Polypropylene (PP), Metallized | 5 mOhms | -40°C ~ 105°C | Through Hole | 1.634" L x 0.709" W (41.50mm x 18.00mm) | 1.299" (33.00mm) | PC Pins | 1.476" (37.50mm) | Automotive; High Frequency, Switching; High Pulse, DV/DT; Snubber | AEC-Q200 | High Temperature |
|
|
MKP385E48212KPP2T0CAP FILM 0.82UF 10% 1.25KVDC RAD |
8,909 |
|
Datasheet |
Radial | 0.82 µF | ±10% | 450V | 1250V (1.25kV) | Polypropylene (PP), Metallized | 5 mOhms | -40°C ~ 105°C | Through Hole | 1.634" L x 0.709" W (41.50mm x 18.00mm) | 1.299" (33.00mm) | PC Pins | 1.476" (37.50mm) | Automotive; High Frequency, Switching; High Pulse, DV/DT; Snubber | AEC-Q200 | High Temperature |
|
|
MKX2AW48207H00MSC9MKP-X2 8.2 F 305 VAC 24X45.5X41. |
2,157 |
|
Datasheet |
- | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
MKX2AW51007H00MSC9MKP-X2 10.0 F 305 VAC 24X45.5X41 |
6,056 |
|
Datasheet |
- | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
MKP1848S53010JP4CCAP FILM 3UF 5% 1KVDC RADIAL |
5,809 |
|
Datasheet |
Radial - 4 Leads | 3 µF | ±5% | - | 1000V (1kV) | Polypropylene (PP), Metallized | 19 mOhms | -40°C ~ 105°C | Through Hole | 1.654" L x 0.945" W (42.00mm x 24.00mm) | 0.709" (18.00mm) | PC Pins | 1.476" (37.50mm) | DC Link, DC Filtering | - | Low ESR; Low ESL; Long Life |
|
|
MKP385E53940JPP2T0CAP FILM 3.9UF 5% 400VDC RAD |
8,878 |
|
Datasheet |
Radial | 3.9 µF | ±5% | 200V | 400V | Polypropylene (PP), Metallized | 4 mOhms | -40°C ~ 105°C | Through Hole | - | - | PC Pins | 1.476" (37.50mm) | Automotive; High Frequency, Switching; High Pulse, DV/DT; Snubber | AEC-Q200 | High Temperature |
|
|
MKP385E53940JPM2T0CAP FILM 3.9UF 5% 400VDC RAD |
8,965 |
|
Datasheet |
Radial | 3.9 µF | ±5% | 200V | 400V | Polypropylene (PP), Metallized | 4 mOhms | -40°C ~ 105°C | Through Hole | - | - | PC Pins | 1.476" (37.50mm) | Automotive; High Frequency, Switching; High Pulse, DV/DT; Snubber | AEC-Q200 | High Temperature |
|
|
BFC238311684CAP FILM 0.68UF 5% 400VDC RADIAL |
8,189 |
|
Datasheet |
Radial | 0.68 µF | ±5% | 200V | 400V | Polypropylene (PP), Metallized | - | -55°C ~ 105°C | Through Hole | 1.220" L x 0.512" W (31.00mm x 13.00mm) | 0.906" (23.00mm) | PC Pins | 1.083" (27.50mm) | High Pulse, DV/DT | - | - |
