Film Capacitors
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Package/Case | Capacitance | Tolerance | Voltage Rating - AC | Voltage Rating - DC | Dielectric Material | ESR (Equivalent Series Resistance) | Operating Temperature | Mounting Type | Size / Dimension | Height - Seated (Max) | Termination | Lead Spacing | Applications | Ratings | Features |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
F340Y246830MKM2T0CAP FILM 0.68UF 20% 1KVDC RAD |
3,260 |
|
Datasheet |
Radial | 0.68 µF | ±20% | 305V | 1000V (1kV) | Polypropylene (PP), Metallized | - | -55°C ~ 105°C | Through Hole | 1.220" L x 0.827" W (31.00mm x 21.00mm) | 1.224" (31.10mm) | PC Pins | 1.083" (27.50mm) | Automotive; EMI, RFI Suppression | AEC-Q200, Y2 | 85C/85% Humidity |
|
|
F340Y246830MKP2T0CAP FILM 0.68UF 20% 1KVDC RAD |
5,257 |
|
Datasheet |
Radial | 0.68 µF | ±20% | 305V | 1000V (1kV) | Polypropylene (PP), Metallized | - | -55°C ~ 105°C | Through Hole | 1.220" L x 0.827" W (31.00mm x 21.00mm) | 1.224" (31.10mm) | PC Pins | 1.083" (27.50mm) | Automotive; EMI, RFI Suppression | AEC-Q200, Y2 | 85C/85% Humidity |
|
|
F340Y246830MKI2B0CAP FILM 0.68UF 20% 1KVDC RAD |
6,504 |
|
Datasheet |
Radial | 0.68 µF | ±20% | 305V | 1000V (1kV) | Polypropylene (PP), Metallized | - | -55°C ~ 105°C | Through Hole | 1.220" L x 0.827" W (31.00mm x 21.00mm) | 1.224" (31.10mm) | PC Pins | 1.083" (27.50mm) | Automotive; EMI, RFI Suppression | AEC-Q200, Y2 | 85C/85% Humidity |
|
MKP1T041007H00JSSDMKP 10 1.0 F 1600 VDC 24X45.5X41 |
6,752 |
|
Datasheet |
Radial | 1 µF | ±5% | 650V | 1600V (1.6kV) | Polypropylene (PP), Metallized | - | -55°C ~ 105°C | Through Hole | 1.634" L x 0.945" W (41.50mm x 24.00mm) | 1.791" (45.50mm) | PC Pins | 1.476" (37.50mm) | General Purpose | - | - |
|
|
F462FY684K1K6ZCAP FILM POLYPROP RAD |
4,250 |
|
Datasheet |
Radial | 0.68 µF | ±10% | 500V | 1600V (1.6kV) | Polypropylene (PP), Metallized | - | -55°C ~ 105°C | Through Hole | 1.240" L x 0.866" W (31.50mm x 22.00mm) | 1.457" (37.00mm) | PC Pins | 1.083" (27.50mm) | High Pulse, DV/DT | - | - |
|
|
DCP4H152006ID2JSSDDC-LINK MKP 4 20.0 F 500 VDC 17X |
6,992 |
|
Datasheet |
- | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
DCP4H152007ED2MSSDDC-LINK MKP 4 20.0 F 500 VDC 17X |
4,209 |
|
Datasheet |
- | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
MKP1848H61080JK2CAP FILM 10UF 5% 800VDC RADIAL |
6,072 |
|
Datasheet |
Radial | 10 µF | ±5% | - | 800V | Polypropylene (PP), Metallized | 5.4 mOhms | -40°C ~ 85°C | Through Hole | 1.260" L x 0.866" W (32.00mm x 22.00mm) | 1.524" (38.70mm) | PC Pins | 1.083" (27.50mm) | Automotive; DC Link, DC Filtering | AEC-Q200 | 85C/85% Humidity; Low ESR, Low ESL |
|
|
EEC2E505HWNM09CAP FILM 5UF -5% +10% 250VAC RAD |
7,735 |
|
Datasheet |
Radial | 5 µF | -5%, +10% | 250V | - | Polypropylene (PP), Metallized | - | -25°C ~ 85°C | Through Hole | 1.457" L x 0.531" W (37.00mm x 13.50mm) | 1.142" (29.00mm) | PC Pins | 1.346" (34.20mm) | Motor Run | - | - |
|
|
FKP4T034707H00MSC9FKP 4 0.47 F 1600 VDC 24X45.5X41 |
2,457 |
|
Datasheet |
- | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
FKP4T033307H00MSC9FKP 4 0.33 F 1600 VDC 24X45.5X41 |
3,080 |
|
Datasheet |
- | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
BFC238364433CAP FILM 0.043UF 5% 2KVDC RADIAL |
6,032 |
|
Datasheet |
Radial | 0.043 µF | ±5% | 700V | 2000V (2kV) | Polypropylene (PP), Metallized | - | -55°C ~ 105°C | Through Hole | 1.220" L x 0.512" W (31.00mm x 13.00mm) | 0.906" (23.00mm) | PC Pins | 1.083" (27.50mm) | High Pulse, DV/DT | - | - |
|
|
F17735152000CAP FILM 1.5UF 10% 630VDC AXIAL |
2,918 |
|
Datasheet |
Axial | 1.5 µF | ±10% | 253V | 630V | Polyester, Metallized | - | -40°C ~ 85°C | Through Hole | 0.709" Dia x 1.634" L (18.00mm x 41.50mm) | - | PC Pins | - | EMI, RFI Suppression | X2 | - |
|
|
BFC238344683CAP FILM 0.068UF 5% 1.4KVDC RAD |
2,497 |
|
Datasheet |
Radial | 0.068 µF | ±5% | 500V | 1400V (1.4kV) | Polypropylene (PP), Metallized | - | -55°C ~ 105°C | Through Hole | 1.220" L x 0.512" W (31.00mm x 13.00mm) | 0.906" (23.00mm) | PC Pins | 1.083" (27.50mm) | High Pulse, DV/DT | - | - |
|
|
F340Y246830KPP2T0CAP FILM 0.68UF 10% 1KVDC RAD |
9,730 |
|
Datasheet |
Radial | 0.68 µF | ±10% | 305V | 1000V (1kV) | Polypropylene (PP), Metallized | - | -55°C ~ 105°C | Through Hole | 1.634" L x 0.630" W (41.50mm x 16.00mm) | 1.142" (29.00mm) | PC Pins | 1.476" (37.50mm) | Automotive; EMI, RFI Suppression | AEC-Q200, Y2 | 85C/85% Humidity |
|
|
F340Y246830KPM2T0CAP FILM 0.68UF 10% 1KVDC RAD |
7,160 |
|
Datasheet |
Radial | 0.68 µF | ±10% | 305V | 1000V (1kV) | Polypropylene (PP), Metallized | - | -55°C ~ 105°C | Through Hole | 1.634" L x 0.630" W (41.50mm x 16.00mm) | 1.142" (29.00mm) | PC Pins | 1.476" (37.50mm) | Automotive; EMI, RFI Suppression | AEC-Q200, Y2 | 85C/85% Humidity |
|
|
F340Y246830KPI2T0CAP FILM 0.68UF 10% 1KVDC RAD |
4,612 |
|
Datasheet |
Radial | 0.68 µF | ±10% | 305V | 1000V (1kV) | Polypropylene (PP), Metallized | - | -55°C ~ 105°C | Through Hole | 1.634" L x 0.630" W (41.50mm x 16.00mm) | 1.142" (29.00mm) | PC Pins | 1.476" (37.50mm) | Automotive; EMI, RFI Suppression | AEC-Q200, Y2 | 85C/85% Humidity |
|

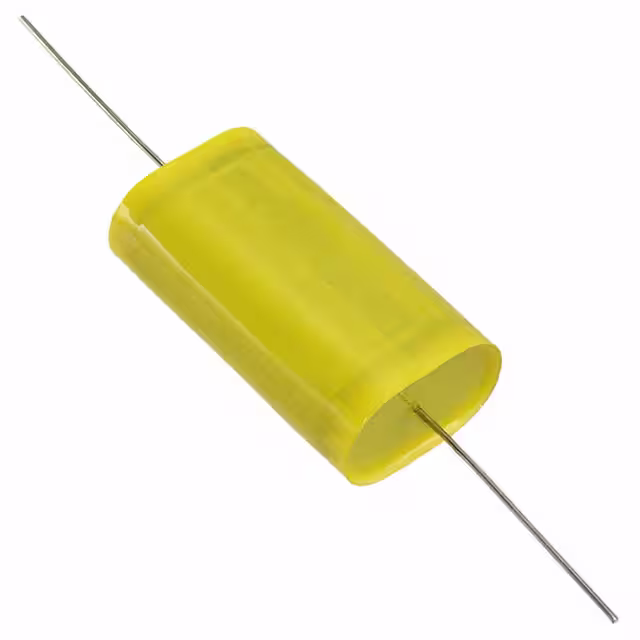

QAP2J335KRPCAP FILM 3.3UF 10% 630VDC AXIAL |
7,579 |
|
Datasheet |
Axial | 3.3 µF | ±10% | - | 630V | Polypropylene (PP), Metallized | - | -40°C ~ 85°C | Through Hole | 1.146" W, 0.764" T x 2.047" L (29.10mm, 19.40mm x 52.00mm) | - | PC Pins | - | High Frequency, Switching | - | - |
|
|
DCP4H152006ID2JSC9DC-LINK MKP 4 20.0 F 500 VDC 17X |
6,061 |
|
Datasheet |
- | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
DCP4H152007ED2MSC9DC-LINK MKP 4 20.0 F 500 VDC 17X |
5,568 |
|
Datasheet |
- | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
