Film Capacitors
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Package/Case | Capacitance | Tolerance | Voltage Rating - AC | Voltage Rating - DC | Dielectric Material | ESR (Equivalent Series Resistance) | Operating Temperature | Mounting Type | Size / Dimension | Height - Seated (Max) | Termination | Lead Spacing | Applications | Ratings | Features |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
FLCI6H0256K2CNEW |
9,560 |
|
Datasheet |
Radial | 25 µF | ±10% | 300V | - | Polypropylene (PP), Metallized | 5.4 mOhms | -40°C ~ 85°C | Through Hole | 2.264" L x 1.378" W (57.50mm x 35.00mm) | 1.988" (50.50mm) | PC Pins | 2.067" (52.50mm) | EMI, RFI Suppression | - | - |
|
|
MKP4D051507E00KSC9MKP 4 15.0 F 100 VDC 17X29X41.5 |
2,592 |
|
Datasheet |
- | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
MKP1848H55012KP4CAP FILM 5UF 10% 1.2KVDC RADIAL |
6,282 |
|
Datasheet |
Radial - 4 Leads | 5 µF | ±10% | - | 1200V (1.2kV) | Polypropylene (PP), Metallized | 9.2 mOhms | -40°C ~ 85°C | Through Hole | 1.654" L x 0.846" W (42.00mm x 21.50mm) | 1.543" (39.20mm) | PC Pins | 1.476" (37.50mm) | Automotive; DC Link, DC Filtering | AEC-Q200 | 85C/85% Humidity; Low ESR, Low ESL |
|
BFC238350513CAP FILM 0.051UF 5% 1.6KVDC RAD |
5,634 |
|
Datasheet |
Radial | 0.051 µF | ±5% | 550V | 1600V (1.6kV) | Polypropylene (PP), Metallized | - | -55°C ~ 105°C | Through Hole | 1.220" L x 0.433" W (31.00mm x 11.00mm) | 0.827" (21.00mm) | PC Pins | 1.083" (27.50mm) | High Pulse, DV/DT | - | - |
|
|
735P305X9400LCAP FILM 3UF 10% 400VDC AXIAL |
7,323 |
|
Datasheet |
Axial | 3 µF | ±10% | - | 400V | Polypropylene (PP), Metallized | 12 mOhms | -55°C ~ 105°C | Through Hole | 1.086" Dia x 1.750" L (27.58mm x 44.45mm) | - | PC Pins | - | High Frequency, Switching | - | Low ESR |
|
|
765M5055220CAP FILM AXIAL |
9,716 |
|
- |
- | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
C878AF25160AA1JCAP FILM MOTOR START RUN |
8,608 |
|
Datasheet |
Radial, Can | 16 µF | ±5% | 470V | - | Polypropylene (PP), Metallized | - | -25°C ~ 85°C | Chassis, Stud Mount | 1.575" Dia (40.00mm) | 3.937" (100.00mm) | Quick Connect - 0.250" (6.3mm) | 0.394" (10.00mm) | Motor Run | - | - |
|
|
DCP4I052007FD4JSC9DC-LINK MKP 4 20.0 F 600 VDC 19X |
3,896 |
|
Datasheet |
- | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
DCP4I052007FD2JSC9DC-LINK MKP 4 20.0 F 600 VDC 19X |
7,654 |
|
Datasheet |
- | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
MKS4J044707G00KSSDCAP FILM 4.7UF 10% 630VDC RADIAL |
8,583 |
|
Datasheet |
Radial | 4.7 µF | ±10% | 400V | 630V | Polyester, Polyethylene Terephthalate (PET), Metallized | - | -55°C ~ 125°C | Through Hole | 1.634" L x 0.787" W (41.50mm x 20.00mm) | 1.555" (39.50mm) | PC Pins | 1.476" (37.50mm) | Automotive; DC Link, DC Filtering | AEC-Q200 | - |
|
|
B32756G7156J000CAP FILM 15UF 5% 550VDC RADIAL |
9,956 |
|
Datasheet |
Radial - 4 Leads | 15 µF | ±5% | 275V | 550V | Polypropylene (PP), Metallized | 4.5 mOhms | -40°C ~ 105°C | Through Hole | 1.654" L x 1.102" W (42.00mm x 28.00mm) | 1.673" (42.50mm) | PC Pins | 1.476" (37.50mm) | General Purpose | - | - |
|
|
MKP4G048207H00MSC9MKP 4 8.2 F 400 VDC 24X45.5X41.5 |
6,029 |
|
Datasheet |
- | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
930C2W2K-FCAP FILM 2UF 10% 250VDC AXIAL |
6,278 |
|
Datasheet |
Axial | 2 µF | ±10% | 175V | 250V | Polypropylene (PP), Metallized | 21 mOhms | -55°C ~ 105°C | Through Hole | 0.701" Dia x 1.248" L (17.80mm x 31.70mm) | - | PC Pins | - | General Purpose | - | - |
|
|
MKP4R041807H00MSSDMKP 4 1.8 F 1250 VDC 24X45.5X41. |
3,304 |
|
Datasheet |
- | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|

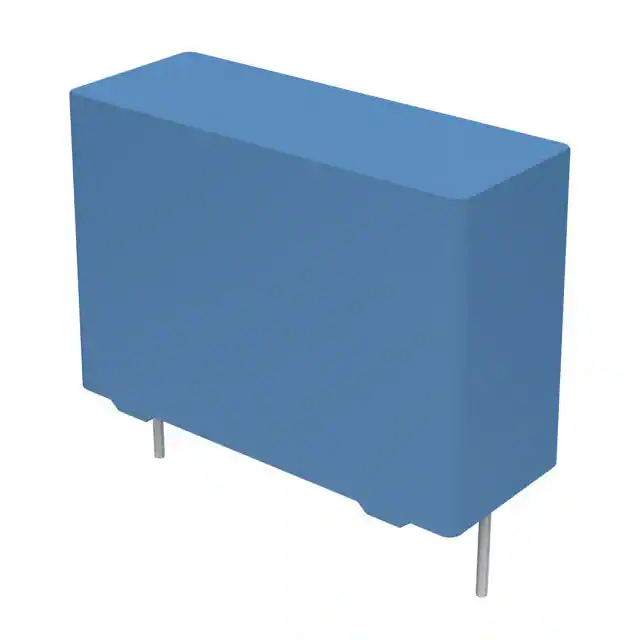

B32686A0474J000CAP FILM 0.47UF 5% 1KVDC RADIAL |
3,688 |
|
Datasheet |
Radial | 0.47 µF | ±5% | 400V | 1000V (1kV) | Polypropylene (PP), Metallized | - | -55°C ~ 100°C | Through Hole | 1.654" L x 0.787" W (42.00mm x 20.00mm) | 1.457" (37.00mm) | PC Pins | 1.476" (37.50mm) | DC Link, DC Filtering; High Pulse, DV/DT; Snubber | - | - |
|
|
F339MX256831MKI2B0CAP FILM 6.8UF 20% 630VDC RADIAL |
6,528 |
|
Datasheet |
Radial | 6.8 µF | ±20% | 310V | 630V | Polypropylene (PP), Metallized | - | -55°C ~ 110°C | Through Hole | 1.240" L x 0.807" W (31.50mm x 20.50mm) | 1.378" (35.00mm) | PC Pins | 1.083" (27.50mm) | EMI, RFI Suppression | X2 | - |
|
|
FKP4G042207H00JSC9FKP 4 2.2 F 400 VDC 24X45.5X41.5 |
3,575 |
|
Datasheet |
- | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
C878AF35160AA0JCAP FILM MOTOR START RUN |
4,291 |
|
Datasheet |
Radial, Can | 16 µF | ±5% | 470V | - | Polypropylene (PP), Metallized | - | -25°C ~ 85°C | Chassis, Stud Mount | 1.575" Dia (40.00mm) | 3.150" (80.00mm) | Quick Connect - 0.250" (6.3mm) | 0.528" (13.40mm) | Motor Run | - | - |
|
|
BFC237325395CAP FILM 3.9UF 10% 100VDC RADIAL |
8,731 |
|
Datasheet |
Radial | 3.9 µF | ±10% | 63V | 100V | Polyester, Metallized | - | -55°C ~ 105°C | Through Hole | 1.024" L x 0.394" W (26.00mm x 10.00mm) | 0.728" (18.50mm) | PC Pins | 0.886" (22.50mm) | General Purpose | - | Long Life |
|
|
MKP4G051007L00MSSDMKP 4 10.0 F 400 VDC 28X38X41.5 |
4,783 |
|
Datasheet |
- | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
