Film Capacitors
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Package/Case | Capacitance | Tolerance | Voltage Rating - AC | Voltage Rating - DC | Dielectric Material | ESR (Equivalent Series Resistance) | Operating Temperature | Mounting Type | Size / Dimension | Height - Seated (Max) | Termination | Lead Spacing | Applications | Ratings | Features |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
EFDKA90J156F014BHCAP EFDKA 900VDC 15UF J 4LEADS |
9,177 |
|
Datasheet |
Radial - 4 Leads | 15 µF | ±5% | - | 900V | Polypropylene (PP), Metallized | 22 mOhms | -55°C ~ 105°C | Through Hole | 2.264" L x 0.984" W (57.50mm x 25.00mm) | 1.811" (46.00mm) | PC Pins | 2.067" (52.50mm) | Automotive; DC Link, DC Filtering | AEC-Q200 | - |
|
|
F461RD186J160ZCAP FILM POLYPROP RAD |
8,090 |
|
Datasheet |
Radial | 18 µF | ±5% | 90V | 160V | Polypropylene (PP), Metallized | - | -55°C ~ 105°C | Through Hole | 1.614" L x 0.748" W (41.00mm x 19.00mm) | 1.260" (32.00mm) | PC Pins | 1.476" (37.50mm) | High Pulse, DV/DT | - | - |
|
|
B32776E5256K000CAP FILM 25UF 10% 575VDC RADIAL |
2,921 |
|
Datasheet |
Radial | 25 µF | ±10% | - | 575V | Polypropylene (PP), Metallized | 7.4 mOhms | -40°C ~ 105°C | Through Hole | 1.654" L x 0.787" W (42.00mm x 20.00mm) | 1.555" (39.50mm) | PC Pins | 1.476" (37.50mm) | DC Link, DC Filtering | - | Long Life |
|
|
B32776G5256K000CAP FILM 25UF 575VDC RAD 4 LEAD |
4,334 |
|
Datasheet |
Radial - 4 Leads | 25 µF | ±10% | - | 575V | Polypropylene (PP), Metallized | 7 mOhms | -40°C ~ 105°C | Through Hole | 1.654" L x 0.787" W (42.00mm x 20.00mm) | 1.555" (39.50mm) | PC Pins | 1.476" (37.50mm) | DC Link, DC Filtering | - | Long Life |
|
MKP1839447134HQGCAP FILM 0.47UF 5% 1.6KVDC AXIAL |
2,908 |
|
Datasheet |
Axial | 0.47 µF | ±5% | 450V | 1600V (1.6kV) | Polypropylene (PP), Metallized | - | -55°C ~ 110°C | Through Hole | 0.925" Dia x 1.240" L (23.50mm x 31.50mm) | - | PC Pins | - | High Pulse, DV/DT | - | - |
|
|
C4ATJBW4150A3EJCAP FILM METAL RAD POLYPROP |
7,539 |
|
Datasheet |
Radial - 4 Leads | 1.5 µF | ±5% | 400V | 700V | Polypropylene (PP), Metallized | 4.3 mOhms | -40°C ~ 85°C | Through Hole | 1.260" L x 0.709" W (32.00mm x 18.00mm) | 1.299" (33.00mm) | PC Pins | 1.083" (27.50mm) | DC Link, DC Filtering; High Frequency, Switching | - | - |
|
|
MKP4G051007L00MSC9MKP 4 10.0 F 400 VDC 28X38X41.5 |
2,970 |
|
Datasheet |
- | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
MKPF3Y52007H00MSSDMKP 4F 20.0 F 230 VAC 24X45.5X41 |
6,234 |
|
Datasheet |
- | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
B32656S8125K408FILM CAP 1.2000UF 10% 850V MKP B |
4,261 |
|
Datasheet |
Rectangular Box | 1.2 µF | ±10% | 450V | 850V | Polypropylene (PP), Metallized | 5 mOhms | -55°C ~ 100°C | Chassis Mount | 1.654" L x 0.709" W (42.00mm x 18.00mm) | 1.280" (32.50mm) | Screw Terminals | - | High Pulse, DV/DT; Snubber | - | Low ESL |
|
|
BFC237520154CAP FILM 0.15UF 5% 1KVDC RADIAL |
8,604 |
|
Datasheet |
Radial | 0.15 µF | ±5% | 400V | 1000V (1kV) | Polypropylene (PP), Metallized | - | -55°C ~ 105°C | Through Hole | 1.181" L x 0.492" W (30.00mm x 12.50mm) | 1.004" (25.50mm) | PC Pins | 0.394" (10.00mm) | High Pulse, DV/DT | - | - |
|

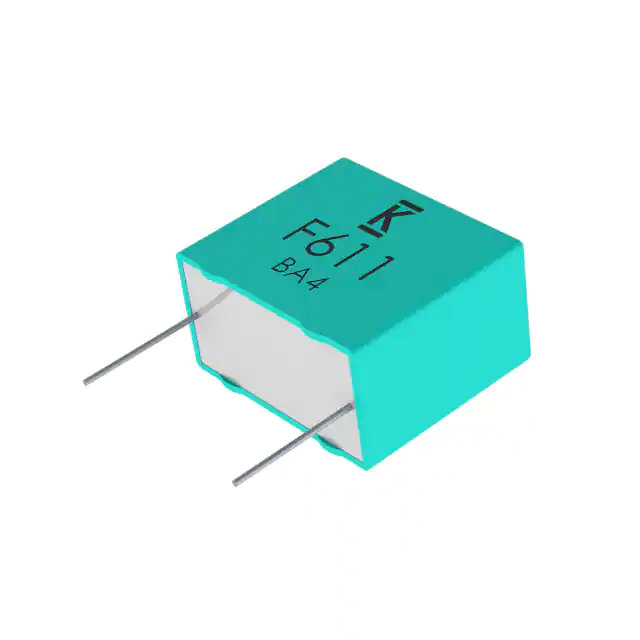

F611DY226K100ZLH0JCAP FILM 22UF 10% 100VDC RADIAL |
4,239 |
|
Datasheet |
Radial | 22 µF | ±10% | 63V | 100V | Polyester, Metallized | - | -55°C ~ 105°C | Through Hole | 1.024" L x 0.610" W (26.00mm x 15.50mm) | 0.965" (24.50mm) | PC Pins | 0.886" (22.50mm) | General Purpose | - | - |
|
|
MKP4G048207H00KSC9MKP 4 8.2 F 400 VDC 24X45.5X41.5 |
9,381 |
|
Datasheet |
- | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
MKP385E51012KPM2T0CAP FILM 1UF 10% 1.25KVDC RAD |
8,189 |
|
Datasheet |
Radial | 1 µF | ±10% | 450V | 1250V (1.25kV) | Polypropylene (PP), Metallized | 6 mOhms | -40°C ~ 105°C | Through Hole | 1.634" L x 0.709" W (41.50mm x 18.00mm) | 1.299" (33.00mm) | PC Pins | 1.476" (37.50mm) | Automotive; High Frequency, Switching; High Pulse, DV/DT; Snubber | AEC-Q200 | High Temperature |
|
|
MKP385E51012KPP2T0CAP FILM 1UF 10% 1.25KVDC RAD |
2,803 |
|
Datasheet |
Radial | 1 µF | ±10% | 450V | 1250V (1.25kV) | Polypropylene (PP), Metallized | 6 mOhms | -40°C ~ 105°C | Through Hole | 1.634" L x 0.709" W (41.50mm x 18.00mm) | 1.299" (33.00mm) | PC Pins | 1.476" (37.50mm) | Automotive; High Frequency, Switching; High Pulse, DV/DT; Snubber | AEC-Q200 | High Temperature |
|
|
MKP4R041807H00KSSDMKP 4 1.8 F 1250 VDC 24X45.5X41. |
3,449 |
|
Datasheet |
- | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
DCP4I052006JD2KSSDDC-LINK MKP 4 20.0 F 600 VDC 20X |
6,836 |
|
Datasheet |
- | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
DCP4I052006JD2MSSDDC-LINK MKP 4 20.0 F 600 VDC 20X |
5,832 |
|
Datasheet |
- | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
F871RW255M330ZCAP FILM POLYPROP RAD X1 |
6,654 |
|
Datasheet |
Radial | 2.5 µF | ±20% | 330V | 800V | Polypropylene (PP), Metallized | - | -40°C ~ 110°C | Through Hole | 1.614" L x 0.945" W (41.00mm x 24.00mm) | 0.748" (19.00mm) | PC Pins | 1.476" (37.50mm) | EMI, RFI Suppression | X1 | - |
|
|
EFDKS90J256F014BHCAP EFDKS 900VDC 25UF J 4LEADS |
5,773 |
|
Datasheet |
Radial - 4 Leads | 25 µF | ±5% | - | 900V | Polypropylene (PP), Metallized | 11.5 mOhms | -40°C ~ 105°C | Through Hole | 2.264" L x 0.984" W (57.50mm x 25.00mm) | 1.811" (46.00mm) | PC Pins | 2.067" (52.50mm) | DC Link, DC Filtering | - | - |
|
|
MKP4G051007L00KSSDMKP 4 10.0 F 400 VDC 28X38X41.5 |
6,902 |
|
Datasheet |
- | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
