Film Capacitors
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Package/Case | Capacitance | Tolerance | Voltage Rating - AC | Voltage Rating - DC | Dielectric Material | ESR (Equivalent Series Resistance) | Operating Temperature | Mounting Type | Size / Dimension | Height - Seated (Max) | Termination | Lead Spacing | Applications | Ratings | Features |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
DCP4I052007GD4JSC9DC-LINK MKP 4 20.0 F 600 VDC 20X |
4,380 |
|
Datasheet |
- | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
BFC238331184CAP FILM 0.18UF 5% 1KVDC RADIAL |
4,682 |
|
Datasheet |
Radial | 0.18 µF | ±5% | 350V | 1000V (1kV) | Polypropylene (PP), Metallized | - | -55°C ~ 105°C | Through Hole | 1.220" L x 0.433" W (31.00mm x 11.00mm) | 0.827" (21.00mm) | PC Pins | 1.083" (27.50mm) | High Pulse, DV/DT | - | - |
|
|
BFC238341823CAP FILM 0.082UF 5% 1.4KVDC RAD |
8,273 |
|
Datasheet |
Radial | 0.082 µF | ±5% | 500V | 1400V (1.4kV) | Polypropylene (PP), Metallized | - | -55°C ~ 105°C | Through Hole | 1.220" L x 0.591" W (31.00mm x 15.00mm) | 0.984" (25.00mm) | PC Pins | 1.083" (27.50mm) | High Pulse, DV/DT | - | - |
|
|
C277LC25160AA0JCAP FILM 16UF 5% 425VAC RADIAL |
9,318 |
|
Datasheet |
Radial, Can | 16 µF | ±5% | 425V | - | Polypropylene (PP), Metallized | - | -25°C ~ 85°C | Chassis, Stud Mount | 1.378" Dia (35.00mm) | 2.992" (76.00mm) | Quick Connect - 0.250" (6.3mm) | 0.394" (10.00mm) | Motor Run | - | - |
|
|
BFC237882433CAP FILM 0.043UF 5% 1.6KVDC RAD |
3,772 |
|
Datasheet |
Radial | 0.043 µF | ±5% | 500V | 1600V (1.6kV) | Polypropylene (PP), Metallized | - | -55°C ~ 85°C | Through Hole | 1.240" L x 0.354" W (31.50mm x 9.00mm) | 0.748" (19.00mm) | PC Pins | 1.083" (27.50mm) | High Pulse, DV/DT | - | Long Life |
|
BFC233822155CAP FILM 1.5UF 20% 630VDC RADIAL |
4,906 |
|
Datasheet |
Radial | 1.5 µF | ±20% | 310V | 630V | Polypropylene (PP), Metallized | - | -55°C ~ 110°C | Through Hole | 1.220" L x 0.512" W (31.00mm x 13.00mm) | 0.906" (23.00mm) | PC Pins | 1.083" (27.50mm) | EMI, RFI Suppression | X2 | - |
|
|
BFC233824155CAP FILM 1.5UF 20% 630VDC RADIAL |
3,215 |
|
Datasheet |
Radial | 1.5 µF | ±20% | 310V | 630V | Polypropylene (PP), Metallized | - | -55°C ~ 110°C | Through Hole | 1.220" L x 0.512" W (31.00mm x 13.00mm) | 0.906" (23.00mm) | PC Pins | 1.083" (27.50mm) | EMI, RFI Suppression | X2 | - |
|
|
R75IW5150AA40JCAP FILM AUTO POLYPROP RAD |
7,355 |
|
Datasheet |
Radial | 15 µF | ±5% | 160V | 250V | Polypropylene (PP), Metallized | 3.2 mOhms | -55°C ~ 105°C | Through Hole | 1.634" L x 0.787" W (41.50mm x 20.00mm) | 1.579" (40.10mm) | PC Pins | 1.476" (37.50mm) | High Frequency, Switching; High Pulse, DV/DT | - | - |
|
|
PHE841ER7220MR06L2CAP FILM RAD |
9,134 |
|
Datasheet |
Radial | 2.2 µF | ±20% | 330V | 1000V (1kV) | Polypropylene (PP), Metallized | - | -40°C ~ 100°C | Through Hole | 1.614" L x 0.827" W (41.00mm x 21.00mm) | 1.496" (38.00mm) | PC Pins | 1.476" (37.50mm) | EMI, RFI Suppression | X1 | - |
|
MKP1847C590255P2MKP 9F 10% 250VAC PITCH 37,5 |
5,603 |
|
Datasheet |
Radial | 9 µF | ±10% | 250V | 500V | Polypropylene (PP), Metallized | - | -40°C ~ 85°C | Through Hole | 1.693" L x 0.728" W (43.00mm x 18.50mm) | 1.437" (36.50mm) | PC Pins | 1.476" (37.50mm) | EMI, RFI Suppression | - | - |
|
MKP1847C570355P4MKP 7F 10% 350VAC PITCH 37,5 |
6,616 |
|
Datasheet |
Radial - 4 Leads | 7 µF | ±10% | 350V | 700V | Polypropylene (PP), Metallized | - | -40°C ~ 85°C | Through Hole | 1.693" L x 0.846" W (43.00mm x 21.50mm) | 1.555" (39.50mm) | PC Pins | 1.476" (37.50mm) | EMI, RFI Suppression | - | - |
|
|
MKP1847C570355P2MKP 7F 10% 350VAC PITCH 37,5 |
6,270 |
|
Datasheet |
Radial | 7 µF | ±10% | 350V | 700V | Polypropylene (PP), Metallized | - | -40°C ~ 85°C | Through Hole | 1.693" L x 0.846" W (43.00mm x 21.50mm) | 1.555" (39.50mm) | PC Pins | 1.476" (37.50mm) | EMI, RFI Suppression | - | - |
|
MKP1848C59090JK2CAP FILM 9UF 5% 900VDC RADIAL |
9,502 |
|
Datasheet |
Radial | 9 µF | ±5% | - | 900V | Polypropylene (PP), Metallized | 7 mOhms | -55°C ~ 105°C | Through Hole | 1.260" L x 0.787" W (32.00mm x 20.00mm) | 1.378" (35.00mm) | PC Pins | 1.083" (27.50mm) | DC Link, DC Filtering | - | Low ESR; Low ESL; Long Life |
|
|
F871RV105K330ZCAP FILM POLYPROP RAD X1 |
2,701 |
|
Datasheet |
Radial | 1 µF | ±10% | 330V | 800V | Polypropylene (PP), Metallized | - | -40°C ~ 110°C | Through Hole | 1.614" L x 0.945" W (41.00mm x 24.00mm) | 0.591" (15.00mm) | PC Pins | 1.476" (37.50mm) | EMI, RFI Suppression | X1 | - |
|
|
MKS4B053306D00JSC9CAP FILM 33UF 5% 50VDC RADIAL |
6,998 |
|
Datasheet |
Radial | 33 µF | ±5% | 30V | 50V | Polyester, Polyethylene Terephthalate (PET), Metallized | - | -55°C ~ 105°C | Through Hole | 1.240" L x 0.512" W (31.50mm x 13.00mm) | 0.945" (24.00mm) | PC Pins | 1.083" (27.50mm) | Automotive; DC Link, DC Filtering | AEC-Q200 | - |
|

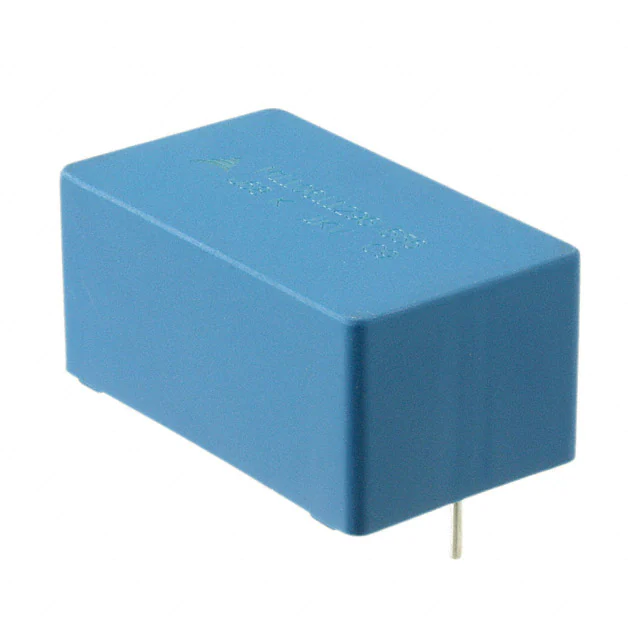

B32776T5855K000CAP FILM 8.5UF 10% 575VDC RADIAL |
8,887 |
|
Datasheet |
Radial | 8.5 µF | ±10% | - | 575V | Polypropylene (PP), Metallized | 19.9 mOhms | -40°C ~ 105°C | Through Hole | 1.634" L x 0.945" W (41.50mm x 24.00mm) | 0.591" (15.00mm) | PC Pins | 1.476" (37.50mm) | DC Link, DC Filtering | - | Long Life |
|
|
QAK2G475JTPCAP FILM 4.7UF 5% 400VDC AXIAL |
5,441 |
|
Datasheet |
Axial | 4.7 µF | ±5% | - | 400V | Polyester, Metallized | - | -40°C ~ 85°C | Through Hole | 1.102" W, 0.728" T x 1.614" L (28.00mm, 18.50mm x 41.00mm) | - | PC Pins | - | General Purpose | - | - |
|
|
MKP4O142707I00KSC9MKP 4 2.7 F 1000 VDC 31X46X41.5 |
6,547 |
|
Datasheet |
- | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
MKP385E4561AKPM2T0CAP FILM 0.56UF 10% 1.6KVDC RAD |
6,410 |
|
Datasheet |
Radial | 0.56 µF | ±10% | 550V | 1600V (1.6kV) | Polypropylene (PP), Metallized | 6 mOhms | -40°C ~ 105°C | Through Hole | 1.693" L x 0.728" W (43.00mm x 18.50mm) | 1.417" (36.00mm) | PC Pins | 1.476" (37.50mm) | Automotive; High Frequency, Switching; High Pulse, DV/DT; Snubber | AEC-Q200 | High Temperature |
|
|
MKP385E4561AKPP2T0CAP FILM 0.56UF 10% 1.6KVDC RAD |
2,412 |
|
Datasheet |
Radial | 0.56 µF | ±10% | 550V | 1600V (1.6kV) | Polypropylene (PP), Metallized | 6 mOhms | -40°C ~ 105°C | Through Hole | 1.693" L x 0.728" W (43.00mm x 18.50mm) | 1.417" (36.00mm) | PC Pins | 1.476" (37.50mm) | Automotive; High Frequency, Switching; High Pulse, DV/DT; Snubber | AEC-Q200 | High Temperature |
