Film Capacitors
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Package/Case | Capacitance | Tolerance | Voltage Rating - AC | Voltage Rating - DC | Dielectric Material | ESR (Equivalent Series Resistance) | Operating Temperature | Mounting Type | Size / Dimension | Height - Seated (Max) | Termination | Lead Spacing | Applications | Ratings | Features |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
MKS4C053306D00JJ00CAP FILM 33UF 5% 63VDC RADIAL |
9,709 |
|
Datasheet |
Radial | 33 µF | ±5% | 40V | 63V | Polyester, Polyethylene Terephthalate (PET), Metallized | - | -55°C ~ 125°C | Through Hole | 1.240" L x 0.512" W (31.50mm x 13.00mm) | 0.945" (24.00mm) | PC Pins | 1.083" (27.50mm) | Automotive; DC Link, DC Filtering | AEC-Q200 | - |
|

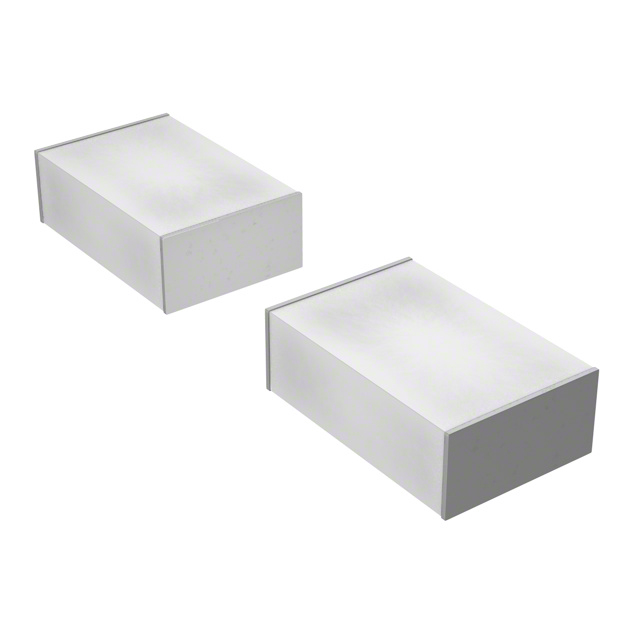

FCN6040E105K-SCAP FILM 1UF 10% 250VDC 6039 |
9,421 |
|
Datasheet |
6039 (1510 Metric) | 1 µF | ±10% | - | 250V | Polyester, Polyethylene Naphthalate (PEN), Metallized - Stacked | - | -40°C ~ 85°C | Surface Mount | 0.598" L x 0.394" W (15.20mm x 10.00mm) | 0.209" (5.30mm) | Solder Pads | - | General Purpose | - | - |
|
|
DCP4L052007GD2JSC9DC-LINK MKP 4 20.0 F 800 VDC 20X |
7,978 |
|
Datasheet |
- | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
DCP4L052007GD4JSC9DC-LINK MKP 4 20.0 F 800 VDC 20X |
9,628 |
|
Datasheet |
- | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
ALH106K271B084CAP FILM 10UF 275VAC RAD 4 LEAD |
6,204 |
|
Datasheet |
Radial - 4 Leads | 10 µF | ±10% | 275V | - | Polypropylene (PP) | 5.9 mOhms | -40°C ~ 105°C | Through Hole | 1.673" L x 0.787" W (42.50mm x 20.00mm) | 1.606" (40.80mm) | PC Pins | 1.476" (37.50mm) | Automotive; EMI, RFI Suppression | AEC-Q200 | 85C/85% Humidity, THB, Low ESR, Low ESL, Long Life |
|
|
MKP4O142707I00MSSDMKP 4 2.7 F 1000 VDC 31X46X41.5 |
8,140 |
|
Datasheet |
- | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
MKS4D053307C00JSC9CAP FILM 33UF 5% 100VDC RADIAL |
4,085 |
|
Datasheet |
Radial | 33 µF | ±5% | 63V | 100V | Polyester, Polyethylene Terephthalate (PET), Metallized | - | -55°C ~ 125°C | Through Hole | 1.634" L x 0.512" W (41.50mm x 13.00mm) | 0.945" (24.00mm) | PC Pins | 1.476" (37.50mm) | Automotive; DC Link, DC Filtering | AEC-Q200 | - |
|
|
BFC238321514CAP FILM 0.51UF 5% 630VDC RADIAL |
2,007 |
|
Datasheet |
Radial | 0.51 µF | ±5% | 220V | 630V | Polypropylene (PP), Metallized | - | -55°C ~ 105°C | Through Hole | 1.220" L x 0.512" W (31.00mm x 13.00mm) | 0.906" (23.00mm) | PC Pins | 1.083" (27.50mm) | High Pulse, DV/DT | - | - |
|
|
DCP4N052007LD2JSSDDC-LINK MKP 4 20.0 F 900 VDC 28X |
3,779 |
|
Datasheet |
- | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
DCP4N052007LD4JSSDDC-LINK MKP 4 20.0 F 900 VDC 28X |
2,877 |
|
Datasheet |
- | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
BFC238304115CAP FILM 1.1UF 5% 250VDC RADIAL |
9,048 |
|
Datasheet |
Radial | 1.1 µF | ±5% | 125V | 250V | Polypropylene (PP), Metallized | - | -55°C ~ 105°C | Through Hole | 1.220" L x 0.433" W (31.00mm x 11.00mm) | 0.827" (21.00mm) | PC Pins | 1.083" (27.50mm) | High Pulse, DV/DT | - | - |
|
|
BFC238354623CAP FILM 0.062UF 5% 1.6KVDC RAD |
2,608 |
|
Datasheet |
Radial | 0.062 µF | ±5% | 550V | 1600V (1.6kV) | Polypropylene (PP), Metallized | - | -55°C ~ 105°C | Through Hole | 1.220" L x 0.512" W (31.00mm x 13.00mm) | 0.906" (23.00mm) | PC Pins | 1.083" (27.50mm) | High Pulse, DV/DT | - | - |
|
MKP1848H55012JP4CAP FILM 5UF 5% 1.2KVDC RADIAL |
7,896 |
|
Datasheet |
Radial - 4 Leads | 5 µF | ±5% | - | 1200V (1.2kV) | Polypropylene (PP), Metallized | 9.2 mOhms | -40°C ~ 85°C | Through Hole | 1.654" L x 0.846" W (42.00mm x 21.50mm) | 1.543" (39.20mm) | PC Pins | 1.476" (37.50mm) | Automotive; DC Link, DC Filtering | AEC-Q200 | 85C/85% Humidity; Low ESR, Low ESL |
|
MKP1848C56010JP4CAP FILM 6UF 5% 1KVDC RADIAL |
5,659 |
|
Datasheet |
Radial - 4 Leads | 6 µF | ±5% | - | 1000V (1kV) | Polypropylene (PP), Metallized | 16 mOhms | -55°C ~ 105°C | Through Hole | 1.693" L x 0.728" W (43.00mm x 18.50mm) | 1.398" (35.50mm) | PC Pins | 1.476" (37.50mm) | DC Link, DC Filtering | - | Low ESR; Low ESL; Long Life |
|
|
MKPFBW51207H00MSC9MKP 4F 12.0 F 350 VAC 24X45.5X41 |
2,606 |
|
Datasheet |
- | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
MKPFAW51207H00MSC9MKP 4F 12.0 F 305 VAC 24X45.5X41 |
2,054 |
|
Datasheet |
- | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
B32758G2206K000CAP FILM 20UF 10% 500VDC RADIAL |
8,453 |
|
Datasheet |
Radial - 4 Leads | 20 µF | ±10% | 250V | 500V | Polypropylene (PP), Metallized | 3.7 mOhms | -40°C ~ 105°C | Through Hole | 2.264" L x 1.181" W (57.50mm x 30.00mm) | 1.772" (45.00mm) | PC Pins | 2.067" (52.50mm) | Automotive | AEC-Q200 | - |
|
|
MKPF1W51507H00MSC9MKP 4F 15.0 F 275 VAC 24X45.5X41 |
2,101 |
|
Datasheet |
- | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
MKP1848S62010JY2FCAP FILM 20UF 5% 1KVDC RADIAL |
7,148 |
|
Datasheet |
Radial | 20 µF | ±5% | - | 1000V (1kV) | Polypropylene (PP), Metallized | 7 mOhms | -40°C ~ 105°C | Through Hole | 2.264" L x 1.535" W (57.50mm x 39.00mm) | 0.945" (24.00mm) | PC Pins | 2.067" (52.50mm) | DC Link, DC Filtering | - | Low ESR; Low ESL; Long Life |
|
|
MKP385468125JKM2T0CAP FILM 0.68UF 5% 1.25KVDC RAD |
3,438 |
|
Datasheet |
Radial | 0.68 µF | ±5% | 450V | 1250V (1.25kV) | Polypropylene (PP), Metallized | - | -55°C ~ 110°C | Through Hole | 1.220" L x 0.827" W (31.00mm x 21.00mm) | 1.220" (31.00mm) | PC Pins | 1.083" (27.50mm) | DC Link, DC Filtering; High Frequency, Switching; High Pulse, DV/DT | - | - |
