Film Capacitors
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Package/Case | Capacitance | Tolerance | Voltage Rating - AC | Voltage Rating - DC | Dielectric Material | ESR (Equivalent Series Resistance) | Operating Temperature | Mounting Type | Size / Dimension | Height - Seated (Max) | Termination | Lead Spacing | Applications | Ratings | Features |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
MKP4G048207H00JSC9MKP 4 8.2 F 400 VDC 24X45.5X41.5 |
5,182 |
|
Datasheet |
- | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
MKP1839547163CAP FILM 4.7UF 2.5% 160VDC AXIAL |
7,440 |
|
Datasheet |
Axial | 4.7 µF | ±2.5% | 100V | 160V | Polypropylene (PP), Metallized | - | -55°C ~ 100°C | Through Hole | 0.610" Dia x 1.634" L (15.50mm x 41.50mm) | - | PC Pins | - | DC Link, DC Filtering; High Pulse, DV/DT | - | - |
|
|
MKP4R041807H00JSSDMKP 4 1.8 F 1250 VDC 24X45.5X41. |
3,657 |
|
Datasheet |
- | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
MKP4O143307I00KSSDMKP 4 3.3 F 1000 VDC 31X46X41.5 |
9,963 |
|
Datasheet |
- | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
MKP4R042207I00KSSDMKP 4 2.2 F 1250 VDC 31X46X41.5 |
4,846 |
|
Datasheet |
- | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|

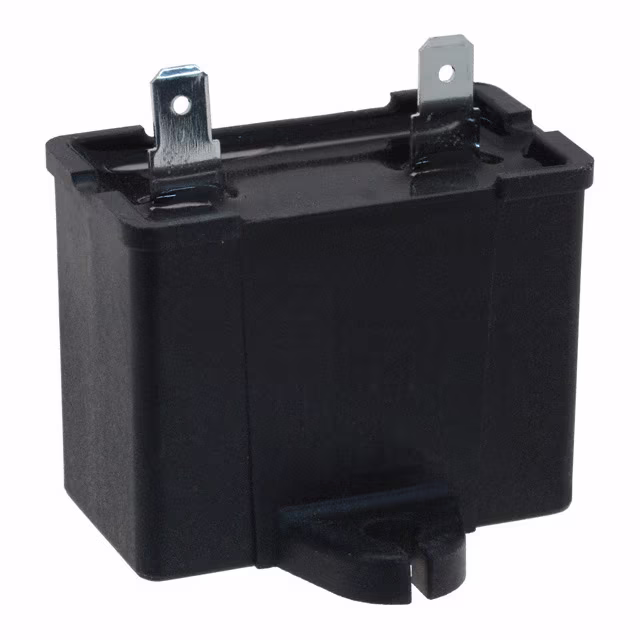

JS181126-AACAP FILM 12UF 10% 180VAC CHAS MT |
4 |
|
Datasheet |
Rectangular Box | 12 µF | ±10% | 180V | - | Polypropylene (PP), Metallized | - | -25°C ~ 70°C | Chassis Mount | 1.555" L x 0.866" W (39.50mm x 22.00mm) | 1.280" (32.50mm) | Quick Connect - 0.187" (4.7mm) | - | Motor Run | - | - |
|
|
DCP4G053006ID2MSSDDC-LINK MKP 4 30.0 F 400 VDC 17X |
8,341 |
|
Datasheet |
- | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
BFC237541223CAP FILM 0.022UF 3.5% 2KVDC RAD |
9,168 |
|
Datasheet |
Radial | 0.022 µF | ±3.5% | 600V | 2000V (2kV) | Polypropylene (PP), Metallized | - | -55°C ~ 105°C | Through Hole | 1.181" L x 0.512" W (30.00mm x 13.00mm) | 1.024" (26.00mm) | PC Pins | 0.394" (10.00mm) | High Pulse, DV/DT | - | - |
|
|
BFC237545223CAP FILM 0.022UF 3.5% 2KVDC RAD |
2,819 |
|
Datasheet |
Radial | 0.022 µF | ±3.5% | 600V | 2000V (2kV) | Polypropylene (PP), Metallized | - | -55°C ~ 105°C | Through Hole | 1.181" L x 0.512" W (30.00mm x 13.00mm) | 1.024" (26.00mm) | PC Pins | 0.394" (10.00mm) | High Pulse, DV/DT | - | - |
|
|
BFC238324564CAP FILM 0.56UF 5% 630VDC RADIAL |
8,589 |
|
Datasheet |
Radial | 0.56 µF | ±5% | 220V | 630V | Polypropylene (PP), Metallized | - | -55°C ~ 105°C | Through Hole | 1.220" L x 0.512" W (31.00mm x 13.00mm) | 0.906" (23.00mm) | PC Pins | 1.083" (27.50mm) | High Pulse, DV/DT | - | - |
|
|
MKP4G051007L00JSSDMKP 4 10.0 F 400 VDC 28X38X41.5 |
8,491 |
|
Datasheet |
- | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
F339MX256831MPI2T0CAP FILM 6.8UF 20% 630VDC RADIAL |
6,688 |
|
Datasheet |
Radial | 6.8 µF | ±20% | 310V | 630V | Polypropylene (PP), Metallized | - | -55°C ~ 110°C | Through Hole | 1.634" L x 0.709" W (41.50mm x 18.00mm) | 1.280" (32.50mm) | PC Pins | 1.476" (37.50mm) | EMI, RFI Suppression | X2 | - |
|
|
MKP1D048207G00MSSDMKP 10 8.2 F 100 VDC 20X39.5X41. |
5,966 |
|
Datasheet |
- | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
MKP1D051007G00MSSDMKP 10 10.0 F 100 VDC 20X39.5X41 |
7,766 |
|
Datasheet |
- | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
MKT1820615016CAP FILM 15UF 20% 100VDC RADIAL |
2,934 |
|
Datasheet |
Radial | 15 µF | ±20% | 63V | 100V | Polyester, Metallized | - | -55°C ~ 125°C | Through Hole | 1.260" L x 0.433" W (32.00mm x 11.00mm) | 0.827" (21.00mm) | PC Pins | 1.083" (27.50mm) | DC Link, DC Filtering | - | - |
|
|
B32676G6106K000CAP FILM 10UF 10% 630VDC RADIAL |
5,373 |
|
Datasheet |
Radial | 10 µF | ±10% | - | 630V | Polypropylene (PP), Metallized | 5.1 mOhms | -40°C ~ 105°C | Through Hole | 1.634" L x 1.102" W (41.50mm x 28.00mm) | 1.673" (42.50mm) | PC Pins | 1.476" (37.50mm) | DC Link, DC Filtering | AEC-Q200 | Long Life |
|
|
B32676G4156J000CAP FILM 15UF 5% 450VDC RADIAL |
8,064 |
|
Datasheet |
Radial - 4 Leads | 15 µF | ±5% | - | 450V | Polypropylene (PP), Metallized | 4.4 mOhms | -40°C ~ 105°C | Through Hole | 1.654" L x 1.102" W (42.00mm x 28.00mm) | 1.673" (42.50mm) | PC Pins | 1.476" (37.50mm) | DC Link, DC Filtering | AEC-Q200 | Long Life |
|
BLH106K102B082DC LINK, THB, 85/85, AEC-Q200 |
6,203 |
|
Datasheet |
Radial | 10 µF | ±10% | - | 1000V (1kV) | Polypropylene (PP), Metallized | 12 mOhms | -40°C ~ 105°C | Through Hole | 1.673" L x 0.787" W (42.50mm x 20.00mm) | 1.606" (40.80mm) | PC Pins | 1.476" (37.50mm) | Automotive; DC Link, DC Filtering | AEC-Q200 | 85C/85% Humidity, THB, Low ESR, Low ESL, Long Life |
|
|
EFDKS45J406E124BHCAP EFDKS 450VDC 40UF J 4LEADS |
4,820 |
|
Datasheet |
Radial - 4 Leads | 40 µF | ±5% | - | 450V | Polypropylene (PP), Metallized | 6.2 mOhms | -40°C ~ 105°C | Through Hole | 1.654" L x 1.102" W (42.00mm x 28.00mm) | 1.496" (38.00mm) | PC Pins | 1.476" (37.50mm) | DC Link, DC Filtering | - | - |
|
MKP1848C59010JP2CAP FILM 9UF 5% 1KVDC RADIAL |
3,492 |
|
Datasheet |
Radial | 9 µF | ±5% | - | 1000V (1kV) | Polypropylene (PP), Metallized | 14 mOhms | -55°C ~ 105°C | Through Hole | 1.693" L x 0.728" W (43.00mm x 18.50mm) | 1.398" (35.50mm) | PC Pins | 1.476" (37.50mm) | DC Link, DC Filtering | - | Low ESR; Low ESL; Long Life |
