Film Capacitors
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Package/Case | Capacitance | Tolerance | Voltage Rating - AC | Voltage Rating - DC | Dielectric Material | ESR (Equivalent Series Resistance) | Operating Temperature | Mounting Type | Size / Dimension | Height - Seated (Max) | Termination | Lead Spacing | Applications | Ratings | Features |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
BFC238360104CAP FILM 0.1UF 5% 2KVDC RADIAL |
3,011 |
|
Datasheet |
Radial | 0.1 µF | ±5% | 700V | 2000V (2kV) | Polypropylene (PP), Metallized | - | -55°C ~ 105°C | Through Hole | 1.220" L x 0.709" W (31.00mm x 18.00mm) | 1.102" (28.00mm) | PC Pins | 1.083" (27.50mm) | High Pulse, DV/DT | - | - |
|
|
F461RP186K250ZCAP FILM POLYPROP RAD |
9,373 |
|
Datasheet |
Radial | 18 µF | ±10% | 160V | 250V | Polypropylene (PP), Metallized | - | -55°C ~ 105°C | Through Hole | 1.614" L x 0.827" W (41.00mm x 21.00mm) | 1.496" (38.00mm) | PC Pins | 1.476" (37.50mm) | High Pulse, DV/DT | - | - |
|
|
MKP385491100JKI2B0CAP FILM 0.91UF 5% 1KVDC RADIAL |
3,835 |
|
Datasheet |
Radial | 0.91 µF | ±5% | 350V | 1000V (1kV) | Polypropylene (PP), Metallized | - | -55°C ~ 110°C | Through Hole | 1.220" L x 0.827" W (31.00mm x 21.00mm) | 1.220" (31.00mm) | PC Pins | 1.083" (27.50mm) | DC Link, DC Filtering; High Frequency, Switching; High Pulse, DV/DT | - | - |
|
|
MKP385491100JKM2T0CAP FILM 0.91UF 5% 1KVDC RADIAL |
5,057 |
|
Datasheet |
Radial | 0.91 µF | ±5% | 350V | 1000V (1kV) | Polypropylene (PP), Metallized | - | -55°C ~ 110°C | Through Hole | 1.220" L x 0.827" W (31.00mm x 21.00mm) | 1.220" (31.00mm) | PC Pins | 1.083" (27.50mm) | DC Link, DC Filtering; High Frequency, Switching; High Pulse, DV/DT | - | - |
|
|
MKP385491100JKP2T0CAP FILM 0.91UF 5% 1KVDC RADIAL |
3,779 |
|
Datasheet |
Radial | 0.91 µF | ±5% | 350V | 1000V (1kV) | Polypropylene (PP), Metallized | - | -55°C ~ 110°C | Through Hole | 1.220" L x 0.827" W (31.00mm x 21.00mm) | 1.220" (31.00mm) | PC Pins | 1.083" (27.50mm) | DC Link, DC Filtering; High Frequency, Switching; High Pulse, DV/DT | - | - |
|
|
BFC238310684CAP FILM 0.68UF 5% 400VDC RADIAL |
9,726 |
|
Datasheet |
Radial | 0.68 µF | ±5% | 200V | 400V | Polypropylene (PP), Metallized | - | -55°C ~ 105°C | Through Hole | 1.220" L x 0.512" W (31.00mm x 13.00mm) | 0.906" (23.00mm) | PC Pins | 1.083" (27.50mm) | High Pulse, DV/DT | - | - |
|
|
BFC237521154CAP FILM 0.15UF 3.5% 1KVDC RAD |
3,291 |
|
Datasheet |
Radial | 0.15 µF | ±3.5% | 400V | 1000V (1kV) | Polypropylene (PP), Metallized | - | -55°C ~ 105°C | Through Hole | 1.181" L x 0.492" W (30.00mm x 12.50mm) | 1.004" (25.50mm) | PC Pins | 0.394" (10.00mm) | High Pulse, DV/DT | - | - |
|
|
BFC237525154CAP FILM 0.15UF 3.5% 1KVDC RAD |
9,279 |
|
Datasheet |
Radial | 0.15 µF | ±3.5% | 400V | 1000V (1kV) | Polypropylene (PP), Metallized | - | -55°C ~ 105°C | Through Hole | 1.181" L x 0.492" W (30.00mm x 12.50mm) | 1.004" (25.50mm) | PC Pins | 0.394" (10.00mm) | High Pulse, DV/DT | - | - |
|
|
C4ATMBW4100A3EJCAP FILM METAL RAD POLYPROP |
2,523 |
|
Datasheet |
Radial - 4 Leads | 1 µF | ±5% | 450V | 850V | Polypropylene (PP), Metallized | 5.2 mOhms | -40°C ~ 85°C | Through Hole | 1.260" L x 0.709" W (32.00mm x 18.00mm) | 1.299" (33.00mm) | PC Pins | 1.083" (27.50mm) | DC Link, DC Filtering; High Frequency, Switching | - | - |
|
|
MKP383411200JPI2T0CAP FILM 0.11UF 5% 2KVDC RADIAL |
6,780 |
|
Datasheet |
Radial | 0.11 µF | ±5% | 700V | 2000V (2kV) | Polypropylene (PP), Metallized | - | -55°C ~ 105°C | Through Hole | 1.634" L x 0.630" W (41.50mm x 16.00mm) | 1.122" (28.50mm) | PC Pins | 1.476" (37.50mm) | High Pulse, DV/DT | - | - |
|
|
MKP383411200JPM2T0CAP FILM 0.11UF 5% 2KVDC RADIAL |
8,328 |
|
Datasheet |
Radial | 0.11 µF | ±5% | 700V | 2000V (2kV) | Polypropylene (PP), Metallized | - | -55°C ~ 105°C | Through Hole | 1.634" L x 0.630" W (41.50mm x 16.00mm) | 1.122" (28.50mm) | PC Pins | 1.476" (37.50mm) | High Pulse, DV/DT | - | - |
|
|
MKP383411200JPP2T0CAP FILM 0.11UF 5% 2KVDC RADIAL |
3,302 |
|
Datasheet |
Radial | 0.11 µF | ±5% | 700V | 2000V (2kV) | Polypropylene (PP), Metallized | - | -55°C ~ 105°C | Through Hole | 1.634" L x 0.630" W (41.50mm x 16.00mm) | 1.122" (28.50mm) | PC Pins | 1.476" (37.50mm) | High Pulse, DV/DT | - | - |
|
|
MKPF3Y52007H00JSC9MKP 4F 20.0 F 230 VAC 24X45.5X41 |
5,528 |
|
Datasheet |
- | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
C274AC25120AA0JCAP FILM 12UF 5% 470VAC RADIAL |
7,732 |
|
Datasheet |
Radial, Can | 12 µF | ±5% | 470V | - | Polypropylene (PP), Metallized | - | -25°C ~ 85°C | Chassis, Stud Mount | 1.378" Dia (35.00mm) | 2.972" (75.50mm) | Quick Connect - 0.250" (6.3mm) | 0.394" (10.00mm) | Motor Run | - | - |
|
|
DCP4H152206JD2MSSDDC-LINK MKP 4 22.0 F 500 VDC 20X |
4,079 |
|
Datasheet |
- | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
MKP1847H57025JK2CAP FILM 7UF 5% 500VDC RADIAL |
3,197 |
|
Datasheet |
Radial | 7 µF | ±5% | 250V | 500V | Polypropylene (PP), Metallized | 4.5 mOhms | -40°C ~ 105°C | Through Hole | 1.260" L x 0.866" W (32.00mm x 22.00mm) | 1.524" (38.70mm) | PC Pins | 1.083" (27.50mm) | EMI, RFI Suppression | - | 85C/85% Humidity |
|
|
C4GAJUD4680AA3JCAP FILM METAL AXL POLYPROP |
9,748 |
|
Datasheet |
Axial | 6.8 µF | ±5% | 400V | 700V | Polypropylene (PP), Metallized | 6.1 mOhms | -40°C ~ 85°C | Through Hole | 1.378" Dia x 2.283" L (35.00mm x 58.00mm) | - | PC Pins | - | High Frequency, Switching | - | - |
|
|
MKP4G051007H00KSC9MKP 4 10.0 F 400 VDC 24X45.5X41. |
5,149 |
|
Datasheet |
- | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
MKP1848S57070JP2BCAP FILM 7UF 5% 700VDC RADIAL |
2,502 |
|
Datasheet |
Radial | 7 µF | ±5% | - | 700V | Polypropylene (PP), Metallized | 15 mOhms | -40°C ~ 105°C | Through Hole | 1.654" L x 1.063" W (42.00mm x 27.00mm) | 0.591" (15.00mm) | PC Pins | 1.476" (37.50mm) | DC Link, DC Filtering | - | Low ESR; Low ESL; Long Life |
|

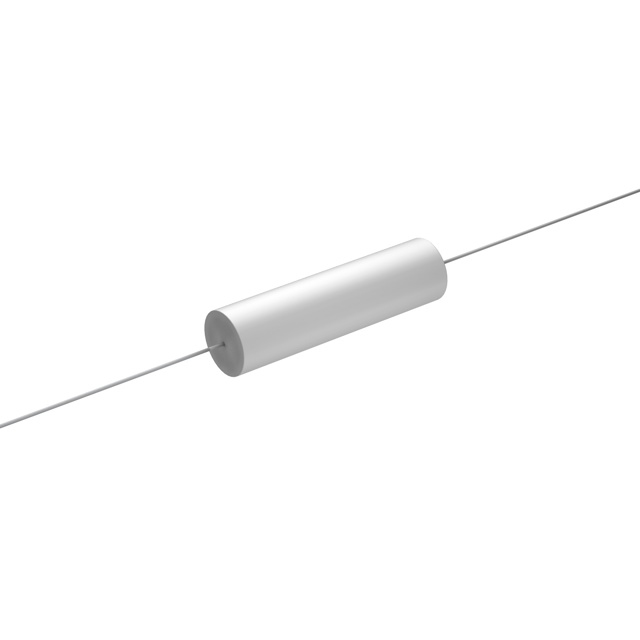

MMWA4W1K-FCAP FILM 1UF 10% 400VDC AXIAL |
3,063 |
|
Datasheet |
Axial | 1 µF | ±10% | 200V | 400V | Polyester, Metallized | - | -55°C ~ 125°C | Through Hole | 0.469" Dia x 1.748" L (11.90mm x 44.40mm) | - | PC Pins | - | General Purpose | - | - |
