Film Capacitors
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Package/Case | Capacitance | Tolerance | Voltage Rating - AC | Voltage Rating - DC | Dielectric Material | ESR (Equivalent Series Resistance) | Operating Temperature | Mounting Type | Size / Dimension | Height - Seated (Max) | Termination | Lead Spacing | Applications | Ratings | Features |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
SNFPW024707DFSJS00SNUBBER FKP 0.047 F 3000 VDC 15X |
7,046 |
|
Datasheet |
- | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
EFDKS1BJ206E174DHCAP EFDKS 1100VDC 20UF J 4LEADS |
4,118 |
|
Datasheet |
Radial - 4 Leads | 20 µF | ±5% | - | 1100V (1.1kV) | Polypropylene (PP), Metallized | 6.5 mOhms | -40°C ~ 105°C | Through Hole | 1.654" L x 1.378" W (42.00mm x 35.00mm) | 2.008" (51.00mm) | PC Pins | 1.476" (37.50mm) | DC Link, DC Filtering | - | - |
|
|
EFDKS60J506F014BHCAP EFDKS 600VDC 50UF J 4LEADS |
5,454 |
|
Datasheet |
Radial - 4 Leads | 50 µF | ±5% | - | 600V | Polypropylene (PP), Metallized | 7 mOhms | -40°C ~ 105°C | Through Hole | 2.264" L x 0.984" W (57.50mm x 25.00mm) | 1.811" (46.00mm) | PC Pins | 2.067" (52.50mm) | DC Link, DC Filtering | - | - |
|
|
EFDKS70J506F014BHCAP EFDKS 700VDC 50UF J 4LEADS |
4,915 |
|
Datasheet |
Radial - 4 Leads | 50 µF | ±5% | - | 700V | Polypropylene (PP), Metallized | 7 mOhms | -40°C ~ 105°C | Through Hole | 2.264" L x 0.984" W (57.50mm x 25.00mm) | 1.811" (46.00mm) | PC Pins | 2.067" (52.50mm) | DC Link, DC Filtering | - | - |
|
BLH156K901B094DC LINK, THB, 85/85, AEC-Q200 |
6,215 |
|
Datasheet |
Radial - 4 Leads | 15 µF | ±10% | - | 900V | Polypropylene (PP), Metallized | 7.5 mOhms | -40°C ~ 105°C | Through Hole | 1.673" L x 0.945" W (42.50mm x 24.00mm) | 1.732" (44.00mm) | PC Pins | 1.476" (37.50mm) | Automotive; DC Link, DC Filtering | AEC-Q200 | 85C/85% Humidity, THB, Low ESR, Low ESL, Long Life |
|
MKT1820627065CAP FILM 27UF 10% 63VDC RADIAL |
6,330 |
|
Datasheet |
Radial | 27 µF | ±10% | 40V | 63V | Polyester, Metallized | - | -55°C ~ 125°C | Through Hole | 1.260" L x 0.433" W (32.00mm x 11.00mm) | 0.827" (21.00mm) | PC Pins | 1.083" (27.50mm) | DC Link, DC Filtering | - | - |
|
|
EFPLA1GJ474E102LHCAP FILM 0.47UF 5% 1600VDC RAD |
3,007 |
|
Datasheet |
Radial | 0.47 µF | ±5% | - | 1600V (1.6kV) | Polypropylene (PP), Metallized | 12 mOhms | -55°C ~ 105°C | Through Hole | 1.654" L x 0.748" W (42.00mm x 19.00mm) | 1.299" (33.00mm) | PC Pins | 1.476" (37.50mm) | Automotive; High Frequency, Switching; High Pulse, DV/DT | AEC-Q200 | - |
|
|
EFPLA1AJ684E102LHCAP FILM 0.68UF 5% 1000VDC RAD |
2,046 |
|
Datasheet |
Radial | 0.68 µF | ±5% | - | 1000V (1kV) | Polypropylene (PP), Metallized | 10 mOhms | -55°C ~ 105°C | Through Hole | 1.654" L x 0.748" W (42.00mm x 19.00mm) | 1.299" (33.00mm) | PC Pins | 1.476" (37.50mm) | Automotive; High Frequency, Switching; High Pulse, DV/DT | AEC-Q200 | - |
|
|
EFPLA2AJ224E102LHCAP FILM 0.22UF 5% 2000VDC RAD |
7,209 |
|
Datasheet |
Radial | 0.22 µF | ±5% | - | 2000V (2kV) | Polypropylene (PP), Metallized | 12 mOhms | -55°C ~ 105°C | Through Hole | 1.654" L x 0.748" W (42.00mm x 19.00mm) | 1.299" (33.00mm) | PC Pins | 1.476" (37.50mm) | Automotive; High Frequency, Switching; High Pulse, DV/DT | AEC-Q200 | - |
|
|
EFPLA63J185E102LHCAP FILM 1.8UF 5% 630VDC RAD |
3,905 |
|
Datasheet |
Radial | 1.8 µF | ±5% | - | 630V | Polypropylene (PP), Metallized | 8.5 mOhms | -55°C ~ 105°C | Through Hole | 1.654" L x 0.748" W (42.00mm x 19.00mm) | 1.299" (33.00mm) | PC Pins | 1.476" (37.50mm) | Automotive; High Frequency, Switching; High Pulse, DV/DT | AEC-Q200 | - |
|
|
EFPLA1DJ684E102LHCAP FILM 0.68UF 5% 1300VDC RAD |
3,901 |
|
Datasheet |
Radial | 0.68 µF | ±5% | - | 1300V (1.3kV) | Polypropylene (PP), Metallized | 11 mOhms | -55°C ~ 105°C | Through Hole | 1.654" L x 0.748" W (42.00mm x 19.00mm) | 1.299" (33.00mm) | PC Pins | 1.476" (37.50mm) | Automotive; High Frequency, Switching; High Pulse, DV/DT | AEC-Q200 | - |
|
|
C4ATJBW4220A3EJCAP FILM METAL RAD POLYPROP |
5,790 |
|
Datasheet |
Radial - 4 Leads | 2.2 µF | ±5% | 400V | 700V | Polypropylene (PP), Metallized | 3 mOhms | -40°C ~ 85°C | Through Hole | 1.260" L x 0.709" W (32.00mm x 18.00mm) | 1.299" (33.00mm) | PC Pins | 1.083" (27.50mm) | DC Link, DC Filtering; High Frequency, Switching | - | - |
|
MKP1848H61570JP4CAP FILM 15UF 5% 700VDC RADIAL |
7,247 |
|
Datasheet |
Radial - 4 Leads | 15 µF | ±5% | - | 700V | Polypropylene (PP), Metallized | 4.2 mOhms | -40°C ~ 85°C | Through Hole | 1.654" L x 0.846" W (42.00mm x 21.50mm) | 1.543" (39.20mm) | PC Pins | 1.476" (37.50mm) | Automotive; DC Link, DC Filtering | AEC-Q200 | 85C/85% Humidity; Low ESR, Low ESL |
|
|
SNMPU031506F4MKS00SNUBBER MKP 0.15 F 2000 VDC 15X2 |
8,864 |
|
Datasheet |
- | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
SNMPO133306F4MKS00SNUBBER MKP 0.33 F 1000 VDC 15X2 |
4,582 |
|
Datasheet |
- | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
SNMPU031506F4LKS00SNUBBER MKP 0.15 F 2000 VDC 15X2 |
2,320 |
|
Datasheet |
- | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
SNMPO133306F4LKS00SNUBBER MKP 0.33 F 1000 VDC 15X2 |
3,851 |
|
Datasheet |
- | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
BFC238344913CAP FILM 0.091UF 5% 1.4KVDC RAD |
2,297 |
|
Datasheet |
Radial | 0.091 µF | ±5% | 500V | 1400V (1.4kV) | Polypropylene (PP), Metallized | - | -55°C ~ 105°C | Through Hole | 1.220" L x 0.591" W (31.00mm x 15.00mm) | 0.984" (25.00mm) | PC Pins | 1.083" (27.50mm) | High Pulse, DV/DT | - | - |
|
MKP1839568165CAP FILM 6.8UF 10% 160VDC AXIAL |
5,932 |
|
Datasheet |
Axial | 6.8 µF | ±10% | 100V | 160V | Polypropylene (PP), Metallized | - | -55°C ~ 100°C | Through Hole | 0.728" Dia x 1.634" L (18.50mm x 41.50mm) | - | PC Pins | - | DC Link, DC Filtering; High Pulse, DV/DT | - | - |
|

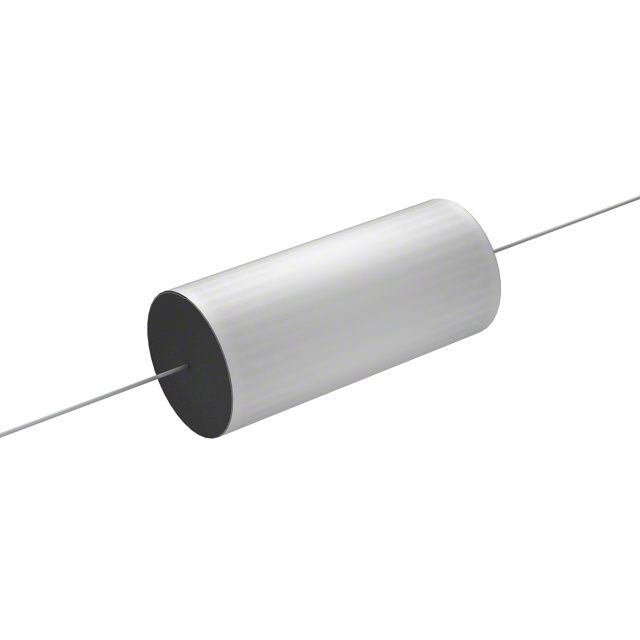

WMF4W1K-FCAP FILM 1UF 10% 400VDC AXIAL |
4,769 |
|
Datasheet |
Axial | 1 µF | ±10% | - | 400V | Polyester | - | -55°C ~ 125°C | Through Hole | 0.894" Dia x 2.000" L (22.70mm x 50.80mm) | - | PC Pins | - | General Purpose | - | - |
